Owner's Manual
PS-6300S
PureLink Presentation Switcher
TM
PureLink
535 East Crescent Avenue
Ramsey, NJ 07446
USA
Tel: +1.201.488.3232
Fax: +1.201.621.6118
E-mail:
sales@purelinkav.com
www.purelinkav.com
For order support, please contact your local dealer.
For technical support, please contact us at
support@purelinkav.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PS-6300S and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for PureLink PS-6300S

Summary of Contents for PureLink PS-6300S

  • Page 1 Owner’s Manual PS-6300S PureLink Presentation Switcher PureLink 535 East Crescent Avenue Ramsey, NJ 07446 Tel: +1.201.488.3232 Fax: +1.201.621.6118 E-mail: sales@purelinkav.com www.purelinkav.com For order support, please contact your local dealer. For technical support, please contact us at support@purelinkav.com...

  • Page 2: Table Of Contents

    PureLink by Dtrovision ABLE OF ONTENTS Chapter 1. Product Overview 1.1 Safety Precautions --------------------------------------------------------------- 1.2 Declaration of Conformity --------------------------------------------------------------- 1.3 What’s in the Box --------------------------------------------------------------- 1.4 Product Introduction --------------------------------------------------------------- 1.5 Front View --------------------------------------------------------------- 1.6 Rear View --------------------------------------------------------------- 1.7 Installation Guidelines --------------------------------------------------------------- Chapter 2.

  • Page 3: Safety Precautions

    PureLink by Dtrovision Chapter 1. Introduction 1.1 Safety Precautions  All safety instructions should be read and understood before the unit is operated.  The owner’s manual and safety instructions should be retained for future reference.  Unplug this unit from the wall outlet before cleaning. Do not use liquid or aerosol cleaners. Use a damp cloth only.

  • Page 4: Declaration Of Conformity

    Council Directive Low Voltage Equipment Safety. Each product marketed is identical to the representative unit tested and found to be compliant with the standards. 1.3 What’s in the Box  Main Frame: PS-6300S  Power Adapter – DC12V, 5A, 60W  RS-232C & LAN cables ...

  • Page 5: Product Introduction

    HDMI output. DVI-U By utilizing DVI-U port, PS-6300S can support both digital and analog video signal on both input and output of the switchers. DVI-U supports DVI, VGA, and YPbPr signal type with appropriate cable.

  • Page 6: Front View

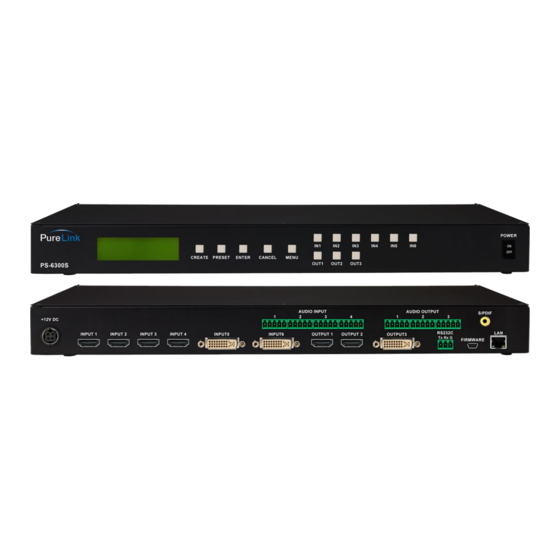

    1.5 Front View The PS-6300S chassis is mountable on 19” standard rack with brackets. On front panel, there are some function keys, and a status display window placed as shown in Figure 1-1.

  • Page 7: Installation Guidelines

    PureLink by Dtrovision (Figure 1-2) DC 12V: Power (DC +12V) port LAN: LAN (TCP/IP) port for control RS-232C: RS-232 serial port for control FIRMWARE: Mini USB port for firmware update VIDEO INPUTS : CH1 – CH4: HDMI CH5 – CH6: DVI-U (compatible with VGA and YPbPr signal with appropriate cable) VIDEO OUTPUTS : CH1 –...

  • Page 8: Chapter 2. Product Features & Specification

    Chapter 2. Product Features & Specification 2.1 Features PureLink’s new PS-6300S Presentation Switcher is a complete, high definition A/V signal-routing solution for simple conferencing environments. Together with PureLink’s fast-switching speeds, the PS-6300S provides a simple, flexible, and high-performance solution for integration into conference rooms and corporate meeting rooms.
  • Page 9 PureLink by Dtrovision Shipping Weight 8.4 lbs (3.8 kg) (with accessories and cover box) Functional Specification Communication HDMI HDMI, HDCP, EDID USB service port for firmware update 2-way device control and monitoring up to 115.2k baud rate with hardware and...
  • Page 10 PureLink by Dtrovision 1920x1080i50, 1920x1080i59, 1920x1080i60, 1920x1080p50, 1920x1080p59, 1920x1080p60, 800x600@60Hz, 1024x768@60Hz, 1280x1024@60Hz, 1600x1200@60Hz, 1360@768@60Hz, 1366x768@60Hz, 1400x900@60Hz, 1920x1200@60Hz Audio Switcher 4x3 stereo-channel source switcher Input Signal Types HDMI, analog 2 -channel Formats, Analog Stereo 2-channel ® ® Formats, HDMI Dolby Digital...

  • Page 11: Chapter 3. Operational Guidelines

    PureLink by Dtrovision Chapter 3. Operational guidelines 3.1 Main Menu On the main menu, by pressing input or output # buttons, you can check each channel’s connection status and video signal information for the channel. Press cancel button to return to the main menu 3.2 Create Menu...
  • Page 12 - Press ENTER button to save 2. DVI-U input port signal selection (DVI, VGA, YPbPr) PS-6300S has two DVI-U Input ports and user can select among three different signal types depending on the needs (DVI, VGA, or YPbPr) - Select Input # using CREATE (Up) and PREVIEW (Down) buttons then press ENTER button...
  • Page 13 - Press ENTER button to save 6. Analog audio output audio selection PS-6300S has three (3) balanced/unbalanced audio outputs and S/PDIF Audio output User can select either HDMI embedded, balanced/unbalanced audio or mute to each audio output - Select Output #(output 1~3, and S/PDIF) using CREATE (Up) and PREVIEW (Down) buttons then press...
  • Page 14 Matrix switcher has its own MAC address and that MAC address allows user to communicate with PC network solutions without any communication conflict. **How to change the LAN IP address setting using the front panel key of the matrix switcher for PS-6300S:...
  • Page 15 PureLink by Dtrovision 1. Go to front of the switcher. 2. Press the ‘Menu’ button 3. Use the ‘Create’ and ‘Preview’ buttons to shift up and down 4. Choose ‘5. Lan’ and press Enter button 5. Choose ‘1. IP Address’ and press Enter button 6.

  • Page 16: Chapter 4. Communication Code Configuration

    This section is designed for programmers who wish to create their own control programs using the command code. All PureLink digital matrix routers provide a simple character stream control used by external control devices attached to a PureLink device. Command codes are used primarily for control, during system installation and setup, and for diagnostic purposes.

  • Page 17: General Rules For Command Codes

    PureLink by Dtrovision 4.4 General Rules for Command Codes The commands are coded in ASCII and HEXA. Please refer to Table 3.1 on pg. 17 for detailed descriptions of keys and functions. A basic command code setup is shown below;...
  • Page 18 PureLink by Dtrovision Table 4.1 Command Codes Characters Table The table below shows command code characters (keys), which are used to generate control commands, their functions, and short function descriptions. Function Description and Example Byte ASCII 0x2A Start the command...

  • Page 19: Command Ack Value Response

    PureLink by Dtrovision 16: 1920x1200 60Hz Firmware version check command; ?version Firmware version check *01?version!  Network configuration setting command: - IP Setting *01NIP125.135.199.004!  - Subnet Mask Setting *01NSM255.255.255.000!  - Gate Way Setting 0x4E *01NGW192.168.000.001!  Networking setting...

  • Page 20: Example Command Codes

    PureLink by Dtrovision Command Code Ack Value as appears in the control Explanation of Result Entered program *01CI01O01!  *01sC I01O01 ! The command was successfully executed The command was not executed because *01CO01!  Command Code Error the input number was not included The command was not executed because “!”...
  • Page 21 PureLink by Dtrovision The characters and numbers in a Disconnect command tell the system which input or output to disconnect. The “D” key initiates a Disconnect command for routing a switch. The characters and numbers that follow the “D” command tell the system that inputs and outputs to disconnect. The last character “!”...
  • Page 22 PureLink by Dtrovision Command Codes Action *255BAALLS1!  Connect audio input 1 to ALL output *255BAO01S2,O02B1!  Connect audio hdmi input 2 to output 1 and balanced input 1 to output 2 *255BAO01S1,O02S2,O03B4!  Connect audio hdmi input 1 to output 1,hdmi input 2 to output 2, and balanced input 4 to output 3 *255BAO01-04B3! ...
  • Page 23 PureLink by Dtrovision Examples: Command Codes Action *255?I01!  Check Output connection status on Input 1 *255?O03!  Check Input connection status on Output 3 *255?ALLIO!  Check all Input and Output connection status Router ID Check User can confirm the router’s Current ID setting: Universal Router ID is 999...

  • Page 24: Firmware Update Instruction

    Firmware update procedure follows; 1 & 2 . Load firmware file on both Flash and EEprom. 3. Setup comport # and speed. *Baudrate speed must be matched with baud rate speed on PS-6300S unit 4. Open the port 5. Click send reset button...

  • Page 25: Chapter 6. Additional Information

    Chapter 6. Additional Information 6.1 Manufacturer’s Warranty (3-Year) PureLink warrants this PS-6300S presentation switcher to be free from defects in workmanship and materials, under normal use and service, for a period of three (3) year from the date of purchase from PureLink or its authorized resellers.
