3.1 HDD Installation

Caution： ： ： ： Please do not Install or take out hard drive when DVR is running!
HDD Installation:：
(1) Cut power firstly, and then remove screws and open DVR upper cover carefully;
(2) Insert Power Cord and data cable into Pin of hard drive securely;
(3) Remove the screws on the HDD bracket; fix the HDD to the bracket and then fix the bracket with HDD to
DVR body;
(4) Put the upper cover back carefully, re-attach screws.
Note: If user requires higher performance HDD, strongly recommend you use special hard driver for security
and protection.

3.2 Camera and Monitor Connection

Connect camera cable to video input of DVR, and from video output of DVR to Monitor via BNC connector
(Refer to section2.2-Rear Panel); or
If the camera is a PTZ speed dome, you could connect RS485 A & B to the according port of DVR
respectively (refer to system figuration on Chapter 8).

3.3 Power Supply connection

After power on please make sure the video I/O connection well, audio device with BNC cable.

4.1 System Initialization

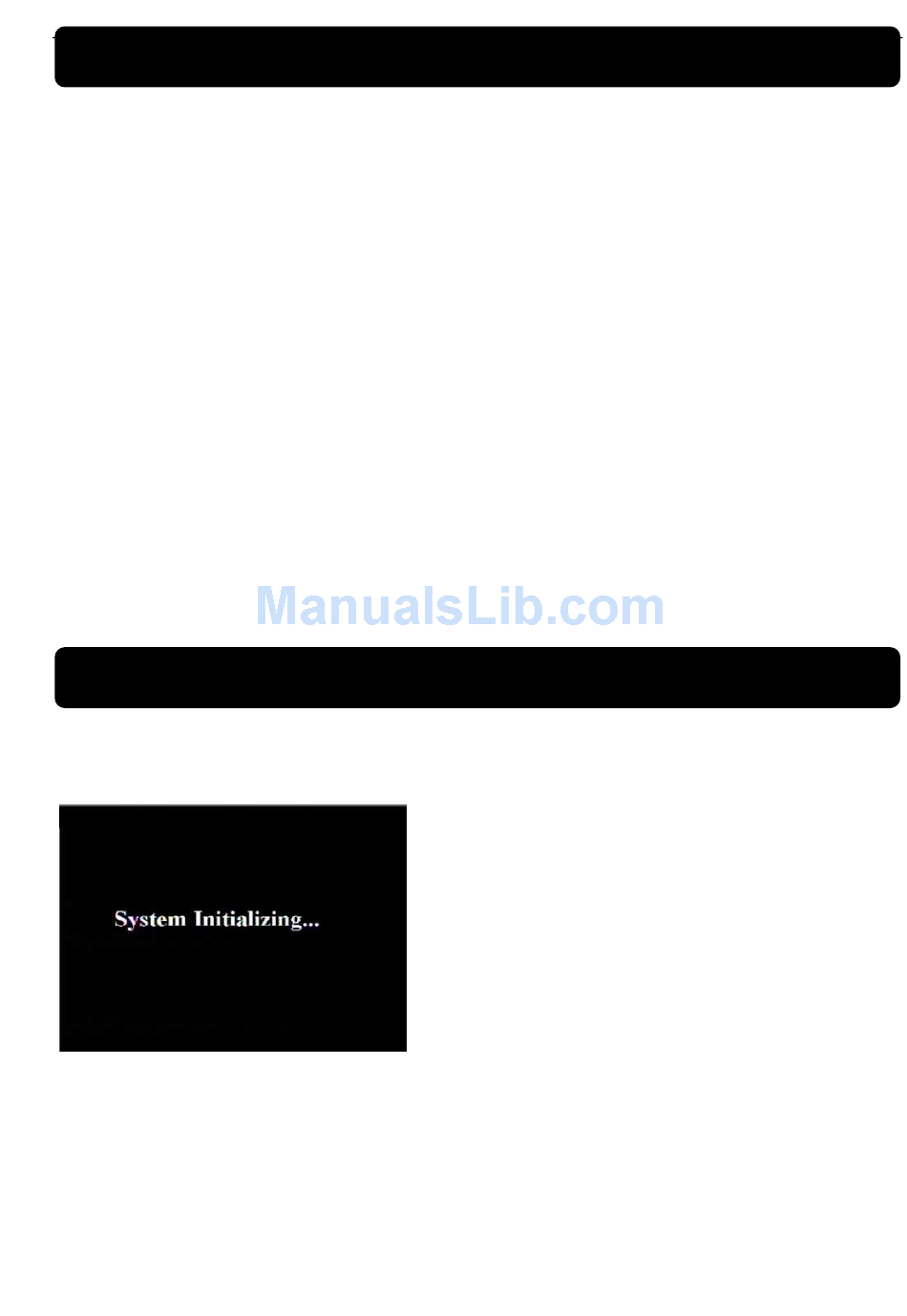

Picture 4-1

Chapter 3 DVR CONNECTION

Chapter 4: DVR Boot up

After connecting the Power cable of DVR to wall outlet
and pressing the Power button on the front panel, you will
enter into the system initializing screen shown as Picture
4-1
