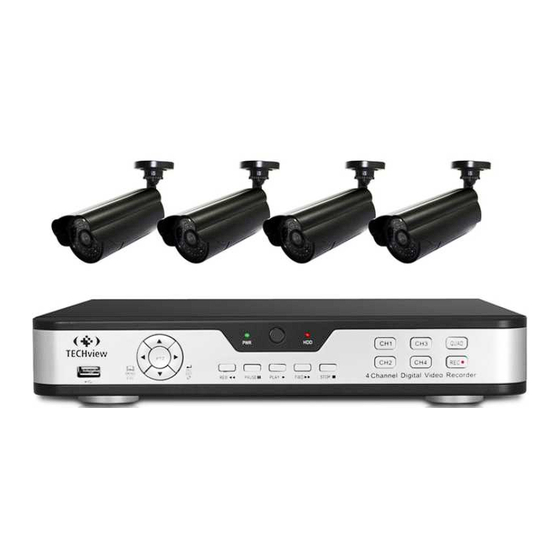

TECHVIEW QV-3012 User Manual

4 ch nvr kit
Hide thumbs
Table of Contents

Advertisement

Quick Links

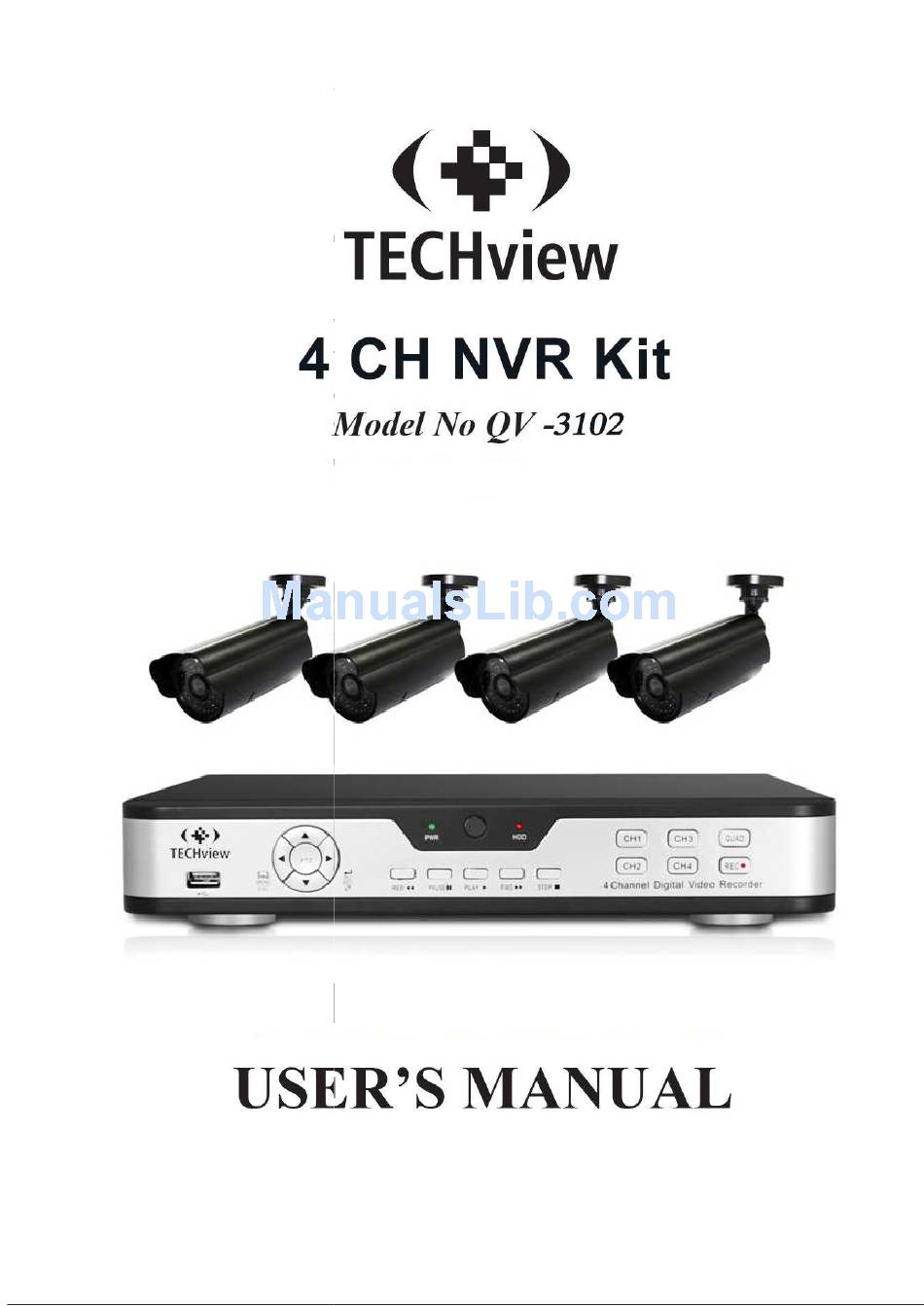

USER MANUAL
USER MANUAL
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the QV-3012 and is the answer not in the manual?

Questions and answers

Related Manuals for TECHVIEW QV-3012

Summary of Contents for TECHVIEW QV-3012

  • Page 1 USER MANUAL USER MANUAL...

  • Page 2: Table Of Contents

    USER MANUAL Contents SAFETY INSTRUCTION ..................4 CHAPTER 1 OVERVIEW OF NVR ............... 1 1.1F ........................ 1 RONT ANEL NVR Front Panel（For reference only） ............. 1 1.2 R ......................... 2 ANEL NVR Rear Panel（For reference only） .............. 2 1.3 R ) ..............
  • Page 3 USER MANUAL 5.3.2 Playback ......................27 5.3.3Parameter Setting ..................29 5.3.4 Local Setting ....................37 5.3.5 Logout ......................37 CHAPTER 6 APPENDIX ..................38 6.1T ...................... 38 ROUBLESHOOTING 6.2 U ....................39 SAGE AINTENANCE 6.3S ..................40 YSTEM ONNECTION IAGRAM...

  • Page 4: Safety Instruction

    USER MANUAL SAFETY INSTRUCTION Please carefully read the following safety instruction so as to avoid personal injuries and prevent the equipment and other connection devices from being damaged. 1. Power sources (note: please use the power supply attached or specified by the manufacturer) Never operate the equipment by unspecified power supply.

  • Page 5: Chapter 1 Overview Of Nvr

    用户手册 用户手册 用户手册 用户手册 Chapter Chapter 1 Overview of NVR Overview of NVR 1.1Front Panel P.S：NVR is short for Network Video Recorder. NVR is short for Network Video Recorder. NVR Front Panel（ （ （ （ For reference only For reference only） ） ） ） Key title Item Remark...

  • Page 6: Rear Panel

    USER MANUAL 1.2 Rear Panel NVR Rear Panel（ （ （ （ For reference only） ） ） ） Item Physical Port Connection Method Power Port Startup and shutdown Power Switch Connect the attached power supply USB Port Connect USB devices, such as USB mouse and USB flash disk. HDMI Port HDMI high definition port VGA Port...

  • Page 7: Chapter 2 Nvr Connection

    USER MANUAL Chapter 2 NVR Connection 2.1HDD Installation Caution: Please do not take out hard drive when NVR is running! HDD Installation: (1) Cut power firstly, and then remove screws on both sides and rear panel and open NVR upper cover. (2) Connect HDD data cable and power cable to the main board.
  • Page 8 USER MANUAL shown in Picture3-2. Wizard setting menu includes ： Homepage, Network setup, IPC setup, Record Schedule and hard disk maintenance.. 1． ． ． ． Homepage and network setup. In network setup page, user may set the network of NVR. Picture3-2 Picture3-3 2、IPC Setup（Picture3-4）.

  • Page 9: Chapter 4 Nvr Menu

    USER MANUAL 3.2Main Interface Picture3.2-1 Note: When internal HDD is not connected to NVR or the HDD is not formatted,first channel of the live screen and accompany buzzer alarm. If you want to close the buzzer alarm, please enter into [Event Alarm] to set HDD loss, HDD space not enough and alarm output to “off”.

  • Page 10: Main Menu Guide

    USER MANUAL 4.1 Main Menu Guide IP Camera Live Display Output Privacy Zone Record Schedule Record Mainstream Parameter Substream Network Network Email DDNS Motion Alarm Main Menu Alarm Record Search Record Search Event Search Device General Users System Info Maintain Advanced Events Shutdown...

  • Page 11: Main Menu

    USER MANUAL 4.2Main Menu On LIVE mode, click the mouse button, or [Menu] button on the remote controller, or click [ ] icon on the toolbar to enter the main menu screen, as shown in Picture 4-2. If system interface is locked, refer to section 4.3 to unlock by inputting password.
  • Page 12 USER MANUAL 4.2.1.1.2 Live Go to“Main Menu”→“Display”→“Live” to enter into the interface shown as Picture4-5. Channel： ： ： ： Select channel number. Show Time：Tick the checkbox to display time. Channel Name：Name marked on IPC Date Format：Set date format such as m/d/y or y/m/d Time Format：12 hour or 24 hour OSD Position：Freely set the position of IPC...

  • Page 13: Record

    USER MANUAL 4.2.1.1.4 Privacy Zone Privacy Zone is for setting some invisible parts in the selected channel, as shown in Picture4-8 and Picture4-9. 1. Select the number of the zone to be set (maximum 4 zones can be set for single channel) 2.
  • Page 14 USER MANUAL 4.2.1.2.2 Schedule Go to “Main Menu”→“Record”→“Schedule” to enter into the Schedule interface shown as Picture4-11 and set the record schedule of NVR. Select the channel and the date to be set. One week’s schedule can be set. The record schedule of the current channel can be copied to any other channel or all channels.

  • Page 15: Network

    USER MANUAL 4.2.1.3 Network 4.2.1.3.1 Network Go to“Main Menu”→“Parameter”→“Network” to enter into the interface shown as Picture 4-13. Select a kind of network connection (PPPOE, DHCP,Static) and set Port, then user may remotely control the monitoring, recording, playback or backup of NVR through network, as shown in Picture 4-13.
  • Page 16 USER MANUAL USER MANUAL 4.2.1.3.3DDNS Go to“Main Menu”→“Parameter Parameter”→“Network”→“DDNS”to enter into the menu interface. menu interface. User may set DDNS in any one of the above network connection after applying dynamic NS in any one of the above network connection after applying dynamic NS in any one of the above network connection after applying dynamic domain service.
  • Page 17 USER MANUAL Area： ： ： ： Click it to enter into the interface shown as Picture 4-16-2 to set the motion detection area to be monitored intensively. A single channel is divided into 15ⅹ12（PAL）or 15ⅹ10（NTSC）configurable grids. The red grids indicate that the motion detection in the area is enabled, white semitransparent ones indicates that the motion detection in the area is disabled.
  • Page 18 USER MANUAL 4.2.2 Record Search 4.2.2.1Record Search Go to “Main Menu”→“Record Search”→“Record Search” to enter into the interface shown as Picture 4-18 Channel:Select the channel you want to search. Type:Select the type the playback record. There are two options, i.e. Normal and Alarm. Start Time/End Time:Select the specific period of time.
  • Page 19 USER MANUAL USER MANUAL Detailed operation： ： ： ： Fixed time axis: If you select [ Fixed time axis: If you select [ ] option, that means the processing control bar cover ] option, that means the processing control bar cover two-hours video content.
  • Page 20 USER MANUAL Picture 4-24 Picture 4-23 If you want to back up with USB, select USB and click OK to start processing and you may see the backup progress shown as Picture 4-23. If you want to back up with DVD, select DVD and click OK to start processing and you may see the backup progress shown as Picture 4-24.
  • Page 21 USER MANUAL USER MANUAL : Play: Click to play file : Pause: Click to pause. : Pause: Click to pause. : Stop: Click to stop playback. : Stop: Click to stop playback. : Next: Click to play next file. : Next: Click to play next file. : Previous: Click to play previous : Previous: Click to play previous file Slow Playing: click to play at...

  • Page 22: Device

    USER MANUAL 4.2.3 Device Go to “Main Menu”→“Device”→“HDD” to enter into the interface shown as Picture 4-28. When NVR is connected to a HDD, the system will automatically detect if HDD is normal or not; If HDD need to be formatted, status will be shown as “Not formatted”.
  • Page 23 USER MANUAL 4.2.4 .1System 4.2.4.1.1 General Go to“Main Menu”→“System”→“General” to enter into the interface shown as Picture 4-31. User maysetDate, Time, Date Format, Time Format, Language, Video Format, Menu Timeouts and Show Wizard in this page. Picture 4-31 4.2.4.1.2DST Go to“Main Menu”→“System”→“General”→“DST”to enter into the interface shown as Picture 4-32.
  • Page 24 USER MANUAL 4.2.4.2 Users Go to“Main Menu”→“System”→“Users”to enter into the User interface shown as Picture 4-34. It supports up to seven users, including one administrator and six users. Click [Edit] button to enter into the [User Edit] interface to input user name and password, as shown in Picture 4-35.

  • Page 25: Log

    USER MANUAL 4.2.4.3.2 Channel Info Go to“Main Menu”→“System”→“Info”→“Channel Info”，as shown in Picture 4-38 User may view the information of various connected IPC, including state, mainstream, substream, motion detection, privacy zone, cruise, etc. Picture 4-38 4.2.4.4 Log Go to“Main Menu”→“System”→“Log”, as shown in Picture 4-39. Picture 4-39 User may search log information in different period of time.

  • Page 26: Shutdown

    USER MANUAL Load Default: If [Load Default] is selected, you can initialize the system to the ex-factory default. Click “Load Default” and select items to be restored Load Settings: Load parameters in the removable storage device to NVR. Save Settings: Save the set parameters of user’s NVR to the removable storage device.

  • Page 27: Menu Lock

    USER MANUAL 4.3Menu Lock In consideration of system safety, user may click the icon on the toolbar when he leaves away from NVR and the system interface will be locked. User has to input Device ID, User Name and Password on the login interface to unlock(Default: User Name: admin, Password: blank).

  • Page 28: Chapter 5 Web Application Manager

    USER MANUAL Chapter 5 Web Application Manager ActiveX control download and installation Open your web browser and input the IP address of NVR, such as: http://192.168.1.168 . If your computer is connected to internet, it will download and install “ActiveX” plug-in automatically. If your computer system is Windows Vista or Windows 7, you may need to setup the user authority for remote control, or you may be unable to backup or record.

  • Page 29: Web Application Manager Login

    USER MANUAL 5.2 Web Application Manager Login After ActiveX controls installation, please input user name and password, select Main Stream or Sub Stream (In general, select main stream for intranet and sub stream for outer net), and select language in the interface shown as picture 5-2. There is an option for opening all channel preview, select it to open all live pictures.

  • Page 30: 1Menu Bar

    USER MANUAL 5.3.1Menu Bar Menu Bar: Live, Replay, Configuration, Local Setting and Logout 5.3.1.1Live Display Log in the Web Application Manager, system will be defaulted to enter into <Live> interface shown as Picture 5-3. You can click [Play] button to Open/close live images, on-spot record, capture, and many live display modes.

  • Page 31: Playback

    USER MANUAL USER MANUAL ：Adjust the chromaticity of video Adjust the chromaticity of video ：Adjust the brightness of video brightness of video ：Adjust the contrast of video Adjust the contrast of video ：Adjust the saturation of video Adjust the saturation of video 5.3.2 Playback Click to enter into Playback interface to remotely view the records...
  • Page 32 USER MANUAL as shown in Picture 5-7. On the time axis, red part stands for alarm record, yellow stands for normal record and original part stands for no record during this period. Picture 5-8 Before playback, choose to enable playback 4 channels synchronously. If you tick-select “...

  • Page 33: 3Parameter Setting

    USER MANUAL saved as *.264 format. Snapshot function Move the mouse curse to the channel you want to capture, and click [ ] icon to capture the live images remotely. After capturing the images successfully, a path prompt box will be popped up, as shown in Picture 5-10. Picture 5-10 The captured file will be saved as .bmp format.
  • Page 34 USER MANUAL on the screen on Live mode. Picture 5-12 2.IP Camera：Display the information of added IPC. It can quickly add the on-line IPC and delete the added IPC, as shown in Picture 5-13. Picture 5-13 3. Privacy Zone: Each channel can set 4 privacy zones, as shown in Picture 5-14. The relevant parameters should be consistent with NVR local setting.
  • Page 35 USER MANUAL shown in Picture 5-15. Picture 5-15 2. Record Schedule. The parameters should be consistent with NVR local setting, as shown in Picture 5-16. Picture 5-16 Green stands for Normal record; Yellow stands for Motion detection; Red stands for I/O trigger record.
  • Page 36 USER MANUAL modified successfully, NVR will automatically restart. Picture 5-18 2. Email: Set NVR alarm Email configuration parameters, including Email address, SSL, Email Enable, Interval and Email Schedule, etc. Detailed parameters should be consistent with NVR local setting. Refer to Picture5-19. Picture5-19 3．DDNS: After user applies for DDNS service, you could enable <DDNS>...
  • Page 37 USER MANUAL 5.3.3.4 Alarm Alarm setting includes Motion Detection and I/O Alarm Parameters. Motion Detection: Configure Sensitivity, Alarm out, Alarm Record and Alarm Capture, etc. Detailed setting should be consistent with NVR local setting (Shown as Picture 5-21). Picture 5-21 I/O alarm setting (If available): Set parameters for I/O Alarm, Alarm Out, Alarm Record, Send Email, etc.
  • Page 38 USER MANUAL 2. PTZ User may set the relevant parameters of PTZ. Detail setting should be consistent with NVR local setting. Please refer to Picture 5-24. Picture 5-24 5.3.3.6 System Click <System> option to unfold its sub-options: General, Users and information. 1.
  • Page 39 USER MANUAL 3. Information User may search device name, device number, device type, MAC address, software version, IE version and hardware version of NVR shown as Picture 5-27. Picture 5-27 5.3.3.7 Advanced Click Advance to unfold its sub-options: FirmwareUpdate, Load default, Events and Maintain.
  • Page 40 USER MANUAL Secondly, click “Start” to start updating. The updating progress can be seen on the screen, as shown in Picture 5-30. Picture 5-30 2. Load Default User may remotely restore default parameters of NVR, with same setting method as that of NVR, shown as Picture 5-31.

  • Page 41: Local Setting

    USER MANUAL 4. Maintain Allow you remotely set auto maintain time for NVR shown as Picture 5-33. Detailed setting should be consistent with NVR local setting. Picture 5-33 5.3.4 Local Setting User may set Record Path (save Live record and Playback clip file), Download Path for remote file, SnapshotPath for captured pictures, Interval for switching record files (Packaging time), and File type (H264 and AVI) shown as Picture 5-34.

  • Page 42: Chapter 6 Appendix

    USER MANUAL Chapter 6 Appendix 6.1Troubleshooting Q: What can I do if the system does not detect the HDD? A: Check if the power supply system is properly connected and data cord and power cables are securely connected, and if something wrong with the HDD interface. Or you may check if your HDD is supported by referring to the specifications or descriptions.

  • Page 43: Usage Maintenance

    USER MANUAL 13. Q: Why does buzzer keep alarming? A: Please check the alarm setting, check if motion detection function is enabled and object motion is detected all the time and if I/O alarm is set as Always Off. Besides, refer to corresponding HDD alarm setting.

  • Page 44: System Connection Diagram

    USER MANUAL USER MANUAL System Connection Diagram System Connection Diagram 7.2 Accessories Remote Controller Power Adapter User Manual (Good in kind prevail) USB Mouse USB Mouse Warranty Card...
  • Page 45 USER MANUAL The material in this document is the intellectual property of our department . No part of this manual reproduced, copied, translated, transmitted, or published in any form or by any means without our department prior written permission. Our products are under continual improvement and we reserve the right to make changes without notice.
