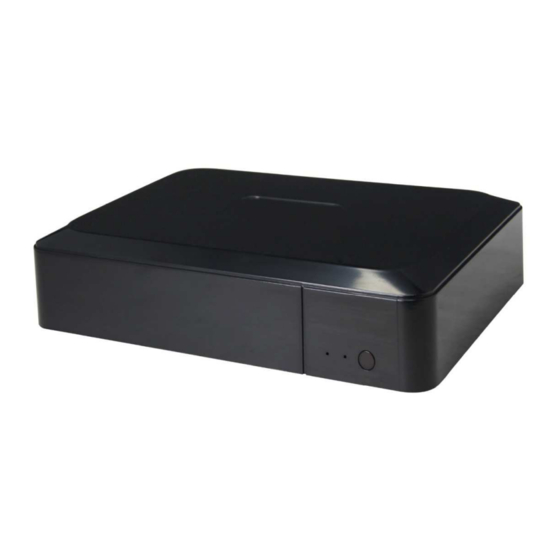

Related Manuals for TECHVIEW QV-3049
Summary of Contents for TECHVIEW QV-3049

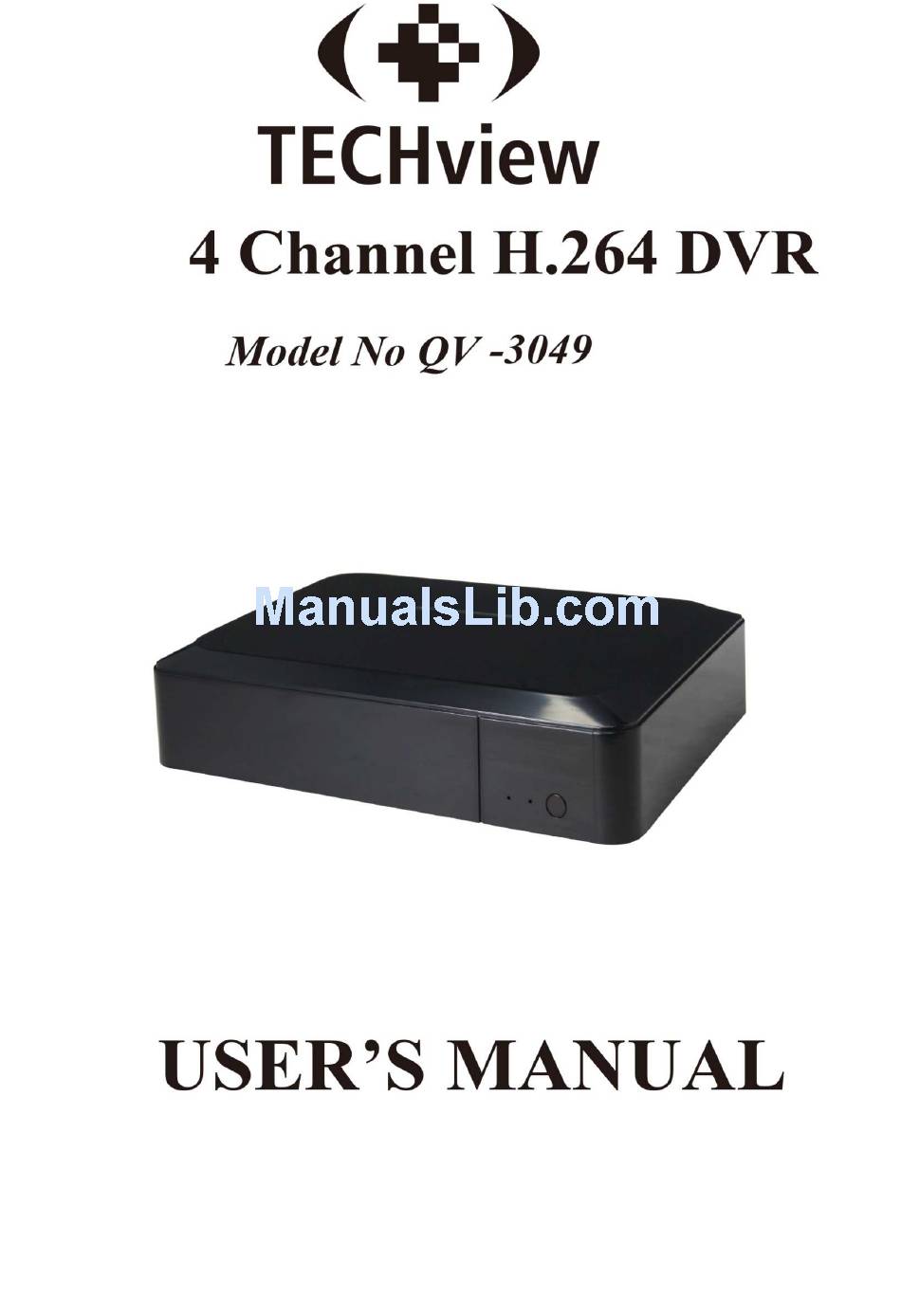

- Page 1 User Manual ·...
-
Page 2: Table Of Contents
User Manual Contents CONTENTS ..................................1 SAFETY INSTRUCTION ..............................3 CHAPTER 1 FEATURES AND FUNCTIONS ........................1 CHAPTER 2: OVERVIEW ..............................2 2.1 F ................................... 2 RONT ANEL 2.1、4-CH DVR Front Panel ............................. 2 2.2R ..................................... 2 ANEL 2.2、4-CH DVR Rear Panel ............................2 2.3 4CH R .............................. - Page 3 User Manual 5.2.5.1 Motion ..................................... 17 5.2.6 Device ..................................18 5.2.6.1 HDD Set ....................................18 5.2.7 System ..................................19 5.2.7.1 General ....................................19 5.2.7.2Users ......................................20 5.2.7.3 Information ....................................21 5.2.8 Advanced ................................. 21 5.2.8.1 Maintain ....................................21 5.2.8.2 Event ......................................21 5.3M ...................................
-
Page 4: Safety Instruction
User Manual Safety Instruction 1. Read Instruction All the safety and operating instruction should be read before the equipment is operated. 2. Power sources This equipment should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power, please consult your equipment dealer. -
Page 5: Chapter 1 Features And Functions
User Manual Chapter 1 Features and Functions Function Brief and Description Double video output; with monitor, VGA virtual output port or HDMI Output; Real time Support net-viewer and MP live surveillance and also support zoom in/out, monitoring auto sequence and PIP display. H.264 video compression format;... -
Page 6: Chapter 2: Overview
User Manual Chapter 2: Overview 2.1 Front Panel Reminder: DVR is the abbreviation of Digital Video Recorder Equipment. 2.1、 、 、 、 4-CH DVR Front Panel Item Key title or Indicator Remark Function & Description If the “Green” indicator is on the system is getting IR Receiver power normally. -
Page 7: 4Ch Remote Controller
User Manual 2.3 4CH Remote Controller Item Key title Key function Channel select 1-8; Numeric key Numeric key; Clicking numeric “0” allow you 9、0 switch to output device Multiple display mode Menu Enter into Main menu/Exit ▲ Up arrow key, Volume adjust ▼... - Page 8 User Manual Mouse Operation Except using buttons of front panel or remote controller, you also can use mouse to perform system operation. TYPE Function In menu lock mode, Enter into pop-up menu and clicking any sub menu to pop up Log-in window; on menu unlock mode, enter into pop-up menu, and then clicking left key to enter into any sub menu directly.
-
Page 9: Chapter 3 Dvrconnection
User Manual Chapter 3 DVRCONNECTION 3.1 HDD Installation Caution： ： ： ： Please do not Install or take out hard drive when DVR is running! HDD Installation:： (1) Cut power firstly, and then remove screws and open DVR upper cover carefully; (2) Insert Power Cord and data cable into Pin of hard drive securely;... -
Page 10: Live Interface
User Manual 4.2 Live Interface After finishing initialization the system will enter into After finishing initialization the system will enter into <Live> screen. which is showing no video input status. . which is showing no video input status. Once there are video inputs, the screen screen will display live images from the cameras.In will display live images from the cameras.In Live mode, if you use the mouse to double-click the live image of any channel, the image will be maximized to full screen, by... -
Page 11: Main Menu Guide
User Manual Main Menu Guide Live set Display Output Set Privacy Zone Record Parameters Record Schedule Main Stream Record Search Clip Set Record Playback Search Backup Event Search Log search Network Set Sub stream Main Menu Email Set Network Mobile Set DDNS Set Alarm Motion Detection... -
Page 12: Main Menu
User Manual 5.2Main Menu On <Live> mode, click [Menu] button on the On <Live> mode, click [Menu] button on the front panel or Remote controller to enter into Main front panel or Remote controller to enter into Main menu interface shown as Picture 5 menu interface shown as Picture 5-2. - Page 13 User Manual Click [Live] to pop up the interface Click [Live] to pop up the interface Go to [Main menu Display Output] Output] shown as Picture 5-6. Now you could 6. Now you could to enter into the output set interface enter into the output set interface perform channel sequence setting.
-
Page 14: Privacy Zone
User Manual 5.2.1.3 Privacy Zone The function Allow you setup privacy zone The function Allow you setup privacy zone parameters according to Picture 5 parameters according to Picture 5-12. Each channel could set up to four privacy zones, and please follow below steps to set: up to four privacy zones, and please follow below steps to set: 1. -
Page 15: Main Stream
User Manual After you complete the schedule you activate it by clicking the [Apply] button. After you complete the schedule you activate it by clicking the [Apply] button. You can also click on the Default button to use the system defaults. You can also click on the Default button to use the system defaults. -
Page 16: Channel Select
User Manual 5.2.3.2 Channel Select Click [Main Menu Search Record search] Record search] to enter into the interface shown as Picture to enter into the interface shown as Picture 5-18 Then tick-select the channel you want to select the channel you want to playback;... -
Page 17: 4Event Search
User Manual Picture 5-19B-2 Picture 5 Picture 5-19C Clip and backup: When one channel is playing Clip and backup: When one channel is playing-back, the [ ] icon will appear in the [Play con will appear in the [Play control] bar shown as Picture 5-19B-1. -
Page 18: Log Search
User Manual Log Search 5.2.3.5 Herein allow you preview the log information you Herein allow you preview the log information you Goto [Main menu Search Log] option to have searched. And click [Backup] to export all have searched. And click [Backup] to export all enter into the Log search interface shown as enter into the Log search interface shown as the log information which is listed. -
Page 19: Mobile Set
User Manual Friendly Reminder: All the parameters you set are available only when you click [Apply] and after system are All the parameters you set are available only when you click [Apply] and after system are All the parameters you set are available only when you click [Apply] and after system are restarted. -
Page 20: 3Router's Port Forwarding
User Manual Section 5.2.4.3. 3、 Save the parameters and exit Main Menu; Save the parameters and exit Main Menu; 4、 System auto restart; 5、 User name and password of mobile is consistent User name and password of mobile is consistent with DVR 5.2.4.3Router’s Port Forwarding Router’s Port Forwarding Port forwarding is required when you want to access the DVR connected to the... -
Page 21: 6Ddns Set
User Manual SMTP Port: indicate one kind of mail transmittal port opened by Simple Message SMTP Port: indicate one kind of mail transmittal port opened by Simple Message SMTP Port: indicate one kind of mail transmittal port opened by Simple Message Transfer Protocol (SMTP). -
Page 22: Device
User Manual Latch time: you can set how long the buzzer will sound when object move is detected(10s, you can set how long the buzzer will sound when object move is detected(10s, you can set how long the buzzer will sound when object move is detected(10s, 30s, 40s, 60s);... -
Page 23: System
User Manual DVR will always be able to record events as they happen, however, it does means that you’ll need to get DVR will always be able to record events as they happen, however, it does means that you’ll need to get DVR will always be able to record events as they happen, however, it does means that you’ll need to get important events off the HDD before they’re important events off the HDD before they’re overwritten;... -
Page 24: 2Users
User Manual Picture 5 Picture 5-51 Picture 5-50 Note: The above [NTP function] change will be available only when system connected to internet. And The above [NTP function] change will be available only when system connected to internet. And The above [NTP function] change will be available only when system connected to internet. And When NTP function is set to “Enable”, system will calibrate the time at every 00:07:50 and every start When NTP function is set to “Enable”, system will calibrate the time at every 00:07:50 and every start When NTP function is set to “Enable”, system will calibrate the time at every 00:07:50 and every start-up. -
Page 25: Information
User Manual 5.2.7.3 Information Click [Main Menu System Info] and then enter into the interface shown as Picture 5 Info] and then enter into the interface shown as Picture 5 Info] and then enter into the interface shown as Picture 5-55. Picture 5-55-1 Picture 5-55 55-2... -
Page 26: Menu Lock
User Manual 5.3Menu Lock Considering a system safety feature you can click [] icon to lock system interface when leaving the DVR. If you want to login to the DVR again, you would input device code andpassword to unlock the interface shown as Picture 5-59 Friendly Reminder: Administrator has full authority over Main Menu operations and has an authority to... -
Page 27: Chapter 6: Web Application Manager
User Manual Chapter 6: Web Application Manager 6.1ActiveX control download and installation Open your web browser and input the IP address and web port of DVR, such as ： http://172.18.6.202:8080/ . If your computer is connected to internet, it will download and install “ActiveX” Plug-in automatically. -
Page 28: Web Application Manager Log - In
User Manual 6.2 Web Application Manager Log Web Application Manager Log-in After ActiveX controls installation ActiveX controls installation, please input user name, password and client port; and client port; and select <Main stream> or <sub stream>, and then allow you tick stream>... -
Page 29: Video Control
User Manual Or click the right key of mouse on each <Live> window to pop up the interface shown as Picture 6 Or click the right key of mouse on each <Live> window to pop up the interface shown as Picture 6 Or click the right key of mouse on each <Live>... -
Page 30: Playback
User Manual 6.3.2 Playback Click [ ] icon to enter into <playback> interface shown Picture 6 ] icon to enter into <playback> interface shown Picture 6-7. Picture 6-7 6.3.2.1 Record search Firstly, select one day you want to check and tick Firstly, select one day you want to check and tick-select <synchronous Playback>... -
Page 31: Playback Control
User Manual If you tick-select < > option, that means the selected channel will playback synchronously; > option, that means the selected channel will playback synchronously; otherwise, you could separately control the channels playback. otherwise, you could separately control the channels playback. Thirdly, Click [ ] icon to start record playback. -
Page 32: Configuration
User Manual Record file download Click [ ] icon to enter into the below interface shown as Picture 6 into the below interface shown as Picture 6-12. Picture 6-12 Tick-select the record file you want to download and click [Start download] select the record file you want to download and click [Start download] System will download the record file in turn and save to local PC. -
Page 33: Record
User Manual 6.3.3.2 Record Click <Record> option to unfold its sub Click <Record> option to unfold its sub-options: Record parameter, Schedule and Main stream. options: Record parameter, Schedule and Main stream. Picture 6-15 Picture 6 Picture 6-16 1、 Record Parameters: Record Parameters: Under [Record parameters] option, allow you set channel, record enable, pack time you set channel, record enable, pack time... -
Page 34: 4Alarn
User Manual Picture 6-21 3、Email setting: Click [Email setting] option to allow you set alarm email configuration parameters shown as Click [Email setting] option to allow you set alarm email configuration parameters shown as Click [Email setting] option to allow you set alarm email configuration parameters shown as Picture 6-22. -
Page 35: Device
User Manual 6.3.3.5 Device Click <Device> to unfold its sub its sub-options: HDD 1、 HDD: Allow you check out HDD status and overwr you check out HDD status and overwritten time shown as Picture 6 e 6-27. Detail setting should be consistent with DVR local setting. -
Page 36: Advanced
User Manual 3、 、 、 、 Information: Allow you check out device name, number, type, MAC Allow you check out device name, number, type, MAC address, software version, IE address, software version, IE version and hardware version shown as Picture re version shown as Picture 6-31. -
Page 37: Local Setting
User Manual 2、 、 、 、 Load Default: allow you recover defaulted parameters of DV allow you recover defaulted parameters of DVR remotely shown as Pic R remotely shown as Picture 6-35. Details setting should be consistent with DVR local setting. setting should be consistent with DVR local setting. -
Page 38: Chapter 7: Appendix
User Manual Chapter 7: Appendix 7.1 Troubleshooting Q: What can I do if the system does not detect the HDD? A: Check if the power supply system is properly connected and data cord and power cables are securely connected. Q: We have changed the password but do not remember the new password, how can we access the system? A: If you forget system password, please consult with the service personnel. -
Page 39: Accessories
User Manual 7.3Accessories 1. 4/8 CH Accessories Power Adapter User Manual USB Mouse USB Mouse Remote Controller Software CDSoftware CD... - Page 40 The material in this document is the intellectual property of our department . No part of this manual reproduced, copied, translated, transmitted, or published in any form or by any means without our department prior written permission. Our products are under continual improvement and we reserve the right to make changes without notice.
