INSTALLATION, OPERATION AND MAINTENANCE MANUAL
Please read carefully before proceeding with installation. Failure to follow attached
instructions or operating parameters may lead to the product's failure.
******************************************************************************************
Watts Premier, Inc.
Phone: 800-752-5582
Part # 191931
Warning
Save manual for future reference.

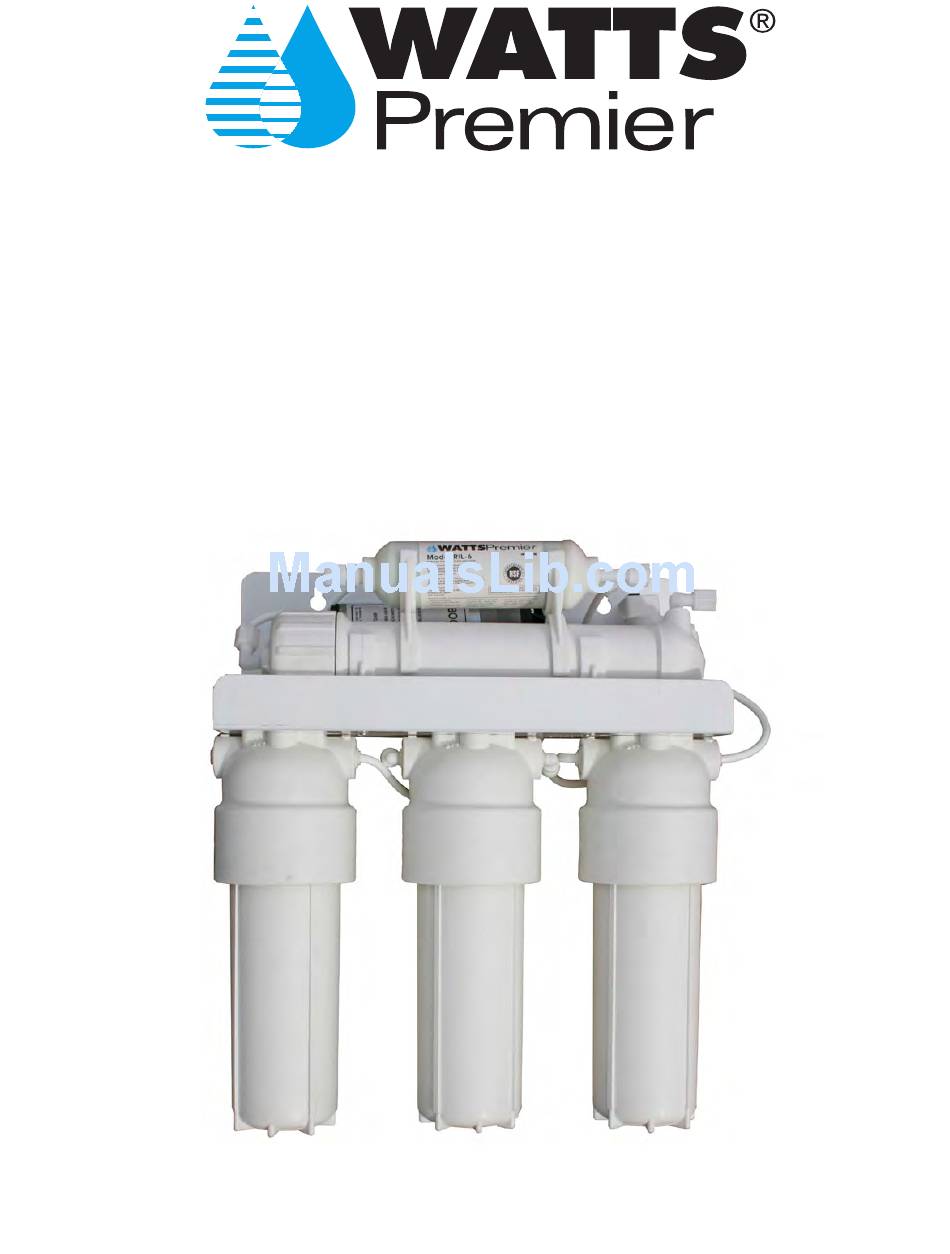

Model: HT-5-VOC-B
REVERSE OSMOSIS SYSTEM
8716 W Ludlow Drive Suite #1
www.wattspremier.com
Page 1
Peoria, AZ 85381
Fax: 623-866-5666
Manual Date: 08/31/12
Advertisement
Table of Contents
Related Manuals for Watts Premier HT-5-VOC-B
Summary of Contents for Watts Premier HT-5-VOC-B
- Page 1 Please read carefully before proceeding with installation. Failure to follow attached instructions or operating parameters may lead to the product’s failure. ****************************************************************************************** Save manual for future reference. Model: HT-5-VOC-B REVERSE OSMOSIS SYSTEM Watts Premier, Inc. 8716 W Ludlow Drive Suite #1...
- Page 2 Thank you for your purchase of a state of the art Reverse Osmosis (RO) water treatment system. Water quality concerns are becoming more of a focus for the public. You may have heard about contaminants in the drinking water, such as Arsenic, Chromium, Cryptosporidium or Giardia.
-
Page 3: Table Of Contents
** Before installation, please take a moment to fill out the warranty card on page 17. Table of Contents Operational Parameters ........................4 Contents of Reverse Osmosis System .................... 4 Installation & Startup Tools Recommended For Installation ....................4 Plumbing diagram and parts list ...................... 5 Drill a Hole for the Reverse Osmosis Faucet .................. -
Page 4: Operational Parameters
Operational Parameters Do not use with water that is micro biologically unsafe or of unknown quality without adequate disinfection before or after the system. System is intended to be installed on the cold water line only. Operating Temperatures: Maximum 100°F (37.8°C) Minimum 40°F (4.4°C) Operating Pressure: Maximum 85 psi (6.0 kg/cm... -
Page 5: Plumbing Diagram And Parts List
Plumbing Diagram and Parts List 116118 15 Wire Harness - Pump 152040 Faucet 100004 16 Green Tubing 1/4” 140007 Polishing Filter 119019 17 Blue Tubing 1/4” 140004 Storage Tank 134039 18 White Tubing 1/4” 140009 Tank Ball Valve 152018 19 System Bracket 137031 Power Transformer 113013... -
Page 6: Drill A Hole For The Reverse Osmosis Faucet
Drill a Hole for the Reverse Osmosis Faucet Marble Counter-top We recommend contacting a qualified contractor for drilling a hole in a marble counter-top. Counter Top / Porcelain & Stainless Steel Sink Most sinks are pre drilled with 1 ¼” diameter hole that you can use for your RO faucet. Note: (If you are already using it for a sprayer or soap dispenser, see step 1) Porcelain sinks are extremely hard and can crack or chip easily. -
Page 7: Adapt-A-Valve Installation
Adapt-a-Valve Installation Caution: Black Water supply line to the system must be from the cold water Collet supply line only. Hot water will severely damage your system. Verify contents prior to installation: ( 1 ) - Plastic Adapt-a-Valve with black collet ( 1 ) - Brass Adapter no washer White ( 1 ) - Brass Adapter with black washer... -
Page 8: Drain Saddle Installation
Drain Saddle Installation Drain Saddle fits standard 1 ¼” – 1 ½” drain pipes Caution: If you have a garbage disposal, do not install the drain saddle near it. Installation of the drain saddle must be either above the garbage disposal, or if a second sink drain is available, install it above the cross bar on the second drain. -
Page 9: Green Tube Connection
Green Tube Connection Green Tube Step 17 In the parts bag locate the 1/4” Green tubing. Connect the tube to the RO system (left housing) by inserting it into the open 1/4” quick connect fitting on the housing lid. Make sure the tube is pushed in all the way to the tube stop. -
Page 10: Start Up Instructions
Congratulations! You have completed the installation of your new Reverse Osmosis system. Please Follow the Startup Instructions. Start up Instructions Warning: To prevent the possibility of electrical shock, clean up any water on cabinet floor and dry all water from outside of RO unit. Step 1 Turn on the cold water angle stop valve. -
Page 11: Six Month System Maintenance
6 Month System Maintenance *Order filters by calling 1-800-752-5582 or buy online at www.wattspremier.com. Items needed: √ Stage 1 - Sediment Filter (part #: 104017) √ Stage 2 - Carbon Block Filter (part #: 101009) Step 1 Close the ball valve on the RO storage tank and open the RO Faucet. Step 2 Turn off the incoming cold water supply to the RO at the adapt-a-valve and unplug the power transformer from the electrical outlet. -
Page 12: Six Month System Maintenance
Annual Maintenance Items needed: √ Stage 1 - Sediment Filter (part #: 104017) √ Stage 2 - Carbon Block Filter (part #: 101009) √ Stage 4 - Carbon VOC (part #: 101013) √ Stage 5 - Final In-line Filter (part #: 100004) Sanitizing of unit is recommended. -
Page 13: Membrane Replacement
This reverse osmosis system contains a replaceable component (the RO membrane) which is critical to the efficiency of the system. Replacement of this reverse osmosis membrane should be with one of identical specifications as defined by Watts to assure the same efficiency and contaminant reduction performance. Membrane Replacement Membranes have a life expectancy between 2 and 5 years, depending on the incoming water conditions and the amount the RO system is used. -
Page 14: Check Air Pressure In The Tank
Check Air Pressure in the Tank Important: Check air pressure only when tank is empty of water! Check air pressure in the storage tank when you notice a decrease in available water from the RO system. Air can be added with a bicycle pump using the schrader valve that is located on the lower side of the tank behind a blue plastic cap. -
Page 15: Performance Data Sheet
TECHNICAL & WARRANTY INFORMATION Performance Data Sheet HT-5-VOC-B Watts Premier Inc. 8716 W Ludlow Drive Suite #1 Peoria, AZ 85381 (480) 675-7995 wpmail@wattsind.com GENERAL USE CONDITIONS: 1. System to be used with municipal or well water sources treated and tested on regular basis to insure bacteriological safe quality. Do not use with water that is microbiologically unsafe or unknown quality without adequate disinfection before and after the system. -
Page 16: Voc Performance Data Sheet
VOC Performance Data Sheet Watts Premier Inc. 8716 W Ludlow Drive Suite #1 Peoria, AZ 85381 USA Influent Challenge Maximum Substance Percent Reduction Concentration Permissible Product (mg/L unless noted) Water Concentration ALACHLOR >98% 0.05 0.001 ATRAZINE >97% 0.003 BENZENE >99% 0.081... -
Page 17: Warranty Registration
Watts Premier collects personal information when you register with Watts Premier. This information is stored in our database and we do not rent, sell, or share personal information with other people or nonaffiliated companies. - Page 18 Iowa Department of Public Health - Sales in Iowa require this to be completed, signed and returned. These signatures will be retained on file for two years. Insert into envelope and return to Watts Premier Watts Premier 8716 W Ludlow Drive Suite #1...
-
Page 19: Service Record
Service Record Date of Purchase:__________ Date of Install:___________ Installed by:__________________ 2 nd stage 4th stage Final Filter 1st stage Date Carbon Carbon Membrane Sediment (6 months) (1 year) (1 year) (2-5 years) (6 months) NOTES: Page 19... -
Page 20: Limited Warranty
Limited Warranty What your Warranty Covers: If any part of your Watts Reverse Osmosis System is defective in workmanship (excluding replaceable filters and membranes), return unit after obtaining a return authorization (see below), less tank, within 1 year of original retail purchase, Watts will repair or, at Watts’S option, replace the system at no charge.
