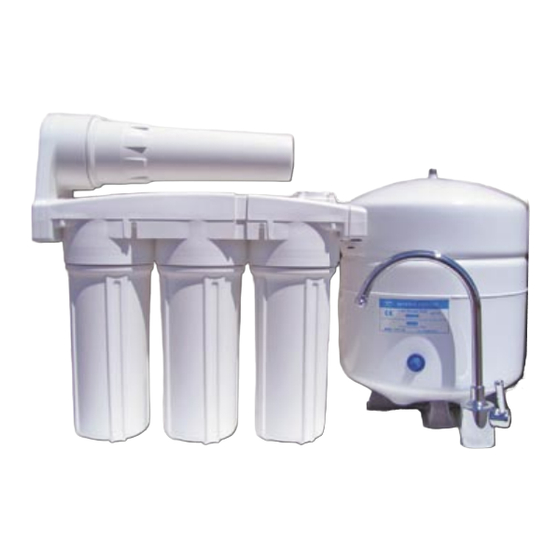

Reverse osmosis (ro) water treatment system

Advertisement

INSTALLATION, OPERATION AND MAINTENANCE MANUAL
Please read carefully before proceeding with installation. Your failure to follow any attached instructions
or operating parameters may lead to the product's failure and possible damage to property.
System Tested and certifi ed by NSF International against ANSI/NSF
Refer to enclosed warranty and operating parameters to ensure proper use with your water supply.
Watts Premier, Inc.
Phone: 800-752-5582
P/N: 199393
Save manual for future reference
Standard 53 & 58 for the reduction of the claims specifi ed on the
performance data sheet.
1725 W. Williams Drive C-20
www.wattspremier.com
Warning
MODEL
WP-4V
WP-4V
WP-4V
Page 1
Phoenix, AZ 85027
Fax: 623-931-0191
Manual Edition: 9/16/05

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WP-4V and is the answer not in the manual?

Questions and answers

Summary of Contents for Watts Premier WP-4V

  • Page 1 Standard 53 & 58 for the reduction of the claims specifi ed on the performance data sheet. Refer to enclosed warranty and operating parameters to ensure proper use with your water supply. Watts Premier, Inc. 1725 W. Williams Drive C-20 Phoenix, AZ 85027 Phone: 800-752-5582 www.wattspremier.com...
  • Page 2 Thank you for your purchase of a state of the art Watts Premier Reverse Osmosis (RO) water treatment system. Water quality concerns are becoming more of a focus for the public. You may have heard about contaminants in the drinking water, such as Arsenic, Chromium, Cryptosporidium or Giardia.
  • Page 3: Table Of Contents

    With proper installation and maintenance, this system will provide you with high quality water for years to come. All of Watts Premier’s water enhancement products are rigorously tested by independent laboratories for safety and reliability. If you have any questions or concerns, please contact our customer service department at 1-800-752-5582 (outside USA 623-931-1977) or refer to our on-line trouble shooting at www.wattspremier.com.
  • Page 4: Operational Parameters

    1 Faucet Bag 1 Manual and Warranty Card If any of the items are missing please contact Watts Premier prior to installing. Tools Recommended For Installation 1 1/4" Hole Saw Bit for Faucet opening Round Knock out Punch for Stainless Sinks 1 ¼”...
  • Page 5: Drill A Hole For The Faucet In A Porcelain Sink

    Drill a Hole for the Faucet in a Porcelain Sink Note: Most sinks are predrilled with 1 ½” or 1 ¼” diameter hole that you can use for your RO faucet. (if you are already using it for a sprayer or soap dispenser, see step 1). Porcelain sinks are extremely hard and can crack or chip easily.
  • Page 6: Watts Faucet Installation

    WATTS Premier Chrome Monitor (Top Mount) Faucet Installation Minimum Maximum Mounting Hole Size 1.00” 1.25” Torque on Toggle Bolt 5lb.in. (max) Gather and identify the faucet pieces. Step 6 Remove faucet base & faucet spout from their respective plastic bags. From above the sink, feed the faucet tubing &...
  • Page 7: Adapta Valve Installation

    Adapta Valve Installation - Part# 134007 Configuration for 1/2” Configuration for 3/8” compression fittings compression fittings Cold Supply Supply Step 11 Turn off the cold water supply to the faucet by turning the angle stop valve completely off. Step 12 Attach adapta valve as illustrated in the three photos above, choosing the configuration that fits your plumbing.
  • Page 8: Drain Saddle Installation

    Drain Saddle Installation - Part# 164016 Drain Saddle fits standard 1 ¼” – 1 ½” drain pipes Step 14 Gather the pieces of the drain saddle 1 Black compression nut 1 Semicircle bracket with opening 2 Screws 1 Foam washer 2 Nuts for screws 1 Semicircle bracket Step 15...
  • Page 9: Blue Tube Connection (From Unit To Tank)

    Connect Blue Tube from TANK Port on RO Module to the Tank Position tank in desired location. Stand it upright or lay it on its Step 19 side (using the black plastic stand). Measure the blue tube from the RO module port marked TANK over to the tank and cut it to desired length.
  • Page 10: 3/8" Black Tube Connection

    3/8” Black Tube Connection from Faucet Note: The tubing must be as SHORT and STRAIGHT as possible to the drain saddle, making a downward slope from module to drain saddle to allow for proper drainage. Step 23 Measure the black tube from faucet to the black drain saddle and make a straight cut through tube.
  • Page 11: Red Tube Connection (From Faucet)

    This should take about a day to complete. Step 6 Register by mail, phone, fax or internet. Watts Premier uses this information only to provide a filter change reminder service. Pre-filters should be changed every 6 months and VOC filter annually. You may register your warranty via our website at www.wattspremier.com or call 1-800-752-5582 (within USA only) / FAX#: 623-931-0191.
  • Page 12: Month Maintenance

    6 Month System Maintenance Watts Premier sells a filter change kit which includes pre-filters, a final filter, connectors, and a wrench. Call 1-800-752-5582 or buy online at www.wattspremier.com. √ Stage 1 - Sediment Filter (part #: 104017) √ Stage 2 - Carbon Filter (part #: 101009-white end caps) √...
  • Page 13: Annual Maintenance

    A water sample may be sent Watts Premier for a free test or a TDS (total dissolved solids) monitor can be purchased from Watts Premier to test the incoming and reverse osmosis water at home.
  • Page 14: Cleaning Flow Restrictor

    Step 3 Pull firmly on the membrane to remove from the housing and discard. Lubricate the O-rings of the new membrane with water soluble Step 4 lubrication such as KY Jelly ® before inserting into housing. Insert end with the two black O-rings into the cap. Twist the membrane as you push firmly into the cap.
  • Page 15: Checking Air Pressure In The Tank

    Check Air Pressure in the Tank Note: Check air pressure when tank is empty of water! Check air pressure in the tank when you notice a decrease in available water from the RO system. It is recommended to drain the tank of water prior to checking the air Step 1 pressure.
  • Page 16: Trouble Shooting

    TROUBLE SHOOTING Problem Cause Solution 1. Low/Slow Production Low Water Pressure Assure a minimum of 40 psi incoming water pressure. Premier sells a booster pump if home water pressure is low. Maker sure water supply is turned on and Adapta Valve is all the way open Crimps in tubing Check tubing and straighten or replace as necessary.
  • Page 17: Arsenic Fact Sheet

    field testing on our reverse osmosis units to determine trivalent arsenic reduction capabilities. Based upon Watts Premier field testing, it has been determined that the RO units are capable of reducing up to 67% of trivalent arsenic from the drinking water.
  • Page 18: California Certification

    California Certification Page 18...
  • Page 19: Performance Data Sheets

    Efficiency - 8.35% Depending on water chemistry, water temperature, and water pressure Watts Premier’s R.O. Systems production and performance will vary. Efficiency rating means the percentage of the influent water to the system that is available to the user as reverse osmosis treated water under operating conditions that approximate typical daily usage.
  • Page 20: Voc Performance Data Sheet

    VOC Performance Data Sheet Watts Premier Inc. 1725 W. Williams Drive C-20 Phoenix, AZ 85027 USA Influent Challenge Maximum Substance Percent Reduction Concentration Permissible Product (mg/L unless noted) Water Concentration >98% 0.05 0.001 ALACHLOR >97% 0.003 ATRAZINE >99% 0.081 0.001...
  • Page 21: Unit Drawing

    Page 21...
  • Page 22: Other Products

    Other Products from WATTS Premier Watts Premier has other fine water filtration products and accessories to enhance your water and to compliment your existing RO System. Listed on the next several pages are only a few of the items we offer.
  • Page 23 Part No. 116014 Brass Part No. 116001 Chrome Watts Premier Ice Maker Filter Kit - High efficiency replaceable filter that can last up to 3 years or 10,000 gallons. Perfect for residential and commercial ice makers as well as refrigerators, drinking fountains, coffee & tea brewers, motor homes and campers.
  • Page 24: Removing Chlorine From Your Shower

    Removing chlorine from your shower Special Chlorgon & KDF media – More effective then carbon medias with hot water applications in the removal of the following. √ Iron oxide (rust water) √ Free Chlorine (CL-) √ Dirt, sediment √ Combined Chlorine (Sodium Hypochlorite) √...
  • Page 25: Warranty Registration

    Watts Premier Inc. is concerned for the safety of your personal information. Watts Premier collects personal information when you register with Watts Premier. This information is stored in our data base and we do not rent, sell, or share personal information with other people or nonaffiliated companies.
  • Page 26 Date of Install: _______________________ Installed By: SELF Plumbing Professional Where Purchased: ____________ Model Number: _______________________ Serial Number: ____ - __________ XXXXXX XXXXX Insert into envelope and return to Watts Premier Watts Premier 1725 W. Williams Dr. C-20 Phoenix, AZ 85027 Page 26...
  • Page 27: Service Record

    Service Record Serial No. _____________________ Date of Purchase:__________ Date of Install:___________ Installed by:__________________ 3rd stage 2nd stage 4th stage 1st stage Date Membrane Carbon VOC Block Sediment (2-5 years) (6 months) (1 year) (6 months) NOTES: Page 27...
  • Page 28: Limited Warranty

    Limited Warranty What your Warranty Covers: If any part of your WATTS PREMIER Reverse Osmosis System is defective in workmanship (excluding replaceable filters and membranes), return unit after obtaining a return authorization (see below), less tank, within 3 years of original retail purchase, WATTS PREMIER will repair or, at WATTS PREMIER’S option, replace the system at no charge.
