INSTALLATION, OPERATION AND MAINTENANCE MANUAL
Please read carefully before proceeding with installation. Your failure to follow any attached instructions
Refer to enclosed warranty and operating parameters to ensure proper use with your water supply.
Watts Premier, Inc.
Phone: 800-752-5582
P/N: 199393
or operating parameters may lead to the product's failure.
Save manual for future reference
System Tested and certified by NSF International against ANSI/NSF
Standard 53 & 58 for the reduction of the claims specified on the
1725 W. Williams Drive C-20
www.wattspremier.com
Warning

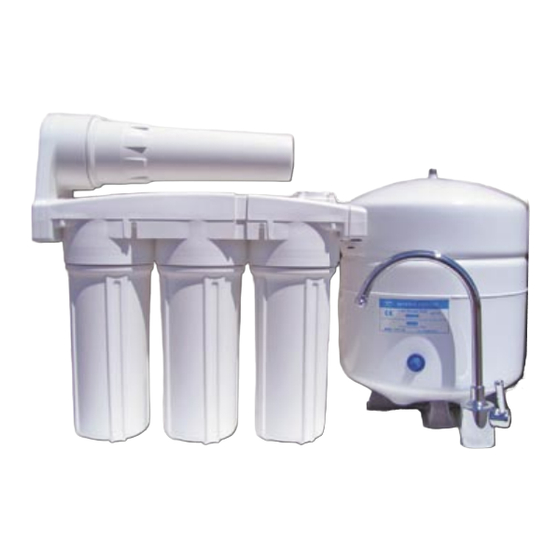

MODEL
WP-4V
performance data sheet.
Page 1
Phoenix, AZ 85027
Fax: 623-931-0191
Manual Edition: 10/31/08
Advertisement
Table of Contents
Related Manuals for Watts Premier WP-4V
Summary of Contents for Watts Premier WP-4V
- Page 1 Standard 53 & 58 for the reduction of the claims specified on the performance data sheet. Refer to enclosed warranty and operating parameters to ensure proper use with your water supply. Watts Premier, Inc. 1725 W. Williams Drive C-20 Phoenix, AZ 85027 Phone: 800-752-5582 www.wattspremier.com...
- Page 2 Thank you for your purchase of a state of the art Watts Premier Reverse Osmosis (RO) water treatment system. Water quality concerns are becoming more of a focus for the public. You may have heard about contaminants in the drinking water, such as Arsenic, Chromium, Cryptosporidium or Giardia.
-
Page 3: Table Of Contents
With proper installation and maintenance, this system will provide you with high quality water for years to come. All of Watts Premier’s water enhancement products are rigorously tested by independent laboratories for safety and reliability. If you have any questions or concerns, please contact our customer service department at 1-800-752-5582 (outside USA 623-931-1977) or refer to our on-line trouble shooting section at www.wattspremier.com. -
Page 4: Operational Parameters
Watts Premier supplies specialty filters that can be used if copper tubing is down stream of the RO. Be sure to follow any state or local regulations. -
Page 5: Drill A Hole For The Faucet In A Porcelain Sink
RO faucet. (If you are already using it for a sprayer or soap dispenser, see step 1) Porcelain sinks are extremely hard and can crack or chip easily. Use extreme caution when drilling. Watts Premier accepts no responsibility for damage resulting from the installation of faucet. -
Page 6: Watts Faucet Installation
For replacement, look for battery number CR2354 (Watts p/n:116082) which should be available at your local battery store or contact Watts Premier at 800-752-5582. You may also order online at www.wattspremier.com. Page 6... -
Page 7: Adapta Valve Installation
Adapta Valve Installation - Part# 560070 Configuration for 1/2” Configuration for 3/8” compression fittings compression fittings Cold Supply Supply Step 11 Turn off the cold water supply to the faucet by turning the angle stop valve completely off. Step 12 Attach the adapt-a-valve as illustrated in the three photos above, choosing the configuration that fits your plumbing. -
Page 8: 3/8" Black Drain Tube Connection
Connect 3/8” Black Tube from Faucet to the Drain IMPORTANT: The black 3/8” drain tube must be as SHORT and STRAIGHT as possible to the drain saddle, making a downward slope from faucet to drain saddle to allow for proper drainage. -
Page 9: Tank Elbow Installation
Tank Elbow Installation - Part# 125032 Step 21 Wrap (7 to 12 turns) of teflon tape clockwise around the male pipe threads (MPT) on the Stainless Steel fitting on top of the tank. Note: Do not let the tape cover the opening. Step 22 Thread the plastic elbow (supplied in the parts bag) onto the stainless steel connection on the top of tank. -
Page 10: How To Use Quick Connect Fittings
“FAUCET”. Make sure the tube is pushed in all the way to the tube stop. Note: A connection to a refrigerator / ice maker may be tee’d into this blue tube. Watts Premier offers an ice maker install kit part # 500102 (See Page 22). Page 10... -
Page 11: Start Up Instructions
Don’t Forget To Register! Register by mail, phone, fax or internet. Watts Premier uses this information only to provide a filter change reminder notice. Pre-filters should be changed every 6 months and VOC filter annually. You may register your system via our website at www.wattspremier.com or call 1- 800-752-5582 (within USA only) / FAX#: 623-931-0191. -
Page 12: Month System Maintenance
6 Month System Maintenance *Order filters by calling 1-800-752-5582 or buy online at www.wattspremier.com. √ Stage 1 - Sediment Filter (part #: 104017) √ Stage 2 - Carbon Block Filter (part #: 101009-White End Caps) Step 1 Turn off the incoming water supply to the RO by turning the needle valve on the adapt-a-valve clockwise until it stops. -
Page 13: Annual Maintenance
Annual Maintenance *Order filters by calling 1-800-752-5582 or buy online at www.wattspremier.com. √ Stage 1 - Sediment Filter (part #: 104017) √ Stage 2 - Carbon Block Filter (part #: 101009-White end caps) √ Stage 4 - VOC Carbon Block (part #: 101013-Blue end caps) √... -
Page 14: Membrane Replacement
75%. Note: A water sample may be sent to Watts Premier for a free diagnosis of your membranes performace. To send a water sample, use two (2) clean containers and fill ½ cup of tap water in one container and ½ cup of reverse osmosis water in 2nd container. Clearly label each sample. -
Page 15: Checking Air Pressure In The Tank
Check Air Pressure in the Tank Check air pressure only when tank is empty of water! Important: Check air pressure in the storage tank when you notice a decrease in available water from the RO system. Air can be added with a bicycle pump using the schrader valve that is located on the lower side of the tank behind the blue plastic twist off cap. -
Page 16: Trouble Shooting
TROUBLE SHOOTING Problem Cause Solution 1. Low/Slow Production Low Water Pressure Assure a minimum of 40 psi incoming water pressure. Premier sells a booster pump if home water pressure is low. Maker sure water supply is turned on and Adapta Valve is all the way open Crimps in tubing Check tubing and straighten or replace as necessary. -
Page 17: Arsenic Fact Sheet
field testing on our reverse osmosis units to determine trivalent arsenic reduction capabilities. Based upon Watts Premier field testing, it has been determined that the RO units are capable of reducing up to 67% of trivalent arsenic from the drinking water. -
Page 18: California Certification
California Certification Page 18... -
Page 19: Performance Data Sheets
Efficiency - 11.6% Depending on water chemistry, water temperature, and water pressure Watts Premier’s R.O. Systems production and performance will vary. Efficiency rating means the percentage of the influent water to the system that is available to the user as reverse osmosis treated water under operating conditions that approximate typical daily usage. -
Page 20: Voc Performance Data Sheet
VOC Performance Data Sheet Watts Premier Inc. 1725 W. Williams Drive C-20 Phoenix, AZ 85027 USA Influent Challenge Maximum Substance Percent Reduction Concentration Permissible Product (mg/L unless noted) Water Concentration >98% 0.05 0.001 ALACHLOR >97% 0.003 ATRAZINE >99% 0.081 0.001... -
Page 21: Unit Drawing
*Optional Upgrade Page 21... -
Page 22: Other Products
Other Products from WATTS Premier Watts Premier has other fine water filtration products and accessories to enhance your water and to compliment your existing RO System. Listed on the next several pages are just few of the items we have to offer. - Page 23 116074 - Chrome (Monitored) 116098 - Brushed Nickel (Monitored) Watts Premier Ice Maker Filter Kit - High efficiency replaceable filter that can last up to 5 years or 20,000 gallons. Perfect for residential and commercial ice makers as well as refrigerators, drinking fountains, coffee & tea brewers, motor homes and campers.
-
Page 24: Removing Chlorine From Your Shower
Removing chlorine from your shower Special Chlorgon & KDF media – More effective then carbon medias with hot water applications in the removal of the following. √ Iron oxide (rust water) √ Free Chlorine (CL-) √ Dirt, sediment √ Combined Chlorine (Sodium Hypochlorite) √... -
Page 25: Warranty Registration
Watts Premier collects personal information when you register with Watts Premier. This information is stored in our data base and we do not rent, sell, or share personal information with other people or nonaffiliated companies. - Page 26 Iowa Department of Public Health - Sales in Iowa require this to be completed, signed and returned. These signatures will be retained on file for two years. Insert into envelope and return to Watts Premier Watts Premier 1725 W. Williams Dr. C-20...
-
Page 27: Service Record
Service Record Serial No. _____________________ Date of Purchase:__________ Date of Install:___________ Installed by:__________________ 3rd stage 2nd stage 4th stage 1st stage Date Membrane Carbon VOC Block Sediment (2-5 years) (6 months) (1 year) (6 months) NOTES: Page 27... -
Page 28: Limited Warranty
CLICK HERE What your Warranty Covers: If any part of your WATTS PREMIER Reverse Osmosis System is defective in workmanship (excluding replaceable filters and membranes), return unit after obtaining a return authorization (see below), less tank, within 3 years of original retail purchase, WATTS PREMIER will repair or, at WATTS PREMIER’S option, replace the system at no charge.
