INSTALLATION, OPERATION AND MAINTENANCE MANUAL
Please read carefully before proceeding with installation. Your failure to follow any attached instructions
DELUXE PLUS
PREMIER 25
ULTRA 5
Refer to enclosed warranty for operating parameters to ensure proper use with your water supply.
Watts Premier, Inc.
Phone: 800-752-5582
P/N 199348
or operating parameters may lead to the product's failure.
Save manual for future reference
MODELS
System tested and certified by NSF International against NSF/
ANSI Standard 58 for the reduction of the claims specified on the
performance data sheet.
1725 W. Williams Drive C-20
www.wattspremier.com
Warning
RO-TFM-4SV
RO-TFM-5SV
PUR-TEK
EPA / ETV Test verified performance.
Physical removal of microbial
contamination agents in drinking water.
Page 1
Phoenix, AZ 85027
Fax: 623-931-0191
Manual Edition: 12/05/08
Advertisement
Table of Contents
Related Manuals for Watts Premier DELUXE PLUS
Summary of Contents for Watts Premier DELUXE PLUS
- Page 1 INSTALLATION, OPERATION AND MAINTENANCE MANUAL Warning Please read carefully before proceeding with installation. Your failure to follow any attached instructions or operating parameters may lead to the product’s failure. Save manual for future reference MODELS DELUXE PLUS RO-TFM-4SV PREMIER 25 RO-TFM-5SV ULTRA 5 PUR-TEK System tested and certified by NSF International against NSF/...
- Page 2 This page has been left blank intentionally. Page 2...

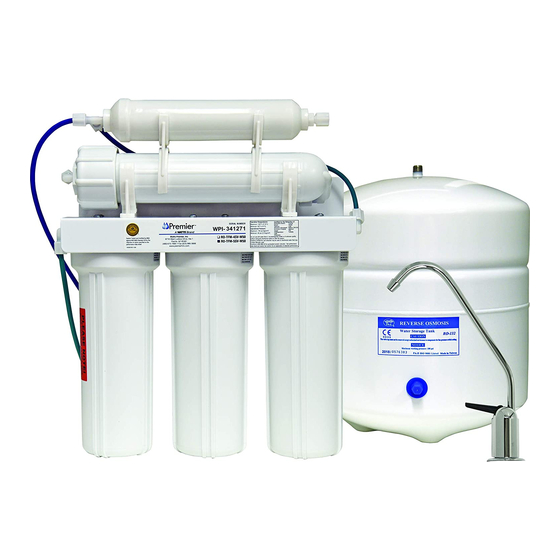

- Page 3 Thank you for your purchase of a state of the art Watts Premier Reverse Osmosis (RO) water treatment system. Water quality concerns are becoming more of a focus for the public. You may have heard about contaminants in the drinking water, such as Arsenic, Chromium, Cryptosporidium or Giardia.
-
Page 4: Table Of Contents
Drill a Hole for the Faucet in a Porcelain Sink ..................6 Punch a Hole for the Faucet in a Stainless Steel Sink ................6 Watts Premier Standard Faucet Installation ..................7 Adapt-a-Valve Installation ........................8 Drain Saddle Installation ........................8 Drill hole and Connect 3/8”... -
Page 5: Operational Parameters
Watts Premier supplies speciality filters (part number 107008) that can be used if copper tubing follows the Reverse Osmosis unit. Be sure to follow any state or local regulations during installation. -
Page 6: Drill A Hole For The Faucet In A Porcelain Sink
RO faucet. (If you are already using it for a sprayer or soap dispenser, see step 1) Porcelain sinks are extremely hard and can crack or chip easily. Use extreme caution when drilling. Watts Premier accepts no responsibility for damage resulting from the installation of faucet. Diamond tip bit recommended. -
Page 7: Watts Premier Standard Faucet Installation
WATTSPremier Standard Faucet Installation - Part# 116001 Step 7 Remove nut (item 11) and blue tubing (item 12) from faucet (Leave the nut and plastic delrin sleeve (item 10) on the blue tube). Feed both the red and black tubing through the pre drilled hole in the sink/counter until faucet Step 6 is seated. -
Page 8: Adapt-A-Valve Installation
Adapt-a-Valve Installation - Part# 134007 Configuration for 1/2” Configuration for 3/8” compression fittings compression fittings Cold Supply Supply Step 11 Turn off the cold water supply to the faucet by turning the angle stop valve completely off. Step 12 Attach the adapt-a-valve as illustrated in the three photos above, choosing the configuration that fits your plumbing. -
Page 9: Drill Hole And Connect 3/8" Black Tube From Faucet To The Drain Saddle
Drill hole and Connect 3/8” Black Tube from Faucet to the Drain Saddle IMPORTANT: The black 3/8” drain tube must be as SHORT and STRAIGHT as possible to the drain saddle, making a downward slope from faucet to drain saddle to allow for proper drainage. -
Page 10: Red 1/4" Tube Connection (From Faucet)
Red 1/4” Tube Connection (from faucet) Step 1 Using the white plastic union found in the parts bag, determine where the 1/4” red tubing from the faucet and the 1/4” black tubing from the RO membrane housing would join together comfortably. Cut to length leaving a straight cut edge on both tubes. -
Page 11: Blue Tube Connection (From Faucet)
A connection to a refrigerator / ice maker may be tee’d into this blue tube and should be spliced in between the final filter and the RO faucet. Watts Premier offers an ice maker install kit part # 500010 (See Page 22). Page 11... -
Page 12: Start Up Instructions
Don’t Forget To Register! Register by phone, fax, mail or internet. Watts Premier uses this information only to provide you with a filter change reminder service. Pre-filters should be changed every 6 months and the final in-line filter annually. You may register your system via our web site at www.wattspremier.com or call 1-800-752-5582 (within USA only) / FAX#: 623-931-0191. -
Page 13: Six Month Maintenance
√ Stage 2 & 3 - Carbon Block Filter (part #: 101009-White End Caps) Note: The filter wrench pictured (Part # 164003) may be purchased from Watts Premier to aid with twisting off filter housings but is not required. Step 1 Turn off the incoming water supply to the RO by turning the needle valve on the adapt-a-valve clockwise until it stops. -
Page 14: Annual Maintenance
Annual Maintenance *Order filters by calling 1-800-752-5582 or buy online at www.wattspremier.com. √ Stage 1 - Sediment Filter (part #: 104017) √ Stage 2 & 3 - Carbon Block Filter (part #: 101009-White end caps) √ Stage 5 - 10” Final Polishing filter (part # 560010) √... -
Page 15: Membrane Replacement
75%. Note: A water sample may be sent to Watts Premier for a free diagnosis of your membrane performance. To send a water sample, use two (2) clean containers and fill ½ cup of tap water in one container and ½ cup of reverse osmosis water in 2nd container. Clearly label each sample. -
Page 16: Check Air Pressure In The Tank
Check Air Pressure in the Tank Important: Check air pressure only when tank is empty of water! Check air pressure in the storage tank when you notice a decrease in available water from the RO system. Air can be added with a bicycle pump using the schrader valve that is located on the lower side of the tank behind the blue plastic cap. -
Page 17: Trouble Shooting
TROUBLE SHOOTING Problem Cause Solution 1. Low/Slow Production Low Water Pressure Assure a minimum of 40 psi incoming water pressure. Premier sells a booster pump if home water pressure is low. Make sure water supply is turned on and Adapta Valve is all the way open. -
Page 18: Stage Reverse Osmosis System (Diagram)
5 Stage Reverse Osmosis System 5 Stage Reverse Osmosis System Green Green Green Green Blue Blue Blue Blue Blue Blue Black Black Black Black Black Black Blue Blue Blue Blue Green Green 5-7 PSI Item # Part # Description Item # Part # Description 100004 GAC-IL-6”-1/4 F... -
Page 19: California Certification
Department of Health Services Water Treatment Device Certificate Number 00 - 1452 Date Issued: October 17, 2005 Trademark/Model Designation Watts Premier Deluxe Plus Watts Premier Ultra 5 Watts Premier PUR-TEK Watts Premier Watts 25 Watts Premier RO-TFM-5SV Watts Premier RO-TFM-4SV Watts RO-4... -
Page 20: Performance Data Sheet
Efficiency - 9.58% Depending on water chemistry, water temperature, and water pressure Watts Premier’s R.O. Systems production and performance will vary. Efficiency rating means the percentage of the influent water to the system that is available to the user as reverse osmosis treated water under operating conditions that approximate typical daily usage. -
Page 21: Arsenic Fact Sheet
field testing on our reverse osmosis units to determine trivalent arsenic reduction capabilities. Based upon Watts Premier field testing, it has been determined that the RO units are capable of reducing up to 67% of trivalent arsenic from the drinking water. -
Page 22: Other Products From Watts Premier
Other Products from Watts Premier Watts Premier has other fine water filtration products and accessories to enhance your water and to compliment your existing RO System. Listed on the next several pages are only a few of the items we offer. - Page 23 Premium Plus Annual Filter replacement kit Compatible with all Watts Premier Reverse Osmosis and water filtration systems. These filters provide an extra level of filtration by allowing for more contact between the carbon media and your water. Includes a 10” Final in-line Filter, Sediment Filter, Two Carbon Block Filters and a Filter Wrench.
- Page 24 Removing chlorine from your shower Special Chlorgon & KDF media – More effective then carbon medias with hot water applications in the removal of the following. √ Free Chlorine (CL-) √ Iron oxide (rust water) √ Combined Chlorine (Sodium Hypochlorite) √...
-
Page 25: Warranty Registration
Watts Premier collects personal information when you register with Watts Premier. This information is stored in our data base and we do not rent, sell, or share personal information with other people or nonaffiliated companies. - Page 26 Iowa Department of Public Health - Sales in Iowa require this to be completed, signed and returned. These signatures will be retained on file for two years. Insert into envelope and return to Watts Premier Watts Premier 1725 W. Williams Dr. C-20...
-
Page 27: Service Record
Service Record Date of Purchase:__________ Date of Install:___________ Installed by:__________________ 2 nd stage 3rd stage Final Filter 1st stage Date Carbon Carbon Carbon Membrane Sediment (6 months) (6 months) (1 year) (2-5 years) (6 months) NOTES: Page 27... -
Page 28: Limited Warranty
filters and membranes), return unit after obtaining a return authorization (see below), less tank, within 3 years of original retail purchase, WATTS PREMIER will repair or, at WATTS PREMIER’S option, replace the system at no charge. How to obtain Warranty Service: For warranty service, call 1-800-752-5582 for documentation and a return authorization number.
