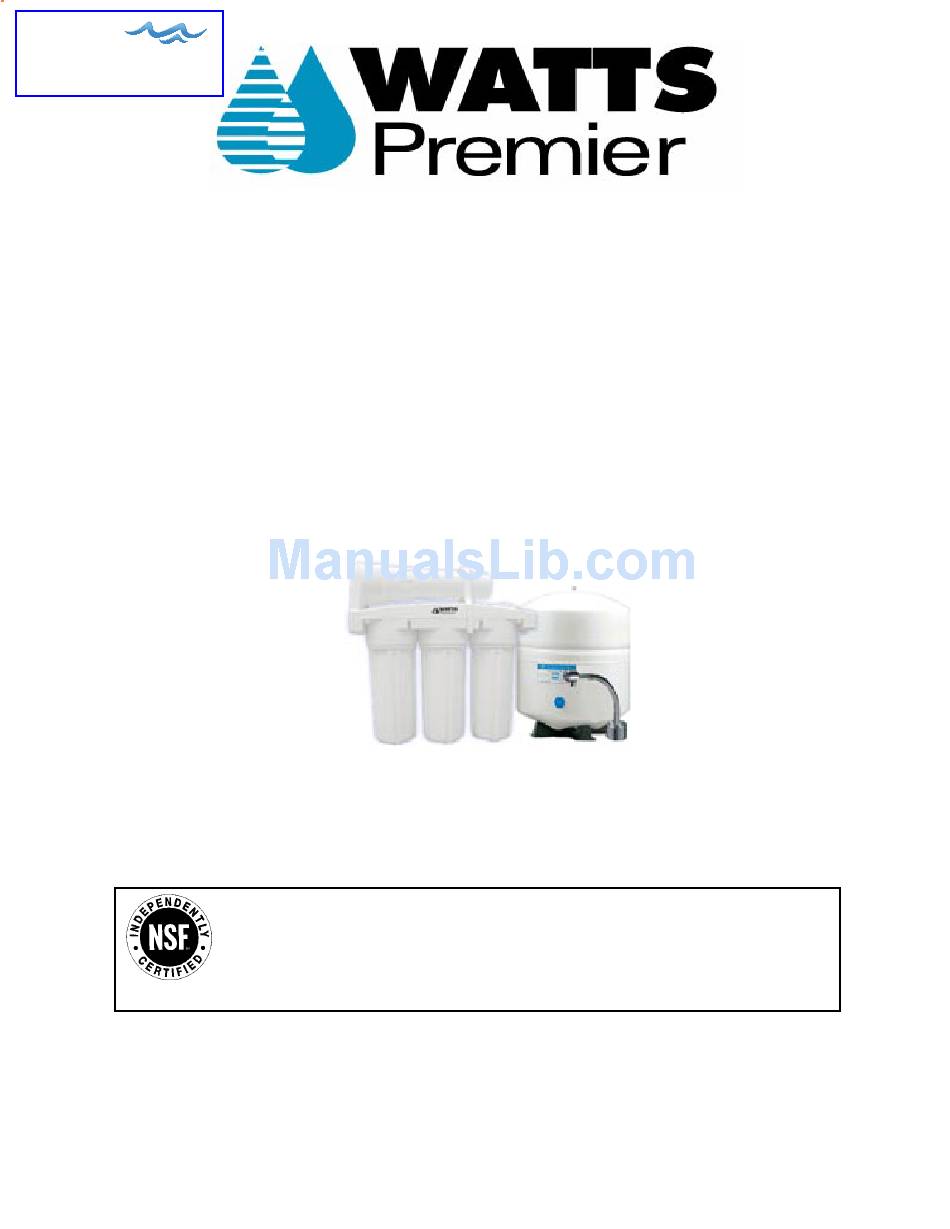

INSTALLATION, OPERATION AND MAINTENANCE MANUAL
Please read carefully before proceeding with installation. Your failure to follow any attached instructions
or operating parameters may lead to the products failure and possible damage to property.
Refer to enclosed warranty for operating parameters to ensure proper use with your water supply.
Watts Premier, Inc.
Phone: 800-752-5582
P/N 199349
Save manual for future reference
WP-5 WP5-50 KP-5 B-RO5M-50
System Tested and certified by NSF International against ANSI/NSF
Standard 58 for the reduction of the claims specified on the
performance data sheet.
1725 W. Williams Drive C-20
www.wattspremier.com
Warning
MODEL
Page 1
Phoenix, AZ 85027
Fax: 623-931-0191
Manual Edition: 8/21/07
Advertisement
Table of Contents
Related Manuals for Watts Premier WP-5
Summary of Contents for Watts Premier WP-5
- Page 1 Save manual for future reference MODEL WP-5 WP5-50 KP-5 B-RO5M-50 System Tested and certified by NSF International against ANSI/NSF Standard 58 for the reduction of the claims specified on the performance data sheet.
- Page 2 Giardia. There may also be some local water issues in your area such as high levels of lead and copper. This Watts Premier water treatment system has been designed and tested to provide you with high quality water for years to come.
-
Page 3: Table Of Contents
With proper installation and maintenance, this system will provide you with high quality water for years to come. All of Watts Premier’s water enhancement products are rigorously tested by independent laboratories for safety and reliability. If you have any questions or concerns, please contact our cus- tomer service department at 1-800-752-5582 (outside USA 623-931-1977) or refer to our on-line trouble shooting at www.wattspremier.com. -
Page 4: Operational Parameters
Operational Parameters Operating Temperatures: Maximum 100°F (37.8°C) Minimum 40°F (4.4°C) Operating Pressure: Maximum 85 psi (6.0 kg/cm2) Minimum 40 psi (2.80 kg/cm2) Parameters: Maximum 11 Minimum 2 Iron: Maximum 0.2 ppm TDS (Total Dissolved Solids): < 1800 ppm Turbidity: < 5NTU Hardness: Recommended hardness should not exceed 10 grains per gallon, or 170 ppm. -
Page 5: Drill A Hole For The Faucet In A Porcelain Sink
Drill a Hole for the Faucet in a Porcelain Sink Most sinks are predrilled with 1 ½” or 1 ¼” diameter hole that you can use for your RO Note: faucet. (if you are already using it for a sprayer or soap dispenser, see step 1). Porcelain sinks are extremely hard and can crack or chip easily. -
Page 6: Wave Faucet Installation
The battery life is expected to last one year, however, for heavy use the battery may need to be replaced sooner. For replacement, look for battery number CR2354 (Watts p/n:116082) which is available at your local battery store or contact Watts Premier at 800-752-7782. -
Page 7: Ag-Ss With Tds Monitor Monitor Faucet Installation
AG-SS with TDS Monitor Faucet Installation Note: If using the AG-SS TDS Monitor Air Gap Faucet , a 1 1/4” hole will be required. Step 6 Remove the stem nut and the tubing guide from the faucet. Make sure the soft rubber gasket remains, so it will be on top of the counter when installed. -
Page 8: Ag-Ss With Monitor Faucet Installation
AG-SS with Monitor Faucet Installation - Part# 116061 Note: If using the AG-SS Monitor Air Gap Faucet , a 1 1/4” hole will be required. Gather and identify the faucet pieces. Step 6 Remove faucet and small parts from plastic bag. Slip the gasket over the threaded stem to the faucet flange. -
Page 9: Adapta Valve Installation
Adapta Valve Installation - Part# 134007 Configuration for 3/8” Configuration for 1/2” compression fittings compression fittings Cold Supply Supply Step 11 Turn off the cold water supply to the faucet by turning the angle stop valve completely off. Step 12 Attach adapta valve as illustrated in the three photos above, choosing the configuration that fits your plumbing. -
Page 10: Drain Saddle Installation
Drain Saddle Installation - Part# 164016 Drain Saddle fits standard 1 ¼” – 1 ½” drain pipes Step 14 Gather the pieces of the drain saddle 1 Black compression nut 1 Semicircle bracket with opening 2 Screws 1 Foam washer 2 Nuts for screws 1 Semicircle bracket Step 15... -
Page 11: Blue Tube Connection
Connect Blue Tube from TANK port on RO Module to the Tank Step 19 Position tank in desired location. Stand it upright or lay it on its side (using the black plastic stand). Measure the blue tube from the RO module port marked TANK over to the tank and cut it to desired length. -
Page 12: 3/8" Black Tube Connection
3/8” Black Tube Connection from faucet Note: The tubing must be as SHORT and STRAIGHT as possible to the drain saddle, making a downward slope from module to drain saddle to allow for proper drainage. Step 24 Measure the black tube from faucet to the black drain saddle and make a straight cut through tube. -
Page 13: Red Tube Connection
Connect the Red Tube from Faucet to RO Module Insert the red 1/4” tube from the faucet into the port on the Step 26 module marked DRAIN. Make sure the tube is pushed in all the way to the tube stop. Final Filter Installation Step 27 The Final Filter and 2 white plastic connectors are in the parts... -
Page 14: Start Up Instructions
final filter). Step 6 Register warranty by mail, phone, or internet. Watts Premier uses this information only to provide a filter change reminder service. Pre-filters should be changed every six months. You may register your warranty via our website at www.wattspremier.com or call 1-800-752- 5582 (within USA only). -
Page 15: Month System Maintenance
6 Month System Maintenance Note: The KP-5 R.O. unit is equipped with annual filters, therefore require only one annual change. Watts Premier sells a filter change kit which includes pre-filters, a final filter, connectors, and a wrench. √ One 10” sediment filter (part no. 104017) √... -
Page 16: Annual Maintenance
A water sample may be sent Watts Premier for a free test or a TDS (total dissolved solids) monitor can be purchased from Watts Premier to test the incoming and reverse osmosis water at home. -
Page 17: Cleaning Flow Restrictor
Step 3 Pull firmly on the membrane to remove from the housing and discard. Unwrap new membrane and lubricate the o-rings with water soluble Step 4 lubrication such as KY Jelly ® before inserting into housing. Insert end with the two black O-rings into the cap. Twist the membrane as you push firmly into the cap. -
Page 18: Check Air Pressure In The Tank
Check Air Pressure in the Tank Note: Check air pressure when tank is empty of water! Check air pressure in the tank when you notice a decrease in available water from the RO system. It is recommended that you drain the tank of water, and then Step 1 pump up the RO tank in order to ensure all water is out of the tank. -
Page 19: Trouble Shooting
TROUBLE SHOOTING Problem Cause Solution 1. Low/Slow Production Low Water Pressure Assure a minimum of 40 psi incoming water pressure. Premier sells a booster pump if home water pressure is low. Maker sure water supply is turned on and Adapta Valve is all the way open Crimps in tubing Check tubing and straighten or replace as necessary. -
Page 20: Arsenic Fact Sheet
find out if free chlorine or combined chlorine is used in the water system. This Watts Premier reverse osmosis system is designed to remove up to 98% of pentavalent arsenic. It will not convert trivalent arsenic to pentavalent arsenic. Under laboratory standard testing conditions, this system reduced 0.30 mg/L (ppm) pentavalent arsenic to under 0.010... -
Page 21: California Certification
Department of Health Services Water Treatment Device Certificate Number 00 - 1452 Date Issued: October 17, 2005 Trademark/Model Designation Watts Premier Deluxe Plus Watts Premier Ultra 5 Watts Premier PUR-TEK Watts Premier Watts 25 Watts Premier RO-TFM-5SV Watts Premier RO-TFM-4SV Watts RO-4... -
Page 22: Performance Data Sheet
8.35% Depending on water chemistry, water temperature, and water pressure Watts Premier’s R.O. Systems production and performance will vary. Efficiency rating means the percentage of the influent water to the system that is available to the user as reverse osmosis treated water under operating conditions that approximate typical daily usage. - Page 23 N and is certified for nitrate/nitrite reduction only for water supplies with a pressure of 280 kPa (40 psig) or greater. If your water supply is under 40 psi, Watts Premier recommends the use of a RO booster pump for proper operation.
-
Page 24: One Piece Manifold Drawing
Parts List ITEM QTY PART NU DESCRIPTION 100014 GAC-IL-10-1-4 F-Premier 100037 GAC-KDF 802 10 inch 101009 CARBON BLOCK-10 INCH-5M-CTG-WATTS 104017 SED-SPUN-10 INCH-5M-CTG 113018 BOWL-MANIFOLD 113035 Membrane Vessel - Manifold 113041 O-RING-BOWL-MANIFOLD-341 113045 O-RING-VESSEL-MANIFOLD-233 116022 FAUCET-AG-WAVE-CHROME ON SS 116058 Faucet, with TDS monitor 119007 TANK-PRESS-3 GAL WHITE 125017... -
Page 25: Other Products From Watts Premier
Other Products from Watts Premier Watts Premier has other fine water filtration products and accessories to enhance your water and to compliment your existing RO System. Listed on the next several pages are only a few of the items we offer. - Page 26 116072 - Brushed Nickel (Non-Monitored) 116074 - Chrome (Monitored) Watts Premier Ice Maker Kit - High efficiency replaceable filter that can last up to 3 years or 10,000 gallons. Perfect for residential and commercial ice makers as well as refrigerators, drinking fountains, coffee & tea brewers, motor homes and campers.
- Page 27 Removing chlorine from your shower Special Chlorgon & KDF media – More effective then carbon medias with hot water applications in the removal of the following. √ Iron oxide (rust water) √ Free Chlorine (CL-) √ Dirt, sediment √ Combined Chlorine (Sodium Hypochlorite) √...
-
Page 28: Warranty Registration
Watts Premier Inc. is concerned for the safety of your personal information. Watts Premier collects personal information when you register with Watts Premier. This information is stored in our data base and we do not rent, sell, or share personal information with other people or nonaffiliated companies. - Page 29 Date of Install: _______________________ Installed By: SELF Plumbing Professional Where Purchased: ____________ Model Number: _______________________ Serial Number: ____ - __________ XXXXXX XXXXX Insert into envelope and return to Watts Premier Watts Premier 1725 W. Williams Dr. C-20 Phoenix, AZ 85027 Page 29...
-
Page 30: Service Record
Service Record Serial No. _____________________ Date of Purchase:__________ Date of Install:___________ Installed by:__________________ 2 nd stage 3rd stage Final Filter 1st stage Date Carbon Carbon Carbon Membrane Sediment (6 months) (6 months) (1 year) (2-5 years) (6 months) NOTES: Page 30... - Page 31 Available From: eFilterWater Your Health Matters! CLICK HERE Page 31...
-
Page 32: Limited Warranty
Limited Warranty What your Warranty Covers: If any part of your WATTS PREMIER Reverse Osmosis System is defective in workmanship (excluding replaceable filters and membranes), return unit after obtaining a return authorization (see below), less tank, within 3 year of original retail purchase, WATTS PREMIER will repair or, at WATTS PREMIER’S option, replace the system at no charge.
