INSTALLATION, OPERATION AND MAINTENANCE MANUAL
Please read carefully before proceeding with installation. Your failure to follow any attached instructions or
Refer to enclosed warranty for operating parameters to ensure proper use with your water supply.
Watts Premier, Inc.
Phone: 800-752-5582
Part # 199494

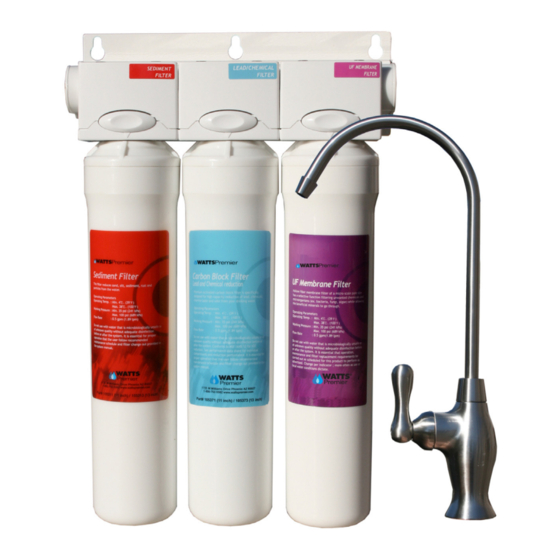

MODEL: Filter-Pure UF3
Hollow Fiber Technology
System Tested and certified by WQA against NSF/ANSI Standards 42 and
53 for the reduction of the claims specified on the performance Data sheet.
operating parameters may lead to the product's failure.
8716 W Ludlow Drive Suite #1
www.wattspremier.com
Peoria, AZ 85381
Fax: 623-866-5666
Manual Date: 10/10/2012
Advertisement
Table of Contents
Related Manuals for Watts Premier Filter-Pure UF3
Summary of Contents for Watts Premier Filter-Pure UF3
- Page 1 INSTALLATION, OPERATION AND MAINTENANCE MANUAL MODEL: Filter-Pure UF3 Hollow Fiber Technology System Tested and certified by WQA against NSF/ANSI Standards 42 and 53 for the reduction of the claims specified on the performance Data sheet. Please read carefully before proceeding with installation. Your failure to follow any attached instructions or operating parameters may lead to the product’s failure.
- Page 2 Thank you for your purchase of a state of the art Watts Premier Water Treatment system. Your new Filter-Pure UF3 system is equipped with a unique swivel valve in head push button assembly. This allows for a simple and sanitary push button filter change that does not require you to turn off the water source to the filtration system.
-
Page 3: Table Of Contents
Mounting System Under Sink ....................... 8 Start-up Instructions ..........................8 Changing The Filter Cartridges ......................9 Performance Data Sheet ........................10-11 Other Products from Watts Premier ....................12 Warranty Registration ........................13-14 Limited Warranty ..........................15 Service Record Model Number:__________ Serial Number:___________... -
Page 4: Operational Parameters
√ 1 Parts Bag √ 3 Filters - Attached √ 1 Faucet Assembly If any of the items are missing, please contact Watts Premier prior to installing. Tools Recommended For Installation √ 1/2 Diamond Tipped Hole Saw bit for faucet opening √... -
Page 5: Drill A Hole For The Reverse Osmosis Faucet
Drill a Hole for the Faucet Marble Counter-top We recommend contacting a qualified contractor for drilling a hole in a marble counter-top. Counter Top / Porcelain & Stainless Steel Sink Most sinks are pre drilled with 1 ¼” diameter hole that you can use for your RO faucet. Note: (If you are already using it for a sprayer or soap dispenser, see step 1) Porcelain sinks are extremely hard and can crack or chip easily. -
Page 6: Faucet Installation
Faucet Installation Step 5 Place the escutcheon chrome plate and the black rubber washer on the faucet shank. (Parts found in faucet parts bag). Insert the faucet shank through the hole in sink Step 6 and let it rest on the sink top. From the underside of the sink, slide on the Step 7 Escutcheon Plate... -
Page 7: Adapt-A-Valve Installation
Adapt-a-Valve Installation Caution: Water supply line to the system must be from the cold water supply line only. Hot water will severely damage your system. Verify contents prior to installation: Black Collet ( 1 ) - Plastic Adapt-a-Valve with black collet ( 1 ) - Brass Adapter no washer ( 1 ) - Brass Adapter with black washer ( 1 ) - White rubber washer... -
Page 8: Mounting System Under Sink
Mounting System Under Sink Locate an area best fitted for mounting the system. Allow Step 14 approximately 2” (5cm) clearance between the bottom of the filter housing and the floor of the sink cabinet. Using the mounting holes on the bracket, mark the location for the mounting screws on Step 15 the cabinet wall under the sink. -
Page 9: Changing The Filter Cartridges
Changing The Filter Cartridges Your system is equipped with valved heads which will automatically turn off the water supply to each filter when the filter is released, thus you do not need to turn off the incoming water supply at the Adapt-a-Valve. The faucet must be off when filters are replaced. -
Page 10: Performance Data Sheet
Watts Premier Inc. 8716 W Ludlow Drive Suite #1 Peoria, AZ 85381 FILTER-PURE UF3, 531130 GENERAL USE CONDITIONS: 1. Do not use with water that is microbiologically unsafe or of unknown quality without adequate disinfection before or after the system. Systems certified for cyst reduction may be used on disinfected waters that may contain filterable cysts. - Page 11 Influent Challenge Maximum Permissible Percent Substance Concentration Product Water Reduction (mg/L unless noted) Concentration ENTAMOEBA (See CYST) minimum 50,000/mL 99.99% 99.95% ETHYLBENZENE* >99% 0.088 0.001 ETHYLENE DIBROMIDE (EDB)* 0.044 >99% 0.00002 FURADAN (see CARBOFURAN)* >99% 0.19 0.001 HALOACETONITRILES (HAN)* BROMOCHLOROACETONITRILE 0.022 0.0005 DIBROMOACETONITRILE...
-
Page 12: Other Products From Watts Premier
Other Products from Watts Premier Watts Premier has other fine water filtration products and accessories to enhance your water and to compliment your water filtration system. Listed on this page are only a few of the items we offer. Visit our web site at www.wattspremier.com or call our Customer Service Representatives at... -
Page 13: Warranty Registration
Watts Premier collects personal information when you register with Watts Premier. This information is stored in our data base and we do not rent, sell, or share personal information with other people or nonaffiliated companies. -
Page 14: Peoria, Az 85381
Iowa Department of Public Health - Sales in Iowa require this to be completed, signed and returned. These signatures will be retained on file for two years. Insert into envelope and return to Watts Premier Watts Premier 8716 W Ludlow Drive Suite #1... -
Page 15: Limited Warranty
What your Warranty Covers: If any part of your WATTS PREMIER FILTER PURE UF3 unit is defective in workmanship (excluding replaceable filters ), return unit after obtaining a return authorization (see below), within 3 years of original retail purchase, WATTS PREMIER will repair or, at WATTS PREMIER’S option, replace the system at no charge.
