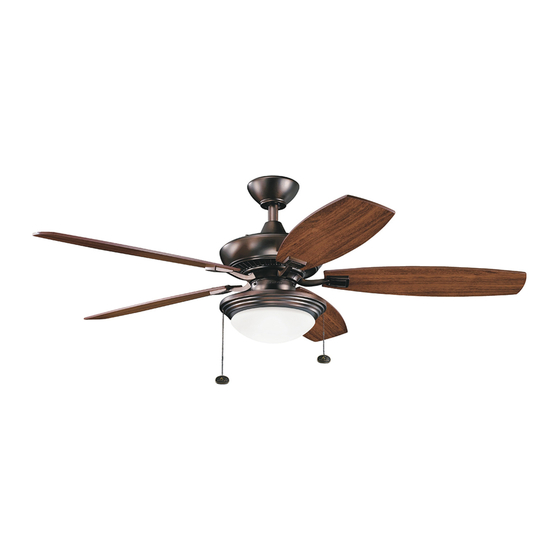

52" canfield select led fan

Advertisement

Quick Links

52" CANFIELD SELECT LED FAN
Product images may va
Product images may vary slightly from actual product.
INSTRUCTIO
INSTRUCTION MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 300026 and is the answer not in the manual?

Questions and answers

Summary of Contents for Kichler Lighting 300026

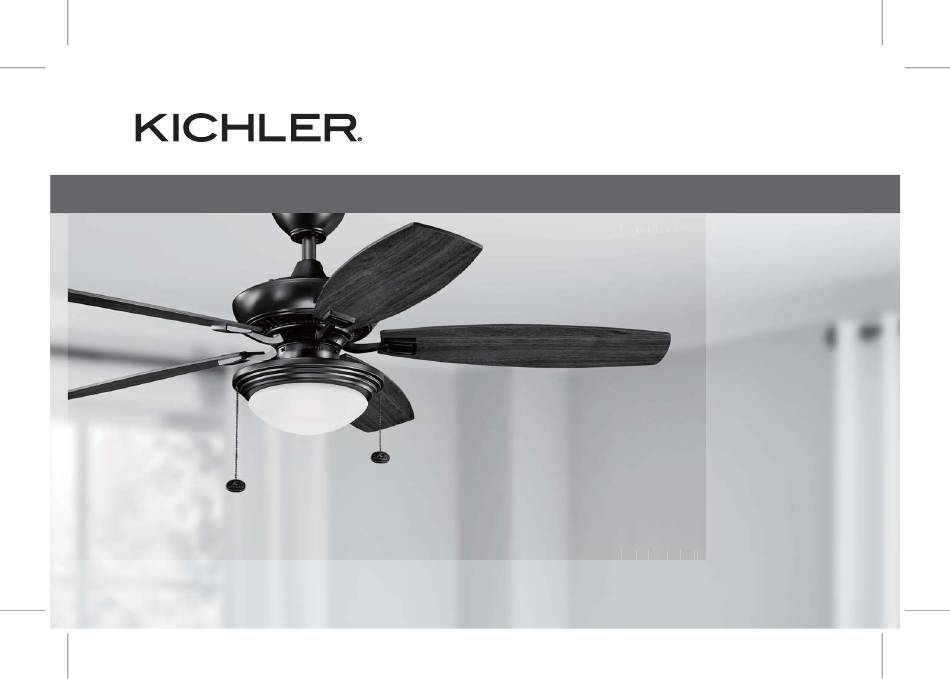

  • Page 1 52" CANFIELD SELECT LED FAN Product images may vary slightly from actual product. Product images may va INSTRUCTION MANUAL INSTRUCTIO...
  • Page 3: Table Of Contents

    TABLE OF CONTENTS FINISHING THE INSTALLATION........SAFETY RULES................4 ATTACHING THE FAN BLADES.......... TOOLS REQUIRED..............INSTALLING THE MOUNTING PLATE......PACKAGE CONTENTS............. NSTALLING THE LED LIGHT KIT........MOUNTING OPTIONS............. INSTALLING THE LED LIGHT KIT ASSEMBLY HANGING THE FAN..............AND GLASS SHADE..............INSTALLATION OF SAFETY SUPPORT......
  • Page 4: Safety Rules

    SAFETY RULES 1. To reduce the risk of electric shock, insure electricity has been 8. Avoid placing objects in the path of the blades. turned off at the circuit breaker or fuse box before beginning. 9. To avoid personal injury or damage to the fan and other items, be cautious when working around or cleaning the fan.
  • Page 5: Tools Required

    TOOLS REQUIRED PACKAGE CONTENTS Philips screw driver Unpack your fan and check the Blade screw driver contents. You should have the 11 mm wrench following items: Step ladder Wire cutters a. Fan blades (5) b. Canopy & Ceiling mounting bracket c.
  • Page 6: Mounting Options

    MOUNTING OPTIONS If there isn't an existing UL (cUL for Canadian Installation) listed mounting box, then read the following instructions. Disconnect the power by removing fuses or turning off circuit breakers. Secure the outlet box directly to the building structure. Use appropriate fasteners and building materials.
  • Page 7: Hanging The Fan

    HANGING THE FAN Hanger bracket REMEMBER to turn off the power before you begin. To properly install your ceiling fan, follow the steps below. Ceiling canopy Step 1. Remove the decorative canopy bottom cover from the canopy by turning the cover counter clockwise. (Fig. 5) Canopy cover Step 2.
  • Page 8 HANGING THE FAN (continued) Supply wires Step 6. Loosen the two set screws and remove the hitch pin and Downrod retaining clip from the coupling on top of the motor assembly. (Fig. Set screws Retaining clip Set screws Step 7. Carefully feed the electrical lead wires from the fan up Hitch pin through the downrod.
  • Page 9 HANGING THE FAN (continued) Step 8. Slip the top motor cover, coupling cover, canopy cover and Downrod canopy onto the downrod. (Fig. 9) Canopy Secure the top motor cover to the motor by using the three top Canopy cover motor cover set screws provided, but do not tighten at this time. Coupling cover Thread the hanger ball onto the downrod, insert the cross pin through the downrod and tighten.
  • Page 10: Installation Of Safety Support

    INSTALLATION OF SAFETY SUPPORT (required for Canadian installation ONLY) A safety support cable is provided to help prevent the ceiling fan from falling. Step 1. Attach the provided wood screw and washers to the ceiling Ceiling mounting joist next to the mounting bracket but do not tighten. (Fig. 11) Attach bracket safety cable...
  • Page 11: Electrical Connections

    ELECTRICAL CONNECTIONS Power lines 120V WARNING: To avoid possible electrical shock, be sure you have turned Green ground off the power at the main circuit panel. Follow the steps below to connect the fan to your household wiring. Use the wire connecting nuts suppled with your fan.
  • Page 12: Finishing The Installation

    FINISHING THE INSTALLATION Step 1. Tuck all the connections neatly into the ceiling outlet box. Outlet box Step 2. Slide the canopy up to the mounting bracket and place one of the key hole slots over the mounting screw on the mounting Ceiling bracket.
  • Page 13: Attaching The Fan Blades

    ATTACHING THE FAN BLADES CAUTION: Remove the five rubber shipping blocks attached to the face of the motor. These blocks keep the motor from shifting during shipping and MUST be removed during installation. Step 1. Attach a blade to a blade bracket using the screws and fiber washers provided.
  • Page 14: Nstalling The Led Light Kit

    INSTALLING THE LED LIGHT KIT Step 1. Remove the plastic plug from the center of the switch housing. Attach the light fixture to the switch housing by feeding the Wire connectors Lock washer light fixture wires (black & white) through the hole in the center of the switch housing, then screw the light fixture stem into the center Switch housing hole.
  • Page 15: Installing The Led Light Kit Assembly And Glass Shade

    INSTALLING THE LED LIGHT KIT ASSEMBLY AND GLASS SHADE NOTE: Before starting installation, disconnect the power by turning off the circuit breaker or removing the fuse at fuse box. Step 1. While holding the led light kit assembly under your ceiling fan, push the square wire connectors together.
  • Page 16: Operating Instructions

    OPERATING INSTRUCTIONS Turn the power on and check the operation of your ceiling fan. The pull chain controls the 3 speeds of your ceiling fan. 1 pull = High, 2 pulls = Medium, 3 pulls = Low and the 4th pull turns the motor off.
  • Page 17: Troubleshooting

    TROUBLESHOOTING Problem Solution Fan will not start. 1. Check circuit fuses or breakers. 2. Check all electrical connections to insure proper contact. CAUTION: Make sure the main power is OFF when checking any electrical connection. Fan sounds noisy. 1. Make sure all motor housing screws are snug. 2.
  • Page 18 www.kichler.com KICHLER® LIGHTING 7711 EAST PLEASANT VALLEY ROAD P.O. BOX 318010 CLEVELAND, OHIO 44131-8010 CUSTOMER SERVICE 866.558.5706 8:30 AM TO 5:00 PM EST, MONDAY - FRIDAY...
