ASSEMBLY

To hire an authorized service technician to assemble the elliptical exerciser, call 1-800-445-2480.
Assembly requires two persons. Place all parts of the elliptical exerciser in a cleared area and remove the
packing materials. Do not dispose of the packing materials until assembly is completed. In addition to the
included tools, assembly requires a Phillips screwdriver , two adjustable
wrenches , a rubber mallet , and pliers .

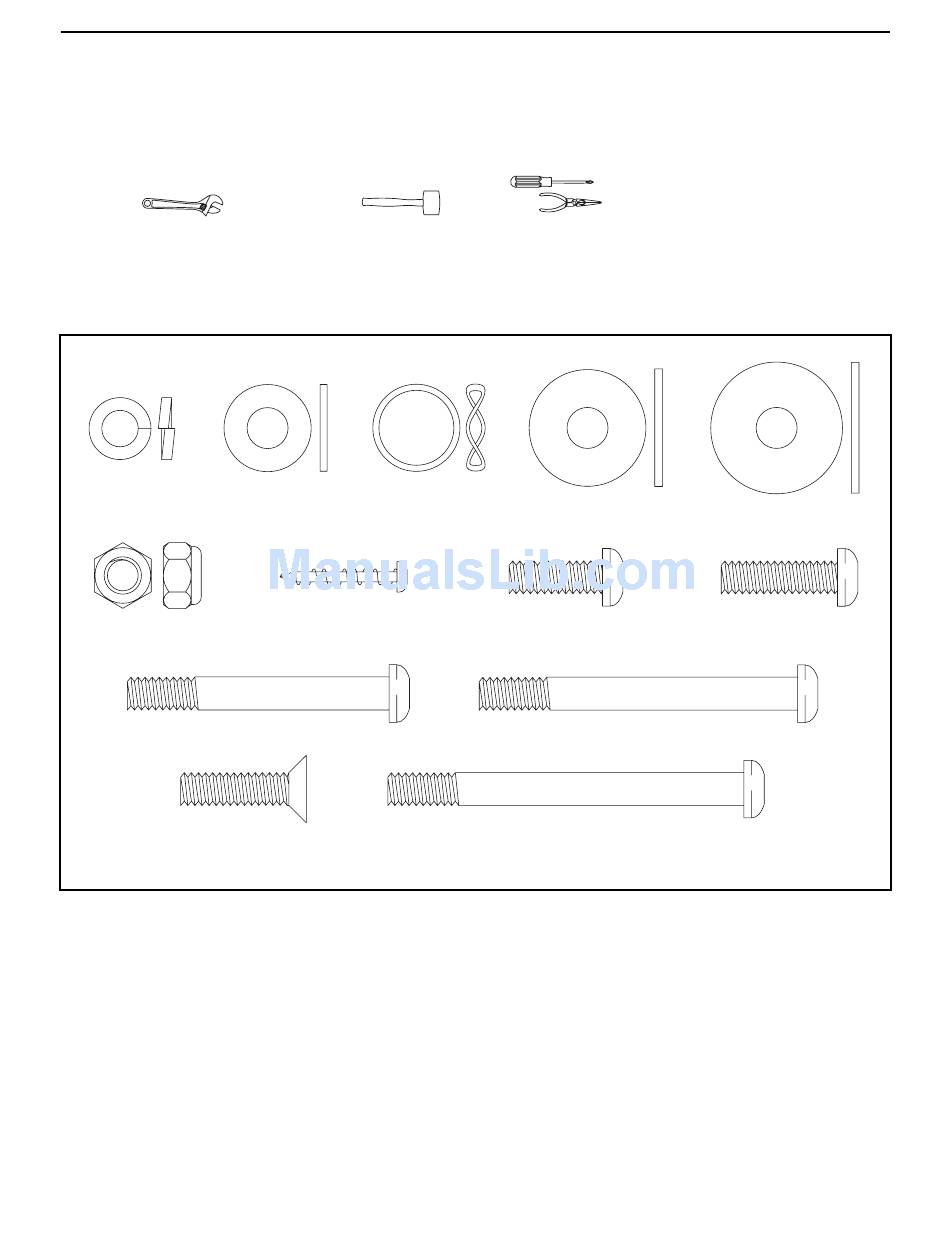

Use the drawings below to identify the small parts required for assembly. The number in parentheses below
each drawing is the key number of the part, from the PART LIST near the end of this manual. The number fol-
lowing the key number is the quantity needed for assembly. Note: Some small parts may have been pre-
assembled. If a part is not in the hardware kit, check to see if it has been preassembled.
M8 Split
M8 Washer
Wave Washer
Washer
(100)–2 M8 x 25mm M8 x 28mm
(94)–6
(101)–12
Washer (95)–2 Washer (99)–4
M8 Nylon M4 x 25mm M8 x 20mm Button M8 x 25mm Button
Screw (105)–4 Screw (113)–2 Screw (81)–2
Locknut (102)–12
M8 x 56mm Button Screw (108)–4 M8 x 68mm Button Screw (110)–8
M8 x 76mm Button Bolt (112)–4
M8 x 23mm Flat
Head Screw (88)–6
