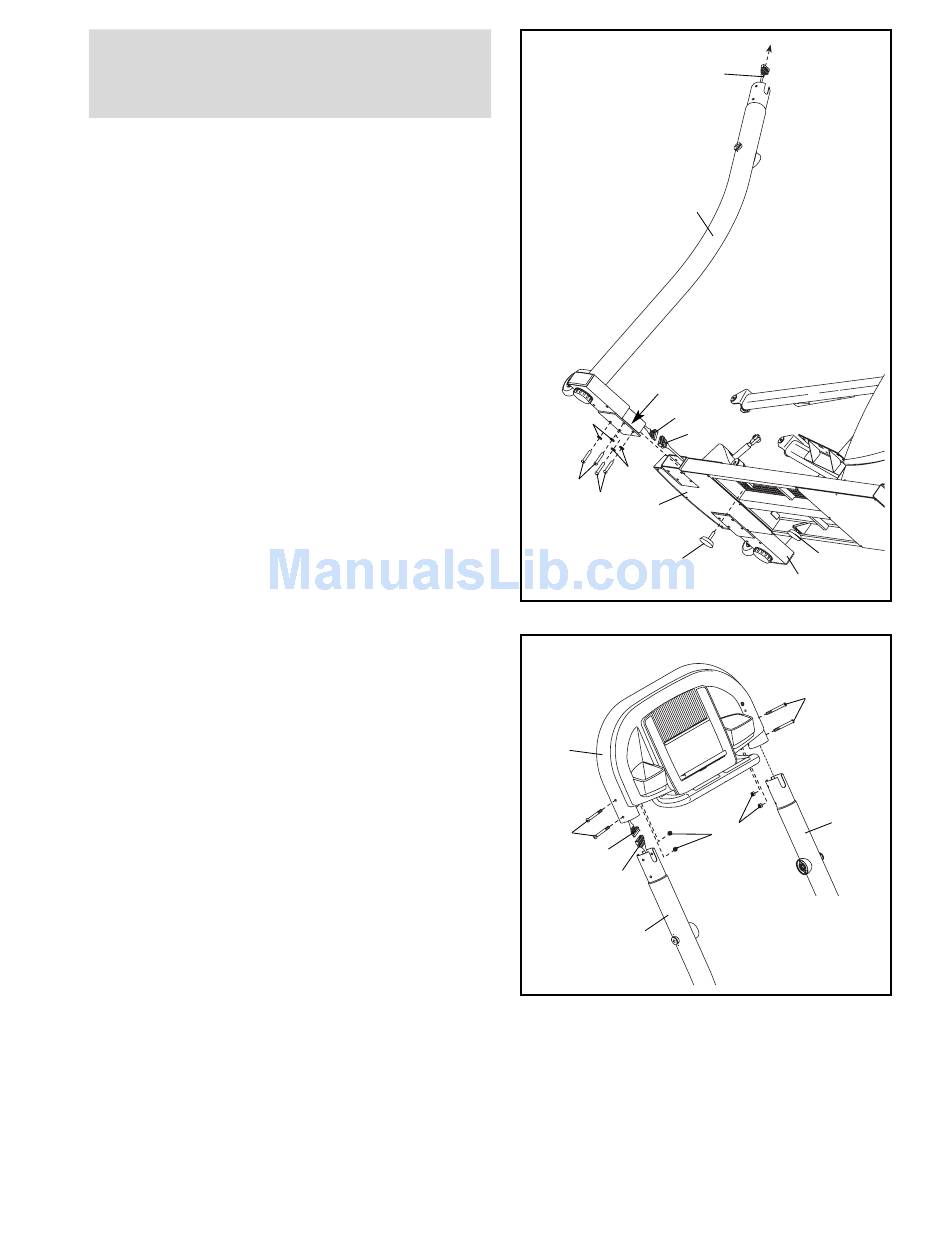

1.
To make assembly easier, read the information
on page 5 before you begin assembling the
elliptical exerciser.
Remove the Pivot Arms (not shown) and the plastic
inserts from the Left and Right Uprights (4, 3).
Identify the Left Upright (4) and hold it near the Frame
(1). Connect the Extension Wire Harness (76) to the
Lower Wire Harness (77). While another person lifts
the left side of the Frame, pull up on the Extension
Wire Harness and insert the Left Upright into the
Frame. Attach the Left Upright with two M8 x 56mm
Button Screws (108), two M8 x 68mm Button Screws
(110), and four M8 Split Washers (101); be careful to
avoid pinching the Wire Harnesses.
Tighten a Frame Cushion (32) into the left side of the
Frame (1) in the indicated location.
While the other person lifts the right side of the Frame
(1), attach the Right Upright (3) in the same way.
Note: There are no wire harnesses on the right side.
Tighten the other Frame Cushion (32) into the right
side of the Frame (1).
2. While another person holds the Console Frame (6)
near the Uprights (3, 4), connect the Upper Wire
Harness (75) to the Extension Wire Harness (76).
Push the excess Wire Harness down into the left
Upright. Next, attach the Console Frame to the
Uprights with four M8 x 76mm Button Bolts (112) and
four M8 Nylon Locknuts (102); be careful to avoid
pinching the Wire Harnesses as you slide the
Console Frame onto the Uprights and insert the
Button Bolts.
1
Plastic
101
101
108
110
2
6
112
75
76
4
6
Pull
4
Do not pinch the
wire harnesses
during this step
Insert
76
77
1
32
32
3
112
102
Do not pinch the
wire harnesses
during this step
3
