Pro-Form CLUB DESIGN 1000 User Manual page 7

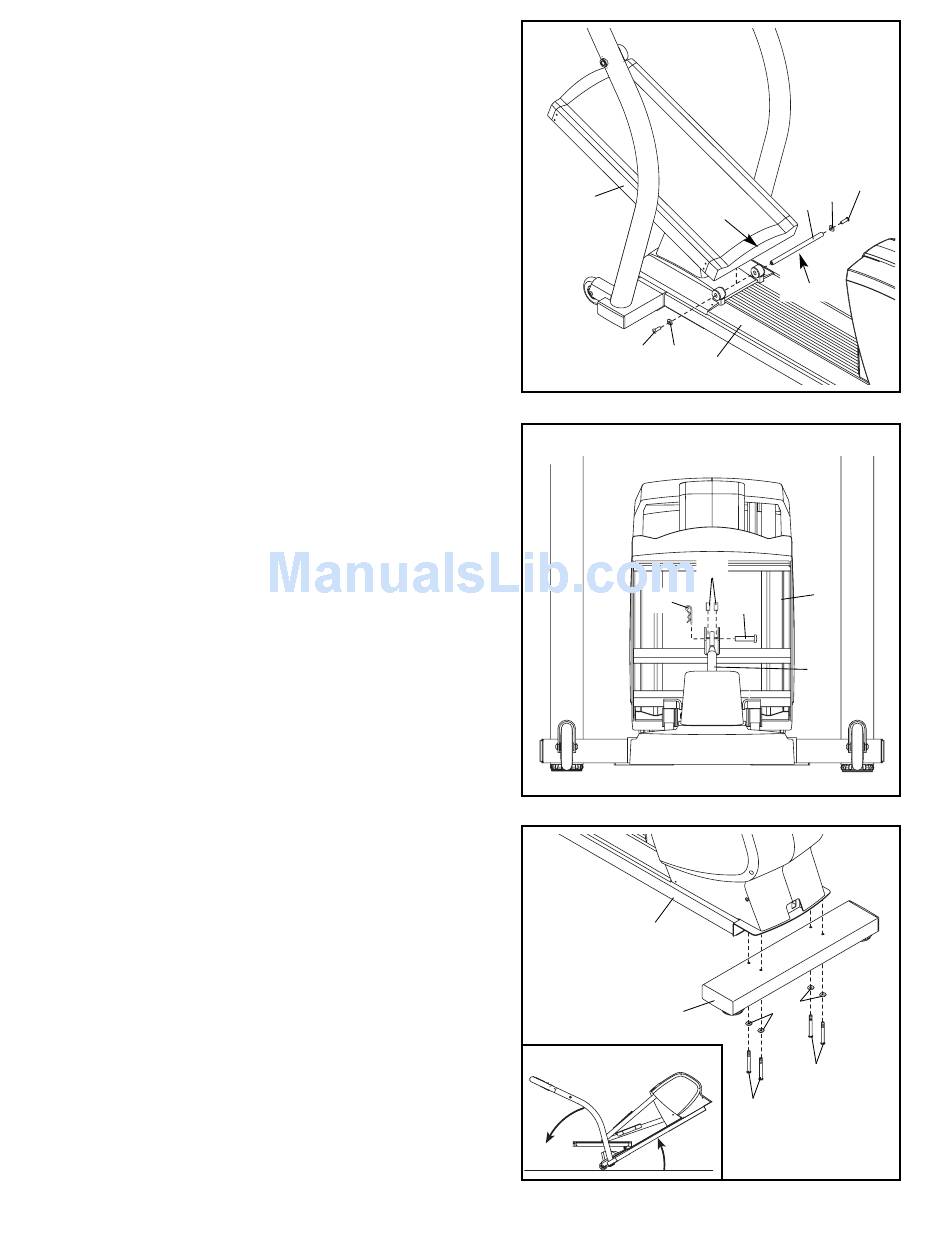

3. Slide an M8 x 28mm Washer (99) onto an M8 x 20mm
Button Screw (113). Tighten the Button Screw into one
end of the Incline Axle (40). Apply a small amount of
the included grease to the Incline Axle.
Orient the Ramp (5) so that the straight end is in the
position shown. Hold the welded tube on the bottom of
the Ramp between the two rings on the top of the
Frame. Insert the Incline Axle (40) through the rings
and the welded tube.
Slide an M8 x 28mm Washer (99) onto an M8 x 20mm
Button Screw (113). Tighten the Button Screw into the
open end of the Incline Axle (40).
Be careful not to scratch the Ramp (5) during steps
4 through 6.
4. Using your fingers, turn the shaft on top of the Lift
Motor (42) counterclockwise until it stops turning.
Position the U-bracket on the bottom of the Ramp (5)
over the end of the shaft as shown. Next, hold an
Incline Motor Spacer (60) on each side of the shaft,
between the shaft and the U-bracket.
Next, insert the Short Clevis Pin (118) through the U-
bracket on the Ramp (5), the shaft on the Lift Motor
(42), and the two Incline Motor Spacers (60). Insert
the straight end of a Hairpin (71) into the end of the
Short Clevis Pin.
5. See the inset drawing. While another person tips the
elliptical exerciser as shown, place a sturdy piece of
packaging foam beneath the elliptical exerciser. Have
the other person continue to hold the elliptical
exerciser to steady it during this step.
Orient the Rear Stabilizer (2) so that the holes are
closer to the front. Attach the Rear Stabilizer to the
rear of the Frame (1) with four M8 x 68mm Button
Screws (110) and four M8 Split Washers (101).
Carefully remove the piece of packaging foam and tip
the elliptical exerciser back down.
3
5
113
4
5
1
7
99
Straight
40
End
Grease
99
1
Front View
60
5
71
118
42
101
2
110
110
113
