Lynx C DA 5010 Reference Manual

10 bit sdi to analog video converter series 5000 cardmodule
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

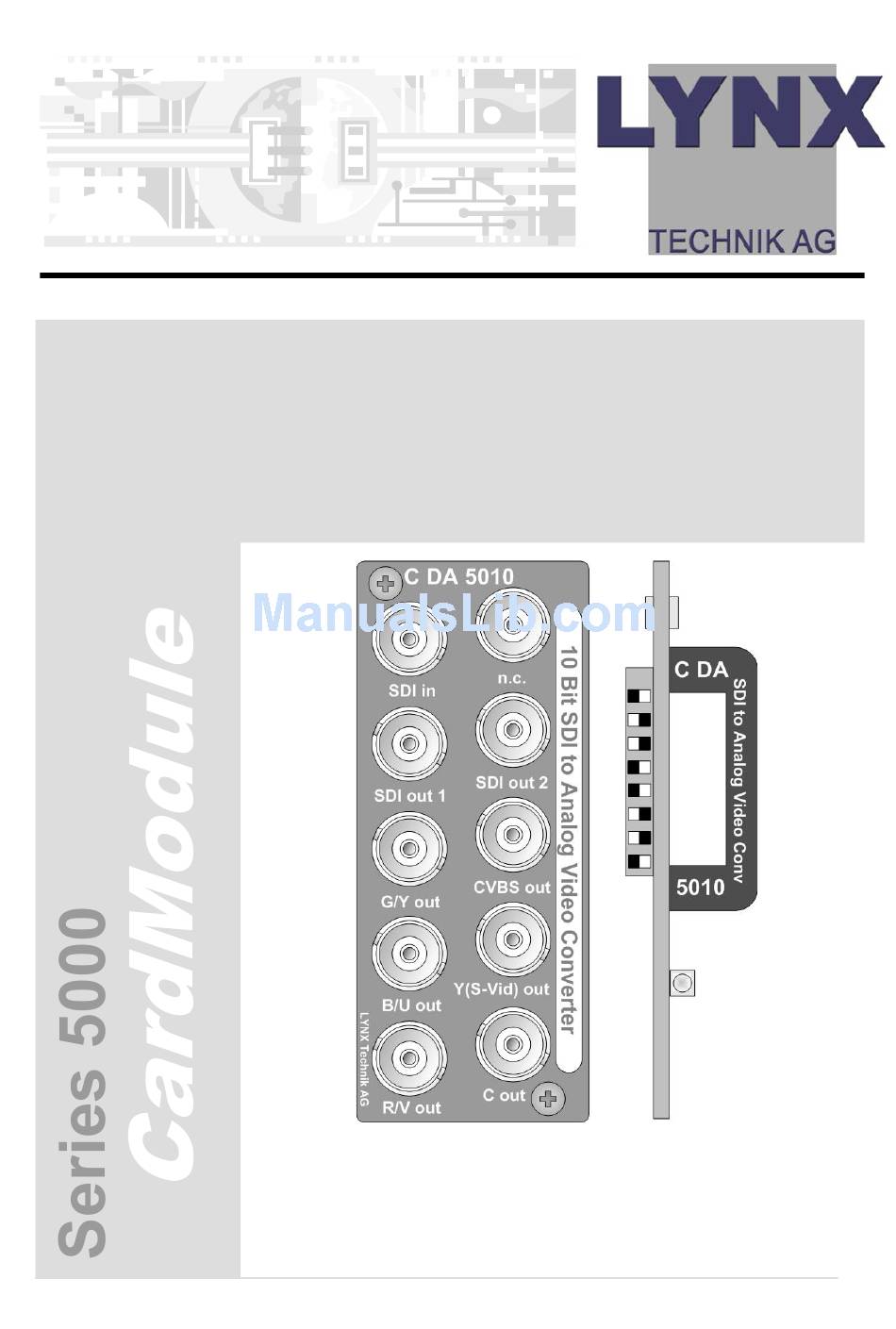

Reference Manual

Ver 1.8
C DA 5010
10 Bit SDI to Analog Video Converter
© LYNX Technik AG
Brunnenweg 3
D-64331 Weiterstadt
Germany
www.lynx-technik.com

Advertisement

Table of Contents
loading

Related Manuals for Lynx C DA 5010

Summary of Contents for Lynx C DA 5010

  • Page 1: Reference Manual

    Reference Manual Ver 1.8 C DA 5010 10 Bit SDI to Analog Video Converter © LYNX Technik AG Brunnenweg 3 D-64331 Weiterstadt Germany www.lynx-technik.com...
  • Page 2 Except as expressly written by LYNX Technik AG, the furnishing of this document does not give you any license to patents, trademarks, copyrights or other intellectual property of LYNX Technik AG or any of its affiliates.

  • Page 3: Warranty

    LYNX Technik, with shipping charges prepaid. LYNX Technik shall pay for the return of the product to the customer if the shipment is within the country which the LYNX Technik service center is located.

  • Page 4: Regulatory Information

    Reference Manual C DA 5010 Version1.8 Regulatory information Europe Declaration of Conformity LYNX Technik AG Brunneweg 3 D-64331 Weiterstadt Germany Declare under our sole responsibility that the product TYPE: C DA 5010 To which this declaration relates is in conformity with the following...

  • Page 5: Table Of Contents

    Reference Manual C DA 5010 Version1.8 Contents Warranty................3 Regulatory information........... 4 Europe ................4 Declaration of Conformity ........4 USA ................4 FCC 47 Part 15............4 Contents................5 Getting Started ..............7 Packaging ..............7 Product Description ............ 7 Functional Diagram ............
  • Page 6 Reference Manual C DA 5010 Version1.8 This page is intentionally left blank Page 6...

  • Page 7: Getting Started

    Please retain the shipping cartons in case subsequent shipping of the product becomes necessary. Product Description The C DA 5010 is a high quality 10 bit video D/A converter designed primarily for broadcast and professional applications. The Module accepts 1 SDI input signal and provides a RGB or YUV component analog output.
  • Page 8 Reference Manual C DA 5010 Version1.8 The module has a built in micro-controller with local controls, status and alarm indicators and well as internal flash ram for storing setups. Any operational parameters configured and stored into the module are recalled when powered up. Remote control...

  • Page 9: Functional Diagram

    Dip Switch Alarm Status Figure 1- C DA 5010 Functional Diagram Module Layout Figure 2 shows the physical layout of the C DA 5010 CardModule and also the connection panel which is fitted to the rear of the rack. Page 9...
  • Page 10 Reference Manual C DA 5010 Version1.8 PCB Layout Rear Connection Panel 10 Bit SDI to Analog Video Converter LYNX Technik AG PCB Front View LED 2 LED 1 C DA 8 Position Switch 5010 Alarm Figure 2 – Module Layout...

  • Page 11: Connections

    PCB. Static discharge could result in serious damage to the module. Connections Video Connections The C DA 5010 CardModule is configured with standard 75 Ohm BNC connectors. Connection is self-explanatory. We recommend the use of high quality video cables for digital video connections to reduce the risk of interference or errors due to excessive cable attenuation.

  • Page 12: Installation

    Reference Manual C DA 5010 Version1.8 Installation Caution The CardModule is shipped in a protective anti-static bag. Please take suitable precautions to avoid static discharge onto any part of the PCB or components when handling module or serious damage could result.

  • Page 13: Settings And Control

    Reference Manual C DA 5010 Version1.8 Settings and Control The C DA 5010 has an integrated micro-controller, which enables the module to be configured and controlled locally using integral 8 position dip switch or from remote when using one of the optional controllers and control software.

  • Page 14: Switch Settings

    Reference Manual C DA 5010 Version1.8 Switch Settings Below the switch settings for the 8-position dip- switch are defined. Please see the section following the table for more detail on the switch function. Switch Setting Function Enable Local Adjustments Disable local Adjustments...
  • Page 15 Reference Manual C DA 5010 Version1.8 changed from the remote control system. This overrides the local dip switches regardless of Switch 1 ON/OFF setting. To ensure the module reads the local dip switch settings it is recommended to toggle Switch 1 ON-OFF-ON before making any...

  • Page 16: Additional Remote Functions

    Reference Manual C DA 5010 Version1.8 Dip Switch 8 This switch is used to select VBI (vertical Blanking Interval) on and off. When set to OFF VBI is enabled and the module will insert a vertical blanking signal on the outgoing analog video signal. ON will switch the module to a transparent mode, so inserted ancillary data will not be deleted.

  • Page 17: Factory Preset Condition

    Reference Manual C DA 5010 Version1.8 Factory Preset Condition The C DA 5010 is delivered preset for the following mode of operation: • Local control ENABLED • YUV Output • RGB sync enabled • Test signal OFF • Test signal format PAL •...

  • Page 18: Alarm/Led Status Indicators

    Reference Manual C DA 5010 Version1.8 Alarm/LED Status Indicators The C DA 5010 module has three LED indicators, which serve as alarm and status indication for the module. (Figure 2 or 3) Function is described below. Status Indicators 2 status LEDs are provided on the module edge...

  • Page 19: Locate Function

    Reference Manual C DA 5010 Version1.8 Locate Function For larger systems which may have multiple MiniModules of the same type in a single rack, or multiple rack systems on a large central control system we have added a useful utility which will...

  • Page 20: Specifications (C Da 5010)

    Reference Manual C DA 5010 Version1.8 Specifications (C DA 5010) Inputs Signal Serial 4:2:2 SMPTE 259M-C (270 Mbit/s) Standards NTSC-(M/N), PAL (B/D/G/H/I/N/60) Auto detection Return Loss >15dB (270MHz) Jitter <0,2UI Connection Impedance 75 Ohm Outputs Signal (component) YUV or RGB component analog or 3 x Black Burst...

  • Page 21: Available Options

    Reference Manual C DA 5010 Version1.8 Available Options Below is a list of related products for the C DA 5010 CardModule. Please refer to product brochures or our web site for more detailed information. Model Description Series 5000 Rack Frame (empty) with single...

  • Page 22: Service

    Reference Manual C DA 5010 Version1.8 Service If you are experiencing problems, or have questions concerning your C DA 5010 CardModule please contact your local distributor for assistance. We offer a fixed cost service exchange program for defective Series 5000 CardModules out of Warranty.

  • Page 23: Contact Information

    Reference Manual C DA 5010 Version1.8 Contact Information Please contact your local distributor; this is your local and fastest method for obtaining support and sales information. LYNX Technik can be contacted directly using the information below. Address LYNX Technik AG Brunnenweg 3 D-64331 Weiterstadt Germany.
  • Page 24 Reference Manual C DA 5010 Version1.8 This page is intentionally left blank Page 24...
  • Page 25 Reference Manual C DA 5010 Version1.8 Notes Page 25...
