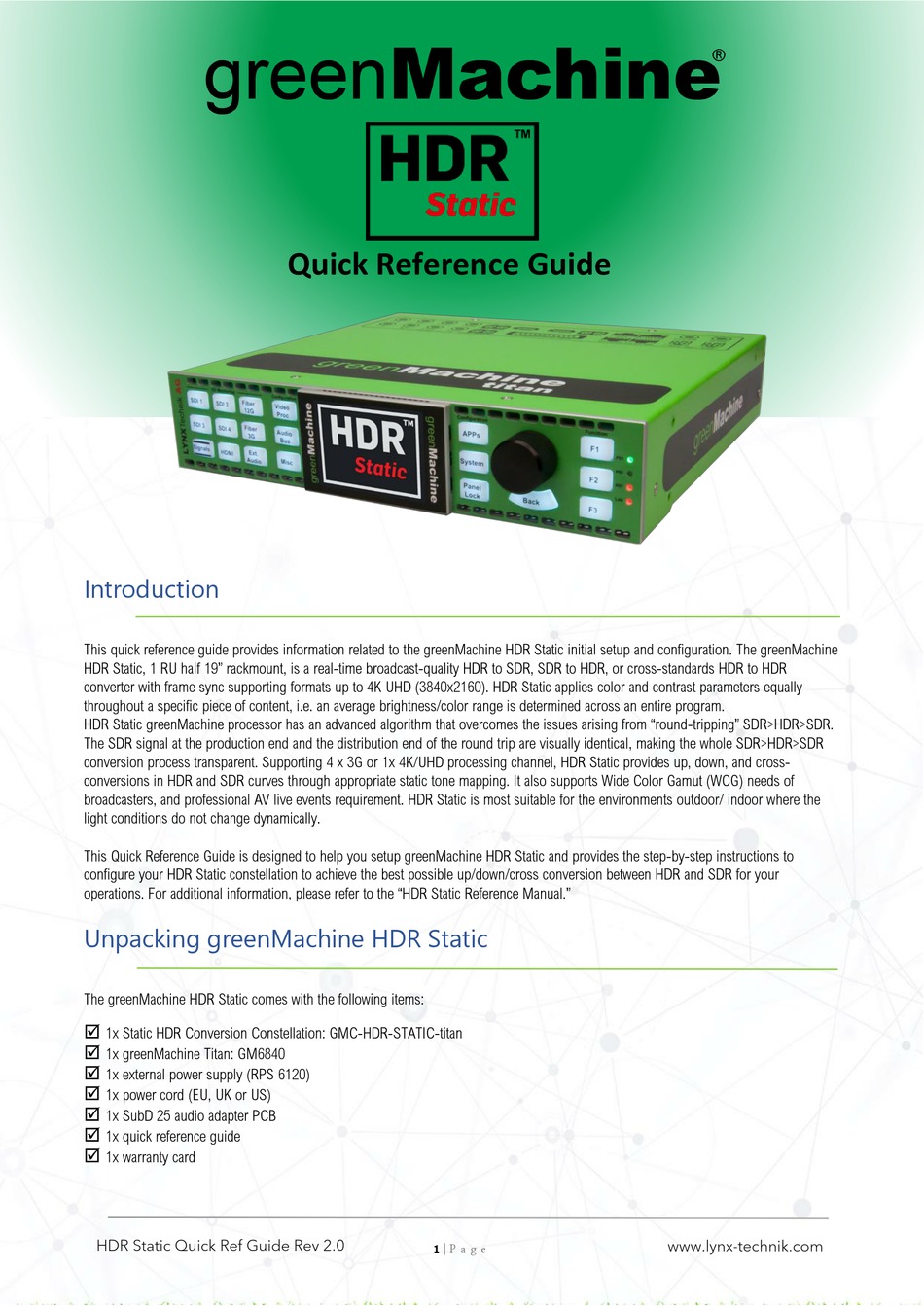

Introduction
This quick reference guide provides information related to the greenMachine HDR Static initial setup and configuration. The greenMachine
HDR Static, 1 RU half 19" rackmount, is a real-time broadcast-quality HDR to SDR, SDR to HDR, or cross-standards HDR to HDR
converter with frame sync supporting formats up to 4K UHD (3840x2160). HDR Static applies color and contrast parameters equally
throughout a specific piece of content, i.e. an average brightness/color range is determined across an entire program.
HDR Static greenMachine processor has an advanced algorithm that overcomes the issues arising from "round-tripping" SDR>HDR>SDR.
The SDR signal at the production end and the distribution end of the round trip are visually identical, making the whole SDR>HDR>SDR
conversion process transparent. Supporting 4 x 3G or 1x 4K/UHD processing channel, HDR Static provides up, down, and cross-
conversions in HDR and SDR curves through appropriate static tone mapping. It also supports Wide Color Gamut (WCG) needs of
broadcasters, and professional AV live events requirement. HDR Static is most suitable for the environments outdoor/ indoor where the
light conditions do not change dynamically.
This Quick Reference Guide is designed to help you setup greenMachine HDR Static and provides the step-by-step instructions to
configure your HDR Static constellation to achieve the best possible up/down/cross conversion between HDR and SDR for your
operations. For additional information, please refer to the "HDR Static Reference Manual."
Unpacking greenMachine HDR Static
The greenMachine HDR Static comes with the following items:
1x Static HDR Conversion Constellation: GMC-HDR-STATIC-titan
1x greenMachine Titan: GM6840
1x external power supply (RPS 6120)
1x power cord (EU, UK or US)
1x SubD 25 audio adapter PCB
1x quick reference guide
1x warranty card
HDR Static Quick Ref Guide Rev 2.0
Quick Reference Guide
1 |
P a g e
www.lynx-technik.com
Advertisement
Related Manuals for Lynx greenMachine HDR Static
Summary of Contents for Lynx greenMachine HDR Static
- Page 1 This Quick Reference Guide is designed to help you setup greenMachine HDR Static and provides the step-by-step instructions to configure your HDR Static constellation to achieve the best possible up/down/cross conversion between HDR and SDR for your operations.
-
Page 2: Section 1: This Section Will Demonstrate The Initial Preparation Of Hardware And Software Setup
Quick-Setup Guide The following sections will guide you in setting up a new greenMachine HDR Static. The quick setup is divided into two sections: Section 1: This section will demonstrate the initial preparation of hardware and software setup Section 2: This section will demonstrate the HDR Static setup configured in Quad 3G Channel (four discrete 3G SDI) mode or 4K UHD mode for HDR<>SDR conversion. -
Page 3: Ip Network Settings
The values given in the pictures above are for demonstration purposes only. Once IP settings are completed, exit the IP setting menu. The greenMachine will now be visible on the greenGUI running on your PC or MAC. HDR Static Quick Ref Guide Rev 2.0 www.lynx-technik.com P a g e... -
Page 4: Video/Audio Connection
Static in 4K mode Config. greenMachine Static in Quad 3G mode Config. HDR Static Quick Ref Guide Rev 2.0 www.lynx-technik.com P a g e... - Page 5 Note: To enable zoom in or zoom out, users can use the mouse scroller or can double click. A new greenMachine HDR Static comes with the pre-deployed HDR Static constellation. In case the constellation type needs to be changed, follow the below steps:...
-
Page 6: Section 2: Hdr Static Configuration
Section 2: HDR Static Configuration This section will guide you in setting up a new greenMachine HDR Static constellation. Note: The settings shown in this quick reference guide is for demonstration purpose only. The user should set the values and parameters depending on the actual operational requirements and preferences. - Page 7 For detailed information on processing parameters, refer to the HDR Static reference manual “Operations Mode.” Setting Description Operation Mode There are two options provided in Operation Mode which are bypass HDR/SDR, Mode STATIC and Custom LUT HDR Static Quick Ref Guide Rev 2.0 www.lynx-technik.com P a g e...
- Page 8 Full: Full Range is the complete range of bits used for representing blacks and whites. For example, in a 10-bit signal, 0 bit represents the black, and 1023 bit represents the White. HDR Static Quick Ref Guide Rev 2.0 www.lynx-technik.com P a g e...
- Page 9 Auto: In this mode, the output follows the input, and no conversion takes place. For example, if the input range is “Narrow,” then the output range will be “Narrow.” HDR Static Quick Ref Guide Rev 2.0 www.lynx-technik.com P a g e...
- Page 10 Select Custom LUTs in the HDR tab to import, export and set parameters for the Custom LUT. For more information on Custom LUTs, refer to Custom LUTs Quick Reference Guide. HDR Static Quick Ref Guide Rev 2.0 www.lynx-technik.com 10 | P a g e...
- Page 11 2. HDR Static Audio settings Perform the following steps to set up your greenMachine HDR Static audio Settings. Click on the Audio button The audio page is displayed on the screen Click on crossbar The following options are displayed to the users.
- Page 12 If MADI input is connected, then click on to display the MADI audio settings. Adjust the audio parameters as required. Select Outputs and adjust the audio parameters as required. HDR Static Quick Ref Guide Rev 2.0 www.lynx-technik.com 12 | P a g e...
- Page 13 HDR Static Quick Ref Guide Rev 2.0 www.lynx-technik.com 13 | P a g e...
