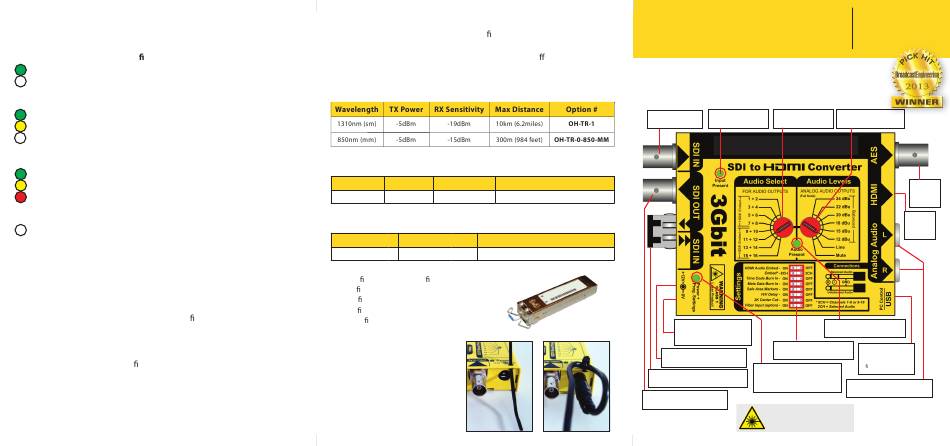

Lynx yellobrik CDH 1813 Quick Reference

Module LEDs
The module has several LEDs included to indicate status:
SDI Present LED (electrical or ber input)
= Valid SDI signal connected
= (out) non valid SDI signal or signal missing
Audio Status LED
= Both of the audio channels are present
= Only one of the audio channels is present
= (out) no audio present
Power / Prog Setting LED
= Power OK and no internal programmed settings are present
= Power OK and some programmed settings are active*
= One or more of module switch settings have been overwritten
with the yelloGUI application. (Operation of any local switch will
clear internal settings and restore all local switch settings)
= (out) Power not present
* Some additional internal settings have been made using the yelloGUI and the
LED indicates this by turning yellow. The module can be reset to factory defaults
by using the reset switch (recessed under a hole on the side of the module).
When reset the LED will change back to Green.
USB Port / Firmware Updates / yelloGUI
The USB interface on the module is used for rmware updates and for
control of the module using the yelloGUI software application.
To update a yellobrik, power it and connect it to the PC or Mac running
the yelloGUI software with the provided USB cable. The yelloGUI
software will indicate if a new rmware is available for the connected
module and will guide you through the update process.
Firmware updates are always free of charge.
For more information and to download the yelloGUI application please
http://yellogui.lynx-technik.com
goto:
Fiber I/O Options
The module can accommodate several ber options which are detailed
below. These are SFP sub modules and plug into the side of the
module. We can also supply CWDM versions in 18 di erent
wavelengths if required (contact LYNXTechnik for more details).
(sm) =singlemode (mm)=multimode
Transceiver (send and receive)
Transmitter only
Wavelength TX Power Max Distance
*
OH-TX-1 LC / OH-TX-1 ST / OH-TX-1 SC
1310nm (sm) -5dBm 10km (6.2miles)
Receiver only
Wavelength RX Sensitivity
*
1270-1630nm (sm) -19dBm OH-RX-1-Y LC / OH-RX-1-Y ST / OH-RX-1-Y SC
* These ber options have ber connection choices
LC=LC ber connector
ST= ST ber connector
SC=SC ber connector
All other ber options are LC connections
Power Lead Strain Relief
The module has a small hole in
the case located above the
power connection. To prevent
the power lead being
accidentally pulled out, use the
supplied tie-wrap and secure
the lead as shown opposite.

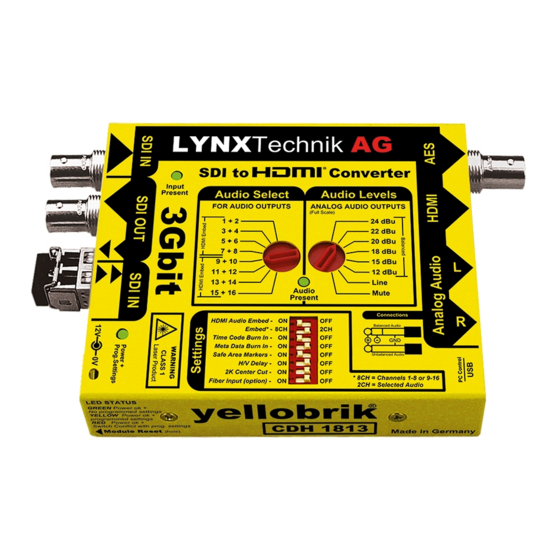

yellobrik
CDH 1813
3G SDI to HDMI Converter
SDI Present
SDI Input
Option #
Option #
SFP sub module
Module Reset
(through hole)
12V Power Input
SDI Fiber I/O (option)
SDI (loop) Output
Quick
®
Reference
AudioSelect Audio Level
LYNXTechnik AG
Audio Status LED
Module Settings USB
(
for YelloGUI and
rmware updates)
Power and
Prog. Settings LED
Analog Audio Out
Warning
Class 1 Laser Product
AES
Out
HDMI
Out
