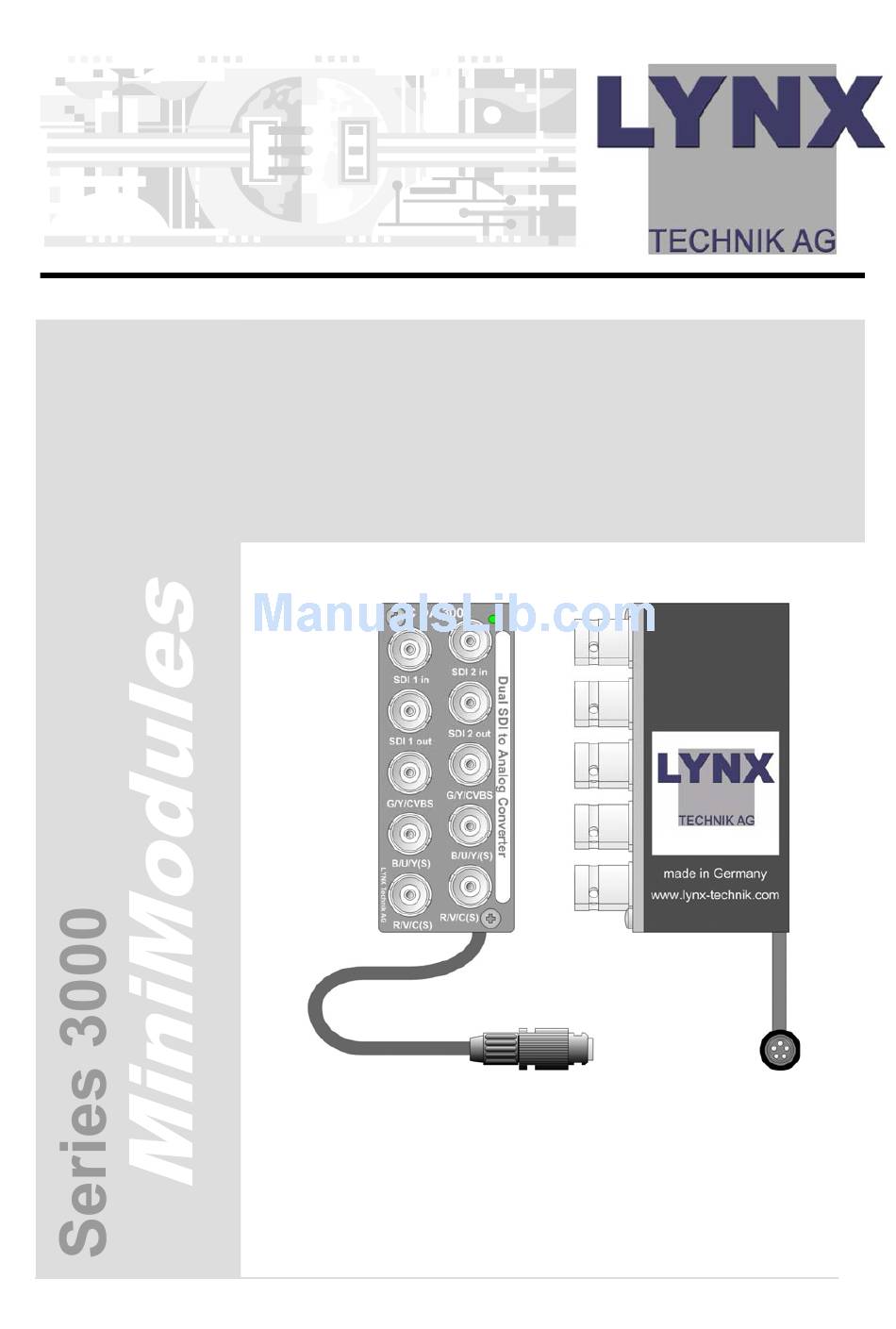

Page 1: Reference Manual
Reference Manual V 3.0 C DA 3002 Dual SDI to Analog Video Converter © LYNX Technik AG Brunnenweg 3 64331 Weizterstadt Germany www.lynx-technik.com... - Page 2 Except as expressly written by LYNX Technik AG, the furnishing of this document does not give you any license to patents, trademarks, copyrights or other intellectual property of LYNX Technik AG or any of its affiliates.
-
Page 3: Warranty
LYNX Technik, with shipping charges prepaid. LYNX Technik shall pay for the return of the product to the customer if the shipment is within the country which the LYNX Technik service center is located. -
Page 4: Regulatory Information
Reference Manual C DA 3002 Version 3.0 Regulatory information Europe Declaration of Conformity LYNX Technik AG Brunnenweg 3 D-64331 Weiterstadt Germany Declare under our sole responsibility that the product TYPE: C DA 3002 To which this declaration relates is in conformity with the following... -
Page 5: Table Of Contents
Reference Manual C DA 3002 Version 3.0 Contents Warranty ................... 3 Regulatory information............4 Europe....................4 Declaration of Conformity ............4 USA ....................4 FCC 47 Part 15 ................4 Contents ................... 5 Getting Started................. 7 Packaging..................7 Product Description ................7 Functional Diagram ................9 Module Layout .................9 Connections ................ - Page 6 Reference Manual C DA 3002 Version 3.0 This Page is intentionally left blank Page 6...
-
Page 7: Getting Started
Please retain the shipping cartons in case subsequent shipping of the product becomes necessary. Product Description The C DA 3002 is a high quality dual 8 bit video digital to analog converter designed primarily for broadcast and professional applications. The module has two independent conversion channels and each channel accepts 1 SDI input signal. - Page 8 The C DA 3002 is part of the 3000 series of MiniModules, which offer high quality, modularity and flexibility in a very small form factor ideal for applications where space is at a premium.
-
Page 9: Functional Diagram
SDI 2 out Figure 1- C DA 3002 Functional Diagram Module Layout Figure 2 shows the physical layout of the C DA 3002 MiniModule. Video I/O is made through standard 75 Ohm BNC video connections. Module configuration is set via small dip-switches located behind an access hole in the bottom of the module. - Page 10 Reference Manual C DA 3002 Version 3.0 Figure 2 – Module Layout Page 10...
-
Page 11: Connections
Reference Manual C DA 3002 Version 3.0 Connections Video Connections The C DA 3002 MiniModule is configured with standard 75 Ohm BNC connectors. Connection is self-explanatory. We recommend the use of high quality video cable suitable for digital video connections to reduce the risk of interference or errors due to excessive cable attenuation. -
Page 12: Power Connections
Reference Manual C DA 3002 Version 3.0 Power Connections If using the module in a stand-alone application use the separate R PS 3001 E (for Europe), R PS 3001 U (USA) power brick option, the universal desk power supply R PS 3001-3 or the R PS 3004 desk power supply for 4 MiniModules. -
Page 13: Installation
Installation Mechanical Stand Alone Operation The C DA 3002 MiniModule can be used in a stand alone application. There are two options for the use of the module in this way. a) Using the R FR 3005 Rack Frame 1 option. This... -
Page 14: Multiple Units
Reference Manual C DA 3002 Version 3.0 Multiple Units Most applications will require more than one MiniModule, which can include any of the available Series 3000 MiniModule product range. There are two options for mounting multiple units. a) Using the R FR 3005 Rack Frame option. This... -
Page 15: Electrical Installation
Reference Manual C DA 3002 Version 3.0 Electrical Installation. Stand Alone Operation The MiniModule requires one of the R PS 300x power brick options for stand-alone operation. Four versions are available; R PS 3001 E for European markets, R PS 3001 U for the US markets, the universal desk power supply R PS 3001-3 or the R PS 3004 desk power supply for 4 MiniModules. -
Page 16: Multiple Units
Settings and Control The C DA 3002 is configured via the integral 6- position dip-switches. These are located on the bottom of the module and can be accessed through the cutout provided (fig 2) Both channels are identical and only one is described below. -
Page 17: Switch Function Detail
Reference Manual C DA 3002 Version 3.0 Switch Function Detail All settings are stored in Flash Ram inside the module (see Auto Store section in this manual). Settings will be recalled on power up. It is recommended that switch 1 is set to OFF to disable further local control when the module is configured for use. -
Page 18: Factory Preset Condition
Selects the output signal if no input signal is present. ON selects signal BLACK, OFF selects signal COLOR BARS Factory Preset Condition The C DA 3002 is delivered preset for the following mode of operation: • Local control ENABLED •... -
Page 19: Alarm/Led Status Indicators
Reference Manual C DA 3002 Version 3.0 Alarm/LED Status Indicators The C DA 3002 module has built in LED indicators, which serve as alarm and status indication for the module. Function is described below. The Indicators are found on the bottom of the module and can be seen through the access holes provided (Fig. -
Page 20: Locate Function
Reference Manual C DA 3002 Version 3.0 Locate Function For large systems which have many modules in various locations we have added a utility which will help visually identify a module quickly. (When used in conjunction with the optional control system and... -
Page 21: Specifications (C Da 3002)
Reference Manual C DA 3002 Version 3.0 Specifications (C DA 3002) Inputs SDI Video Dual converter. Each channel has 1 serial digital video input. SMPTE 259M-C Input Impedance 75 Ohm Connection Cable length 250m Belden 8281 (270Mbit/s) Return Loss > 15dB (270MHz) -
Page 22: Available Options
Reference Manual C DA 3002 Version 3.0 Available Options Below is a list of available options for the C DA 3002 MiniModule. Please refer to product brochures or our web site for more detailed information. Model Description External brick power supply module for R PS 3001 E Series 3000 MiniModules. -
Page 23: Parts List
Reference Manual C DA 3002 Version 3.0 Parts List Due to the very dense design and high level of integration there are no user serviceable electronic assemblies within the C DA 3002 module. C DA 3002 Mini Module (complete) Description... -
Page 24: Contact Information
Reference Manual C DA 3002 Version 3.0 Contact Information Please contact your local distributor; this is your local and fastest method for obtaining support and sales information. LYNX Technik can be contacted directly using the information below. Address LYNX Technik AG... - Page 25 Reference Manual C DA 3002 Version 3.0 Notes Page 25...
