Marantz PM-14S1 Owner's Manual

Marantz pm-14s1 integrated amplifier owner's manual
Hide thumbs Also See for PM-14S1:
Table of Contents

Advertisement

Quick Links

See also: Owner's Manual

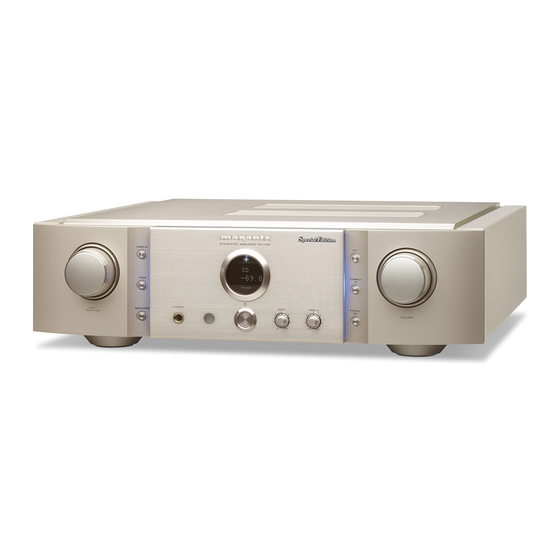

Model PM-14S1 Owner's Manual
Integrated Amplifier

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PM-14S1 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Marantz PM-14S1

Summary of Contents for Marantz PM-14S1

  • Page 1 Model PM-14S1 Owner’s Manual Integrated Amplifier...

  • Page 2: Important Safety Instructions

    Install in accordance with the manufacturer’s instructions. PARTS INSIDE. REFER SERVICING TO QUALIFIED approved by Marantz may void your authority, granted by the FCC, to use Do not install near any heat sources such as radiators, heat registers, SERVICE PERSONNEL.

  • Page 3: Cautions On Installation

    ENGLISH FRANÇAIS ESPAÑOL n Cautions on installation NOTE ON USE / OBSERVATIONS RELATIVES A L’UTILISATION / NOTAS SOBRE EL USO Précautions d’installation WARNINGS AVERTISSEMENTS ADVERTENCIAS Emplazamiento de la instalación Avoid high temperatures. Eviter des températures élevées. Evite altas temperaturas. Allow for sufficient heat dispersion when installed Tenir compte d’une dispersion de chaleur suffisante Permite la suficiente dispersión del calor cuando in a rack.

  • Page 4: Table Of Contents

    ENGLISH Preparation Thank you for purchasing this Marantz product. To ensure proper operation, please read this owner’s manual carefully before using the product. After reading the manual, be sure to keep it for future reference. Contents Accessories Playback ···················································································16 Turning the power on Check that the following parts are supplied with the product.

  • Page 5: About The Remote Control

    ENGLISH About the remote control Cautions on handling The supplied remote control can be used to control Marantz Operating range of the remote control unit Before turning the power on Integrated Amplifier and Marantz Super Audio CD player. Check once again that all connections are correct and that The remote control may not operate some products.

  • Page 6: Features

    ±0.5 dB. F.C.B.S. A Floating Control Bus System (F.C.B.S.) enables the user to connect up to four PM-14S1 units, making a diversity of applications possible with complete bi-amp and multichannel connections. Moreover, a ground loop is not formed among multiple PM-14S1 units connected;...

  • Page 7: Part Names And Functions

    ENGLISH Part names and functions For buttons not explained here, see the page indicated in parentheses ( ). Front panel Q7 Q6 INPUT SELECTOR knob Remote control sensor Attenuator button (ATT.) This selects the input source (vpage 16). This receives signals from the remote control unit This mutes the volume (vpage 17).

  • Page 8: Rear Panel

    PRE OUT connectors Used to connect speakers (vpage 7). Use this to add such equipment as a power amplifier or REMOTE CONTROL connectors subwoofer (vpage 14). Used to connect to a Marantz audio device that is compatible with the remote control function (vpage 15).

  • Page 9: Remote Control Unit

    Disc tray open/close button (OPEN/CLOSE) REPEAT button The supplied remote control can be used CLEAR button to control Marantz Integrated Amplifier and DC FILTER button Marantz Super Audio CD player. When using this remote control, also refer DISPLAY button to the operating instructions of the other devices.

  • Page 10: Connections

    ENGLISH Connections NOTE Connecting the speakers Disconnect this unit’s power plug from the power outlet before connecting the speakers. Connect the speaker cables so they do not stick out of the speaker terminals. The protection circuit may be activated if the wires touch the rear panel or if the + and – sides touch each Connecting the speakers cables other (vpage 24 “Protection circuit”).

  • Page 11: Speaker Connections

    ENGLISH Connecting the speakers Connecting players Speaker connections You can connect turntables, tuners, CD players and network audio players to this unit. Set phono equalizer button by the type of your cartridge to be used MM or MC. If you set this unit’s input source to “PHONO”...

  • Page 12: Connecting Recorders

    ENGLISH Connecting recorders Recorder-1 Recorder-2 AUDIO OUT AUDIO OUT AUDIO IN AUDIO IN...

  • Page 13: F.c.b.s. Connection

    The Marantz F.C.B.S. (Floating Control Bus System) is the high quality sound system for link control between multiple PM-14S1 units (up to 4 units). Each unit is controlled via its ID number In the connection of the following example, an unit with ID number 1 acts as a master registered beforehand.

  • Page 14: Stereo Complete Bi-Amp Connection

    This mode enables the two amplifiers connected to this unit to function as one monaural amplifier. To use this mode, two F.C.B.S. connected PM-14S1 units are required. To switch the mode, use the amplifier mode switch on the rear panel while the power is off.

  • Page 15: Connection For 5.1 Multi-Channel Playback

    Set to “STEREO”. Set to “STEREO”. For center speaker or For front L/R speakers For surround speakers subwoofer Set PM-14S1 to ID 1. Set PM-14S1 to ID 3. Set PM-14S1 to ID 2. To power To power To power outlet.
  • Page 16 ENGLISH F.C.B.S. connection n Speaker positioning for Super Audio CD multi- Front center Subwoofer channel sound speaker In order to enjoy Super Audio CD multi-channel sound with L channel front R channel front the best possible acoustics, it is recommended to position speaker speaker speakers as specified in ITU-R BS.775-1 of the International...

  • Page 17: Connecting P.direct In Connectors

    ENGLISH Connecting P.DIRECT IN connectors Connecting PRE OUT connectors If you use a pre-amplifier, connect it as shown below, and then you can use this unit as a power If you use a power amplifier, connect it as shown below, and then you can use this unit as a amplifier.

  • Page 18: Connecting Devices With Remote Control Connectors

    Remotely connecting Marantz devices To household power outlet You can transmit remote control signals simply by connecting a Marantz audio device to the (AC 120 V, 60 Hz) Power cord REMOTE CONTROL IN/OUT connectors using the remote connection cable provided with the (supplied) device.

  • Page 19: Playback

    ENGLISH Playback Turning the power on Turning speaker output on X AMP Press SPEAKERS on the unit. Press on the unit. MENU SPEAKERS indicator lights. The power indicator lights in blue. df 1 The unit will be ready to start playback after several seconds. Selecting the input source Turning the power standby Use INPUT...

  • Page 20: Turning Off The Sound Temporarily

    ENGLISH Turning off the sound temporarily Adjusting the left and right channel Adjusting the tone balance Press ATT. Press TONE. “ATT” appears on the display and the sound is muted. The TONE indicator lights, and the mode switches to The volume level of the left and right channels can be trimmed the tone adjustment mode.

  • Page 21: Settings

    ENGLISH Settings INPUT SELECTOR Setting ID number for F.C.B.S Setting the power amp direct mode DISPLAY P.DIRECT IN When the unit is turned on, the display shows the ID number When a pre-amplifier is connected to this unit and the unit is for three seconds.

  • Page 22: Switching The Illumination Lamp Setting

    ENGLISH Setting the Auto Standby mode Switching the illumination lamp You can set the unit to automatically switch to standby mode setting if the unit is not operated for 30 minutes when there is no The illumination lamps on the both sides of the unit main panel audio input.

  • Page 23: Tips

    Use the stereo complete bi-amp connections (vpage 11). Use the multi-channel playback connections (vpage 12). n I want to use this unit’s remote control to operate a Marantz CD player Switch the remote control control mode to CD. Also refer to the CD player Owner’s Manual.

  • Page 24: Power Does Not Turn On / Power Is Turned Off

    Turn down the volume and turn on the power again. Even applying power, the power display flashes This unit’s amplifier circuit has failed. Turn off the power and please contact the Marantz service adviser. – red at intervals of approximately 0.5 seconds.

  • Page 25: No Sound Comes Out

    ENGLISH Troubleshooting n No sound comes out Symptom Cause Page No sound comes out of speakers. Check the connections for all devices. Insert connection cables all the way in. – Check that input connectors and output connectors are not reversely connected. –...

  • Page 26: Error Messages

    ENGLISH Troubleshooting Error messages When multiple amplifiers are connected by F.C.B.S., the error messages described in the table below may be displayed on the display. In such a case, ID number setting or remote cable connection may be in failure. Check the ID number or remote cable connection, referring to the table below.

  • Page 27: Appendix

    ENGLISH Appendix Explanation terms About the protection circuit MM/MC cartridge select This unit is equipped with a protection circuit to protect the If the main-amplifier overheats There are two types--MM (Moving Magnet) and MC (Moving amplifier circuits and speaker system from damage. The protection circuit is activated if the temperature of the main Coil)--of cartridges for turntable.

  • Page 28: Specifications

    ENGLISH Specifications Index RMS Power output: 90 W × 2 (8 Ω/ohms) (20 Hz – 20 kHz 2-channel simultaneously 140 W × 2 (4 Ω/ohms) MM/MC cartridge select ···································· 24 Accessories ·························································· 1 driven) Adjusting the tone ·············································· 17 Total harmonic distortion: 0.05 % Adjusting the volume ·········································...
  • Page 29 Dimensions / Dimensions / Dimensions Unit / Unité / Unidad / : inch (mm) 17 21/64 (440) 2 41/64 (67) 2 23/32 2 23/32 (69) 11 57/64 (302) (69) Weight / Poids / Peso / : 40 lbs 13 oz (18.5 kg)
  • Page 30 D&M Holdings Inc. Printed in China 5411 11075 00AM...
