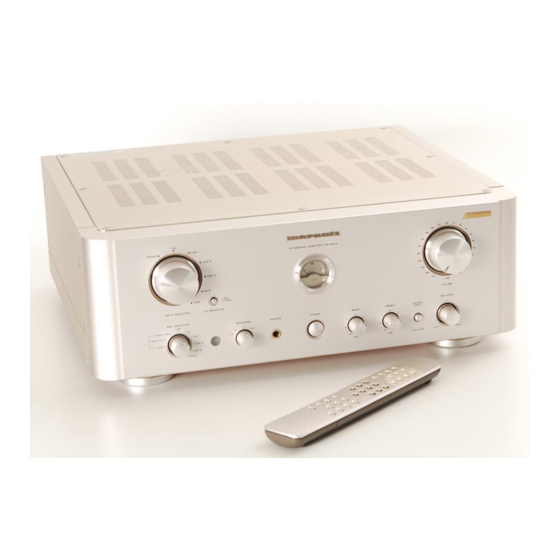

- Page 1 Model PM-14mkII User Guide Integrated Amplifier...
- Page 2 Kvitto eller faktura är tillräokligt bevis fö detta. GARANTIE DANSK Voor inlichtingen omtrent garantie dient u zich tot uw plaatselijke Marantz. UW KWITANTIE, KASSABON E.D. BEWAREN GARANTI Uw kwitantie, kassabon e.d. vormen uw bewijs van aankoop van een Henvend dem til Deres MARANTZ-forhandler angående inrformation...
- Page 3 The PM-14mkII is in conformity with the EMC directive and low-voltage directive. Français Le PM-14mkII est conforme à la directive EMC et à la directive sur les basses tensions. Deutsch Das Modell PM-14mkII entspricht den EMC-Richtlinien und den Richtlinien für Niederspannungsgeräte.
- Page 4 — it will not be exposed to electrostatic discharges Never place heavy objects on the equipment. Your Marantz product has been prepared to comply with the household If a foreign body or water does enter the equipment, contact your near- power and safety requirements that exist in your area.
-
Page 5: Name And Function Of Each Part
NAME AND FUNCTION OF EACH PART r Volume Control Knob (VOLUME) (Figure 1) A PHONE INPUT jacks This knob adjusts the volume. Turning the knob to the right ( ), in- creases the volume. The volume can also be turned up or down with Connect the output jacks of a turntable to these jacks. -
Page 6: Play Operation
PLAY OPERATION TAPE DECK OPERATION PHONO LINE PHONO LINE INTEGRATED AMPLIFIER PM-14mkII INTEGRATED AMPLIFIER PM-14mkII LINE LINE LINE LINE CD-R TEMP CD-R TEMP BAL. TAPE BAL. UNBAL. TAPE UNBAL. (-dB) (-dB) INPUT SELECTOR CD SELECTOR VOLUME INPUT SELECTOR CD SELECTOR... -
Page 7: Remote Control Operation
The following illustration shows Play the button layout of the RC-17mkIIPM. Note that the functions of the PM-14mkII that can be remote controlled Fast forward are only the volume up/down control and input selection operations. - Page 8 button (see z of the figure 3) is pressed: button (see z of the Button functions when the Button functions when the figure 3) is pressed: Button Function Button Function Play Not used. Fast forward Frequency Up Rewind Frequency Down Not used.
- Page 9 PRE OUT (pre amp output terminal) and MAIN IN (main amp input Remote controllable range terminal) can be used individually. Stereo integrated amplifier (PM-14mkII) Connect peripheral equipment such as power amps, channel dividers, sound effectors, etc to the PRE OUT (pre amp output terminal).
-
Page 10: Troubleshooting
If the trouble still persists after checking, please consult your dealer or nearest MARANTZ service agent. The amplifier does not function and the indicator does not light. 1. Check if the power cord is plugged properly into an AC power out- let. - Page 11 TECHNICAL SPECIFICATIONS (DIN) Rated power output (20 Hz to 20 kHz, 2CH simultaneous drive) ...................... 100 W x 2 (8 Ω load) 160 W x 2 (6 Ω load) 200 W x 2 (4 Ω load) Total harmonic distortion (20 Hz to 20 kHz, 2CH drive, 8 Ω load) .......................... 0.01 % Cross-modulation distortion (SMPTE) ..................................
- Page 12 : 4 – 16 OHMS S Y S T E M A + B : 8 – 16 OHMS MAIN IN PHONO AC INLET PHONO LINE INTEGRATED AMPLIFIER PM-14mkII LINE LINE CD-R TEMP BAL. TAPE UNBAL. (-dB) INPUT SELECTOR CD SELECTOR...
- Page 13 CD BALANCED terminal 1. The XLR connector is used in the BALANCED 3. The USA system is used in this device (PM-14mkII). terminal. When using an XLR connector cable and playing 2. For professional usage, there are two types of XLR a CD player etc which uses the European system, connector connection method.
- Page 14 MILITARY MARKET EUROPE PASCO GmbH PO BOX 1280, Sandhausen 69200, Germany NETHERLANDS Marantz Domestic Sales A division of Marantz Europe B.V., Building SFF2, P.O. Box 80002, 5600 JB Eindhoven, The Netherlands NEW ZEALAND Wildash Audio Systems 14 Malvern Road, Mt. Albert, Auckland, New Zealand...
