Sena SPH10H User Manual
  1. Manuals
  2. Brands
  3. Sena Manuals
  4. Headsets
  5. SPH10H
  6. User manual

Sena SPH10H User Manual

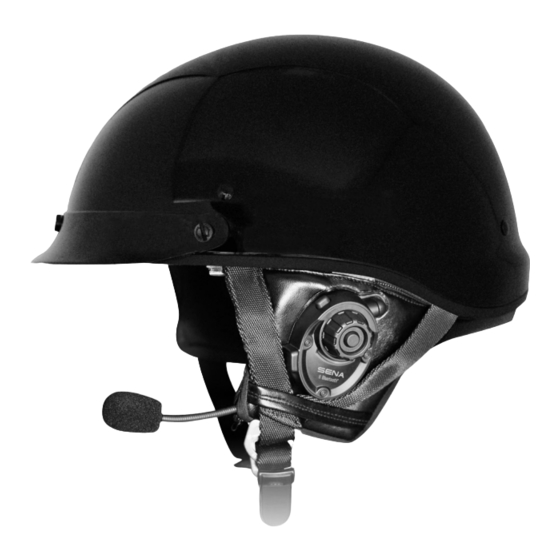

Bluetoth stereo headset and intercom for half helmet
Hide thumbs Also See for SPH10H:
Table of Contents

Advertisement

Quick Links

Download this manual
User's Guide
www.sena.com

Advertisement

Table of Contents
loading

Related Manuals for Sena SPH10H

Summary of Contents for Sena SPH10H

  • Page 1 User's Guide www.sena.com...
  • Page 2 Sena. The Bluetooth word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by Sena is ® under license. iPhone, iPod touch are the registered trademark of Apple Inc. Zumo™ is a trademark of Garmin Ltd.

  • Page 3: Table Of Contents

    2. PACKAGE CONTENTS ............6 9.2 Enabling/Disabling Voice Activated Phone Answering ...19 9.3 Enabling/Disabling Voice Activated Intercom ......19 3. INSTALLING THE SPH10H ON YOUR HELMET ....7 9.4 Enabling/Disabling Voice Prompts ...........20 4. POWERING ON/OFF AND CHARGING ......8 9.5 Enabling/Disabling Sidetone ............20 9.6 Delete all Bluetooth Pairing Information ........20...
  • Page 4 20. INTERCOM RECONNECTION .........36 21. RESET TO FACTORY DEFAULT SETTINGS ....37 22. FAULT RESET ..............37 23. FIRMWARE UPGRADE ............38 24. SENA BLUETOOTH CONNECTION CASE STUDIES ..39 25. OPERATION QUICK REFERENCE ........49 CERTIFICATION AND SAFETY APPROVALS .......50 • FCC Compliance Statement ............50 • FCC RF Exposure Statement ............50...

  • Page 5: Introduction

    Stereo Headset and Intercom for Half Helmets. With • Multipoint Bluetooth pairing with GPS navigation or the SPH10H, you can call handsfree on your Bluetooth Sena SR10 Two-way Radio Adapter mobile phone, listen to stereo music or voice instructions •...

  • Page 6: Package Contents

    SPH10H 2. PACKAGE CONTENTS • SPH10H Headset Jog Dial • Answer and end a mobile phone call • Reject an incoming mobile phone call • Start and end intercom conversation • Volume adjustment by rotating DC Power Charging & • Play and pause Bluetooth stereo device Firmware Upgrade Port •...

  • Page 7: Installing The Sph10H On Your Helmet

    • USB Power and Data Cable YOUR HELMET • Cigarette Charger 1. Insert the two plastic tabs of the SPH10H on the headset ear pads into the left and right side of your • Stereo Audio Cable helmet. You may use the Tab Insertion Tool located in the package to help insert the plastic tabs into your helmet.

  • Page 8: Powering On/Off And Charging

    SPH10H 2. Please make sure that one of the headset ear pads 4. POWERING ON/OFF AND CHARGING with the microphone is located on the left side of your helmet. To power on and off the headset, you don’t need to press and hold any button for several seconds.

  • Page 9: Low Battery Warning

    SPH10H 4.4 Low Battery Warning 5. VOLUME ADJUSTMENT When the battery is low, the blinking blue LED in stand-by mode turns to red and you will hear mid- tone triple beeps and a voice prompt saying “Low You can easily adjust the volume by rotating the Jog battery”.

  • Page 10: Pairing The Sph10H With Bluetooth Devices

    SPH10H 2. Search for Bluetooth devices on your mobile 6. PAIRING THE SPH10H WITH BLUETOOTH phone. Select the Sena SPH10H in the list of the DEVICES devices detected on the mobile phone. 3. Enter 0000 for the PIN. Some mobile phones may not ask for the PIN.

  • Page 11: Bluetooth Stereo Device Pairing

    The 3. Search for Bluetooth devices on your mobile procedure is the same as the procedure in “6.1 phone. Select the Sena SPH10H in the list of the Mobile Phone Pairing”. devices detected on the mobile phone.
  • Page 12 Bluetooth stereo 4. Enter 0000 for the PIN. music source, you can pair the GPS to the SPH10H by 5. The GPS confirms that pairing has completed and following the simple procedures in “6.1 Mobile Phone the SPH10H is ready to use.

  • Page 13: Pairing With The Sena Sr10, Bluetooth Two-Way Radio Adapter

    HFP as do most motorcycle specific GPS navigation systems. If you pair the SPH10H with a SR10 by multipoint pairing, Mobile Phone the SPH10H is able to have two HFP devices at the same time: mobile phone and Sena SR10. Mobile Phone Pairing 1.
  • Page 14 SPH10H The incoming audio from the two-way radio via SR10 is heard in the background while having an intercom conversation or a mobile phone call. You can listen to music, answer a mobile call, have an intercom conversation and use a two-way radio via...

  • Page 15: Pairing With Selective Profile: A2Dp Stereo Or Handsfree

    Select the Sena SPH10H in the list of devices smartphone, sometimes you may need to selectively detected on your phone. use the SPH10H for A2DP stereo music only or for 4. Enter 0000 for the PIN. Some smartphones may not mobile phone handsfree only. This instruction is for ask for PIN.

  • Page 16: Intercom Pairing

    Intercom Conversation The SPH10H can be paired with up to three other headsets for Bluetooth intercom conversation. 1. Turn on the two SPH10H headsets (A and B) that you would like to pair with each other. Pairing A & B 2.

  • Page 17: Pairing With Other Sena Headset Models For Intercom Conversation

    Served’. If a headset has multiple paired headsets for intercom conversations, the last paired headset is set as first intercom friend. The previous You can set the configuration of the SPH10H by the intercom friend becomes second intercom friend, voice menu instruction as below.

  • Page 18: Assigning Speed Dial

    2. You can assign phone numbers to speed dials in your the Jog Dial until you hear a voice prompt saying PC. Please visit the Sena Bluetooth web site at www. “Speed dial”. sena.com for more information.

  • Page 19: Enabling/Disabling Voice Activated Phone Answering

    If you tap the Jog Dial to start an intercom 9.3 Enabling/Disabling Voice Activated conversation, it is not terminated by 20 seconds of Intercom silence. After turning SPH10H off and on, you can start intercom by voice again. Voice Prompt “VOX intercom”...

  • Page 20: Enabling/Disabling Voice Prompts

    Disable Tap the Jog Dial To delete all Bluetooth pairing information of the SPH10H, rotate the Jog Dial until you hear a voice You can disable voice prompts by configuration setting, prompt saying “Delete all pairings”, and tap the but the following voice prompts are always on.

  • Page 21: Function Priority

    SPH10H Tap Phone 10. FUNCTION PRIORITY Rotate Jog Dial Tap Jog Dial Button Speed Dial Execute The SPH10H operates in the following order of VOX Phone Enable Disable priority: VOX Intercom Enable Disable (highest) Mobile phone, Intercom, Voice Prompt Enable...

  • Page 22: Stereo Music

    SPH10H Profile (AVRCP), so if your Bluetooth audio device 11. STEREO MUSIC also supports the AVRCP, you can use the SPH10H to remotely control music playback. You not only can adjust the volume but also use You can listen to stereo music in two ways: with the...

  • Page 23: Mobile Phone Call Making And Answering

    SPH10H 3. To track forward or track back, rotate while pressing 12. MOBILE PHONE CALL MAKING AND the Jog Dial clockwise or counter clockwise. ANSWERING 12.1 Mobile Phone Call Making and Answering 1. When you have an incoming call, simply tap the Phone Button or the Jog Dial to answer the call.

  • Page 24: Speed Dialing

    Jog Dial. If any button is not pressed within 15 1. To enter into the voice speed dial menu, double tap seconds, the SPH10H will exit the voice speed dial the Phone Button and you will hear a mid-tone single menu and goes back to stand-by mode.

  • Page 25: Two-Way Intercom

    SPH10H 13. TWO-WAY INTERCOM Note: Make sure that you should connect the mobile phone and the headset in order to use the speed dial function. 13.1 Start and End Two-way Intercom 1. You can start an intercom conversation with one...

  • Page 26: Intercom And Mobile Phone Call

    13.3 Intercom and GPS during an intercom conversation, you will hear a If you pair a Bluetooth GPS to the SPH10H as ring tone. You can choose whether to 1) answer described in 6.3 of this user's guide, you can hear...

  • Page 27: Intercom And Two-Way Radio

    As described in 6.4 of this user's guide, you can use Wired Connection a two-way radio and SPH10H Bluetooth intercom simultaneously by using the Sena SR10, a Bluetooth Two-way Radio Adapter, along with the SPH10H. Incoming audio from the two-way radio is not...

  • Page 28: Three-Way Conference Intercom

    & C) for three-way conference intercom. INTERCOM 14.1 Start Three-way Intercom You (A) can have a three-way conference intercom with two other SPH10H friends (B & C) by establishing First Friend Second Friend two intercom connections at the same time. While...

  • Page 29: End Three-Way Intercom

    (B) and (C). 2. Tap or double tap the Jog Dial to disconnect 4. Now you (A) and two SPH10H intercom friends (B intercom connection with one of the two intercom & C) are having a three-way conference intercom.

  • Page 30: Four-Way Conference Intercom

    1. Press the Jog Dial for 1 second until you hear a You can have four-way conference intercom with three beep to terminate four-way conference intercom. It other SPH10H users by adding one more intercom terminates the intercom connections between you participant to the three-way intercom. While you are (A), and your intercom friends (B), (C) and (D).

  • Page 31: Universal Intercom

    1. Turn on the SPH10H and a non-Sena Bluetooth headset which you want to pair with. 2. Press and hold the Jog Dial on the SPH10H for 8 seconds until the blue LED flashes rapidly. You will hear a voice prompt saying “Universal intercom...

  • Page 32: Three-Way Universal Intercom

    3. The other SPH10H (C) may join the intercom by 1. You (A) need to be paired with non-Sena Bluetooth making an intercom call to you (A).

  • Page 33: Four-Way Universal Intercom

    (A), a non-Sena Bluetooth headset (B), and two other and the other SPH10H (C) are having a three-way SPH10H headsets (C and D). You may make the four- conference intercom. way Universal Intercom call the same way as a normal four-way intercom call.
  • Page 34 SPH10H 2. The other SPH10H (C) may join the intercom by 4. Now two SPH10H headsets (A & C) and two non- making an intercom call to you (A). Sena Bluetooth headsets (B & D) are connected with the four-way Universal Intercom.

  • Page 35: Three-Way Conference Phone Call With Intercom Participant

    SPH10H 17. THREE-WAY CONFERENCE Tap Jog Dial while having a mobile phone Start call PHONE CALL WITH INTERCOM End intercom PARTICIPANT Tap Jog Dial first Press Jog Dial for 2” You can have a three-way conference phone call End phone call...

  • Page 36: Music Sharing

    In track forward and track back. this case, the SPH10H automatically tries to reconnect 2. When you have an incoming call, make a phone the intercom every 8 seconds and you will hear high call, or hear the turn-by-turn voice instruction of GPS during music sharing, the function will be paused.

  • Page 37: Reset To Factory Default Settings

    21. RESET TO FACTORY DEFAULT 22. FAULT RESET SETTINGS When the SPH10H is not working properly or is in a 1. To restore the SPH10H to factory default settings, faulty status for any reason, you may reset the system press and hold the Phone Button for 12 seconds...

  • Page 38: Firmware Upgrade

    23. FIRMWARE UPGRADE the reset button for 1 second with light pressure, at which time the SPH10H will be switched off. Turn the SPH10H back on. By powering back on, this will The SPH10H supports firmware upgrade function. restore your current settings.

  • Page 39: Sena Bluetooth Connection Case Studies

    SPH10H 24. SENA BLUETOOTH CONNECTION CASE STUDIES Case 1 Bluetooth Pairing Procedure 1 Mobile Phone Pairing 2 Multipoint Pairing 3 Intercom Pairing Mobile Phone Bluetooth GPS* zumo 220/350/550/660/665, TomTom Rider Mobile Phone Pairing Usage • Mobile phone: phone call, listening to music •...
  • Page 40 SPH10H Case 2 Bluetooth Pairing Procedure GPS - Mobile 1 GPS - Mobile Phone Pairing Phone Pairing 2 Mobile Phone Pairing 3 Intercom Pairing Bluetooth GPS* Bluetooth GPS* Mobile Phone zumo 550/660/665, TomTom Rider Usage Mobile Phone Pairing • GPS...
  • Page 41 SPH10H Case 3 Bluetooth Pairing Procedure 1 Mobile Phone Pairing 2 Multipoint Pairing 3 Intercom Pairing Bluetooth GPS* Bluetooth GPS* zumo 220/350/550/660/665, TomTom Rider Mobile Phone Usage Pairing • Mobile Phone: phone call • GPS zumo 660/665: GPS instruction, listening to music...
  • Page 42 SPH10H Case 4 Bluetooth Pairing Procedure 1 Mobile Phone Pairing 2 Mobile Phone Pairing 3 Intercom Pairing Mobile Phone Bluetooth GPS* Yupiteru, smartphone apps Mobile Phone Pairing Usage • Mobile Phone: phone call • GPS: GPS instruction • Intercom Intercom...
  • Page 43 SPH10H Case 5 Bluetooth Pairing Procedure 1 Mobile Phone Pairing 2 Mobile Phone Pairing 3 Intercom Pairing Mobile Phone Motorcycle Bluetooth Audio System* Mobile Phone BMW R1200RT, K1600GT, K1600GTL Pairing Usage • Mobile Phone: phone call • Motorcycle Bluetooth Audio System: listening...
  • Page 44 SPH10H Case 6 Bluetooth Pairing Procedure 1 Mobile Phone Pairing 2 Mobile Phone Pairing 3 Multipoint Pairing Mobile Phone 4 Intercom Pairing Mobile Phone Bluetooth GPS* Pairing zumo 220/350/550/660/665, TomTom Rider Motorcycle Bluetooth Audio System* BMW R1200RT, K1600GT, K1600GTL Usage...
  • Page 45 SPH10H Case 7 Bluetooth Pairing Procedure 1 Mobile Phone Pairing 2 Multipoint Pairing 3 Intercom Pairing Mobile Phone Usage • Mobile Phone: phone call Mobile Phone • SR10: two-way radio, GPS guidance, Radar Pairing detecting signal • Intercom SR10 Multipoint...
  • Page 46 SPH10H Case 8 Bluetooth Pairing Procedure 1 GPS - Mobile Phone Pairing 2 Mobile Phone Pairing 3 Mobile Phone Pairing 4 Intercom Pairing MP3 Player Bluetooth GPS* zumo 220/350/550/660/665, TomTom Rider Mobile Phone Pairing Usage • GPS: phone call, GPS instruction •...
  • Page 47 SPH10H Case 9 Bluetooth Pairing Procedure 1 Mobile Phone Pairing 2 Mobile Phone Pairing 3 Mobile Phone Pairing Mobile Phone 4 Multipoint Pairing 5 Intercom Pairing Mobile Phone Pairing Usage • Mobile Phone: phone call • SR10: two-way radio, GPS instruction, Radar detecting signal •...
  • Page 48 SPH10H Case 10 Bluetooth Pairing Procedure 1 Mobile Phone Pairing 2 Mobile Phone Pairing 3 Mobile Phone Pairing Mobile Phone 4 Multipoint Pairing 5 Intercom Pairing Mobile Phone Pairing Bluetooth GPS* zumo 220/350/550/660/665, TomTom Rider Usage • Mobile Phone: phone call...

  • Page 49: Operation Quick Reference

    SPH10H 25. OPERATION QUICK REFERENCE Button Description Duration Beep Button Description Duration Beep Double tone Ascending 5 sec Red flashing Intercom Power-on 1 sec Solid blue beeps beeps Phone pairing Button Jog Dial of any one of the two headsets...

  • Page 50: Certification And Safety Approvals

    SPH10H CERTIFICATION AND SAFETY • Reorient or relocate the receiving antennae • I ncrease the separation between the equipment and the APPROVALS receiver • C onnect the equipment into an outlet on a circuit FCC Compliance Statement different from that to which the receiver is connected.

  • Page 51: Ce Declaration Of Conformity

    R&TTE Directive (99/5/EC). Hereby, Sena declares Bluetooth SIG, Inc. and any use of such marks by Sena that this product is in compliance with the essential is under license. Other trademarks and trade names are requirements and other relevant provisions of Directive those of their respective owners.

  • Page 52: Safety Information

    SPH10H SAFETY INFORMATION Product Use • I n some regions, it is prohibited by law to ride Please ensure that the product is properly used by motorcycles or bicycles while wearing headsets. observing the warnings and cautions below to prevent Therefore be certain to comply with all relevant laws in any risk and/or damage to property.

  • Page 53: Battery

    SPH10H • D o not use the product near hazardous explosives. • I n recharging the battery, make sure to use an approved When there are near any explosion hazards, turn off charger provided by the manufacturer. Use of a non- the power and heed any regulations, instructions, and approved charger may cause fire, explosion, leakage, signs in the area.

  • Page 54: Product Warranty And Disclaimer

    Here, product warranty extends to the product only. compensation for damages. Therefore, be certain to Sena will not be liable for any loss, damage of human read and understand the following terms and conditions life, or loss of property which may result from using the before using the product.

  • Page 55: Warranty Exclusions

    ATVs, or quad-bikes (hereinafter called as for reimbursement of expenses (including attorney's "transportation means"), you must take complete fees). Therefore, Sena will not be liable for physical injury, caution regardless of the location of such operation. death, or any loss or damage of transportation means, • Use of the product on the road may cause such risks...
  • Page 56 In addition to damages which may occur due to the use of the product is entirely your responsibility. of the product, Sena will not be liable for damages of the product which occur due to the following events. Limitation of Liability • I n the event the product is misused or used for purposes...

  • Page 57: Warranty Service

    Website, and other relevant information). Take necessary terms and conditions explained above, and Sena will measures to protect the product. In order to get a refund not be liable for any claim for damages related with the or replacement, you must include the whole package as product.
  • Page 58 1.2.0 www.sena.com User's Guide for Firmware v5.0...
