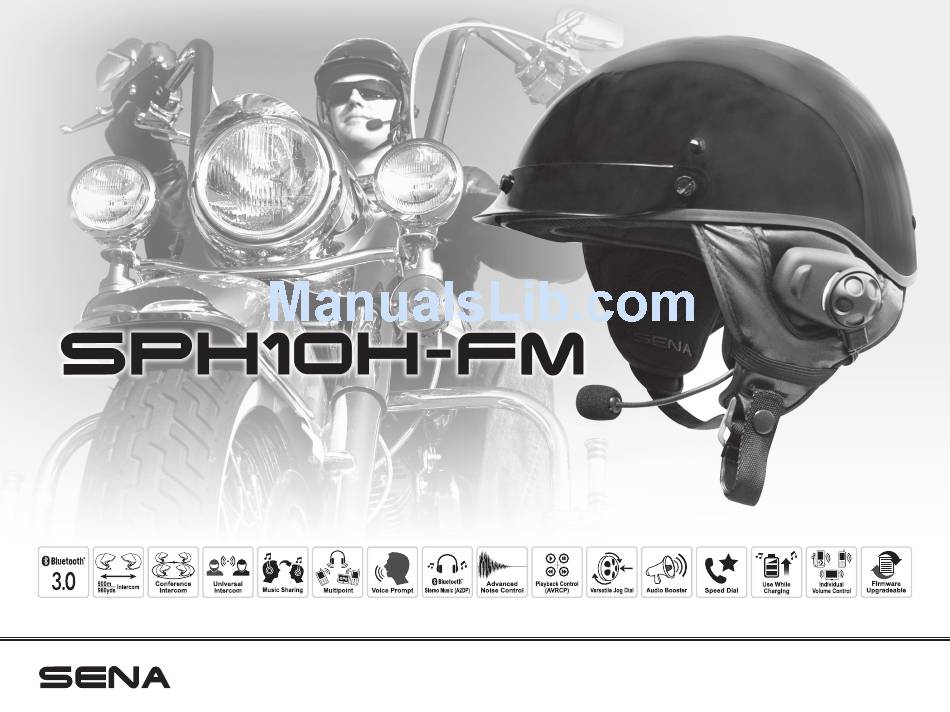

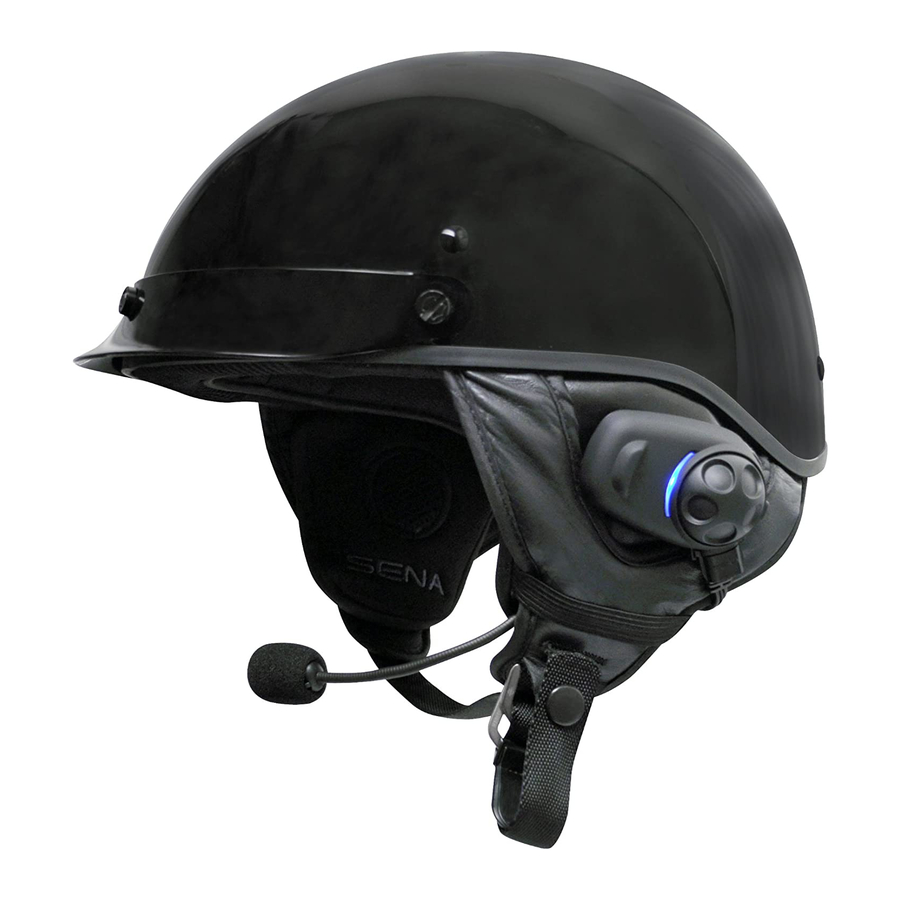

- Page 1 ® Bluetooth Stereo Headset & Intercom with Built-in FM Tuner for Half Helmets User's Guide www.sena.com...
- Page 2 The Bluetooth word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by Sena is under license. iPhone, iPod touch are registered trademarks of Apple Inc. Zumo™ is a trademark of Garmin Ltd.
-
Page 3: Table Of Contents
13.3 Intercom and GPS ................28 6.4 Bluetooth GPS Navigation Pairing ..........13 13.4 Intercom and Two-way Radio ............29 6.5 Pairing with the Sena SR10, Bluetooth Two-way Radio Adapter ...15 14. THREE-WAY CONFERENCE INTERCOM ...........30 7. PAIRING WITH SELECTIVE PROFILE: A2DP STEREO OR HANDSFREE .................. - Page 4 21.6 Region Selection ................41 22. RESET TO FACTORY DEFAULT SETTINGS ......41 23. FAULT RESET ................42 24. FIRMWARE UPGRADE ............42 25. SENA BLUETOOTH CONNECTION CASE STUDIES ....43 Case 1 ......................43 Case 2 ......................44 Case 3 ......................45 Case 4 ......................46 Case 5 ......................47...
-
Page 5: Introduction
Stereo Headset & Intercom with Built-in FM Tuner for Half • Three-way conference phone call with intercom participant Helmets. With the SPH10H-FM, you can call handsfree on • Built-in FM radio tuner with station scan and save function your Bluetooth mobile phone, listen to stereo music or voice •... -
Page 6: Package Contents
SPH10H-FM 2. PACKAGE CONTENTS • SPH10H-FM Headset Jog Dial • Answer and end a mobile phone call • Reject an incoming mobile phone call • Start and end intercom conversation DC Power Charging & • Volume adjustment by rotating Firmware Upgrade Port •... -
Page 7: Installing The Sph10H-Fm On Your Helmet
3. INSTALLING THE SPH10H-FM • USB Power and Data Cable ON YOUR HELMET • Cigarette Charger Before installing the SPH10H-FM, remove the main unit from the earpad. • Microphone Sponges 1. Pull the connector cover upward to unlock the connector and pull out the speaker cable. - Page 8 SPH10H-FM 3. Insert the two plastic tabs of the SPH10H-FM on the 5. Attach the main unit to the earpad. Insert the main headset earpads into the left and right side of your unit on the earpad until you feel the click that signals helmet.
-
Page 9: Powering On/Off And Charging
SPH10H-FM 8. Tuck in the cable that connects left and right earpads, 4. POWERING ON/OFF AND CHARGING between the helmet shell and protective padding or inside the helmet. To power on and off the headset, you don’t need to press and hold any button for several seconds. -
Page 10: Charging
SPH10H-FM 4.3 Charging 4.5 Checking the Battery Level • To charge the SPH10H-FM, use the USB power and You can check the battery level in two different ways data cable included in the package by plugging into when the headset is powering on. -
Page 11: Volume Adjustment
“Media connected” to a Bluetooth stereo device. 6.1 Mobile Phone Pairing 1. Turn on the SPH10H-FM and press the Phone Button for 5 seconds until the LED flashes red and blue alternately and you hear multiple beeps. You will hear a voice prompt saying “Phone pairing”. -
Page 12: Multipoint Pairing
4. The mobile phone confirms that pairing has completed 4. Enter 0000 for the PIN. Some mobile phones may not and the SPH10H-FM is ready to use. You will hear a ask for the PIN. voice prompt from the SPH10H-FM saying “Your 5. -
Page 13: Bluetooth Gps Navigation Pairing
5. The GPS confirms that pairing has completed and (HFP, Hands-Free Profile) and others use stereo music the SPH10H-FM is ready to use. You will hear a voice profile (A2DP, Advanced Audio Distribution Profile). Most prompt from the SPH10H-FM saying “Your headset motorcycle specific GPS systems use mobile phone profile is paired”. - Page 14 GPS to the SPH10H-FM by following the simple procedures in “6.1 Mobile Phone Pairing”. When you do this, the SPH10H-FM thinks the GPS is a mobile phone. But the SPH10H-FM can directly pair an additional mobile phone.
-
Page 15: Pairing With The Sena Sr10, Bluetooth Two-Way Radio Adapter
SPH10H-FM with a SR10 by multipoint pairing, navigation or a radar detector which has headphone the SPH10H-FM is able to have two HFP devices at the jack or audio line-out could be connected to the SR10 same time: mobile phone and Sena SR10. -
Page 16: Pairing With Selective Profile: A2Dp Stereo Or Handsfree
Connection SPH10H-FM, you must clear the previous pairing list on both devices; the mobile phone and SPH10H-FM. To clear the pairing list on SPH10H-FM, please do a factory reset or follow the pairing list clearing procedure Radar Detector described in this manual. To clear the pairing list on the mobile phone, please refer to the mobile phone manual. -
Page 17: Hfp For Phone Call Only
Bluetooth intercom conversation. 4. Enter 0000 for the PIN. Some smartphones may not 1. Turn on the two SPH10H-FM headsets (A and B) that ask for PIN. you would like to pair with each other. -
Page 18: Pairing With Other Sena Headset Models For Intercom Conversation
8.2 Pairing with Other Sena Headset Models following the same procedure as above. for Intercom Conversation The SPH10H-FM can be paired with all other Sena headset models such as the SMH10 and the SPH10 for intercom conversation. Please follow the same procedure as above to pair with these headset models. -
Page 19: Sph10H-Fm Configuration Setting
(3) VOX intercom (7) Delete all pairings (4) Voice prompt (8) Exit configuration You can set the configuration of the SPH10H-FM by the voice menu instruction as below. Speed dial 1. To enter into voice configuration menu, press and Exit configuration... -
Page 20: Enabling/Disabling Voice Activated Phone Answering
Tap the Phone Button number to the rest of two speed dials. Disable Tap the Jog Dial 2. You can assign phone numbers to speed dials in your PC. Please visit the Sena Bluetooth web site at www. sena.com for more information. -
Page 21: Enabling/Disabling Voice Prompts
20 seconds of silence. After Disable Tap the Jog Dial turning SPH10H-FM off and on, you can start intercom by voice again. Sidetone is the sound of your own voice as picked up by your headset’s microphone and reproduced in your own ear, by your own speaker. -
Page 22: Rds Af Setting (Radio Data System: Alternative Frequencies) (Factory Default: Disabled)
SPH10H-FM 9.6 RDS AF setting (Radio Data System: Alternative 9.7 Delete All Bluetooth Pairing Information Frequencies) (Factory Default: Disabled) Voice Prompt “Delete all pairings” Voice Prompt “RDS AF setting” Factory Default Factory Default Disable Execute Tap the Phone Button Enable... -
Page 23: Function Priority
Rotate Jog Dial Tap Phone Button Tap Jog Dial 10. FUNCTION PRIORITY Speed Dial Execute VOX Phone Enable Disable The SPH10H-FM operates in the following order of VOX Intercom Enable Disable priority: Voice Prompt Enable Disable (highest) Mobile phone, Sidetone... -
Page 24: Stereo Music
Jog Dial clockwise or counter clockwise. (AVRCP), so if your Bluetooth audio device also supports the AVRCP, you can use the SPH10H-FM to remotely control music playback. You not only can adjust the volume but also use the functions such as play, pause, next track and previous track. -
Page 25: Mobile Phone Call Making And Answering
SPH10H-FM - For some older mobile phones which do not 12. MOBILE PHONE CALL automatically transfer calls to the headset, press the Phone Button after entering phone numbers on MAKING AND ANSWERING the mobile phone keypad. - Tap the Phone Button in stand-by mode to activate 12.1 Mobile Phone Call Making and Answering... -
Page 26: Speed Dialing
Jog Dial. If any button is not pressed within 15 1. To enter into the voice speed dial menu, double seconds, the SPH10H-FM will exit the voice speed tap the Phone Button and you will hear a mid-tone dial menu and goes back to stand-by mode. -
Page 27: Two-Way Intercom
SPH10H-FM 2. To terminate an intercom conversation, single 13. TWO-WAY INTERCOM tap the Jog Dial. Any intercom connection with any intercom friend will be terminated by a single tapping. A double or triple tapping will do nothing 13.1 Start and End Two-way Intercom in this case. -
Page 28: Intercom And Mobile Phone Call
13.3 Intercom and GPS 1. When you have an incoming mobile phone call If you pair a Bluetooth GPS to the SPH10H-FM as during an intercom conversation, you will hear a described in 6.4 of this user's guide, you can hear ring tone. -
Page 29: Intercom And Two-Way Radio
SPH10H-FM 13.4 Intercom and Two-way Radio As described in 6.5 of this user's guide, you can use a two-way radio and SPH10H-FM Bluetooth intercom simultaneously by using the Sena SR10, a Bluetooth Two-way Radio Adapter, along with the SPH10H- Smart Phone FM. -
Page 30: Three-Way Conference Intercom
(A). You (A) can have a three-way conference intercom with two other SPH10H-FM friends (B & C) by establishing two intercom connections at the same time. While a three-way conference intercom is in progress, mobile... -
Page 31: End Three-Way Intercom
SPH10H-FM 4. Now you (A) and two SPH10H-FM intercom 2. Tap or double tap the Jog Dial to disconnect friends (B & C) are having a three-way conference intercom connection with one of the two intercom intercom. friends accordingly. For example, by single tapping the Jog Dial, you can just terminate the intercom connection with the first intercom friend (B). -
Page 32: Four-Way Conference Intercom
You can have four-way conference intercom with 1. Press the Jog Dial for 1 second until you hear a three other SPH10H-FM users by adding one more beep to terminate four-way conference intercom. It intercom participant to the three-way intercom. -
Page 33: Universal Intercom
2. Press and hold the Jog Dial on the SPH10H-FM for 8 seconds until the blue LED flashes rapidly. You will hear a voice prompt saying “Universal... -
Page 34: Three-Way Universal Intercom
3. The other SPH10H-FM (C) may join the intercom by making an intercom call to you (A). 1. You (A) need to be paired with non-Sena Bluetooth headset (B) and another SPH10H-FM headset (C) for the three-way conference intercom. -
Page 35: Four-Way Universal Intercom
(A), a non-Sena Bluetooth headset (B), and 5. You may disconnect the three-way Universal two other SPH10H-FM headsets (C and D). You may Intercom using the same way as you do in normal make the four-way Universal Intercom call the same three-way intercom. - Page 36 SPH10H-FM 2. The other SPH10H-FM (C) may join the intercom by 4. Now two SPH10H-FM headsets (A & C) and two non- making an intercom call to you (A). Sena Bluetooth headsets (B & D) are connected with the four-way Universal Intercom.
-
Page 37: Music Sharing
Tap Phone Button both headsets with the firmware that has the music call first sharing feature, and enable the EDR setting in the Wait for the called person to end the call Sena Device Manager. Start & End Three-way Conference Phone Call... -
Page 38: Intercom Failure
In this case, the SPH10H-FM automatically tries to intercom busy signal. In this case, you have to try reconnect the intercom every 8 seconds and you again later. -
Page 39: Fm Radio
(You may cancel the preset operation by waiting a voice prompt saying “FM off”. When you power approximately 10 seconds. You will then hear off, the SPH10H-FM will remember the last station “Save preset cancelled”. You can also rotate frequency. When you power on, the last station the Jog Dial clockwise or counter clockwise until frequency will be playing. -
Page 40: Scan And Save
You can save FM stations to presets before using FM 6. To stop scan function, double tap the Phone Button. radio. Connect SPH10H-FM to your PC and open the Sena Device Manager. It allows you to save FM station 21.5 Temporary Preset frequencies up to 10 presets on the SPH10H-FM setting menu. -
Page 41: Region Selection
SETTINGS Sena device manager. With the region setting, you may optimize seek function to avoid unnecessary frequency range (Factory default: worldwide). 1. To restore the SPH10H-FM to factory default Region Frequency Range Step settings, press and hold the Phone Button for 12... -
Page 42: Fault Reset
SPH10H-FM 23. FAULT RESET 24. FIRMWARE UPGRADE When the SPH10H-FM is not working properly or is in The SPH10H-FM supports firmware upgrade function. faulty status for any reason, you may reset by pushing Please visit Sena Bluetooth web site at www.sena. -
Page 43: Sena Bluetooth Connection Case Studies
SPH10H-FM 25. SENA BLUETOOTH CONNECTION CASE STUDIES Case 1 Bluetooth Pairing Procedure 1. Mobile Phone Pairing 2. Multipoint Pairing 3. Intercom Pairing Mobile Phone Bluetooth GPS* zumo 220/350/550/660/665, TomTom Rider Mobile Phone Pairing Usage • Mobile phone: phone call, listening to music •... -
Page 44: Case 2
SPH10H-FM Case 2 Bluetooth Pairing Procedure GPS - Mobile Phone Pairing 1. GPS - Mobile Phone Pairing 2. Mobile Phone Pairing 3. Intercom Pairing Bluetooth GPS* Mobile Phone Bluetooth GPS* zumo 550/660/665, TomTom Rider Usage Mobile Phone Pairing • GPS... -
Page 45: Case 3
SPH10H-FM Case 3 Bluetooth Pairing Procedure 1. Mobile Phone Pairing 2. Multipoint Pairing 3. Intercom Pairing Bluetooth GPS* Bluetooth GPS* zumo 220/350/550/660/665, TomTom Rider Mobile Phone Usage Pairing • Mobile Phone: phone call • GPS zumo 660/665: GPS instruction, listening to... -
Page 46: Case 4
SPH10H-FM Case 4 Bluetooth Pairing Procedure 1. Mobile Phone Pairing 2. Mobile Phone Pairing 3. Intercom Pairing Mobile Phone Bluetooth GPS* Yupiteru, smartphone apps Mobile Phone Pairing Usage • Mobile Phone: phone call • GPS: GPS instruction • Intercom Intercom... -
Page 47: Case 5
SPH10H-FM Case 5 Bluetooth Pairing Procedure 1. Mobile Phone Pairing 2. Mobile Phone Pairing 3. Intercom Pairing Mobile Phone Motorcycle Bluetooth Audio System* Mobile Phone BMW R1200RT, K1600GT, K1600GTL Pairing Usage • Mobile Phone: phone call • Motorcycle Bluetooth Audio System: listening to music, GPS instruction •... -
Page 48: Case 6
SPH10H-FM Case 6 Bluetooth Pairing Procedure 1. Mobile Phone Pairing 2. Mobile Phone Pairing 3. Multipoint Pairing Mobile Phone 4. Intercom Pairing Mobile Phone Pairing Bluetooth GPS* zumo 220/350/550/660/665, TomTom Rider Motorcycle Bluetooth Audio System* BMW R1200RT, K1600GT, K1600GTL Intercom... -
Page 49: Case 7
SPH10H-FM Case 7 Bluetooth Pairing Procedure 1. Mobile Phone Pairing 2. Multipoint Pairing 3. Intercom Pairing Mobile Phone Usage • Mobile Phone: phone call Mobile Phone Pairing • SR10: two-way radio, GPS guidance, Radar detecting signal • Intercom SR10 Multipoint... -
Page 50: Case 8
SPH10H-FM Case 8 Bluetooth Pairing Procedure 1. GPS - Mobile Phone Pairing 2. Mobile Phone Pairing 3. Mobile Phone Pairing 4. Intercom Pairing MP3 Player Bluetooth GPS* Mobile Phone zumo 220/350/550/660/665, TomTom Rider Pairing Usage • GPS: phone call, GPS instruction •... -
Page 51: Case 9
SPH10H-FM Case 9 Bluetooth Pairing Procedure 1. Mobile Phone Pairing 2. Mobile Phone Pairing 3. Mobile Phone Pairing Mobile Phone 4. Multipoint Pairing Mobile Phone 5. Intercom Pairing Pairing Usage • Mobile Phone: phone call • SR10: two-way radio, GPS instruction, Radar... -
Page 52: Case 10
SPH10H-FM Case 10 Bluetooth Pairing Procedure 1. Mobile Phone Pairing 2. Mobile Phone Pairing 3. Mobile Phone Pairing Mobile Phone 4. Multipoint Pairing Mobile Phone 5. Intercom Pairing Pairing Bluetooth GPS* zumo 220/350/550/660/665, TomTom Rider Usage • Mobile Phone: phone call... -
Page 53: Operation Quick Reference
SPH10H-FM Button Description Duration Beep 26. OPERATION QUICK REFERENCE Double tone 5 sec flashing beeps Intercom Jog Dial of pairing Button Description Duration Beep any one of the two headsets Ascending Power-on 1 sec Solid blue Phone beeps Double tone... -
Page 54: Certification And Safety Approvals
This product is CE marked according to the provisions encouraged to try to correct the interference by one or more of the R&TTE Directive (99/5/EC). Hereby, Sena declares of the following measures: that this product is in compliance with the essential •... -
Page 55: Industry Canada Statement
Bluetooth License ® The Bluetooth word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by Sena is under license. Other trademarks and trade names are those of their respective owners. ® The product is compliant with and adopts the Bluetooth Specification 3.0 and has successfully passed all... -
Page 56: Safety Information
SPH10H-FM SAFETY INFORMATION Product Use • In some regions, it is prohibited by law to ride Please ensure that the product is properly used by motorcycles or bicycles while wearing headsets. observing the warnings and cautions below to prevent Therefore be certain to comply with all relevant laws any risk and/or damage to property. -
Page 57: Battery
SPH10H-FM • Do not use the product near hazardous explosives. • In recharging the battery, make sure to use an When there are near any explosion hazards, turn off approved charger provided by the manufacturer. Use the power and heed any regulations, instructions, and of a non-approved charger may cause fire, explosion, signs in the area. -
Page 58: Product Warranty And Disclaimer
Here, product warranty extends to the product only. considerable legal rights including any claim for Sena will not be liable for any loss, damage of human compensation for damages. Therefore, be certain to life, or loss of property which may result from using the... -
Page 59: Warranty Exclusions
(including attorney's as "transportation means"), you must take complete fees). Therefore, Sena will not be liable for physical injury, caution regardless of the location of such operation. death, or any loss or damage of transportation means, •... - Page 60 In addition to damages which may occur due to the use of the product is entirely your responsibility. of the product, Sena will not be liable for damages of the product which occur due to the following events. Limitation of Liability •...
-
Page 61: Warranty Service
Website, and other relevant information). Take necessary terms and conditions explained above, and Sena will measures to protect the product. In order to get a refund not be liable for any claim for damages related with the or replacement, you must include the whole package as product. - Page 62 1.2.0 www.sena.com User's Guide for Firmware v5.0...
