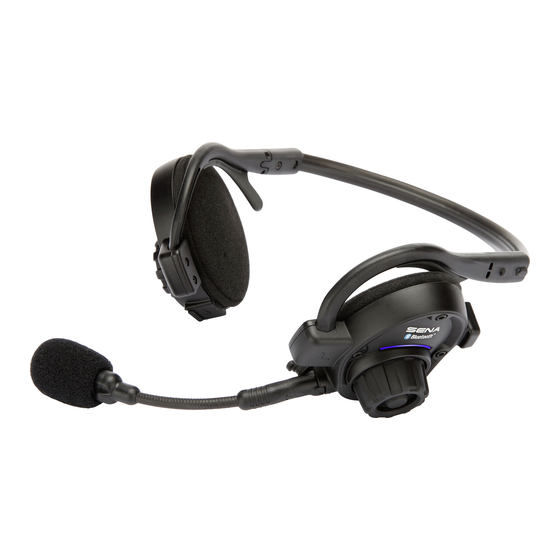

Sena SPH10 User Manual

Bluetooth stereo headset & intercom
Hide thumbs Also See for SPH10:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual
Users Guide
www.senabluetooth.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SPH10 and is the answer not in the manual?

Questions and answers

Related Manuals for Sena SPH10

Summary of Contents for Sena SPH10

  • Page 1 Users Guide www.senabluetooth.com...

  • Page 2: Table Of Contents

    • FCC Caution • A2DP Stereo Music Only • CE Declaration of Conformity • HFP for Phone Call Only PAIRING WITH OTHER SPH10 HEADSETS FOR INTERCOM CONVERSATION • Industry Canada Statement • Bluetooth License USING THE SPH10 WAIVER AND GENERAL RELEASE •...

  • Page 3: Introduction

    INTRODUCTION • Bluetooth hands-free for Bluetooth mobile phones • Bluetooth stereo headset for Bluetooth audio devices such as Thank you for choosing the SENA SPH10, Bluetooth Headset & MP3 players Intercom designed for snow sports helmets. With the SPH10, • Bluetooth Intercom up to 900 meters (980 yards)* you can call hands-free on your Bluetooth mobile phone, listen •...

  • Page 4: Package Contents

    SPH10 PACKAGE CONTENTS • SPH10 Headset Status LED Jog Dial • Start and End an Intercom Conversation • Volume adjustment by rotating • Play and Pause Bluetooth MP3 player • Track-forward and Track-back by Phone Button rotating while pressing the button •...

  • Page 5: Wearing The Sph10

    SPH10 • Boom Microphone WEARING THE SPH10 • Mini Microphone • Microphone Installation Two microphones are included in the package: a long-boom • USB Wall Charger microphone for high noise environment and a short microphone for indoor use. • USB Power Cable Plug the microphone into the microphone port to fit triangle marks as described in the below picture.

  • Page 6: Placing The Headset On Your Ear

    SPH10 Since SPH10 is mostly exposed on external environment where POWERING ON/OFF AND CHARGING noise prevails, microphone can be selected according to the noise level. For the highly noisy environment, boom-microphone To power on and off the headset, you don’t need to press and is recommended allowing microphone to stay near user’s...

  • Page 7: Low Battery Warning

    It can be paired with Bluetooth mobile phones, Bluetooth audio devices such as MP3 or GPS, and with other SPH10 Bluetooth headsets. This pairing operation is only required once for each...

  • Page 8: Bluetooth Mp3 Player Pairing

    SPH10 Handsfree profile is normally recommended for most mobile PAIRING WITH SELECTIVE PROFILE: phones. If it is paired as Headset, the buttons of the SPH10 A2DP STEREO OR HANDSFREE may not work properly. • Bluetooth MP3 Player Pairing If you have a MP3 stereo music phone such as a smartphone, 1.

  • Page 9: A2Dp Stereo Music Only

    2. Within 2 seconds, tap the Jog Dial again, then the LED turns The SPH10 can be paired with up to three other headsets for to red flashing and the beeps turn to double mid-tone beeps. Bluetooth Intercom conversation.
  • Page 10 SPH10 6. If a headset has multiple paired headsets for intercom conversations, the lastly paired headset is set as First Intercom Friend. The older Intercom friend goes to be Second Intercom Friend, and Third Intercom Friend. ** For example, after the paring procedures as above, the headset D is the First Intercom Friend of the headset A, the Pairing A &...

  • Page 11: Using The Sph10

    Voice Activated Phone Answering simply saying a word loudly enough. For example, when you Function of the SPH10 is enabled. (Refer to the next section hear a series of beeps by an incoming call, you can answer the for detail.)

  • Page 12: Intercom Conversation

    SPH10 If this mode is disabled, the only way to answer an incoming call is to tap the Phone Button. 1. Press and hold the Phone Button for 8 seconds until the red Intercom Friend Intercom Friend LED is rapidly flashing. When you do this, after first 5 seconds...

  • Page 13: 3-Way Conference Intercom

    3-way conference intercom. • 3-Way Conference Intercom You (A) could have a 3-way conference intercom with 2 other SPH10 friends (B & C) by establishing two intercom connections at the same time. While a 3-way conference First Friend Second Friend...

  • Page 14: Terminating Conference Intercom

    Second Friend the Jog Dial, you can just terminate the intercom connection 4. Now you (A) and two SPH10 Intercom Friends (B & C) are with your First Intercom Friend (B). However, you still have the having a 3-way conference intercom.

  • Page 15: Intercom Failure

    SPH10 again. conversation, it is not terminated by 20 seconds of silence. After turning SPH10 off and on, you can start intercom by If this feature is disabled, the only way to initiate and terminate voice again. an intercom conversation is to tap the Jog Dial.

  • Page 16: Stereo Music

    1. By Stereo Audio Cable • To adjust the volume, rotate the Jog Dial. Plug your stereo MP3 player directly to the SPH10 by using the enclosed 3.5mm stereo audio jack cable. To adjust the volume, rotate the Jog Dial on the headset. You may adjust the volume on the MP3 player also.

  • Page 17: Function Priority

    Tip: Stereo Music by Bluetooth or 3.5mm audio cable • Reset to Factory Default Settings 1. To restore the SPH10 to factory default settings, press and hold the Phone Button for 12 seconds until the LED shows solid red and you hear double beeps.

  • Page 18: Fault Reset

    SPH10 • Fault Reset When the SPH10 is not working properly or is in faulty status with any reason, you may reset by pushing the pin-hole reset button at the back of the headset main unit. Insert a paper clip into the reset pin-hole and press the reset button for a second with light pressure.

  • Page 19: Firmware Upgrade

    SPH10 FIRMWARE UPGRADE OPERATION QUICK REFERENCE The SPH10 supports firmware upgrade function. Please visit Button Description Duration Beep Power-on 1 sec Solid blue Ascending beeps SENA Bluetooth web site www.senabluetooth.com to check Phone Button + Jog Dial Power-off Tapping Solid red Descending beeps the latest software downloads.

  • Page 20: Battery Information

    The battery can be charged and discharged hundreds of times, but it will eventually wear out. Recharge the battery only with SENA approved chargers designated for this device. Use of an unapproved charger may present a risk of fire, explosion, leakage, or other hazard.

  • Page 21: Maintenance And Care

    SPH10 These suggestions apply equally to the headset main unit, MAINTENANCE AND CARE speaker-microphone clamp unit, or power charger. The Product should be treated with care and the following suggestions will help you protect your warranty coverage. 1. Do not use or store the device in dusty, dirty areas. Its moving parts and electronic components can be damaged.

  • Page 22: Disposal

    SPH10 DISPOSAL CERTIFICATION AND SAFETY APPROVALS • FCC Compliance Statement The crossed-out wheel bin symbol on the product, This device complies with part 15 of the FCC Rules. Operation is literature, or packaging reminds you that all subject to the following two conditions:...

  • Page 23: Fcc Rf Exposure Statement

    This product is CE marked according to the provisions of the the following measures: R&TTE Directive (99/5/EC). Hereby, SENA declares that this - Reorient or relocate the receiving antenna. product is in compliance with the essential requirements and other - Increase the separation between the equipment and receiver.

  • Page 24: Bluetooth License

    WAIVER AND GENERAL RELEASE The Bluetooth® word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by SENA is under license. By using the Product you will waive substantial legal rights Other trademarks and trade names are those of their respective including the right to sue.
  • Page 25 SPH10 initiating or receiving calls. Any publications, advertisements, SENA hereby notifies you that using this Device may also announcements or similar notes that refer to using the Device be in contravention to local, federal, state or national laws or while riding a Vehicle are solely intended to address its...

  • Page 26: Two-Year Limited Warranty

    SENA’s discretion, of defective or non-conforming Product, and foreseeable or unforeseeable causes. You hereby assume SENA shall not be responsible for the failure of the Product to all risks and dangers and all responsibility for any losses perform specified functions, or any other non- conformance...

  • Page 27: Limitation Of Liability

    HEREUNDER OR THE PERFORMANCE, USE OR INABILITY date. Customer agrees to insure the Product or assume the TO USE THE SAME, EVEN IF SENA OR ITS DEALER HAS risk of loss or damage in transit, to prepay shipping charges to BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.

  • Page 28: Return For Full Refund

    ABOVE CONDITIONS, YOU MAY RETURN THIS DEVICE Using the headset with loud volume may be harmful to your TO SENA FOR A FULL REFUND, PROVIDED THAT YOU eardrums and cause hearing loss. Please maintain proper DO SO NO LATER THAN 14 BUSINESS DAYS FOLLOWING volume level to protect your ears.
  • Page 29 Users Guide www.senabluetooth.com V1.1.0...
