Step 13: Chalk Wall Assembly

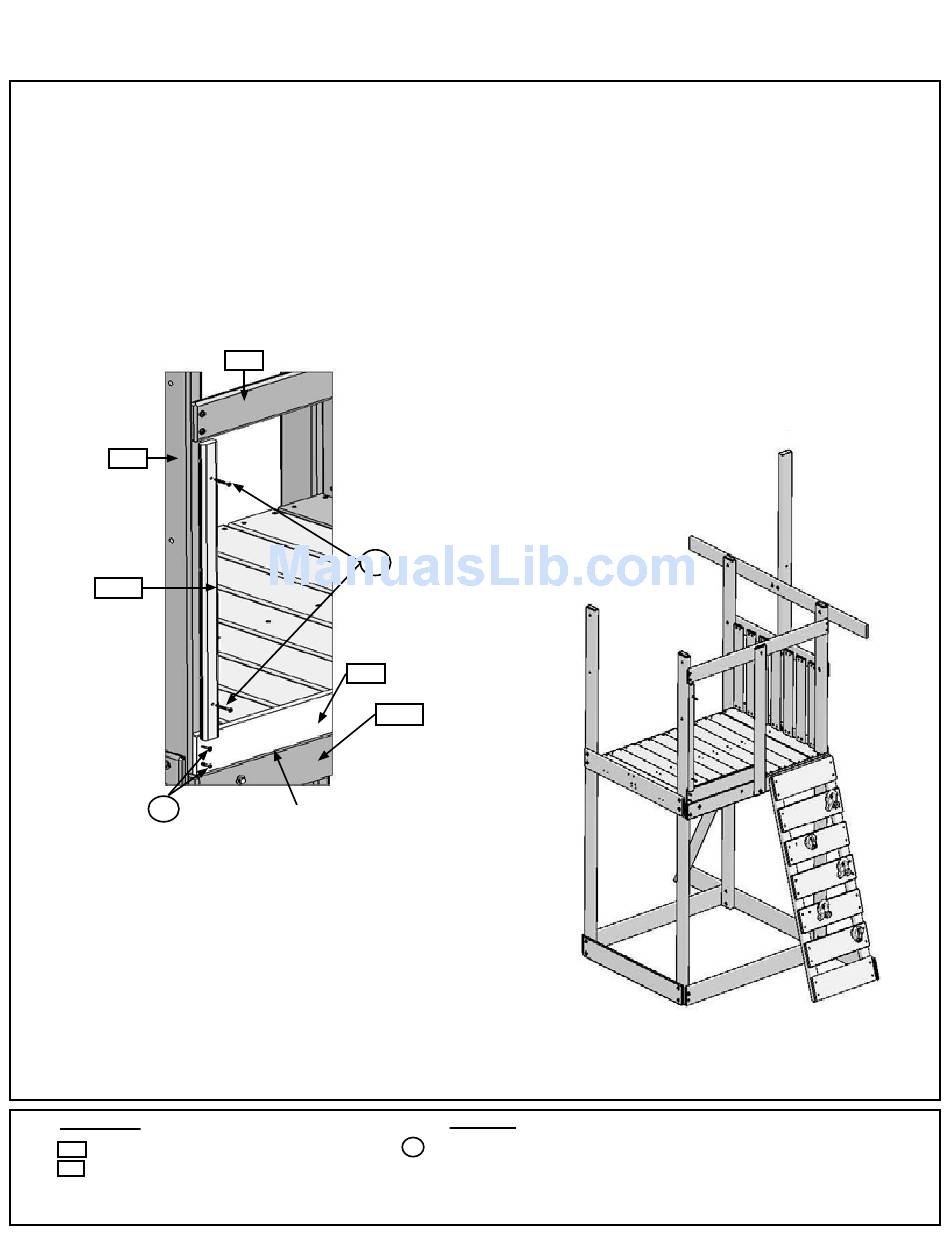

A: On the back of the assembly, attach (OR6) Panel Frame to (F13) Post using 2 (S2) #8 x 1-1/2" Wood Screws.
The top of (OR6) Panel Frame is tight to the bottom of (F10) Top Front Back. (fig. 13.1 & 13.2)
B: Place (F5) Cedar Wall tight to the top of (OR9) Floor Back and attach to (F13) Post using 2 (S2) #8 x 1-1/2"
Wood Screws. (fig. 13.1 & 13.2)
F13
OR6
S2
Wood Parts
1 x
Panel Frame 1 x 2 x 25-1/2"
OR6
1 x
Cedar Wall 1 x 4 x 23-1/2"
F5
Fig. 13.1
F10
S2
F5
OR9
Lay flat on top of floor back
4 x
S2
Hardware
#8 x 1-1/2" Wood Screw
25
Fig. 13.2
