Important Safety Instructions

When using your video equipment, basic safety precautions should always be followed, including the following:
1. Read and understand all instructions before using.
2. To reduce the risk of electric shock, do not disassemble this
appliance. Contact an authorized service dealer when repair
work is required. Incorrect reassembly can cause electric
shock when the appliance is used subsequently.
Multi Vision Imager Assembly
Preparation: Have space for this available on a flat clean surface such a large table or floor. The work area should be larger than the
frame size. If the floor is used, clean papers should be spread to keep all dirt from the screen surfaces. Do not use newspaper.
Tools Required For Assembly: Phillips screwdriver, 1/8" Allen Wrench.
The screen will arrive in two separate cardboard boxes. One box will be very long and will house the 6-1/4" x 8" top and bottom main
frame parts, the 1-1/2" x 1-1/2" frame parts, hardware and wall switch. The smaller cardboard box will house the side main frame parts and
the fabric for the Da-Snap Screen.
Da-Snap Frame Assembly
1. Unpack the 1-1/2" x 1-1/2" frame parts and fabric from
the cardboard boxes. DO NOT unroll the screen surface
at this time.
2. Slide the frame pieces together at corners. (Note: Frame
assembly holes may not appear to fit properly at the corners
until all fasteners have been attached. Once fasteners are
attached, the frame corners will be drawn in for a proper fit).
Secure frame pieces with #10 black screws provided. Do not
tighten screws until all are started, and then tighten.

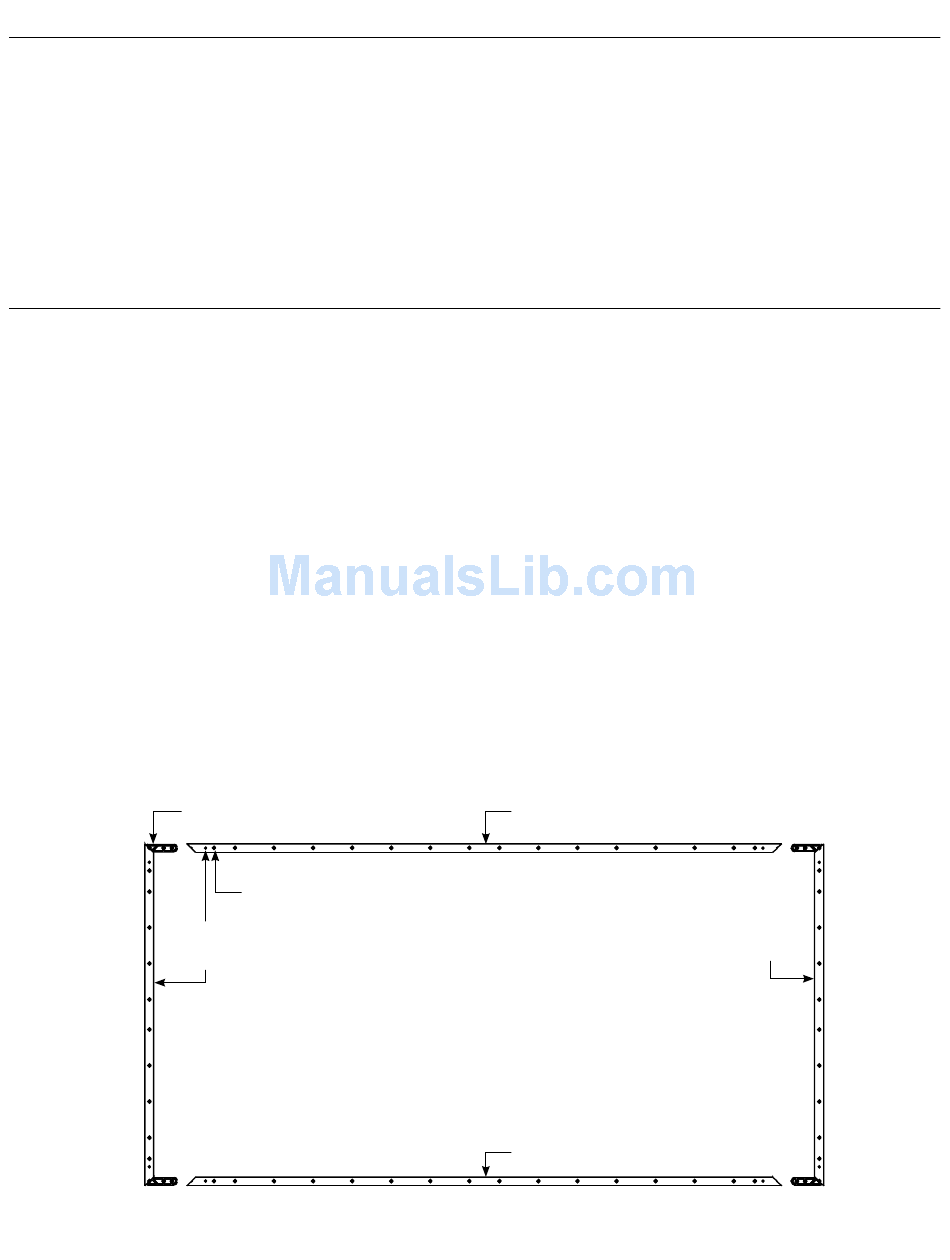

See Figure 1.
Snap Stud
#10 Black Screw
Figure 1
Front View
2
Snap Stud
Side
3. The use of an accessory attachment not recommended by
the manufacturer may cause a risk of fire, electric shock, or
injury to persons.
4. Do NOT lift or push up on the camera arm mechanism at any
time. This may cause improper operation and/or component
failure or injury to persons.
NOTE: The frame pieces are labeled "TOP" and "BOTTOM". Be
sure the frame pieces are assembled according to the labels.
This will ensure the snap pattern on the frame and screen
surface will match.
3. Unroll the screen on a clean surface. Do not use newspaper.
Place the frame over the screen surface, and while lifting the
frame with one hand, snap the screen surface onto the frame
with the other hand while maintaining a steady pull on the
surface. Start with the four corners.
4. Set assembly aside; it will be attached to the main frame.
Top
Bottom
Side
