Multi Vision Imager Installation
Bracket Distances For Standard Sizes
Screen Size
Distance
106"D HDTV
110"D HDTV
119"D HDTV
133"D HDTV
159"D HDTV
103"D CS
115"D CS
125"D CS
133"D CS
138"D CS
148"D CS
Table 1
Electrical Installation
1.
Locate and remove junction box cover by
removing two black screws as shown on Figure 4.
Connect electrical power. Insert cable with RJ-22
jack into splitter located inside junction box, route
cable to outside of unit and insert other RJ-22 jack
to the switch.
NOTE: Must be installed in accordance with the
requirements of the Local Building Codes, the
Canadian Electrical Code (CEC), CAN/CSA C22.1 and
the National Code (NEC), NFPA 70.
2. Test installation by carefully running screen up and
down 2-3 times. Be prepared to stop screen.
Standard Duty Cycle: 1 MIN. ON / 3 MIN. OFF.
3. CAUTION! Excessive continuous operation may
cause overheating. If motor overheats put switch
in center-off position and allow motor to cool for
30 minutes.
Weight
97"
201 Lbs
101"
207 Lbs
109"
21 Lbs
121"
243 Lbs
144"
284 Lbs
100"
191 Lbs
111"
208 Lbs
120"
223 Lbs
127"
235 Lbs
131"
241 Lbs
141.5"
258 Lbs
Wall
Brackets (2)
Top Frame Length - 20"
Back
Lip Of
Frame
Wall
Bracket

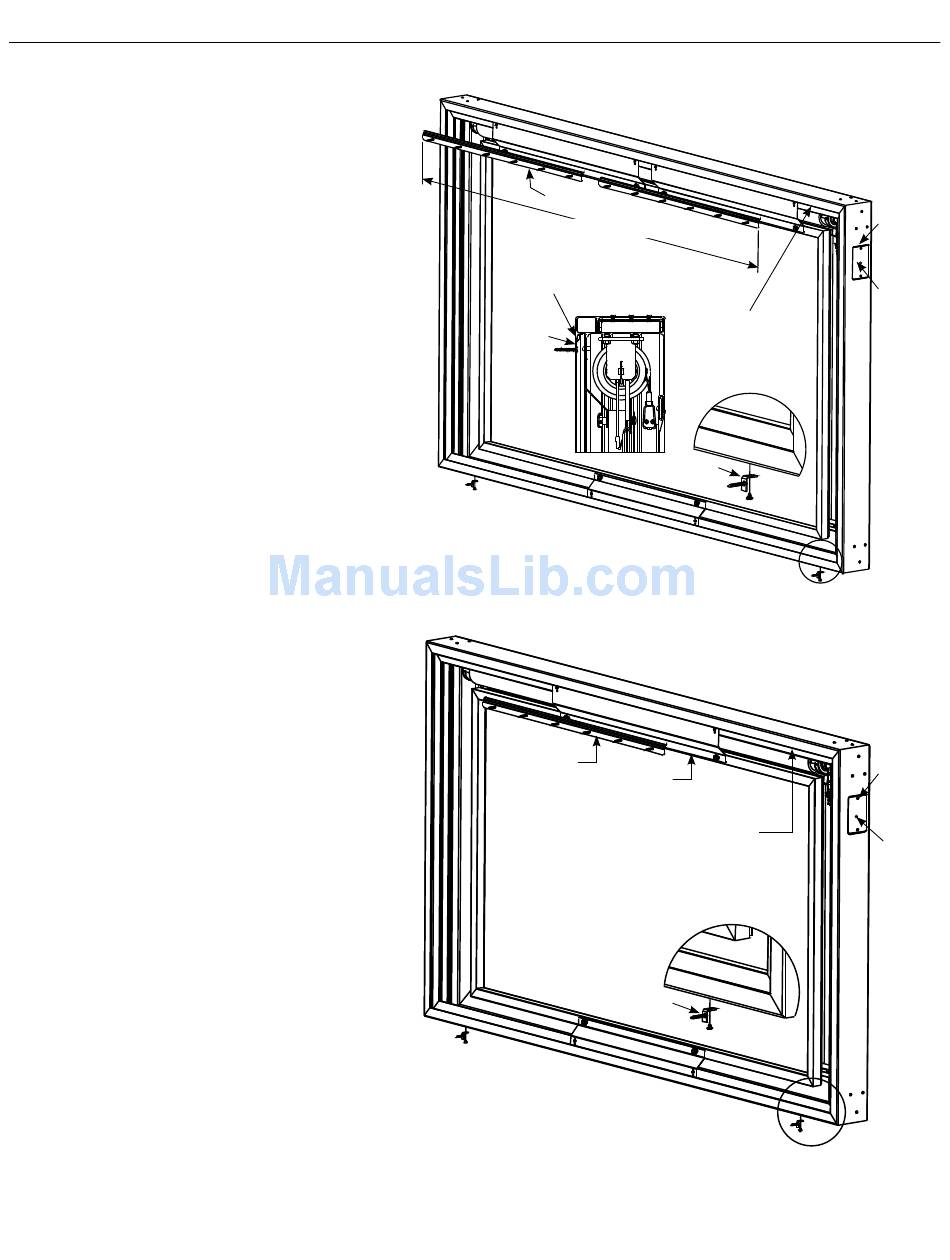

Figure 4-1
Screens With A Viewing
Width Of 87" Or Larger
Wall
Bracket
Bracket
Between Wall Brackets
Screens Less The 87"
Viewing Area Width Are Built
With One Frame Bracket
And One Wall Bracket
Small "L"
Brackets (2)
Figure 4-2
Screens With A Custom
Viewing Width Under 87"
Back Lip Of Frame
Will Wedge Down
Between Wall
Brackets And Wall
Small "L"
Brackets (2)
Frame
Back Lip Of Frame
Will Wedge Down
And Wall
Black
Screws (2)
Junction
Box
Cover
Black
Screws (2)
Junction
Box
Cover
5
