Bowflex Revolution FT Assembly Instructions Manual page 21

Step 17 Install Cable Hooks
Parts:
• Rope Hooks (Box 3 Hardware Card)
Tools:
• 5/16" Allen Wrench
• 7/32" Allen Wrench
• 3/4" Wrench or Adjustable Wrench
• 9/16" Wrench or Adjustable Wrench

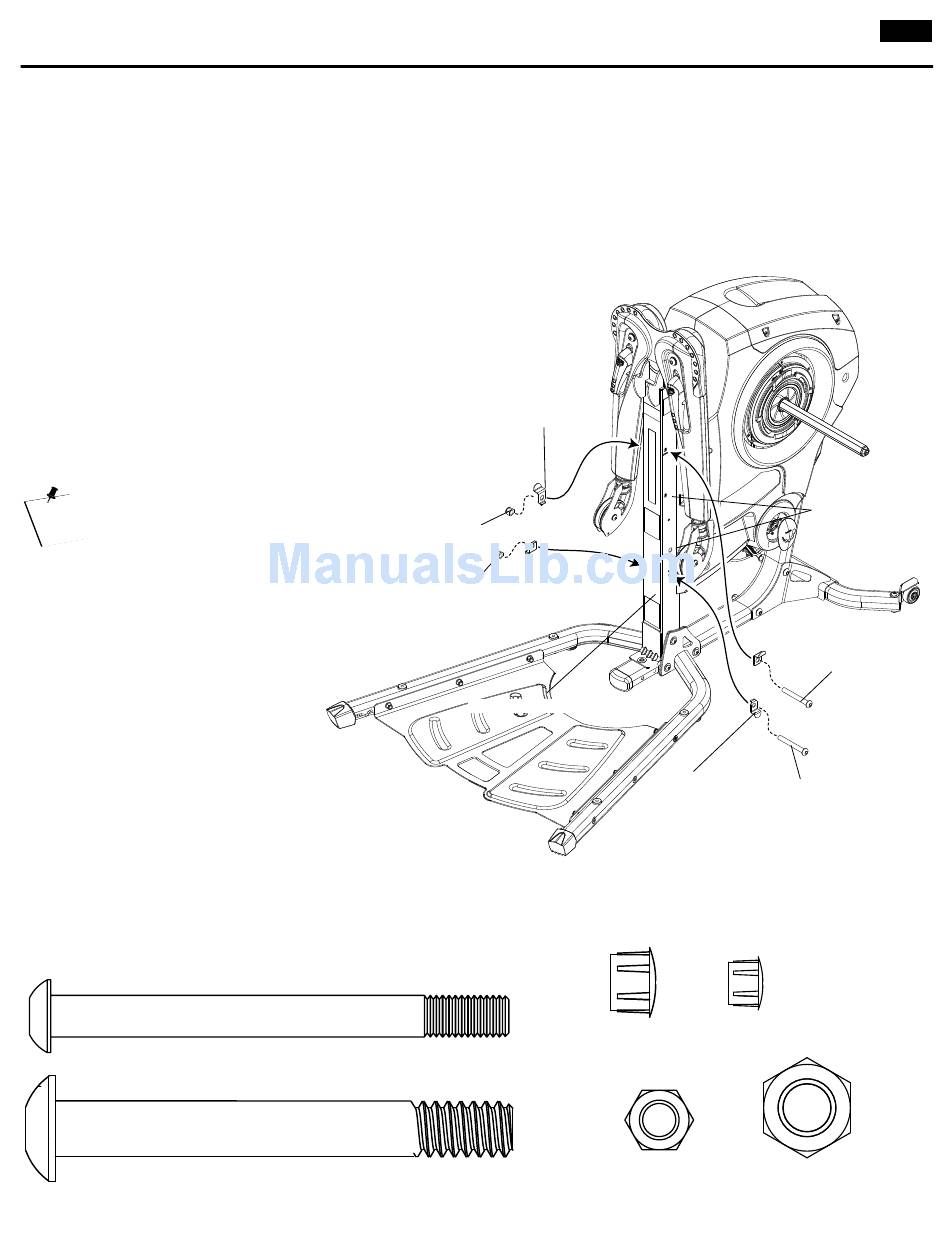

17-1 Align the Hooks with the holes in the
Main Frame with the tabs on the hooks
inserted into the slots in the Main Frame.
17-2 Install and completely tighten the hardware.
NOTE: The remaining holes in the
Main Frame between the
Hook Holes should be plugged
with two 1/2" plugs and two
3/8" plugs from the Box 2
hardware card.
The remaining plugs are not
needed on this unit and
can be discarded.
Hardware (1:1):
1 Button Head Cap Screw (3/8" X 4 ")
1 Button Head Cap Screw (1/2" X 4 ")
Assembly
Hook
3/8" Nylock nut
1/2" Nylock nut
Main Frame
Hook
1/2"x 4" Button Head
2 (1/2 "Plug) 2 (3/8 "Plug)
1 Nylock Nut (3/8")
1 Nylock Nut (1/2")
1
Plug these holes
3/8"x 4" Button Head
Cap Screw
Cap Screw
