Bowflex Revolution FT Assembly Instructions Manual page 11

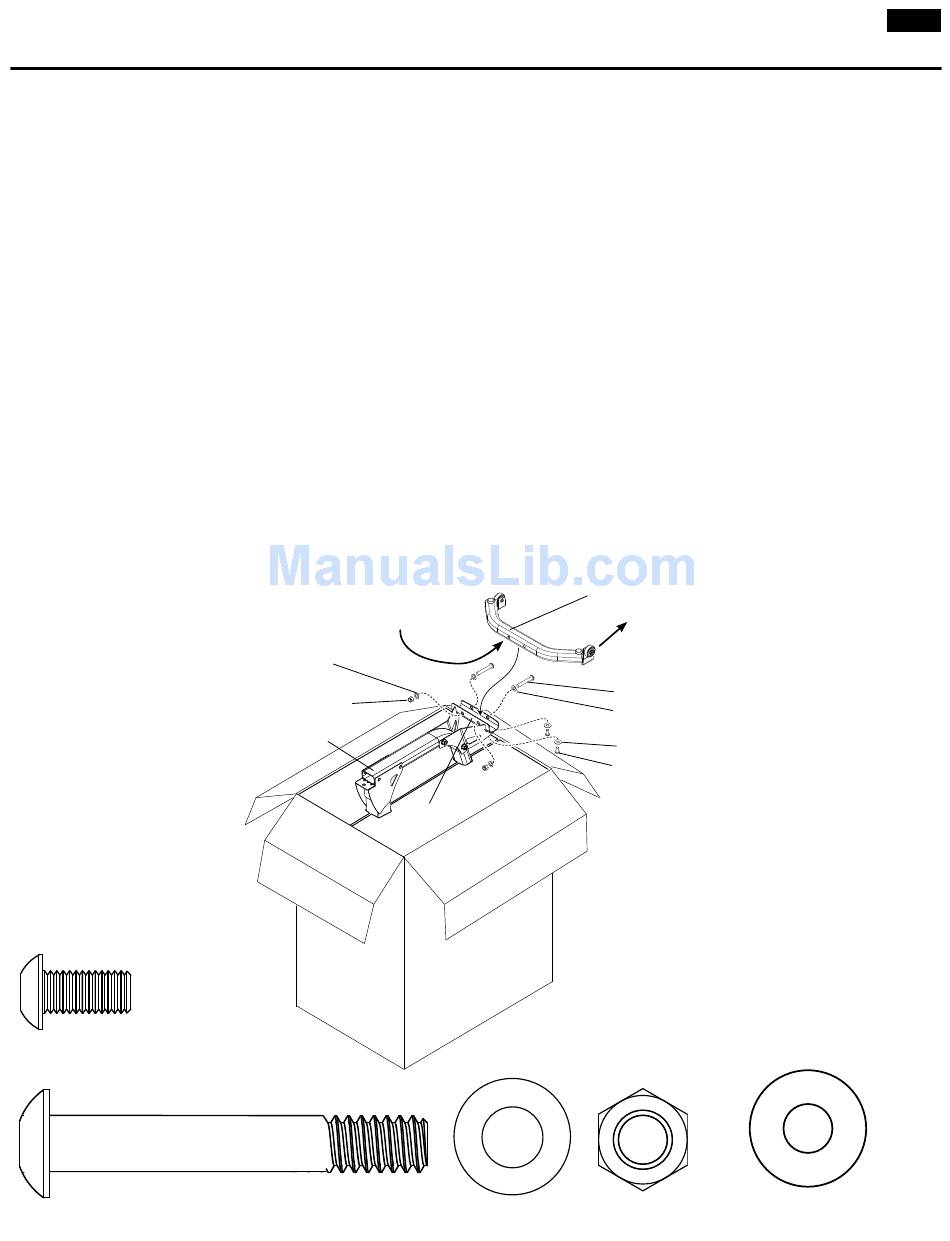

Step 4 Install Rear Stabilizer
Parts:
• Rear Stabilizer (From Step 3)
Tools:
• 5/16" Allen Wrench
• 7/32" Allen Wrench
• 3/4" Wrench or Adjustable Wrench
4-1 Place the Rear Stabilizer in the bracket on the Main Frame with
the wheels pointing away from the frame. Make sure the two bolt
holes in the Rear Stabilizer are pointing downward.
4-2 Install but do not tighten two 3/8"x3/4" Allen Bolts and 3/8"
washers (Box 3 Hardware Card) in the underside of the Rear Stabilizer.
4-3 Install two 1/2"x3 1/4" Allen Bolts with 1/2" washers and Nylock Nuts
in the sides of the Rear Stabilizer.
4-4 Completely tighten all of the hardware.
Hardware (1:1):
2 Button Head Cap Screw With Threadlock (3/8" X 3/4")
2 Button Head Cap Screw (1/2" X 3 1/4")
Assembly
Threaded bolt holes
point downward
1/2" Washer
1/2" Nylock Nut
Main Frame
Bracket
Rear Stabilizer
away from frame
1/2"x 3 1/4" Allen Bolt
1/2" Washer
3/8" Washer
3/8"x 3/4" Allen Bolt
2 Nylock Nut (1/2")
4 Washer (1/2")
Wheels point
2 Washer (3/8")
