Before Installing the Cable Hooks (Step 17), make sure the Cables are properly tensioned
according to the following procedure . If there is slack in the Cables, the Support Plate Bolts
could cause interference.
Pay close attention to maintenance of the cable tension. Over time and with heavy use, the
cables are designed to give slightly. Located on the main engine housing is a tension control
knob which allows you to increase the tension in the cables.
Checking for incorrect cable tension is simple.
1. Position the adjustable swing arms in the upper most position.
2. Check to see if clips at end of cable hang down or if they are tight against the pulley.
3. If cables don't have enough tension, use the tension control knob on the side of the machine to
tighten the cables. (See image).
4. To increase tension, pull tension knob outward and turn the large pulley clockwise. The clip on
the cable should be touching the pulley.

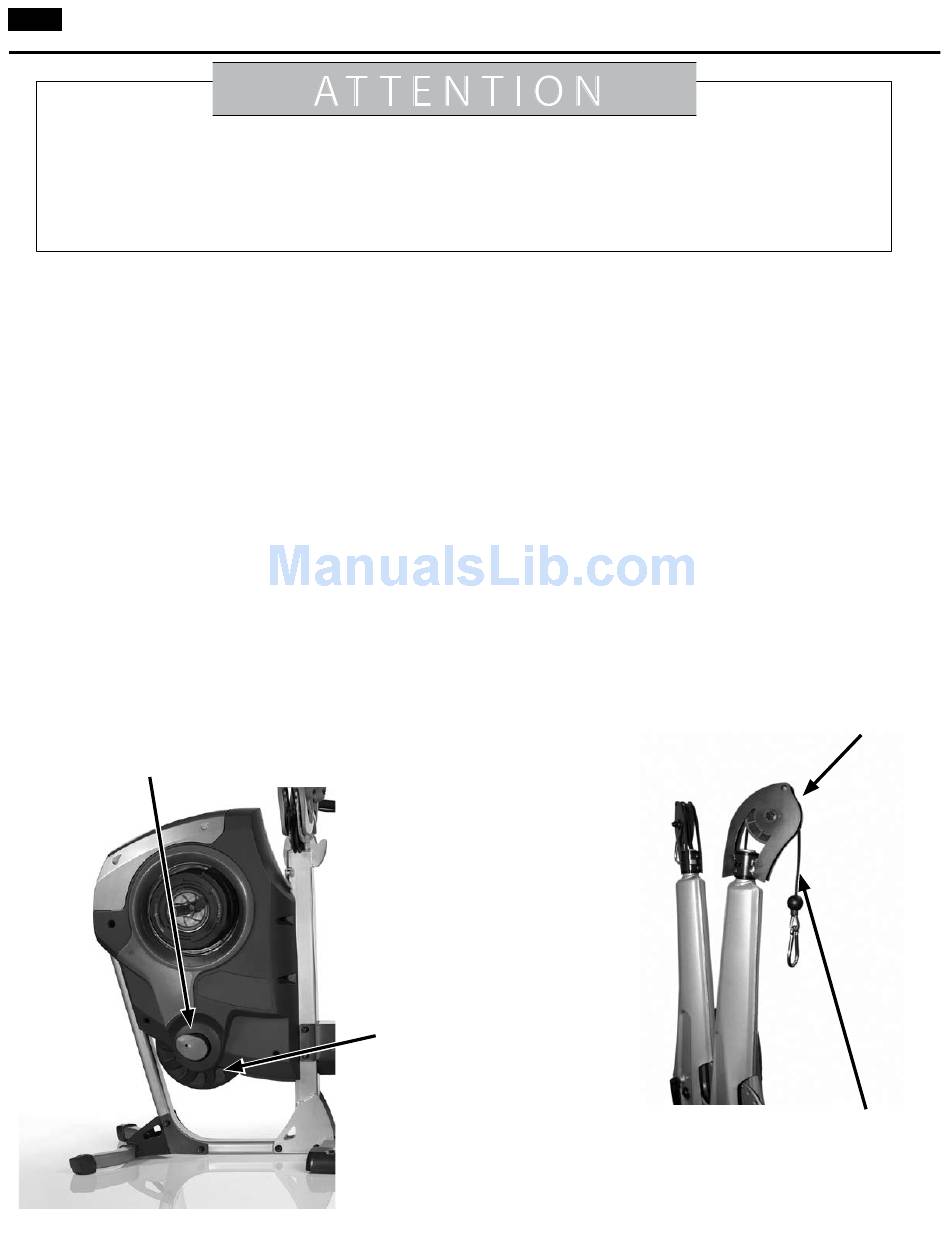

There are tension knobs on each side of the machine. To increase
cable tension, pull knob and turn the large pulley clockwise. You'll
know when you have enough tension when the cable retracts and
the cable clip touches the pulley.
Assembly

Adjusting Cable Tension

Large pulley. This is what you
need to turn to increase the
tension on the cable. Pull the
tension knob and use your
other hand to turn the large
pulley clockwise.
In this image, the cable clip extends a few
inches below the pulley, so there is not enough
tension in the cable. The cable clip should be
tight against the pulley with appropriate tension.
The cable clip
should stop here.
