Bowflex Revolution FT Assembly Instructions Manual page 13

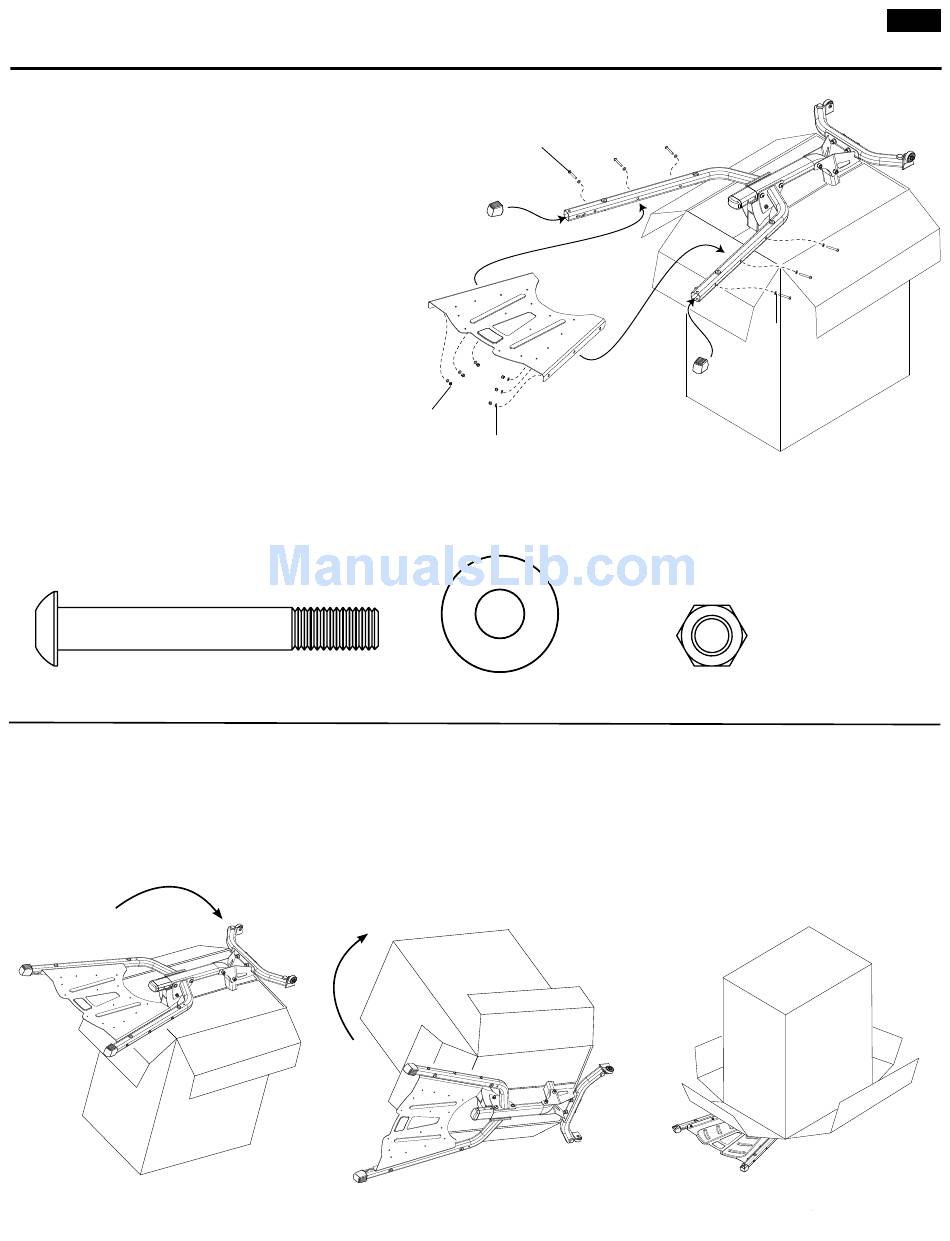

Step 6
Parts:
• Platform (Box 3)
• Foot Caps (Box 2)
Tools:
• 7/32" Allen Wrench
• 9/16" Wrench or Adjustable Wrench
6-1 Align Platform with Stabilizers making
sure the rubber pads are pointing
downward.
6-2 Install but DO NOT TIGHTEN the hardware.
6-3 Install Foot Caps onto the ends of the Stabilizers.
Hardware (1:1):
6 Button Head Cap Screw (3/8" X 2 3/4")
Step 7
With the help of a partner, slowly roll the box completely over so the unit rests on the
Rear Stabilizer and Platform.
Assembly
3/8 x 2 3/4 " Button Head
Cap Screw
3/8" Nylock Nut
3/8" Washer
12 Washer (3/8")
3/8" Washer
6 Nylock Nut (3/8")
