Bowflex Revolution FT Assembly Instructions Manual page 12

1

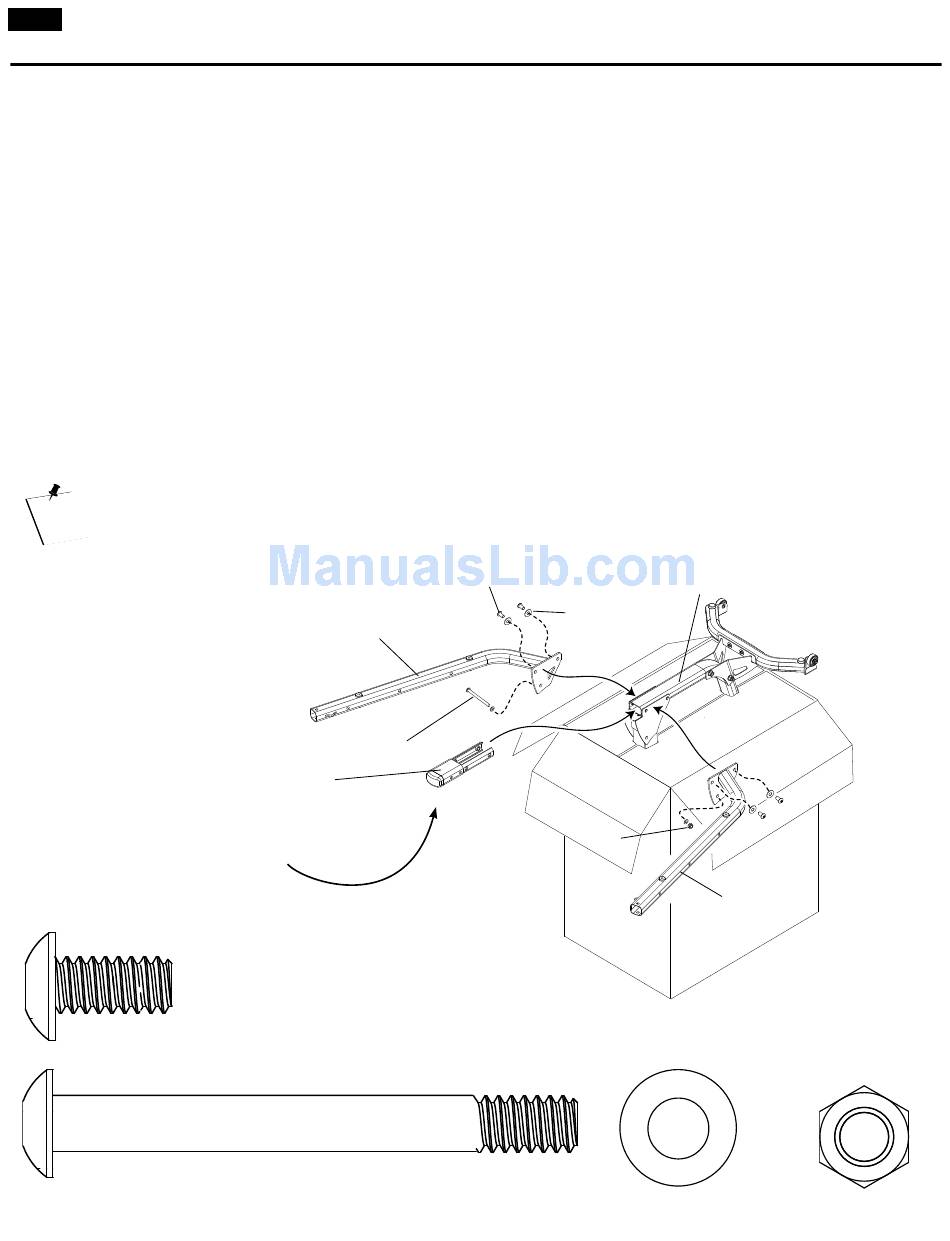

Step 5 Install Stabilizers and Bumper
Parts:
• Right and Left Stabilizer (Box 3)
• Bumper (Box 4)
Tools:
• 5/16" Allen Wrench
• 3/4" Wrench or Adjustable Wrench
5-1 Insert Bumper into the Main Frame with the
threaded hole on the flat side pointing down as shown.
5-2 Align the Right and Left Stabilizers with the holes in the Main frame.
5-3 Install but DO NOT TIGHTEN the hardware.
NOTE: You will install an additional screw in the Bumper when the unit is upright.
Make sure threaded
hole is pointing down.
Hardware (1:1):
4 Button Head Cap Screw With Threadlock (1/2" X 1")
1 Button Head Cap Screw (1/2" X 4 1/2 ")
Assembly
1/2"x 1" Allen Bolt
Left Stabilizer
1/2" x 4 1/2" Allen Bolt
Bumper
Main Frame
1/2" Washer
1/2" Nylock Nut
6 Washer (1/2")
Right Stabilizer
1 Nylock Nut (1/2")
