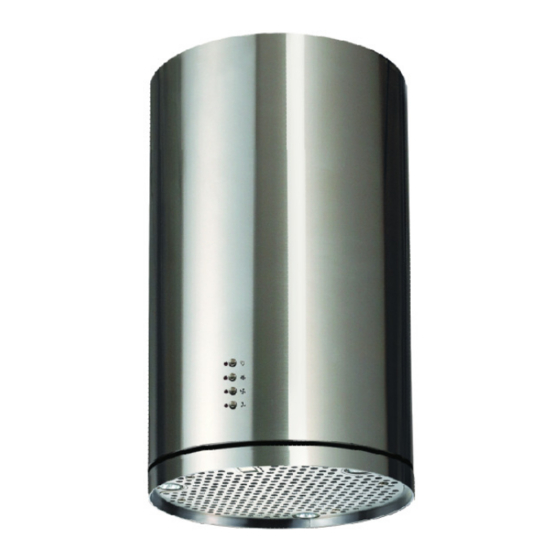

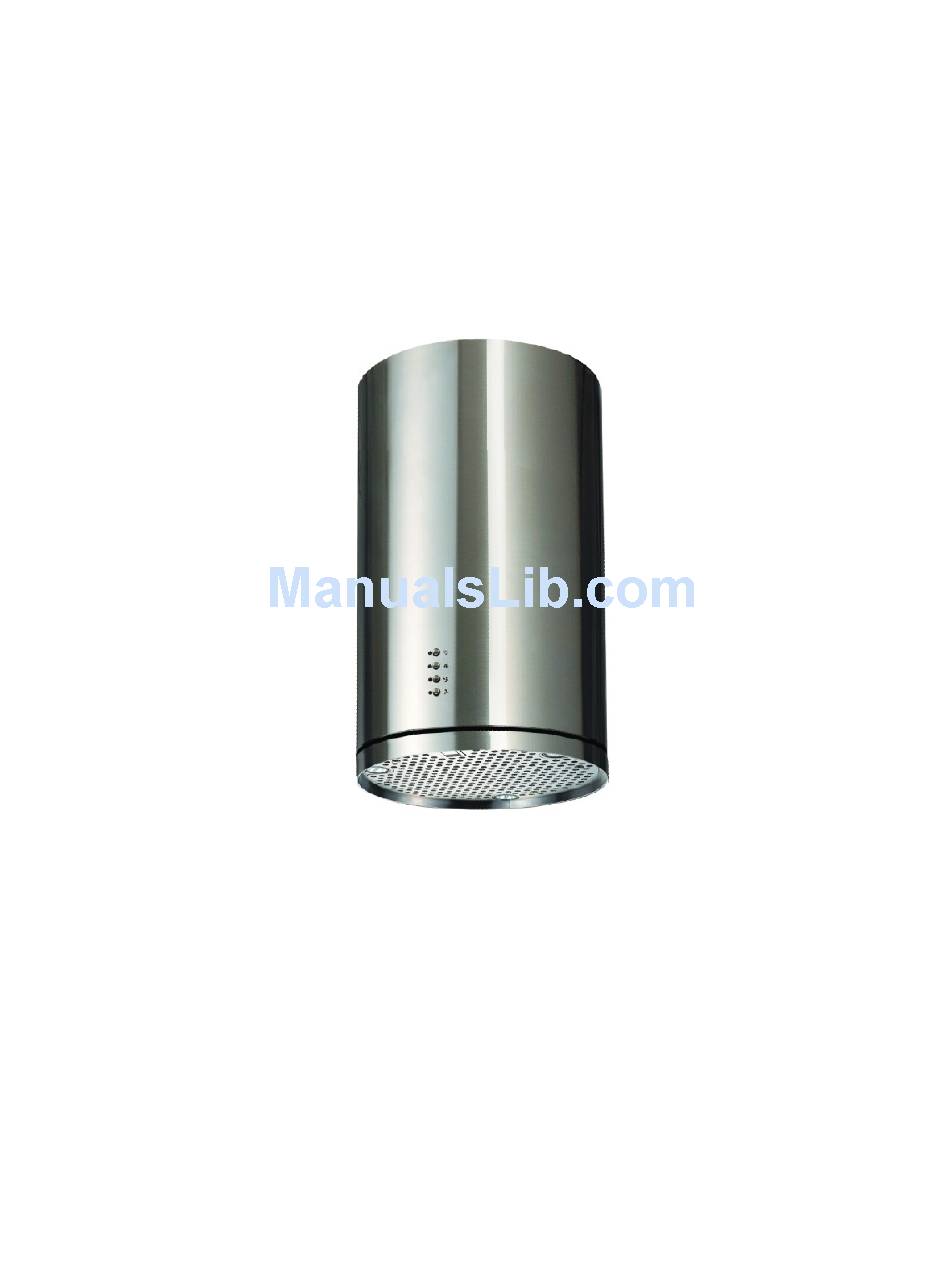

- Page 1 Island Range hood Owners manual Models: SV200J-IM, SV400J-IM Spagna Vetro Range Hood Burnaby, BC, Canada www.KitchenHoods.ca Tel:604 430 5252...
-
Page 2: Safety Precaution
NOTICE Carefully read the following important information regarding installation safety and maintenance. Keep this information booklet accessible for further consultations. The appliance has been designed as a exhausting version (external exhaust) or as recirculation range hood. SAFETY PRECAUTION • Clean ventilating fan frequently. •... - Page 3 • You can fight the fire with your back to an exit. To reduce the risk of injury to persons in the event of a gas leaks: • Extinguish any open flame. • DO NOT turn on the range hood fan or any type of ventilator. •...
-
Page 4: Installation
• Any installation work must be carried out by a qualified electrician or competent person. • Before cleaning, always ensure that you have switched your range hood off. • Clean the range hood according to the instruction manual and keep the range hood from the danger of burning. - Page 5 The range hood must placed at a distance of 24”-28” from the surface for the best effect. Raising the hood higher will decrease the suction and the efficiency. See Pic 1. 1. For safety, the ceiling should be able to carry at least 120 pounds loads.
-
Page 7: Operation
Speed adjustment (see pictures below) Range Hood Control Panel Layout and Buttons Configurations: Electronic Controls with Time Delay • Lights: Press the light button to turn halogen lights on and off. • Power settings: Press the button once and the motor starts to operate at Low speed Press the button again and the motor will operate at Medium speed. - Page 8 2. It is recommendable to turn OFF the hood 15 minutes after cooking is terminated in order to completely eliminate cooking odors. 3. Charcoal Filters: If it is not possible to vent the hood outside, charcoal filters should be installed. Charcoal filters capture the grease particles in the air, and are therefore subject to clogging depending on the frequency of the use of the appliance.
-
Page 9: Troubleshooting
1） Remove the filters see Pic.10 2）The carbon filters (pic.11) are located at both sided of the motor. Turn the charcoal filters counter clockwise until they are removed from the body. 3）Apply reverse procedure to install the charcoal filter Pic1 TROUBLESHOOTING Symptom Solution...
