- Page 1 DTE Owner’s Manual DVI, RS-232 and IR Extender over HDBaseT w/POE PureLink Website : www.purelinkav.com 535 East Crescent Ave E-mail : info@purelinkav.com Ramsey, NJ 07446 Tel: 201.488.3232 For Technical Support, contact us at Fax: 201.621.6118 support@purelinkav.com...
-
Page 2: Package Contents

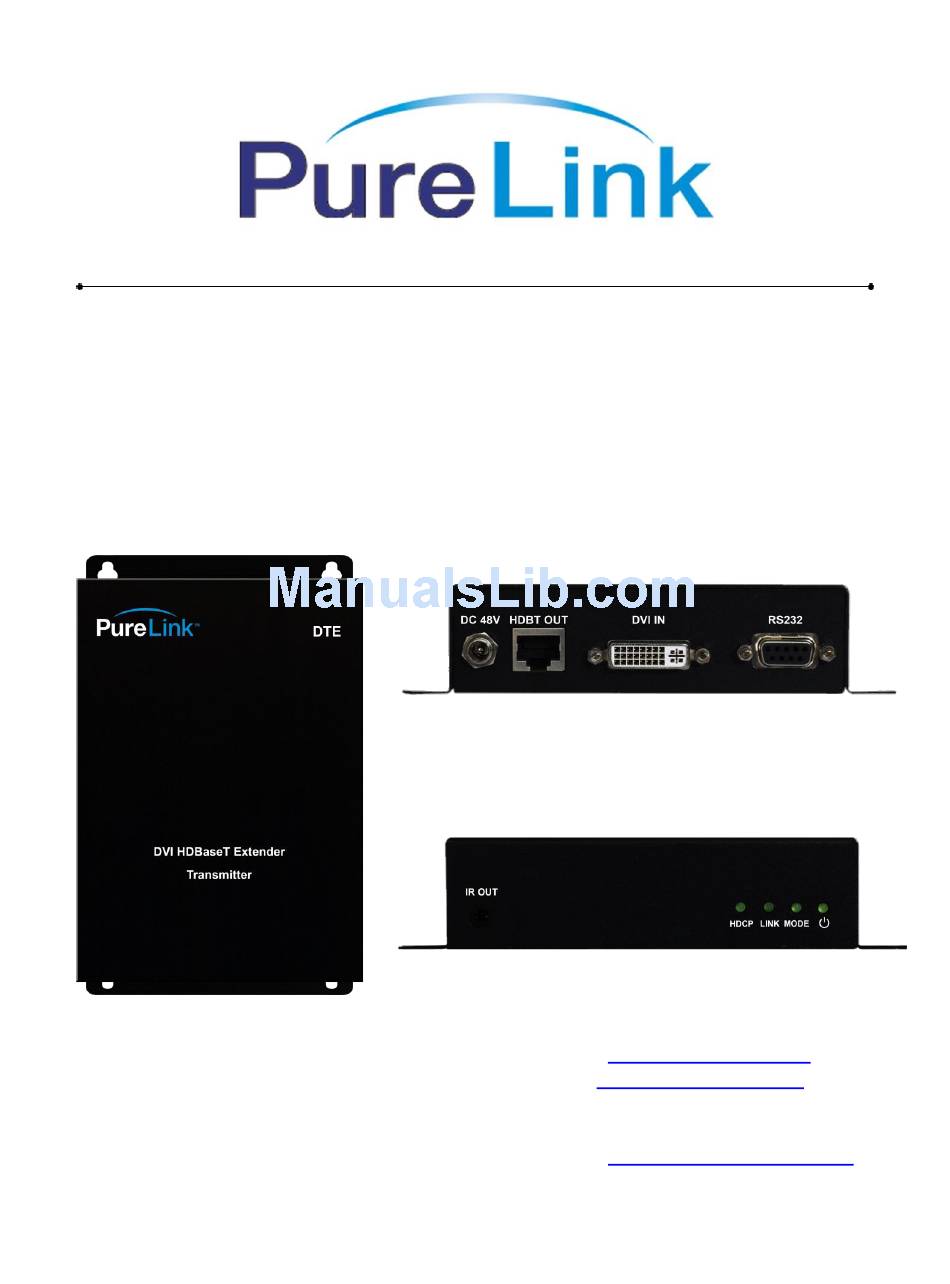

8 x Foot pads Description The PureLink DTE is a transmitter and receiver set for long distance extension of DVI video and embedded audio (if supported) with bi-directional control signals ( RS-232 and IR) over single CAT 5/6/7- type cable. It is designed on HDBaseT technology which can extend the signals up to 330ft (100m) at 1080p@60Hz or 1920x1200@60Hz resolution with POE. - Page 3 PureLink by Dtrovision 1080p or 1920x1200 resolution. Controls signals including bi-directional RS-232 and IR function. Bi-Directional RS232 interface – commands and data can flow in both directions via RS232, allowing status requests and control of the destination unit.
- Page 4 PureLink by Dtrovision Model DTE Tx DVI, 1 port Input type RS232, 1 port (bi-direction) CATx (HDBaseT), 1 port Output type IR, 1 port Supporting Display VGA ~ WUXGA (up to 1920 x 1200 @ 60Hz), Resolutions 480i ~ 1080p 1920x1200 @ 60Hz or Max.
- Page 5 PureLink by Dtrovision Model DTE Rx CATx (HDBaseT), 1 port Input type IR, 1 port DVI, 1 port Output type RS232, 1 port (bi-direction) Supporting Display VGA ~ WUXGA (up to 1920 x 1200 @ 60Hz), Resolutions 480i ~ 1080p 1920x1200 @ 60Hz or Max.
-
Page 6: Operation And Reliability Specification
PureLink by Dtrovision Operation and Reliability Specification 1. Operating Environment Temperature : 32F ~ 131F (0℃~ 55℃) Humidity : 10% ~ 80% Altitude : 3,000m Max. 2. Transit Environment Temperature : -13F ~ 140F (-25℃~ 60℃) Humidity : 5% ~ 95% Altitude : 15,000m Max. -
Page 7: Installation And Connection Instructions
PureLink by Dtrovision Installation and Connection Instructions 1. Turn off both the video source and the display before connecting any cables. 2. Connect CATx cable between the DTE transmitter and the DTE receiver. 3. Connect DVI cable between the source and the DTE transmitter AND the DTE receiver and the display. -
Page 8: Transmission Distance
IR Receiver Cable Directions: Put it into the DTE Rx IR IN port and place the IR receiver cable, so that you can point to it easily with your IR remote controller IR Blaster Cable Directions: Plug IR blaster cable plug into DTE Tx IR OUT port, it sits in front of the device receiver’s... - Page 9 PureLink by Dtrovision RS-232/Serial pin out Caution: The CATx wiring must be away from any elecromagnetic wave equipment, i.e : mobile phone, microwave, radio, fluorescent lamp, high voltage power lines. Do not place IR transmitter near from IR receiver to avoid mutual interference...
