DCE II Owner's Manual
DVI over CATx Extension Module
TM
PureLink
535 East Crescent Ave
Ramsey, NJ 07446
Tel: 201.488.3232
Fax: 201.621.6118
Website :
www.purelinkav.com
E-mail :
info@purelinkav.com
For Technical Support, contact us at
:
support@purelinkav.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DCE II and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for PureLink DCE II

Summary of Contents for PureLink DCE II

  • Page 1 DCE II Owner’s Manual DVI over CATx Extension Module PureLink Website : www.purelinkav.com 535 East Crescent Ave E-mail : info@purelinkav.com Ramsey, NJ 07446 Tel: 201.488.3232 For Technical Support, contact us at Fax: 201.621.6118 support@purelinkav.com...

  • Page 2: Package Contents

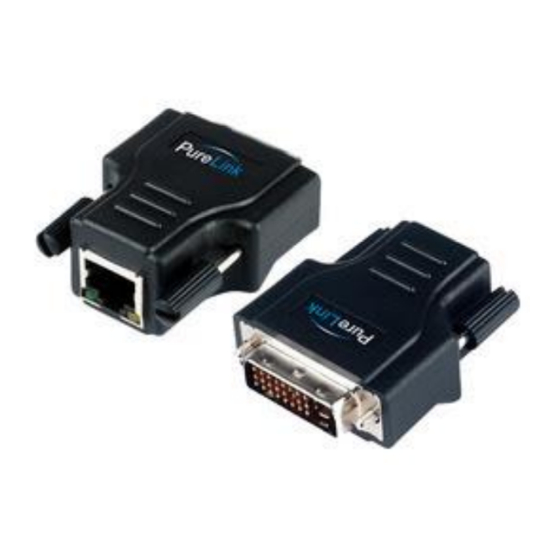

     1 x User Manual Description The PureLink DCE II is a transmitter and receiver set for long distance extension of DVI video signal over single CAT 5/6/7- type cable. It is designed on PureLink’s proprietary CATx extension technology which allows signal extension up to 165 ft (50m) at 1920 x 1200 @60Hz or 1080p.
  • Page 3 PureLink by Dtrovision Product application note Figure 1 – Schematic Connection Diagram of DCE II Tx/Rx Product Specification Transmitter Model DCE II Tx DVI-D, 1 port Input type Micro USB, 1 port Output type CATx, 1 port Supporting Display VGA ~ WUXGA (up to 1920 x 1200 @ 60Hz),...
  • Page 4 1600 x 1200 @ 60Hz 1680 x 1050 @ 60Hz 1920 x 1080 @ 60Hz 1920 x 1200 @ 60Hz Receiver Model DCE II Rx Input type CATx, 1 port DVI-D, 1 port Output type Micro USB, 1 port Supporting Display...

  • Page 5: Operation And Reliability Specification

    PureLink by Dtrovision Operation and Reliability Specification 1. Operating Environment Temperature : 32F ~ 131F (0℃~ 55℃) Humidity : 10% ~ 80% Altitude : 3,000m Max. 2. Transit Environment Temperature : -13F ~ 140F (-25℃~ 60℃) Humidity : 5% ~ 95% Altitude : 15,000m Max.

  • Page 6: Installation And Connection Instructions

    1. Turn off both the video source and the display before connecting any cables. 2. Connect CATx cable between the DCE II transmitter and the DCE II receiver. 3. Connect DVI cable between the source and the DCE II transmitter and the DCE II receiver and the display.

  • Page 7: Transmission Distance

    PureLink by Dtrovision Transmission Distance The maximum transmission distance up to 165ft (50 meters) at 1920x1200@60Hz or 1080p@60Hz. If connection through the wall socket, the cable length must less 5 meters between DVI extender and wall jack, as below drawing:...
  • Page 8 PureLink or its authorized resellers. If the product does not operate as warranted during the applicable warranty period, PureLink shall, at its option and expense, execute one of the following as necessary: 1. Repair the defective product or part 2.

  • Page 9: Fcc/Ce Statement

    PureLink by Dtrovision FCC/CE Statement This device complies with part 15 of FCC Rules and EN 55022/55024/61000-3 for CE certification. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must not accept any interference received, including interference that may cause undesired operation.
