Installation and Connection Instructions

1. Turn off both the video source and the display before connecting any cables.
2. Connect DVI, 3.5mm stereo audio, RS-232 and IR cables between the source and DTS50R
AND between the DRS50R and the display.
3. Cable Connection:
CAT5 Cable: DTS50R/DRS50R was designed to conform to TIA/EIA-568-B Standard.

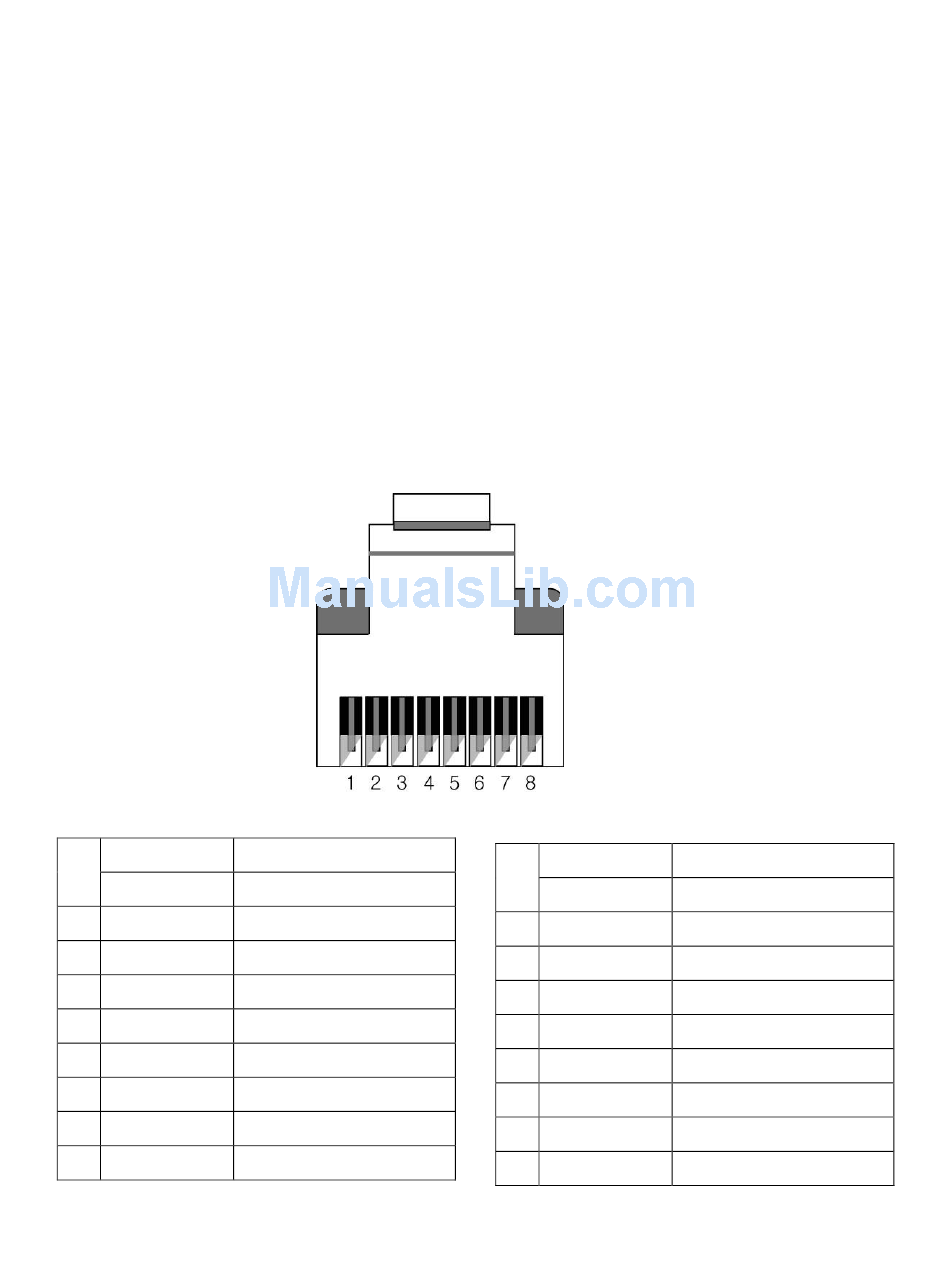

Please ensure that each PIN layout of DTS50R/DRS50R is corresponding with the picture
below before connecting the cable. Please note that CAT5e or above level cable enables to
deliver better video quality and longer distance.
1. AV PIN MAP
TIA/EIA-568B Signal
Pin Wire color Digital RGB
1 Orange/ White TMDS Data2+
2 Orange TMDS Data2-
3 Green/ White TMDS Data1+
4 Blue TMDS Data0+
5 Blue/ White TMDS Data0-
6 Green TMDS Data1-
7 Brown/ White TMDS Clock+
8 Brown TMDS Clock-
2. CONTROL PIN MAP
TIA/EIA-568B
Pin
Wire color
1 Orange/ White
2 Orange
3 Green/ White
4 Blue
5 Blue/ White
6 Green
7 Brown/ White
8 Brown
Signal
Digital RGB
RS-232C_TXD
GND
RS-232C_RXD
IR Out
GND
GND
IR In
GND
