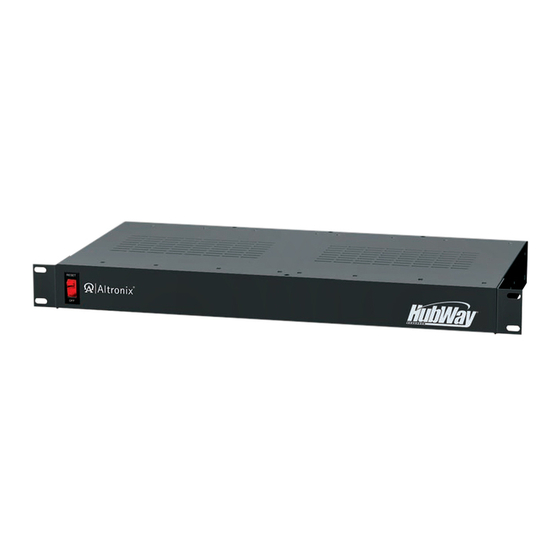

HubWayDS Series
Passive UTP Transceiver Hub
with Integral Camera Power
Models Include:
HubWay8DS
- UL Listed eight (8) Channel Passive UTP Transceiver Hub with Integral Camera Power
HubWay82DS
- UL Listed eight (8) Channel Passive UTP Transceiver Hub with Integral Camera Power
- Includes eight (8) UL Listed Accessory HubWayAv Video Balun/Combiners
HubWay83DS
- UL Listed eight (8) Channel Passive UTP Transceiver Hub with Integral Camera Power
- Includes eight (8) UL Listed Accessory HubWayDv Video Balun/Combiners
Installation Guide
Rev. 070908
Installing Company: _______________ Service Rep. Name: __________________________________
Address: _____________________________________________ Phone #: __________________
Z1409
More than just power.
TM
Advertisement
Table of Contents
Related Manuals for Altronix HubWayDS Series
Summary of Contents for Altronix HubWayDS Series
- Page 1 Video • Data • Power HubWayDS Series Passive UTP Transceiver Hub with Integral Camera Power Models Include: HubWay8DS - UL Listed eight (8) Channel Passive UTP Transceiver Hub with Integral Camera Power HubWay82DS - UL Listed eight (8) Channel Passive UTP Transceiver Hub with Integral Camera Power...
- Page 2 Overview: Altronix HubWay8DS Passive UTP Transceiver Hub w/Integral Camera Power transmits UTP video, RS422/RS485 data and power over a single CAT-5 or higher structured cable. Unit provides 8 camera channels in a space saving 1U EIA 19” rack mount chassis which may be rack, wall or shelf mounted. Video transmission range is up to 750 ft.
-
Page 3: Installation Instructions
• For 24VAC cameras use Altronix model HubWayAv/HubWayAv2 Video Balun/Combiner (Figs. 2a, 2b, 2e, pg. 5). • For 12VDC cameras use Altronix model HubWayDv Video Balun/Combiner (Figs. 2c, 2d, pg. 5). • For non-isolated 12VDC cameras use Altronix model HubWayDvi Video Balun/Combiner (Figs. - Page 4 + -- - 4 - HubWay8DS Installation Guide...
-
Page 5: Hubwayav, Hubwayav2, Hubwaydv, And Hubwaydvi Video Balun/Combiners
HubWayAv, HubWayAv2, HubWayDv, and HubWayDvi Video Balun/Combiners: Altronix Input Voltage Model from Power Number HubWay Unit Output Voltage to Camera Camera Type HubWayAv *24VAC/28VAC *24VAC/28VAC *24VAC/28VAC Green HubWayAv2 *24VAC/28VAC *24VAC/28VAC *24VAC/28VAC HubWayDv *24VAC/28VAC 12VDC 12VDC cameras *Based on camera load and structured cable length. - Page 6 - 6 - HubWay8DS Installation Guide...
- Page 7 The lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of an insulated DANGEROUS VOLTAGE within the product’s enclosure that may be of sufficient magnitude to constitute an electric shock. The exclamation point within an equilateral triangle is intended to alert the user to the presence of impor- tant operating and maintenance (servicing) instructions in the literature accompanying the appliance.
-
Page 8: Rack Mount Installation
Four (4) rubber pads. Rubber Pad Altronix is not responsible for any typographical errors. –––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––– 140 58th Street, Brooklyn, New York 11220 USA | phone: 718-567-8181 | fax: 718-567-9056 website: www.altronix.com | e-mail: info@altronix.com | Lifetime Warranty...
