Summary of Contents for Altronix HubWayLDH8
-
Page 1: Installation Guide
Video • Data Active UTP Transceiver Hub Installation Guide Models Include: HubWayLDH8 HubWayLDH16 - UL Listed eight (8) Camera Channels - UL Listed sixteen (16) Camera Channels More than just power. Rev. 032108... -
Page 2: Common Specifications

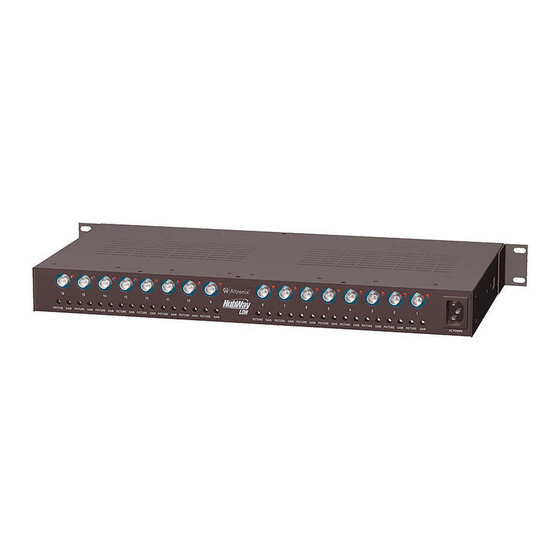

Overview: Altronix HubWayLDH8/16 Active UTP Transceiver Hub transmits UTP video and RS422/RS485 data over a single CAT-5 or higher structured cable. Unit provides 8 or 16 camera channels in a space saving 1U EIA 19” rack mount chassis which may be rack, wall or shelf mounted. Video transmission range is up to 3000 ft. max. per channel. Units are compatible with fixed or PTZ cameras. -
Page 3: Installation Instructions
Installation Instructions: 1. Set the input voltage selector switch located on the left side of the HubWayLDH8/LDH16 unit (facing front panel) for 115VAC or 230VAC operation (Fig. 1i, pg. 4). 2. Attach mounting brackets to HubWayLDH unit for rack or wall mount installation (Figs. 5-6, pg. 8). Affix rubber pads to HubWayLDH for shelf installation (Fig. - Page 4 + -- - 4 - HubWayLDH Active Hub Unit...
-
Page 5: Typical Applications
Typical Applications: Fig. 2 Head End Equipment (DVR) RS485 Monitor Video Data Rear PICTURE GAIN PICTURE GAIN PICTURE GAIN PICTURE GAIN PICTURE GAIN PICTURE GAIN PICTURE GAIN PICTURE GAIN AC POWER CH 1-4 CH 5-8 DATA Front CAT-5 Max. Video Data video Four (4) Video... - Page 6 Typical Applications: Fig. 3 Head End Equipment (DVR) RS485 Monitor Video Data Rear AC POWER PICTURE GAIN PICTURE GAIN PICTURE GAIN PICTURE GAIN PICTURE GAIN PICTURE GAIN PICTURE GAIN PICTURE GAIN CH 1-4 CH 5-8 DATA Front CAT-5 CAT-5 CAT-5 CAT-5 CAT-5 Video...
- Page 7 Rack Mount Chassis Mechanical Drawing & Dimensions (H x W x D approximate): 1.625” x 19.125” x 8.5” (42mm x 486mm x 216mm) REAR 1.625" 41.28mm PICTURE GAIN PICTURE GAIN PICTURE GAIN PICTURE GAIN PICTURE GAIN PICTURE GAIN PICTURE GAIN PICTURE GAIN PICTURE GAIN PICTURE GAIN PICTURE GAIN PICTURE GAIN PICTURE...
-
Page 8: Rack Mount Installation
Four (4) rubber pads. Rubber Pad Altronix is not responsible for any typographical errors. 140 58th Street, Brooklyn, New York 11220 USA, 718-567-8181, fax: 718-567-9056 website: www.altronix.com, e-mail: info@altronix.com, Lifetime Warranty, Made in U.S.A. IIHubWayLDH8/HubWayLDH16 E23N MEMBER - 8 -...
