Altronix HubWayAv Installation Manual

Specifica tions:
Agency Listings:
• UL Listed for Commercial CCTV Equipment
(UL 2044).
cUL Listed - CSA Standard C22.2 No.1-04,
Audio, Video and Similar Equipment.

Installation Instructions:

1. Plug the RJ45 connector at one end of the structured cable into the RJ45 jack marked [Channel 1] of
the HubWay, HubWayLD, or HubSat Series (Please refer to respective Installation Guides).
Plug the RJ45 connector at the opposite end of the structured cable into the RJ45 jack of the
Video Balun/Combiner installed at camera 1.
• For 24VAC Cameras use Altronix model HubWayAv (Figs. 1a, 1b, pg. 1).
• For 12VDC Cameras use Altronix model HubWayDv/Dvi (Figs. 1c, 1d, pg. 1).
Repeat this step for cameras 2-8.
Note: When an installation exceeds the maximum distance for power transmi ssion, a local external power
source is required. Optionally, an Altronix HubSat4D Passive UTP Transceiver Hub with Integral Power
may be utilized (Fig. 2, pgs. 2-3). The combined total cable distance between the HubWay or HubWayLD
Series and each camera routed through the HubSat4D must not exceed 3000 ft.
2. Measure the output voltage at each Video Balun/Combiner before connecting camera power
(Figs. 1a-1d, pg. 1). This helps avoiding potential damage.
• HubWayAv - Terminals marked [AC POWER] (Figs. 1a, 1b, pg. 1).
• HubWayDv/Dvi - Terminals marked [– 12VDC +] (Figs. 1c, 1d, pg. 1).
3. Connect the power outputs of the HubWayAv or HubWayDv Video Balun/Combiners to the power
input terminals of the cameras (Figs. 1a-1d, pg. 1).
4. Connect the terminals marked [+ DATA –] of the HubWayAv or HubWayDv Video Balun/Combiners
to the data terminals of the cameras for PTZ control (Figs. 1a-1d, pg. 1). Polarity must be observed.
When using fixed cameras disregard this step (Figs. 2, pgs. 2-3).
5. Connect the BNC connector of the HubWayAv. HubWayDv or HubWayDvi Video Balun/Combiners
to the BNC video outputs of the cameras (Figs. 1a-1d, pg. 1).
Fig. 3 - CAT-5 Structured Cable Wiring Color Codes
1 2 3 4 5 6 7 8
1 - White/Orange [VIDEO +]
2 - Orange [VIDEO -]
3 - White/Green [DATA +]
4 - Blue [AC 1]
5 - White/Blue [AC 2]
6 - Green [DATA -]
7 - White/Brown [AC 2]
8 - Brown [AC 1]
Altronix is not responsible for any typographical errors.
140 58th Street, Brooklyn, New York 11220 USA | 718-567-8181 | fax: 718-567-9056
website: www.altronix.com | e-mail: info@altronix.com | Lifetime Warranty | Made in U.S.A.
II HubWay Video Balun/Combiners Rev. 123008
- 4 -
Data:
• Data/PTZ RS422/RS485 output.
Video:
• 75 Ohm video input.
Visual Indicators:
• Power LED indicator.
B19R
HubWaAV/DV/Dvi
HubWayAv, HubWayDv, HubWayDvi
Video Balun/Combiners

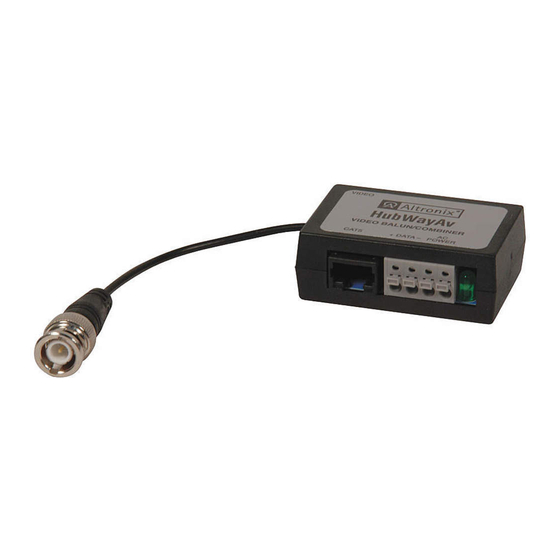

HubWayAv, HubWayDv and HubWayDvi Video Balun/Combiners are UL/cUL Listed accessories that interface
with HubWay and HubSat UTP Transceiver Hubs to transmit video, data, and power to fixed or PTZ indoor or
outdoor cameras.
Note: Refer to HubWay series Rev. 032108, HubWayLD series Rev. 030408 or
HubSat series Rev. 112408 Installation Guides .
Fig. 1
Fig. 1a
VIDEO
HubWayAv
Refer to the HubWay Video Balun/Combiner
Installation Guide Rev. 123008
RJ45
RJ45 Jack
Fig. 1b
To BNC
Structured
Connector
Cable from
of Camera
HubWay,
HubWayLD or
HubSat
HubWayAv passes AC voltage from pins 4, 5, 7, 8 to
terminals marked [AC Power] (Fig. 1, pg. 1).
Video Balun/Combiner Reference Chart:
Altronix Input Voltage from
Model Number HubWay unit
HubWayAv *24VAC/28VAC
HubWayDv *24VAC/28VAC
HubWayDvi *24VAC/28VAC
*Based on camera load and structured cable length.
WARNING: To reduce the risk of fire or electric shock, do not expose the unit to rain or
moisture. This installation should be made by qualified service personnel and should conform
to all local codes.
MEMBER

Installation Guide

Overview:
Fig. 1c VIDEO
Commercial
CCTV Accessory
3C03
HubWayDv
VIDEO BALUN/COMBINER
Refer to the HubWay Video Balun/Combiner
DATA AC
+ -- POWER
Wire
Connectors RJ45 Jack
Fig. 1d
Green Power LED
To BNC Structured
Connector
AC Power Cable from
to Camera of Camera HubWay8D
HubWay16D
--
Data to
+ Camera
HubWayDv/Dvi converts AC voltage to DC voltage
from pins 4, 5, 7, 8 to terminals marked
[– 12VDC +] (Fig. 1, pg. 1).
Output
Output Voltage Ratings
to camera (max.)
*24VAC/28VAC 1A
12VDC 1A
12VDC electronically
0.5A
isolated
Rev. 123008
Commercial
CCTV Accessory
* Also Available as:
3C03
HubWayDvi
Video Balun/
Combiner
VIDEO BALUN/COMBINER
for non-isolated
12VDC cameras
Installation Guide Rev. 123008
DATA 12VDC
RJ45 + -- -- +
Wire
Connectors
Red Power LED
+
12VDC Power
-- to Camera
or
--
Data to
+ Camera
Power
Camera Type LED
24VAC cameras Green
12VDC cameras Red
12VDC cameras
Red
without isolation
