Video • Data
HubWayLDH Series
Active UTP Transceiver Hub
Models Include:
HubWayLDH8
- UL Listed Eight (8) Camera Channel Active UTP Transceiver Hub
HubWayLDH16
- UL Listed Sixteen (16) Camera Channel Active UTP Transceiver Hub
Installation Guide
Rev. 032108
Installing Company: _______________ Service Rep. Name: __________________________________
Address: _____________________________________________ Phone #: __________________
Z1409
More than just power.
TM
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Altronix HubWayLDH Series
Summary of Contents for Altronix HubWayLDH Series
- Page 1 Video • Data HubWayLDH Series Active UTP Transceiver Hub Models Include: HubWayLDH8 - UL Listed Eight (8) Camera Channel Active UTP Transceiver Hub HubWayLDH16 - UL Listed Sixteen (16) Camera Channel Active UTP Transceiver Hub Installation Guide Z1409 More than just power.
-
Page 2: Common Specifications

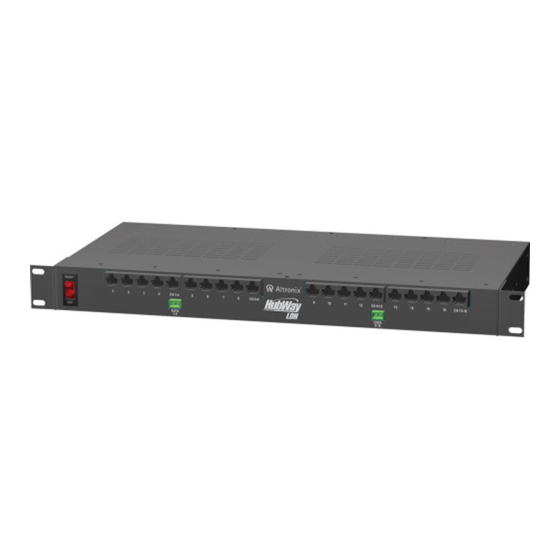

Overview: Altronix HubWayLDH8/16 Active UTP Transceiver Hub transmits UTP video and RS422/RS485 data over a single CAT-5 or higher structured cable. Unit provides 8 or 16 camera channels in a space saving 1U EIA 19” rack mount chassis which may be rack, wall or shelf mounted. Video transmission range is up to 3000 ft. max. per channel. -
Page 3: Installation Instructions
Repeat steps 6-9 for each additional camera (Channels 2-8 or Channels 2-16). Note: An external power source is required to power the cameras (Figs. 2-3, pgs. 5-6) . Optionally, an Altronix HubSat4D Passive UTP Transceiver Hub with Integral Camera Power may be utilized (Fig. 2a, pg. 5) . - Page 4 1c - Data: Fig. 1 Removable terminal blocks for RS422/ RS485 input from head end 1b - Channels 1-4, Channels 5-8, Channels 9-12 & Channels 13-16: equipment (DVR) for CAT-5 or higher structured cable from optional HubSat4D enables video PTZ control. transmission from up to four (4) cameras.
-
Page 5: Typical Applications
Typical Applications: Fig. 2 Head End Equipment (DVR) RS485 Monitor Video Data Rear PICTURE GAIN PICTURE GAIN PICTURE GAIN PICTURE GAIN PICTURE GAIN PICTURE GAIN PICTURE GAIN PICTURE GAIN AC POWER CH 1-4 CH 5-8 DATA Front CAT-5 Max. Video Data video Four (4) Video... - Page 6 Typical Applications: Fig. 3 Head End Equipment (DVR) RS485 Monitor Video Data Rear PICTURE GAIN PICTURE GAIN PICTURE GAIN PICTURE GAIN PICTURE GAIN PICTURE GAIN PICTURE GAIN PICTURE GAIN AC POWER CH 1-4 CH 5-8 DATA Front CAT-5 CAT-5 CAT-5 CAT-5 CAT-5 Video...
- Page 7 The lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of an insulated DANGEROUS VOLTAGE within the product’s enclosure that may be of sufficient magnitude to constitute an electric shock. The exclamation point within an equilateral triangle is intended to alert the user to the presence of impor- tant operating and maintenance (servicing) instructions in the literature accompanying the appliance.
- Page 8 Four (4) rubber pads. Rubber Pad Altronix is not responsible for any typographical errors. –––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––– 140 58th Street, Brooklyn, New York 11220 USA | phone: 718-567-8181 | fax: 718-567-9056 website: www.altronix.com | e-mail: info@altronix.com | Lifetime Warranty...
