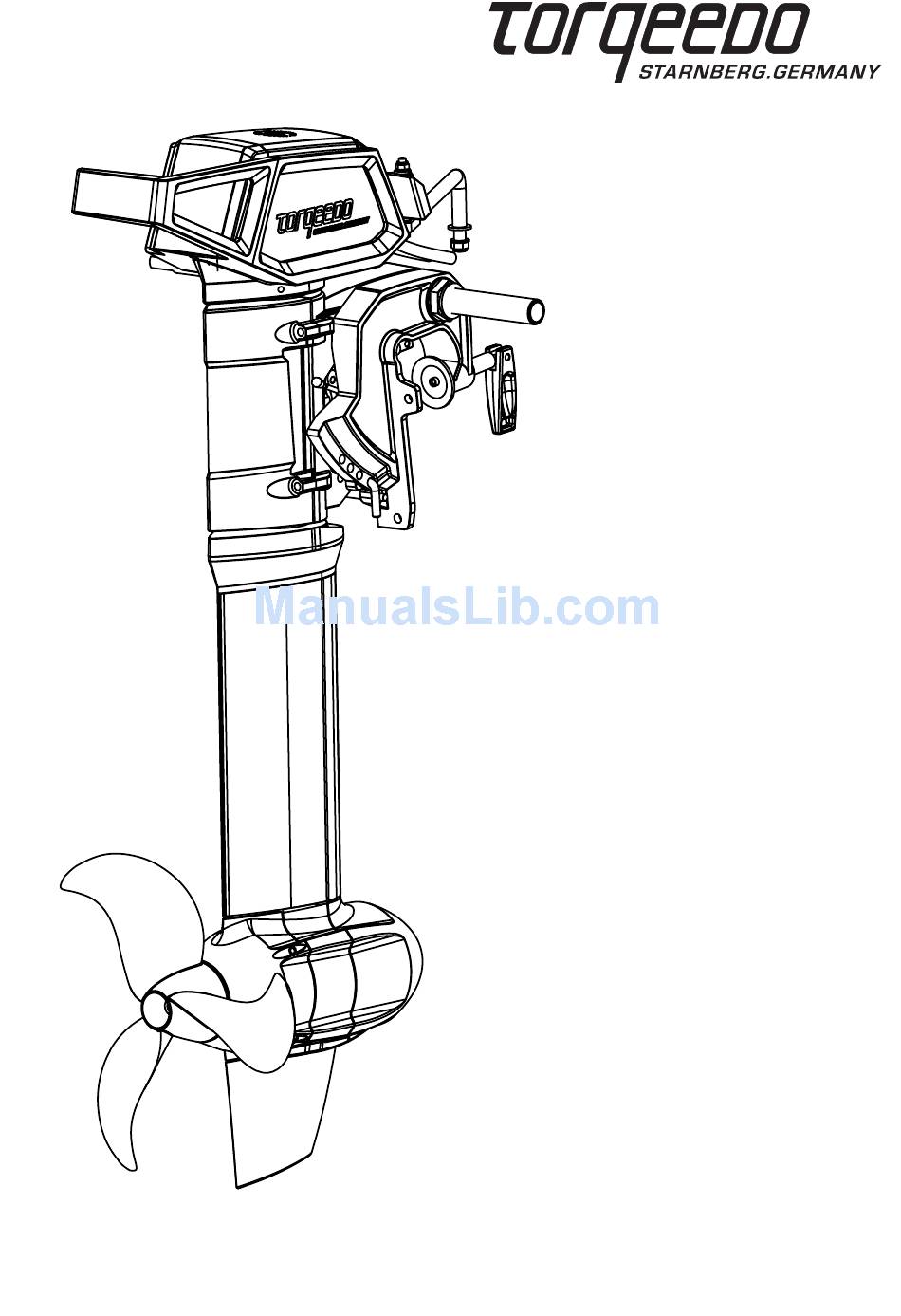

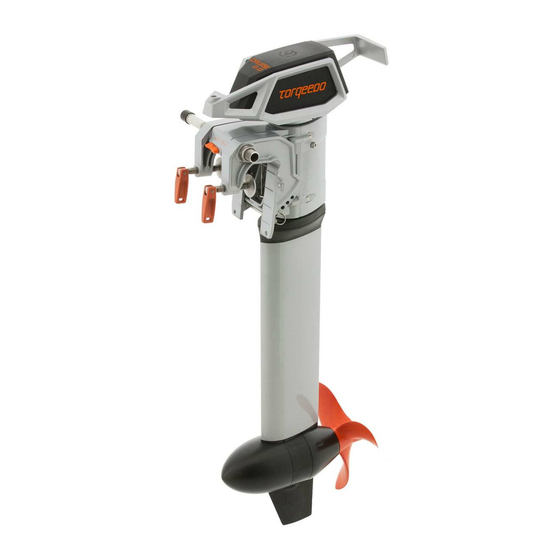

- Page 1 Cruise 2.0 R Cruise 4.0 R Operating Manual (English)
-
Page 3: Table Of Contents
............. 15 8.5 Basic information on battery supply ..............16 8.6 Connecting the Cruise R to lead batteries (gel, AGM) with the aid of the Torqeedo cable set..............18 8.7 Connecting the Cruise R to Torqeedo Power 26-77 lithium-manganese batteries.......... 20 9. -
Page 4: Important Safety And Operating Instructions
2. Important safety and operating instructions Important safety instructions Torqeedo motors are designed to operate safely and reliably as long as they are used according to the operating manual. Please read this manual carefully before you start the motor. Ignoring these instructions can cause property damage or personal injury. - Page 5 • Never operate the motor if someone is in the water close to the boat. • Do not use the motor as a fixing point for your boat; never use the motor as a handle to lift or tow smaller boats. Important operating instructions Here are the most important instructions on operating Torqeedo Cruise motors. Apart from these instructions, please observe the complete operating instructions to prevent damage to your motor. • Only run the motor when the propeller is under water. If it is run in the air, the shaft sealant rings that seal the motor to the drive shaft may become damaged.
-
Page 6: Introduction
We are delighted that you have chosen our motor. In terms of drive technology and efficiency, your Torqeedo Cruise outboard motor is cutting-edge technology. It has been designed and manufactured with the utmost care and with a special focus on comfort, user-friendliness, safety, and has been extensively tested before delivery. -
Page 7: About This Operating Manual
3. Introduction 4. About this operating manual 5. Conformity declaration 4. About this operating manual This operating manual will help you use your Torqeedo Cruise R safely and efficiently. All information is given according to our latest knowledge. Subject to technical changes. -
Page 8: Warranty Conditions
6.1 Extent of warranty Torqeedo GmbH, Petersbrunner Straße 3a in D-82319 Starnberg, Germany, guarantees the final purchaser of a Torqeedo outboard motor that the product is free from material and manufacturing faults during the period stated below. Torqeedo will indemnify the final purchaser for any expense to repair a material or manufacturing fault. -
Page 9: Warranty Process
Before dispatching any apparently faulty goods, it is imperative to coordinate the delivery with Torqeedo Services. You can contact us by phone, email or mail. The ability to make contact via the www.torqeedo.com website is being extended successively. You can find the contact details on the back of this manual. -
Page 10: Equipment And Operating Elements
7. Equipment and operating elements 7.1 Supply scope The full supply scope of your Torqeedo Cruise R should include the following parts: • Motor with pylon, propeller, shaft, transom mount (with guide tube for remote steering), connection cables for cable set and remote throttle • Link arm and small parts for connecting the remote steering • Remote throttle control with integrated display and 4 screws M4 in different lengths to mount remote throttle • Magnetic key... -
Page 11: Plan Of Operating Elements
(to fix the locking Remote throttle control position of the motor) Shaft Magnetic key Pylon Cabel set Propeller M8 screw to fix the steering if no connection is desired to the remote steering Operating Manual Cruise 2.0 R / 4.0 R... -
Page 12: Starting Up
4. The following steps are required to set the engine perfectly to the water surface (trimming): • First tilt the motor up. To do so the kick lever must be in the “Tilt/Auto kick-up” position. Operating Manual Cruise 2.0 R / 4.0 R... - Page 13 (refer to drawing). With the lever pressed, allow the motor to move down to the desired position slowly. 1. Raise here 2. Pull release lever Operating Manual Cruise 2.0 R / 4.0 R...
-
Page 14: Connecting The Remote Steering
Jack Disk Ø 10.5 mm Disk Ø 6.4 mm Disk Ø 8.4 mm Self-locking hexagon nut M8 5. Fix the other parts of your remote steering system as per the manufacturer’s instructions. Operating Manual Cruise 2.0 R / 4.0 R... -
Page 15: Fixing The Steering
M4 thread included in the supply scope. 3. Before finally tightening the remote throttle, screw the plug of the connection cable to the appropriate jack on the underside of the remote throttle. Operating Manual Cruise 2.0 R / 4.0 R... -
Page 16: Basic Information On Battery Supply
In the following, this is stated in watt-hours [Wh]. The number of watt-hours can easily be matched with the input power of the motor in watts [W]: The Cruise 2.0 R has an input power of 2,000 W and consumes 2,000 Wh in one hour at full speed. The Cruise 4.0 R has an input power of 4,000 W and consumes 4,000 Wh in one hour at full speed. - Page 17 In extreme cases this could even cause fire or injury. • When working with or near batteries avoid wearing metal jewelry and laying tools on the batteries as this could result in a short circuit. Operating Manual Cruise 2.0 R / 4.0 R...
-
Page 18: Connecting The Cruise R To Lead Batteries (Gel, Agm) With The Aid Of The Torqeedo Cable Set
The Cruise 4.0 R operates with a power supply of between 42 V and 58 V (relating to the nominal voltage). That means it can be operated with four serial configured 12 V batteries. To increase the capacity it is possible to switch several pairs of serial connected 12 V batteries in parallel to each other. 1. Make sure the main switch of the cable set is in the off or zero position. If necessary, switch it to the off or zero position. 2. Connect your cable set in line with the following drawings for your Cruise 2.0 R or 4.0 R an. 12 V battery Cable set Bridging cable 12 V battery Connecting Cruise 2.0 R to two 12 V batteries... - Page 19 The batteries are now in serial connected to each other: The battery capacity [Wh] and the voltage [V] of the battery block increase with the number of in serial connected batteries. The battery charge [Ah] is not changed by serial configuration (e.g. two in serial configured 12 V / 100 Ah batteries, each with 1,200 Wh, have 24 V, 100 Ah and 2,400 Wh after the serial configuration). Operating Manual Cruise 2.0 R / 4.0 R...
-
Page 20: Connecting The Cruise R To Torqeedo Power 26-77 Lithium-Manganese Batteries
To increase the capacity, you can configure up to four Torqeedo Power batteries parallel to each other. To connect the Cruise 2.0 R / 4.0 R to one or two Torqeedo Power 26-77 batteries you also need an adapter cable set / Power battery (available as an accessory). - Page 21 Please refer to the supplementary sheet on the adapter cable set / Power battery for more information. 2. Then turn the main switch of the cable set into the off or zero position. 3. Connect your cable set in line with the following drawings for your Cruise 2.0 R or 4.0 R. Power 26-77 Cable set Connecting the Cruise 2.0 R to one Torqeedo Power 26-77...
-
Page 22: Operation
The kick lever in the “Tilt/Auto kick-up” position enables the motor to be kicked up if it touches the bottom. In this position it is not possible to reverse at full speed. Automatic kick-up is switched off in the “Lock” position. This enables reversing at full speed. Operating Manual Cruise 2.0 R / 4.0 R... -
Page 23: Remote Throttle With Integrated Display And Magnetic Key
(see drawing). If the magnetic key is removed the motor stops. You can only start the motor again if you first replace the magnetic key and then move the remote throttle to the central position (stop position). Magnetic key Remote throttle control Operating Manual Cruise 2.0 R / 4.0 R... -
Page 24: Setting Up The Battery Charge Indicator
Start with entering whether the motor is connected with lithium batteries from the Torqeedo power series or with lead-gel or AGM batteries. Select “Li” for lithium or “Pb” for lead-gel or AGM batteries. Confirm your selection by pressing “setup” again. - Page 25 Error: If an error occurs, the error icon and a two-digit code are dis- played in the bottom field. The code shows the component causing the error and the error itself. You will find details about the error codes in the following table. Operating Manual Cruise 2.0 R / 4.0 R...
- Page 26 Check the motor cable’s plug-in connection. error Check the motor cable for damage. Remote throttle Check the remote throttle cable’s plug-in communication error connection. Check the cable. General communication Check the plug-in connections and cables. error Operating Manual Cruise 2.0 R / 4.0 R...
-
Page 27: Calibrating The Battery Charge Indicator
By moving slower you can still use the available battery charge. To use the indicator of the battery charge status and remaining range in your Cruise, your assistance is required in two ways: Operating Manual Cruise 2.0 R / 4.0 R... - Page 28 Please do not change the value set during the calibration journey as otherwise the on-board computer will make false assumptions. Operating Manual Cruise 2.0 R / 4.0 R...
- Page 29 Lead-based batteries are available in qualities that vary strongly. Therefore the indicated outstanding range can not be exact for lead-based batteries. A list of bat- teries that achieve good results with the Torqeedo range calculation is found at www.torqeedo.com. • False information on the charge level (eg. due to pressing the “cal”...
-
Page 30: Pylon
If the motor is run in the air for a longer period, the motor itself can overheat. • After use, always take the motor out of the water. You can do this using the tilt mechanism of the transom bracket. Operating Manual Cruise 2.0 R / 4.0 R... -
Page 31: Dismantling
Cruise R are, as with most leisure maritime products, classed as “seawater resistant”, not “seawater-proof”. • After use, you should always take the motor out of the water. You can do this using the tilt mechanism of the transom bracket. • After use in salt or brackish water rinse the motor with fresh water. • Only store the motor in a dry condition. • Treat all electronic parts with contact spray once a month. Operating Manual Cruise 2.0 R / 4.0 R... -
Page 32: Changing The Propeller
5. Set the main battery switch to the “on” position. Allow the motor to run slowly and check whether the shaft is turning unevenly at the shaft sealant ring. Contact Torqeedo Service if the shaft is damaged or uneven. 6. Set the main battery switch to the “off” position. Insert the new cylinder pin centrally to the motor shaft and insert the internal disk onto the motor shaft. -
Page 33: Trouble Shooting
180° Set remote throttle to central position Speed indicator does not • Check that the shaft head is work even after 5 minutes? not covered Contact Torqeedo Service (for contact details refer to back page) Operating Manual Cruise 2.0 R / 4.0 R... -
Page 34: Technical Data
Connection prepared for Connection prepared for steering device steering device Tilting system manually manually Trimming system manual 4-step manual 4-step Stepless drive forwards/reverse yes (reverse 50 % power) yes (reverse 50 % power) Operating Manual Cruise 2.0 R / 4.0 R... -
Page 35: Disposal Instructions
LIMA high performance battery, capacity 1,994 Wh, rated voltage 25.9 V, charge 77 Ah, weight 19 kg / 42 lbs, connection to other batteries only in agreement with Torqeedo 2302-00 Adapter cable set for Adapter to connect the cable set to Torqeedo Torqeedo Power 26-77 Power 26-77 Operating Manual Cruise 2.0 R / 4.0 R... - Page 37 Ø 18...
-
Page 38: Torqeedo Service Centers
Version R 3.0 039-00010 Torqeedo Service Centers Europe and international Torqeedo GmbH Petersbrunner Str. 3a 82319 Starnberg Germany service_international@torqeedo.com T +49 - 8151 - 268 67 -26 F +49 - 8151 - 268 67 -29 North America Torqeedo Inc. 171 Erick Street, Unit A-1 Crystal Lake, IL 60014 service_usa@torqeedo.com...
