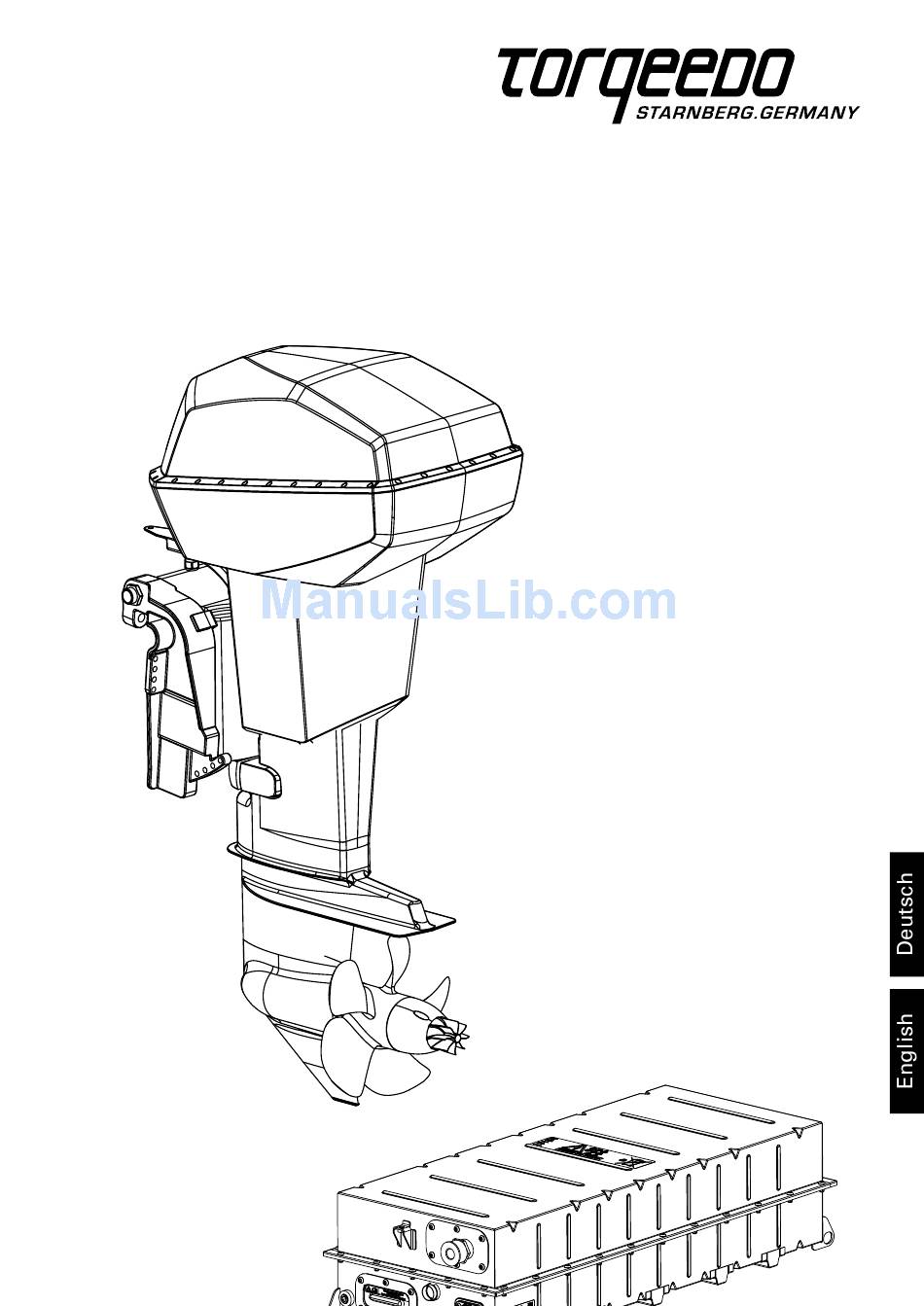

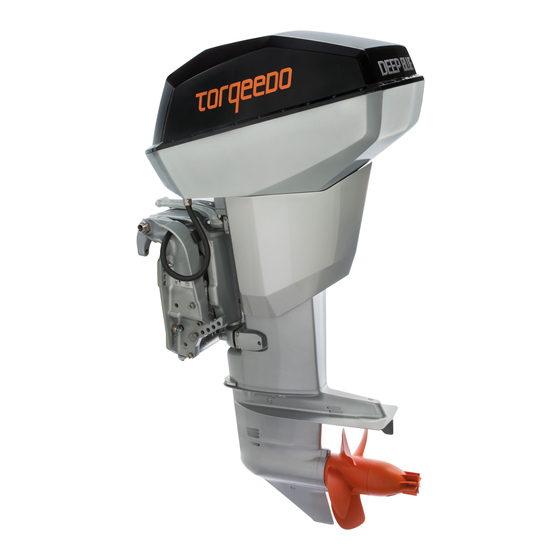

  • Page 1 Deep Blue Bedienungsanleitung (Deutsch) Operating Manual (English)
  • Page 2 Your Torqeedo DEEP BLUE is the first industrially developed and manufactured electrical boat drive for the higher power classes. As with all Torqeedo motors it also provides the highest efficiency levels and outstanding ride comfort. It is the benchmark for state of the art technology for electric mobility on the water.

  • Page 3: Table Of Contents

    Contents 1. Important safety and operating instructions ..............38 2. Legally prescribed information ..................40 2.1 Identification and technical data ................40 2.2 Conformity declaration ................... 41 3. Components and operating elements ................42 3.1 List of components ....................42 3.2 List of operating elements ..................
  • Page 4 6. Trailering and transporting boats equipped with DEEP BLUE ........56 7. Maintenance and service ....................57 7.1 Maintenance of mechanical components ............. 57 7.2 Maintenance of high voltage lithium batteries ............. 57 7.3 Replacement of propeller ..................58 7.4 Service ........................58 8.

  • Page 5: Important Safety And Operating Instructions

    1. Important safety and operating instructions As with all Torqeedo products, the DEEP BLUE system is designed to comply with the highest safety standards in the industry. Using the system in accordance with the opera- ting manual will ensure a safe, fun, and practical experience with the system. Please read this manual carefully before starting the motor. Non-compliance with these instructions may cause property damage and/or personal injury.
  • Page 6 This symbol warns against possible risks of damage to your outboard system or injuries arising as a result. In the following, please find important operating instructions for Torqeedo DEEP BLUE motors systems. In addition to these, please also respect the entire operating manual to prevent any damage to your motor.

  • Page 7: Legally Prescribed Information

    • Please use emergency stop switch solely in real emergency situations. Repeated pres- sing of emergency stop switch at high power burdens the system and may potentially lead to damage and thus to repair works of the battery electronics. 2. Legally prescribed information 2.1 Identification and technical data Identification plates indicating model type and designation can be found at location indicated in the drawing.

  • Page 8: Conformity Declaration

    Torqeedo GmbH, Friedrichshafener Str. 4 a, 82205 Gilching, hereby declares that the DEEP BLUE propulsion system defined below, by virtue of its conception and type and in the designs placed on the market by us, complies with the basic safety and health...

  • Page 9: Components And Operating Elements

    On/Off switch with ignition key and emergency stop switch Connection box for wiring of 3.2 List of operating elements DEEP BLUE components 1. On/Off switch with ignition key 2. Emergency stop switch 3. Electronic throttle with locked neutral position 4. Power trim and tilt 5. On-board computer with...
  • Page 10 Electronic throttle with locked neutral position and power- trim-and-tilt High voltage battery energy supply of outboard Outboard motor with electric motor and power electronics Venting system – Venting of batteries for the unlikely event of excess pressure discharge...

  • Page 11: Operation

    4. Operation 4.1 Startup • Check cable protection hose leading to outboard for possible damage • Check function of emergency stop switch • Check steering system function • In case of visible damage of system components or cables neither charge the battery nor switch on the system • Fix red emergency stop lanyard to your wrist, or on your life jacket • Only use the battery at temperatures between -25°C and +55°C (-13 °F and +131 °F). • Check condition of sacrificial anode. • Ensure that the propeller is not damaged. • Never operate the propeller out of the water. Take care that trim position of the motor is in the right position before starting. To start the motor: • Ensure that remote throttle is in neutral position • Ensure Emergency Stop Switch is engaged...

  • Page 12: Driving And Operation

    The lithium high voltage battery is switched on by the 12 V battery whenever the motor is started. In the event of extended storage, regularly check whether charging level of this battery is sufficient. During operation of the DEEP BLUE System, 12 V battery is automatically being recharged. Behaviour of your electric motor differs from that of gasoline-driven engines.

  • Page 13: On-Board Computer And Touchscreen Display

    Power trim function (around 0° - 15°, slow tilt motion): Can be operated when driving the boat. Allows fine tuning between the boat‘s hull and the propeller‘s angle in the water. Allows optimization of driving behaviour and efficiency. Power tilt function (around 15° - 80°, fast tilt motion): To be used in stationary position of the boat to tilt the outboard out of the water. Protects underwater components of the motor against additional wear, aging, algae growth, etc.
  • Page 14 Please note that range indications may not be precise and may differ due to changing wind and current conditions. Navigation screen Remaining range at current speed Distance to selected waypoint (linear distance) Remaining time until arrival at selected way- point at current speed Distance to “Home“...
  • Page 15 Battery data Total battery charge over total service life Average temperature of battery since manufacture Capacity available depending on charging level Pro rata use of capaci- ty warranty (Average of all batteries in the system, can also be checked on individual battery level) Status insulation monitoring Maximum input power...
  • Page 16 Charging current of power-outlet Charger on/off switch Charging voltage of power-outlet Menu Settings: Select charging power here Maximum cell voltage Settings Language selection Distance and speed settings selection Temperature settings selection Waypoint and Home settings selection Charging power setting selection Language selection English German...
  • Page 17 Distance and speed settings Metric settings Nautical settings Imperial and US customary measurement settings Temperature settings Selection of Celsius Selection of Fahrenheit...
  • Page 18 Home and waypoint settings Input of 1 waypoint name Input of 2 waypoint name Input of 3 waypoint name Input home position Input of 1 waypoint position Input of 2 waypoint position Input of 3 waypoint position Home and waypoint position settings Select current position as new waypoint...
  • Page 19 Waypoint name definition Display of waypoint name Keypad to enter waypoint name (maximum 5 characters) Correction Confirmation of waypoint name (exit Waypoint Name screen) Charging power setting Display of selected charging power 100 % correspond to 3 kW In case the power-outlets available for charging cannot deliver the required power, charging power may be adjusted using...

  • Page 20: After Operation

    Warnings and errors Warnings and errors display Display of system software version (no error message) 4.5 After operation Switch motor and batteries off after each trip by turning the ignition key to the left. Dark display indicates shut-down of the system. When boat is not being operated and swimmers are in the vicinity of the boat, ensure motor is completely switched off to avoid accidental starting or engagement of motor.

  • Page 21: Charging The High Voltage Lithium Batteries

    4. Start charging operation by switching On/Off switch on the Charger screen to On. 5. To finish charging operation for full charging of batteries, switch the On/Off switch in charger display to Off and then pull the plug out of the socket. After full charging of battery remove power cable from socket. Although DEEP BLUE high-voltage batteries are protected against deep discharge, self-discharge occurs to a certain extent. To prevent damage of the battery, please respect the following advice: • Recharge batteries after every trip. In case the batteries should be discharged down to less than 20 %, recharging must occur within 48 hours.

  • Page 22: Use Of The 12 V Battery

    12 V circuit for the on-board electrical system. In doing so, you avoid an unintentional discharge of the 12 V battery that is integrated into the DEEP BLUE system (and that is required to switch on the high voltage lithium batteries).

  • Page 23: Emergencies

    The 12 V battery connected to the DEEP BLUE system must have a charging end voltage of at least 13.8 V or more, a capacity of at least 40 Ah and a current carrying capacity of at least 100 A.

  • Page 24: Maintenance And Service

    7. Maintenance and service • In case the high voltage battery should be mechanically damaged, please do not use the DEEP BLUE system any more. Get in touch with Torqeedo Service. • High voltage components of DEEP BLUE systems are watertight (battery IP 67, charger IP 67, connection box IP 66 protected). However avoiding permanent exposure of high voltage components to water is necessary. • Always keep high voltage components (batteries, connection box, charger) of DEEP BLUE system clean and free from dirt.

  • Page 25: Replacement Of Propeller

    6. Secure castle nut with safety split pin against twisting. 7. Secure screws of HubVortex-Vane with screw safety varnish. 7.4 Service As the DEEP BLUE is an electric propulsion system, a number of outboard typical main- tenance issues are irrelevant: no motor oil change, no oil filter change, no idling mixture setting, no fuel filter change, no spark plug change, no valve clearance checks, etc.
  • Page 26 • Maintenance work must be realized by qualified staff. Contact Torqeedo Service. • Prior to any technical check or service operation, service staff must necessarily switch off the DEEP BLUE system. Moreover, withdraw emergency stop lanyard and wait three minutes before touching electrical components. DEEP BLUE service intervals Service intervals: Service is to be Once, 1 month or Permanently carried out in the specified intervals...

  • Page 27: Troubleshooting

    Clamping screws Water repellent 60 days 30 days marine lubricants Failure to execute or document required services will lead to loss of warranty. Please ensure that all services are executed and documented in your DEEP BLUE service book. 8. Troubleshooting Error Check / Remedy Display does not react • Check emergency switch for correct seat and fit it if necessary. after turning of key • Check boat‘s main switch and switch on if necessary. switch or connection of • Check 12 V battery charge status. In case of low charge level shut off any devices...

  • Page 28: Capacity Warranty For Deep Blue High Voltage Batteries

    Torqeedo GmbH, Friedrichshafener Straße 4a D-82205 Gilching, warrants to the final purchaser of a Torqeedo DEEP BLUE system that the remaining capacity of DEEP BLUE high voltage batteries will still be at least 80 % of the original capacity 9 years after com- missioning, provided that the following basic conditions will be met.
  • Page 29 Spare battery must be installed by Torqeedo authorized staff. Warranty period for spare batteries is calcula- ted on the basis of remaining warranty period the reclaimed battery has still possessed at...

  • Page 30: Warranty Conditions

    Torqeedo, • previous maintenance or repair works have not been carried out by companies appro- ved by Torqeedo or other than original spare parts have been used - unless end user is able to prove that the fact leading to rejecting warranty claims has not favoured deve- lopment of the defect.

  • Page 31: Warranty Process

    11. Decommissioning of the product / Information on disposal Torqeedo DEEP BLUE motor has been manufactured complying with provisions of Directive 2002/96/EC. This directive rules dismissal of electric and electronic equipment to sustainably protect the environment.

  • Page 32: Torqeedo Service Center

    171 Erick Street, Unit A-1 Friedrichshafener Straße 4a Crystal Lake, IL 60014 82205 Gilching Germany service@torqeedo.com service_usa@torqeedo.com T +49 - 8153 - 92 15 - 126 T +1 – 815 – 444 88 06 F +49 - 8153 - 92 15 - 329 F +1 – 847 – 444 88 07 All other countries Contact details of Service Centers are available under www.torqeedo.com in the “Service“ section.
