- Page 1 Cruise 2.0 S Cruise 2.0 L Operating manual (English)
-
Page 3: Table Of Contents
8.4 Connecting the Cruise 2.0 to lead batteries (acid, gel, AGM) without using the Torqeedo cable set 8.5 Connecting the Cruise 2.0 to a Torqeedo Power 26-77 lithium-manganese battery 8.6 Connecting the Torqeedo remote acceleration lever to the Cruise 2.0 20 9. Operation 9.1 Transom bracket 9.2 Tiller 9. Pylon... -
Page 4: Important Safety And Handling Instructions
2. Important safety and operating instructions Important safety instructions Torqeedo motors are designed to operate safely and reliably as long as they are used according to the operating manual. Please read this manual carefully before you start the motor. Ignoring these instructions can cause property damage or personal injury. - Page 5 • Do not submerge the motor completely in water or other liquids. Important operating instructions Here are the most important instructions on operating Torqeedo Cruise Motors. Apart from these instructions, please observe the complete operating instructions to prevent damage to your motor.
-
Page 6: Introduction
Please take the time to read these operating instructions carefully so that you can use the motor properly and enjoy it for a long time. We constantly strive to improve Torqeedo products. Should you have any comments on the design and use of our products, we would be pleased to hear from you. Please contact our Customer Services if you have any questions on Torqeedo products (service_international@torqeedo.com). -
Page 7: About This Instruction Manual
3. Introduction 4. About this instruction manual 5. Conformity declaration 4. About this instruction manual This instruction manual will help you use your Torqeedo Cruise 2.0 safely and efficiently. All information is given according to our latest knowledge. Subject to technical changes. -
Page 8: Warranty Conditions
6.1 Extent of warranty Torqeedo GmbH, Petersbrunner Straße a in D-8219 Starnberg, Germany, guarantees the final purchaser of a Torqeedo outboard motor that the product is free from material and manufacturing faults during the period stated below. Torqeedo will indemnify the final purchaser for any expense for the repair of a material or manufacturing fault. -
Page 9: Warranty Process
Before dispatching any apparently faulty goods, it is imperative to coordinate the delivery with Torqeedo Services. You can contact us by phone, email or post. You can find the contact details on the back of this manual. Please understand that we are unable to deal with products of which we have not been notified and will therefore refuse to accept delivery. -
Page 10: Equipment And Operating Elements
7. Equipment and operating elements 7.1 Supply scope The full supply scope of your Torqeedo Cruise should include the following parts: • Motor with tiller, transom mount, shaft, pylon, and propeller • Tiller handle • 2 on/off pins • Operating instructions •... -
Page 11: Plan Of Operating Elements

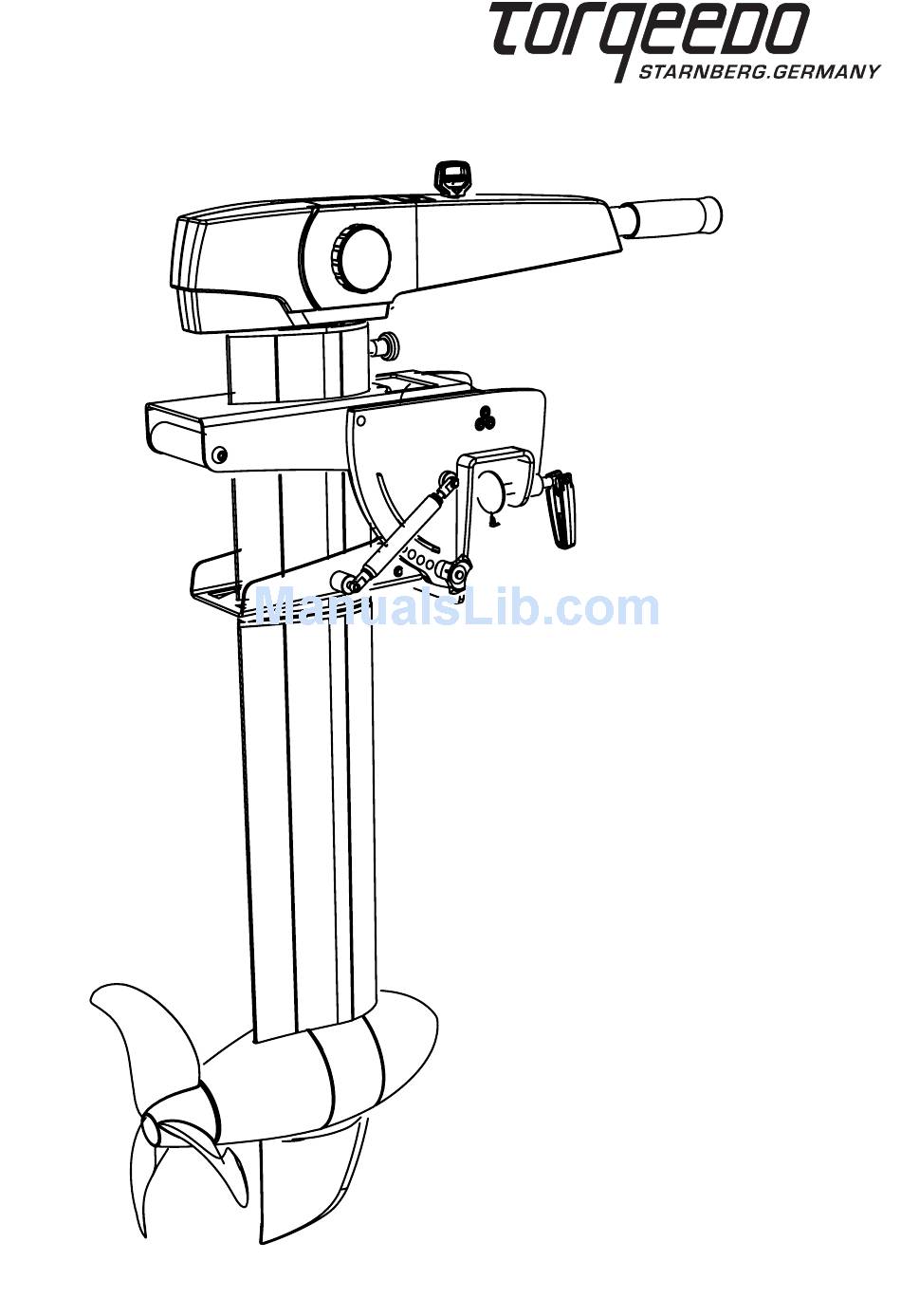

7. Equipment and operating elements 7.2 Plan of controls On/off pin (to stop the motor) Battery voltage display Tiller handle Clamping screws (to fix the tiller tilt angle) Friction screw (to fix the steering) Transom mount Gas pressure spring Mounting clamp (supports the tilting mechanism) Trimming bolt (to fix the locking... -
Page 12: Starting Up
8. Starting up 8.1 Fitting the drive onto the boat • Only operate the gas spring tilt mechanism when the motor is mounted roughly vertically. Otherwise, the strong pre-tension of the gas pressure springs will cause the tilt mechanism to flip up rapidly. This can cause serious injury. -
Page 13: Basic Information On Battery Supply
8. Starting up • First, release the clamping screws on the tiller and tilt the tiller right up. This is how you ensure the tiller does not hit parts of your boat when you tilt the motor. • Now hold on to the rear side of the Hold on here transom mount with one hand and use the other hand to press the release... - Page 14 (2 batteries*, each 12 V, 200 Ah, approx. 10 kg) Cruise 2.0 1,994 Wh, lithium-manganese Between Full speed ~ 1,994 Wh ~ 1:00 (1 Torqeedo Power 26-77, – 20 and 18kg) + 45 °C Cruise 2.0 1,994 Wh, lithium-manganese Between Half speed...
- Page 15 8. Starting up We recommend that you achieve the required battery capacity in Wh using as few parallel connections as possible with as few batteries as possible. So, to give yourself a battery capacity of e.g. 4,800 Wh (at 24 V) it is better to use two 12 V / 200 Ah batteries rather than several parallel and serially linked batteries (e.g.
-
Page 16: Connecting The Cruise 2.0 To Lead Batteries (Acid, Gel, Agm) Using The Torqeedo Cable Set
8.3 Connecting the Cruise 2.0 to lead batteries (acid, gel, AGM) using the Torqeedo cable set The Cruise 2.0 operates with a power supply of between 20 V and 0 V (relating to the nominal voltage). That means it can be operated with two serially configured 12 V lead- acid, lead-gel or AGM batteries. - Page 17 8. Starting up 12 V battery Battery cable set 12 V battery Connection of Cruise 2.0 to two 12 V batteries Optional expansion of the battery capacity with parallel configuration using additional 12 V battery pairs. • Serial and parallel configured batteries must always have the same charge condition.
-
Page 18: Connecting The Cruise 2.0 To Lead Batteries (Acid, Gel, Agm) Without Using The Torqeedo Cable Set
The master switch and the fuse must be designed for a permanent load of 125 A. Torqeedo accepts no liability for damage caused by failure to provide or inadequate fuses, failure to provide or inadequate master switches, cable cross sections that are too small or unsuitable contacts. -
Page 19: Connecting The Cruise 2.0 To A Torqeedo Power
The Cruise 2.0 operates with a power supply of between 20 V and 0 V (relating to the nominal voltage). This means it can also be operated with a Torqeedo Power 26-77 lithium-manganese (LIMA)-based battery. To increase the capacity, you can configure several Torqeedo Power batteries parallel to each other. -
Page 20: Operation
The cable set comes complete with a CF8 15 A fuse. In case of a short circuit, the fuse cuts the circuit and prevents any further damage. You can extend the capacity using a parallel configuration of up to four Torqeedo Power Batteries from the „User Installation (UI)“ series in the same way as described under 8. (Connecting the Cruise 2.0 to lead batteries). - Page 21 8. Starting up 9. Operation The tilt mechanism allows both tilting and trimming the motor. You can tilt the motor to remove it from the water (e.g. when it is not in use or when you land the boat in shallow water). If it is not in use for longer periods of time, we recommend fixing the motor at the 75°...
-
Page 22: Tiller
9.2 Tiller Control the drive power by turning the tiller handle. The propeller speed and direction of turn (forward/backward) can be controlled in an infinitely variable way. Corresponding markings on the tiller handle indicate this. • The high thrust power of the drive makes it necessary to familiarize yourself with the characteristics of your Cruise 2.0. -
Page 23: Pylon
9. Operation 9.3 Pylon The motor and the electronic control system are located in the pylon. They generate the propulsion. In addition, several protective functions are integrated: 1. Temperature protection: If the motor overheats, the motor control system reduces the output of the drive until a temperature equilibrium is established between generated and disposed heat. -
Page 24: Dismantling
• Only run the motor when the propeller is under water. If it is run in the air, the shaft sealant rings that seal the motor to the drive shaft are damaged. If the motor is run in the air for a longer period, the motor itself can overheat. -
Page 25: Storage And Care Instructions
• We recommend checking the sacrificial anode once a year. The sacrificial anode is fitted to the drive shaft of the propeller. Only use Torqeedo sacrificial anodes - you can order these from your dealer or the Torqeedo Service Team. -
Page 26: Trouble Shooting
12 V lead batteries, 10 V per battery?) Is the propeller unobstructed? Can Unblock propeller the propeller be moved by hand? Contact Torqeedo Services Put tiller into stop position. After (for contact details, waiting for approx. 2 seconds, see back cover) re-start from the stop position Operating manual Cruise 2.0... -
Page 27: Technical Data
12. Trouble shooting 13. Technical data • Repairs may only be carried out by authorized Torqeedo Service Centers. Should you attempt to carry out repairs or conversions yourself, this immediately cancels the warranty. • In case of a warranty claim, please follow the warranty instructions at the beginning of the instruction manual. -
Page 28: Disposal Instructions
14. Disposal instructions Torqeedo Cruise motors are manufactured in accordance with EU Directive 2002/96. This directive regulates the disposal of electrical and electronic devices for the protection of the environment. You can, in line with regional regulations, hand in the motor at a collecting point. -
Page 29: Accessories
Description 120 Cable set Cruise 2.0 Cable set for connection of Cruise 2.0 to standard lead batteries or to Torqeedo Power battery; 10 ft long, made of high-current resistant connection cable equivalent to American Wire Gauge 2 (5 mm cross-sectional area), with fuse, battery... - Page 30 Operating manual Cruise 2.0...
-
Page 32: Torqeedo Service Centers
Version 2.0 Torqeedo Service Centers Europe and international Torqeedo GmbH – Service Center – Friedrichshafener Straße 4a 82205 Gilching - Germany service@torqeedo.com T +49 - 8153 - 92 15 - 100 F +49 - 8153 - 92 15 - 319 North America Torqeedo Inc.
