16 SMOOTH CE 2.5 ELLIPTICAL
ASSEMBLY

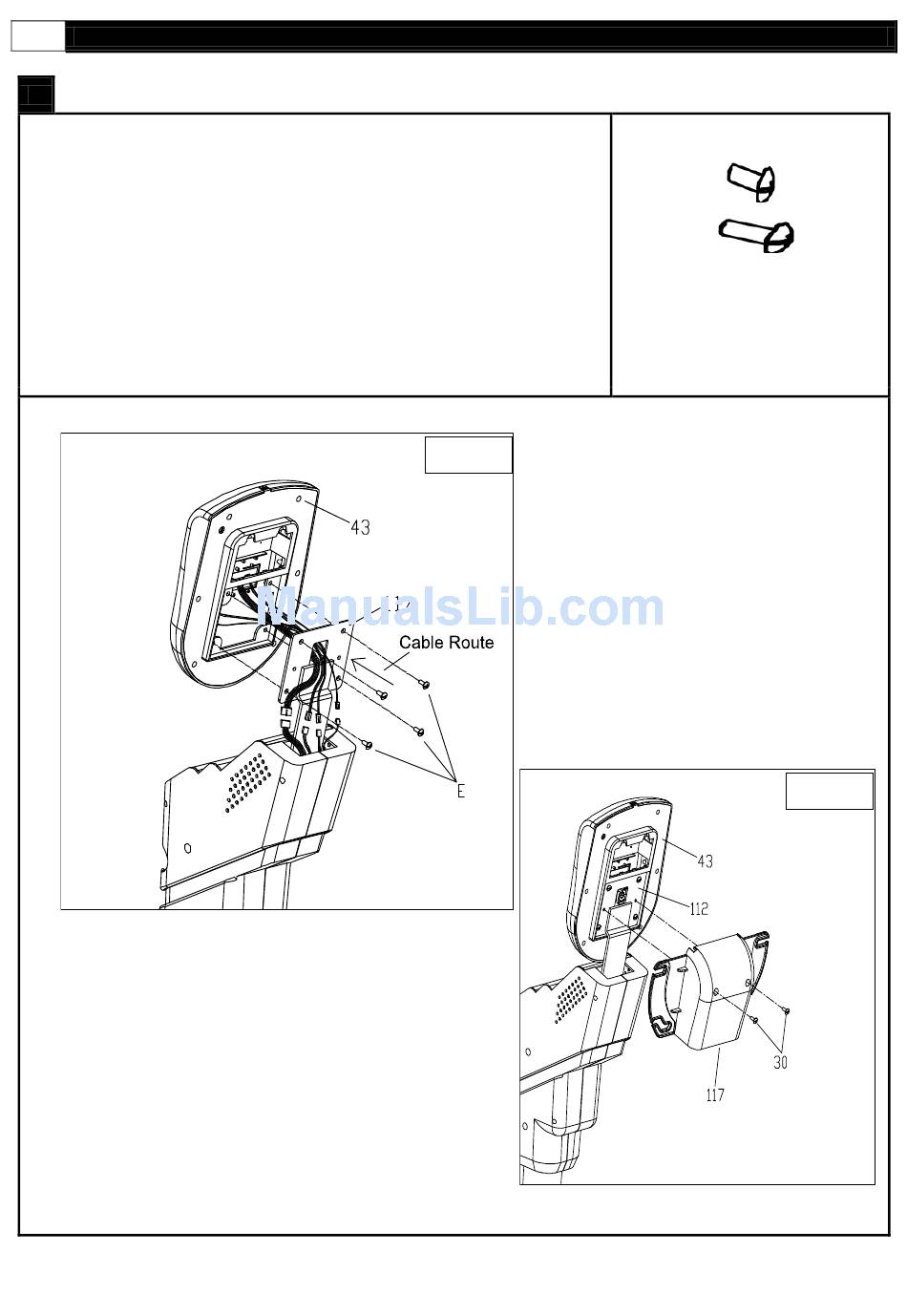

STEP 7: Attach the Computer and Console Base Rear Cover
(A) Connect the 4 wires from the computer #112 to the 4 wires that were
placed over the Console base covers. (these are the wires that ran up
through the upright tube and the handle bar contact heart rate)
(B) Place the computer # 43 on to the console base #112 (See Fig. 7A)
(C) Put the excess wires in to the back of the computer and in to the console
base covers. Be sure not to punch the wires between the computer and
the frame.
(D) Secure the computer to the console base using 4 x E screws and tighten
completely.
(E) Place the console base rear cover on the other console base and secure
it by using 2 x #30 screws
(F) Tighten all screws now.
Fig. 7A
E
#30
Fig. 7B
4
2
