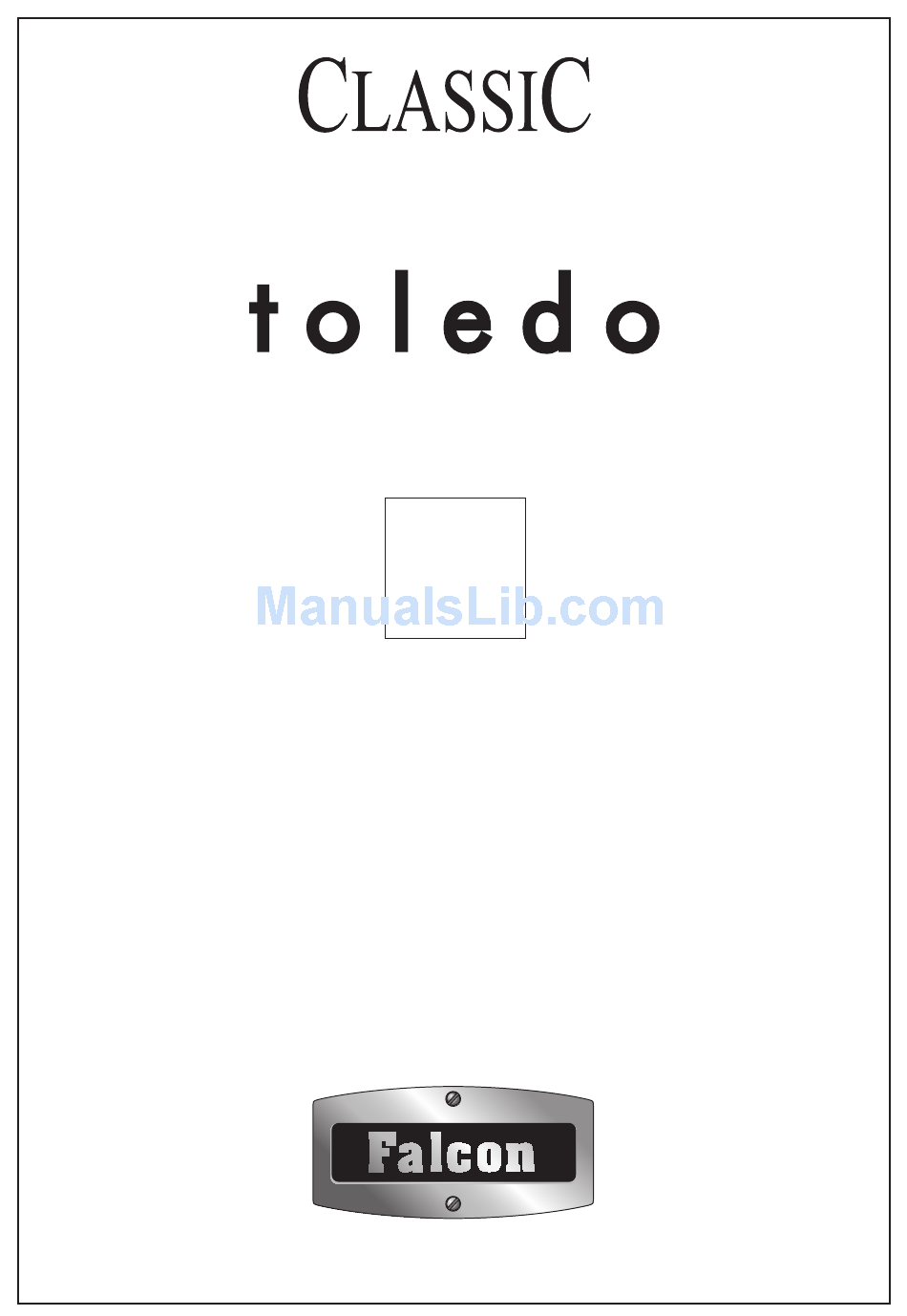

  • Page 1 ArtNo.000-0005 Classic logo Professional ArtNo.000-0012 Professional + logo ArtNo.000-0021 Toledo logo 90 Induction Service Manual ArtNo.000-0008 Falcon logo shaded U110100 - 01sm Australia...
  • Page 2: Electrical Connection

    INSTALLATION Check the appliance is electrically safe when you have finished. Electrical Connection This appliance must be installed by a qualified electrician to comply with the relevant regulations (AS/NZS 60335.2.6:2002) and also the local electricity supply company requirements. ArtNo.132-0001 - 1 phase 240Vac 50Hz Ensure that the mains characteristics (voltage, nominal, power, etc.) match the ratings indicated on the data plate affixed to the cooker.
  • Page 3: Repositioning The Cooker Following Connection

    INSTALLATION Check the appliance is electrically safe when you have finished. Refit the rear cover. Repositioning the Cooker following Connection If you need to move the cooker once it has been connected, make sure it is switched off at the supply switch before gripping under the fascia panel and lifting the front of the ArtNo.132-0002 - 3 phase 240/415Vac 50Hz cooker slightly (Fig.7-5).
  • Page 4: Fitting The Plinth

    INSTALLATION Check the appliance is electrically safe when you have finished. Fitting the Plinth Fig.7-15 Classic & Professional+ models Loosen the three screws along the front bottom edge of the cooker. Hook the central keyhole over the central screw. Twist and fit each end keyhole over their respective screws.
  • Page 5 WARNING – SERVICING TO BE CARRIED OUT ONLY BY AN AUTHORISED PERSON Disconnect from electricity before servicing. Check appliance is safe when you have finished. 8. Servicing Disconnect the cooker from the electricity supply Fig.8-1 before servicing, particularly before removing any of the following: control panel, side panels, ceramic hob, or any of the electrical components or cover boxes.
  • Page 6 WARNING – SERVICING TO BE CARRIED OUT ONLY BY AN AUTHORISED PERSON Disconnect from electricity before servicing. Check appliance is safe when you have finished. To Replace a Hob Element Fig.8-3 Disconnect from electricity supply. Lift up the ceramic hob (see 2). The Induction Heating Elements (IHE) are now accessible.
  • Page 7 WARNING – SERVICING TO BE CARRIED OUT ONLY BY AN AUTHORISED PERSON Disconnect from electricity before servicing. Check appliance is safe when you have finished. If it is not possible to disconnect the leads in this way, pull the Fig.8-4 Fig.8-5 cooker forward to gain access to the rear.
  • Page 8 WARNING – SERVICING TO BE CARRIED OUT ONLY BY AN AUTHORISED PERSON Disconnect from electricity before servicing. Check appliance is safe when you have finished. 14. To Adjust the Main Oven Door Catch Keep Fig.8-11 Open the oven door, and slacken off the locknut at the base of the keep (Fig.8-10).
  • Page 9 WARNING – SERVICING TO BE CARRIED OUT ONLY BY AN AUTHORISED PERSON Disconnect from electricity before servicing. Check appliance is safe when you have finished. 19. To Remove an Oven Element Thermal Cut-out Fig.8-12 Disconnect from electricity supply. Pull the cooker forward to gain access to the cover box. Undo the cover screws and lift clear.
  • Page 10 Access To Remove Glass Induction Top Remove grommet from LH & RH Side panels Fixing screw is located inside Rear fixing screw (left & right) Following removal of the 4 fixing screws induction glass top can raised...
  • Page 11 Rangemaster Induction Models 90cm Zone 3 Zone 2 YGP043491 Zone 5 YGP043491 YGP043491 Zone 1 Zone 4 YGP043492 YGP043492 YGP045186 Filter boards are located in a cover panel below zones 3 & 4 (see below) Rear of cooker Cover panel secured by 3 screws at front & 2 in the rear (panel shown hinged down) Filter Filter...
  • Page 12 Filter board A controls Zone 3 & 4 Filter board B controls Zone 5 Filter board C controls Zone 1 & 2 Filter Filter board A board B YGP043544 YGP045187 Filter board C YGP045187...
  • Page 13 Filter board A controls Zone 3 & 4 Filter board B controls Zone 5 Filter board C controls Zone 1 & 2 Filter Filter board A board B YGP043544 YGP045187 Filter board C YGP045187...
  • Page 14 General Error Codes Error Code Description Possible Error Cause Error Correction Permanent Operation of Rotary - Release Rotray Control Error of Input unit Control or Broken Wire - Replace Rotary Control (Rotary Control) between Rotary Control and UI - Replace Link Wire Board Er20 Flash Error...
  • Page 15 Induction Heating Element (IHE) Configuration Procedure Fig.1 �������������� �������������� Fig.4 IMPORTANT: The configuration process must be completed within two minutes of turning on power to the ����������������� cooker. ��������������� ����� Turn the front left (zone 1) control Induction anticlockwise to ‘A’ and hold in position (Fig.2).
  • Page 16 Leave the control knob in position ‘9’ until the Place the saucepan onto the Zone 2 hobplate display stops flashing then return the control until the display flashes repeatedly from C to knob anticlockwise to ‘0’ . The display will 3.
  • Page 17: Circuit Diagram: Hob

    9. Circuit Diagrams ArtNo.095-0003 - Circuit diagram - 90 induction Circuit Diagram: Hob 2.3kW 2.3kW 2.3kW 1.4kW 1.4kW ArtNo.080-0051 - 90 Elan induction (hob) circuit diagram Code Description Colour Code Touchlite panel Blue Distribution board Brown Left-hand front control Black Left-hand rear control Orange Central control Right-hand rear control...
  • Page 18: Circuit Diagram: Fan Oven

    Circuit Diagram: Fan Oven Multi-pin plug P033458 P095199 P033458 ArtNo.080-0064 90 induction (oven) circuit diagram The connections shown in the circuit diagram are for single-phase. The ratings are for 240 V 50 Hz. Code Description Code Description Colour Code Grill energy regulator Right-hand oven element Blue Grill front switch Right-hand oven fan...
  • Page 19: Technical Data

    10. Technical Data INSTALLER: Please leave these instructions with the user. DATA BADGE LOCATION: Cooker back, serial number repeater badge below oven door opening. Connections Electric 230-240 V 50 Hz Dimensions Overall height minimum 905 mm maximum 930 mm Overall width 900 mm Overall depth 602 mm (to fascia inc.
