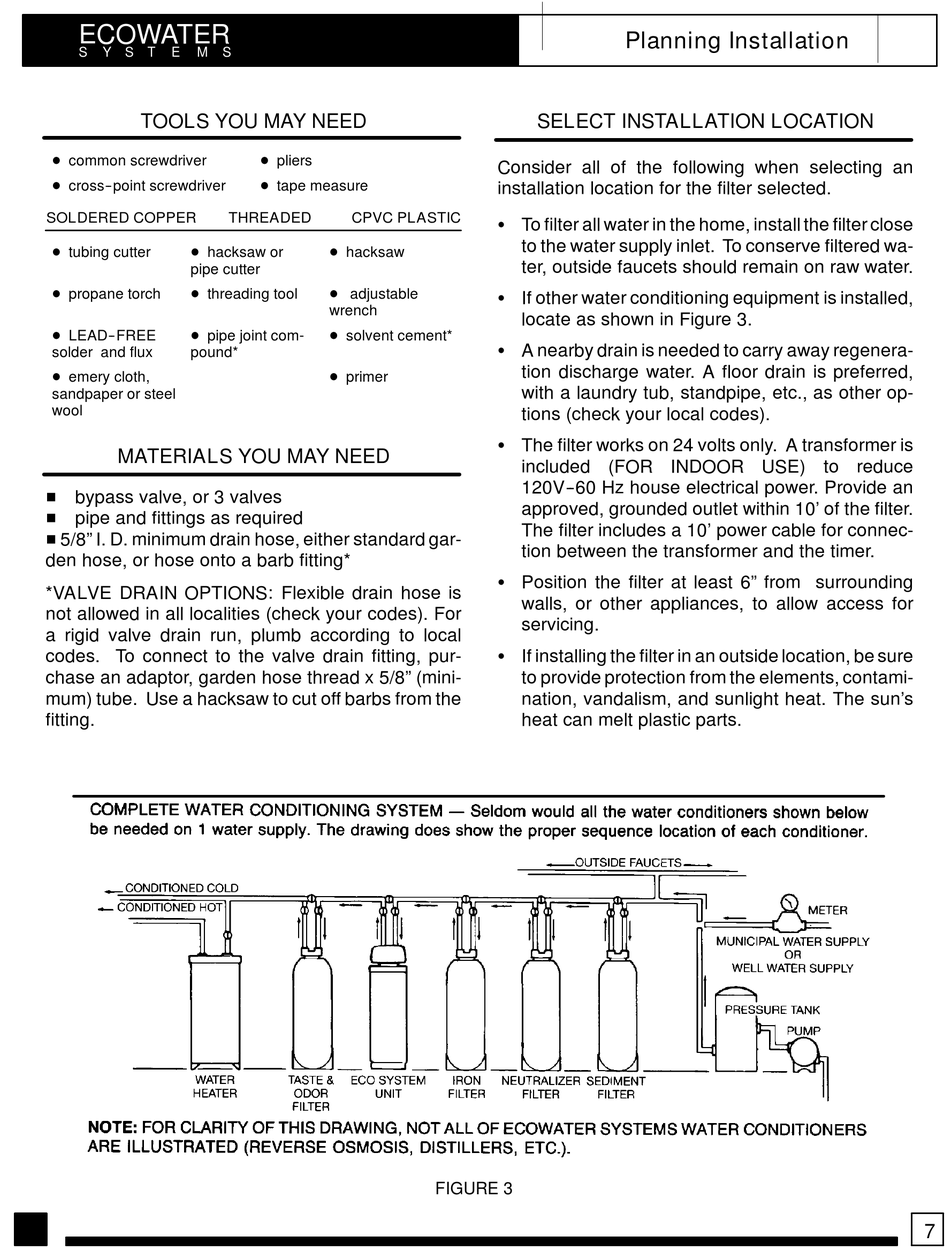

EcoWater ETF2100PF10 Owner's Manual page 7

ECOWATER
S Y S T E M S
TOOLS YOU MAY NEED
D common screwdriver
D cross--point screwdriver
SOLDERED COPPER
D tubing cutter D hacksaw or
pipe cutter
D propane torch D threading tool
D LEAD--FREE D pipe joint com-
solder and flux pound*
D emery cloth,
sandpaper or steel
wool
MATERIALS YOU MAY NEED
H bypass valve, or 3 valves
H pipe and fittings as required
H5/8"I. D. minimum drain hose, either standard gar-
den hose, or hose onto a barb fitting*
*VALVE DRAIN OPTIONS: Flexible drain hose is
not allowed in all localities (check your codes). For
a rigid valve drain run, plumb according to local
codes. To connect to the valve drain fitting, pur-
chase an adaptor, garden hose thread x 5/8"(mini-
mum) tube. Use a hacksaw to cut off barbs from the
fitting.
D pliers
D tape measure
THREADED CPVC PLASTIC
D hacksaw
D adjustable
wrench
D solvent cement*
D primer
SELECT INSTALLATION LOCATION
Consider all of the following when selecting an
installation location for the filter selected.
S To filter all water in the home, install the filter close
to the water supply inlet. To conserve filtered wa-
ter, outside faucets should remain on raw water.
S If other water conditioning equipment is installed,
locate as shown in Figure 3.
S A nearby drain is needed to carry away regenera-
tion discharge water. A floor drain is preferred,
with a laundry tub, standpipe, etc., as other op-
tions (check your local codes).
S The filter works on 24 volts only. A transformer is
included (FOR INDOOR USE) to reduce
120V--60 Hz house electrical power. Provide an
approved, grounded outlet within 10'of the filter.
The filter includes a 10'power cable for connec-
tion between the transformer and the timer.
S Position the filter at least 6" from surrounding
walls, or other appliances, to allow access for
servicing.
S If installing the filter in an outside location, be sure
to provide protection from the elements, contami-
nation, vandalism, and sunlight heat. The sun' s
heat can melt plastic parts.
FIGURE 3
Planning Installation
7
