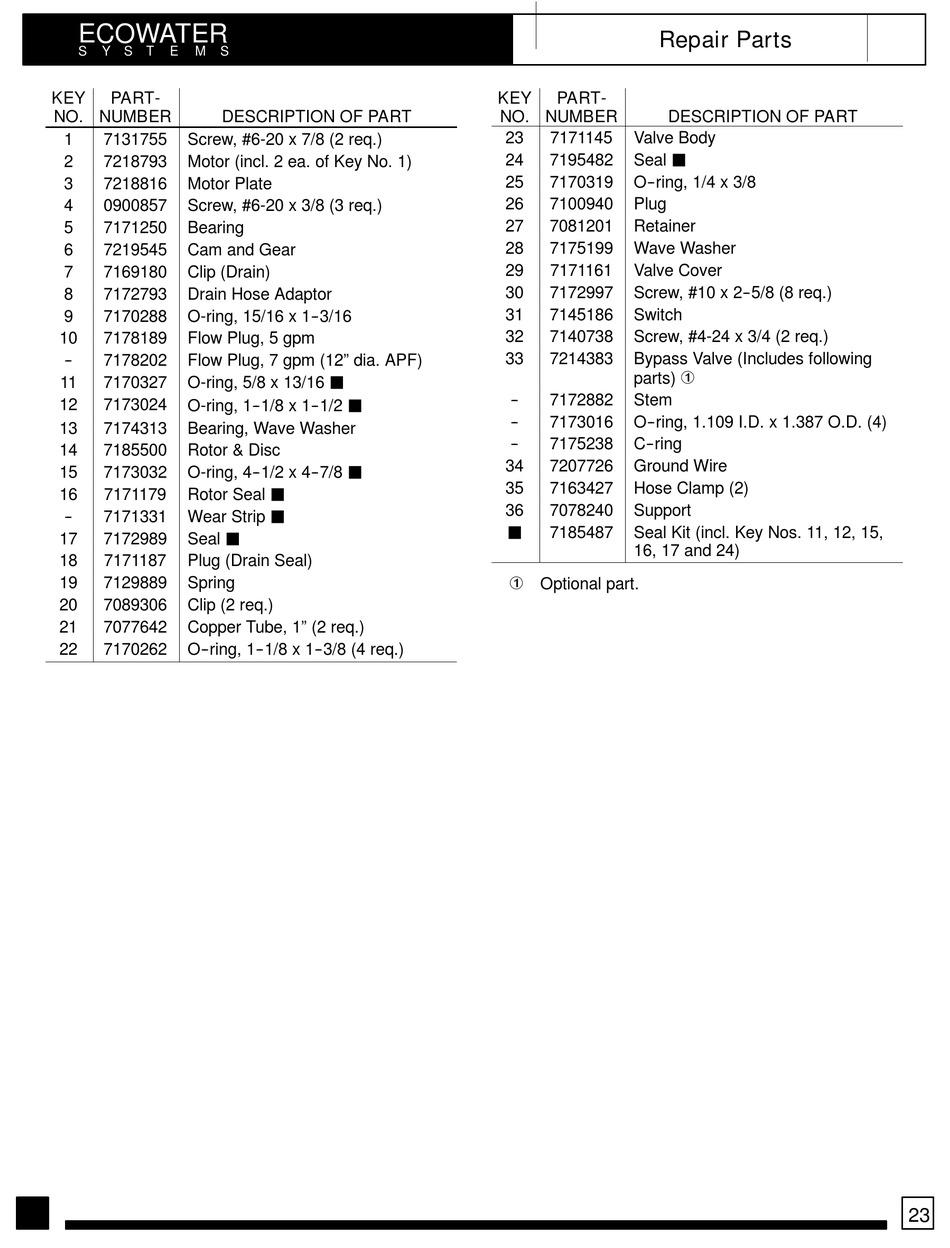

EcoWater ETF2100PF10 Owner's Manual page 23

ECOWATER
S Y S T E M S
KEY PART-
NO. NUMBER DESCRIPTION OF PART
1 7131755 Screw, #6-20 x 7/8 (2 req.)
2 7218793 Motor (incl. 2 ea. of Key No. 1)
3 7218816 Motor Plate
4 0900857 Screw, #6-20 x 3/8 (3 req.)
5 7171250 Bearing
6 7219545 Cam and Gear
7 7169180 Clip (Drain)
8 7172793 Drain Hose Adaptor
9 7170288 O-ring, 15/16 x 1--3/16
10 7178189 Flow Plug, 5 gpm
-- 7178202 Flow Plug, 7 gpm (12"dia. APF)
11 7170327 O-ring, 5/8 x 13/16 J
12 7173024
O-ring, 1--1/8 x 1--1/2 J
13 7174313 Bearing, Wave Washer
14 7185500 Rotor & Disc
15 7173032 O-ring, 4--1/2 x 4--7/8 J
16 7171179 Rotor Seal J
-- 7171331 Wear Strip J
17 7172989 Seal J
18 7171187 Plug (Drain Seal)
19 7129889 Spring
20 7089306 Clip (2 req.)
21 7077642 Copper Tube, 1"(2 req.)
22 7170262 O--ring, 1--1/8 x 1--3/8 (4 req.)
Repair Parts
KEY PART-
NO. NUMBER DESCRIPTION OF PART
23 7171145 Valve Body
24 7195482 Seal J
25 7170319 O--ring, 1/4 x 3/8
26 7100940 Plug
27 7081201 Retainer
28 7175199 Wave Washer
29 7171161 Valve Cover
30 7172997 Screw, #10 x 2--5/8 (8 req.)
31 7145186 Switch
32 7140738 Screw, #4-24 x 3/4 (2 req.)
33 7214383 Bypass Valve (Includes following
parts)
-- 7172882 Stem
-- 7173016 O--ring, 1.109 I.D. x 1.387 O.D. (4)
-- 7175238 C--ring
34 7207726 Ground Wire
35 7163427 Hose Clamp (2)
36 7078240 Support
7185487 Seal Kit (incl. Key Nos. 11, 12, 15,
J
16, 17 and 24)
