NOTE: In addition to a floor drain, you can use a
laundry tub or stand pipe as a good drain point for
this hose. Avoid long drain hose runs, or elevating
the hose.
9. PRESSURE TESTING FOR LEAKS
TO PREVENT EXCESSIVE AIR PRESSURE IN
THE FILTER AND PLUMBING SYSTEM, DO THE
FOLLOWING STEPS IN ORDER
a. Open two or more filtered water faucets, both hot
and cold.
b. Referring to figure 7, turn the bypass valves to ser-
vice position.
c. Slowly open the main water supply valve.
d. Close the filtered water faucets after both of the
following occur.
-- water runs smoothly, with no air bubbles
-- you can smell the sanitizing (page 5) bleach odor
at the faucets
e. Check your complete installation for leaks. If re-
work is required, be sure to observe precautions in
step 6.
10. CONNECT ALL LEADWIRES

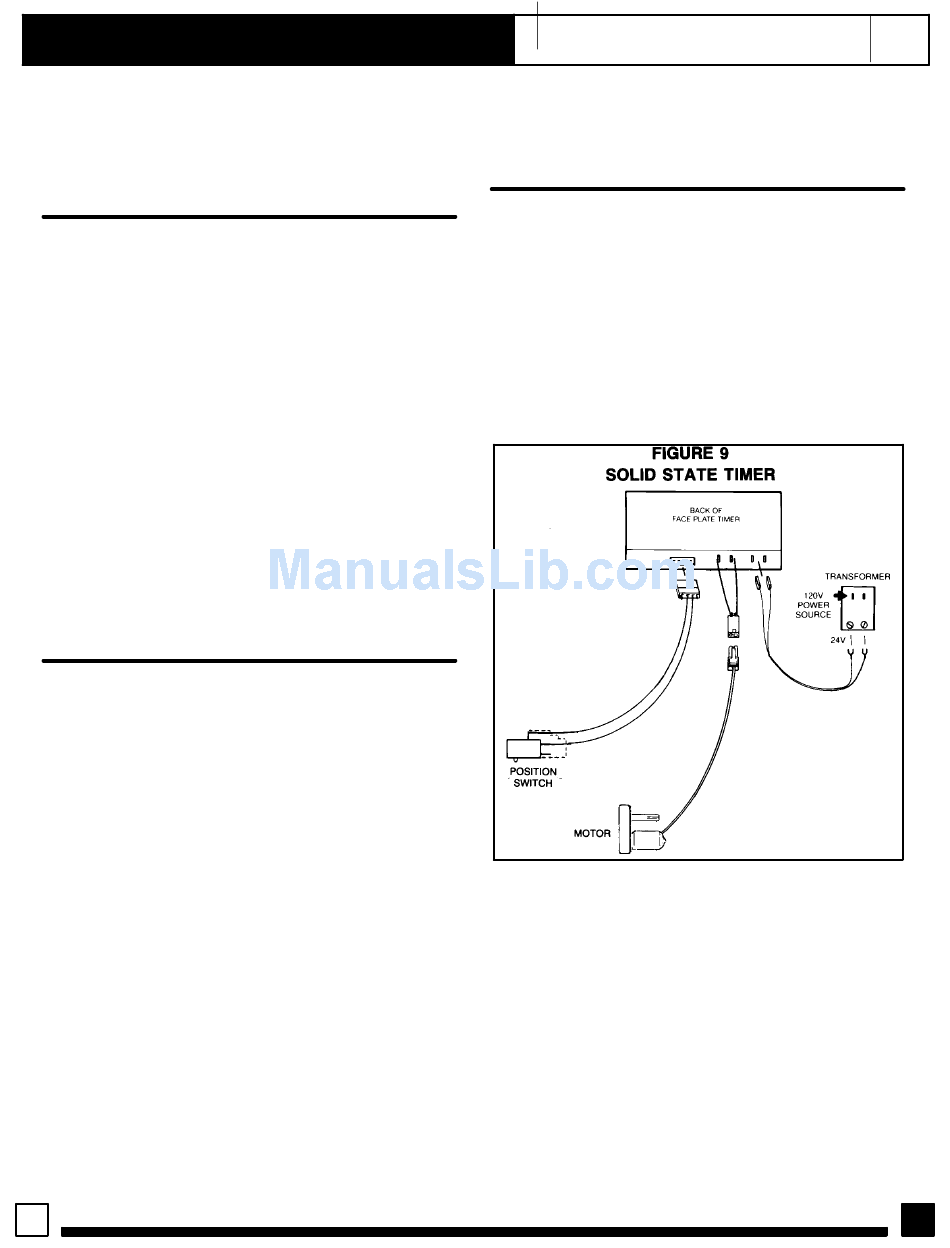

a. Connect the wire harness to the valve switch FIG-
URE 9. The switch is on the outlet side valve valve
cover, behind the motor.
NOTE: Check to be sure the connector is secure, on
the back of the timer.
b. Attach the male connector, on the valve motor
leadwire, the the matching female connector on the
faceplate timer.
10
S
c. Connect the power cable leads to the two termi-
nals on the transformer.
11. CONNECT TO ELECTRICAL POWER
Connect the timer power cable leads to the two ter-
minals on the transformer FIGURE 9. Plug the trans-
former into a continuously " live" , grounded,
120V--60Hz house electrical outlet, approved by lo-
cal codes.
12. TO COMPLETE INSTALLATION, DO THE PRO-
GRAMMING STEPS ON PAGES 11 AND 12.
NOTE WATER HEATER START- -UP ON PAGE 12.
