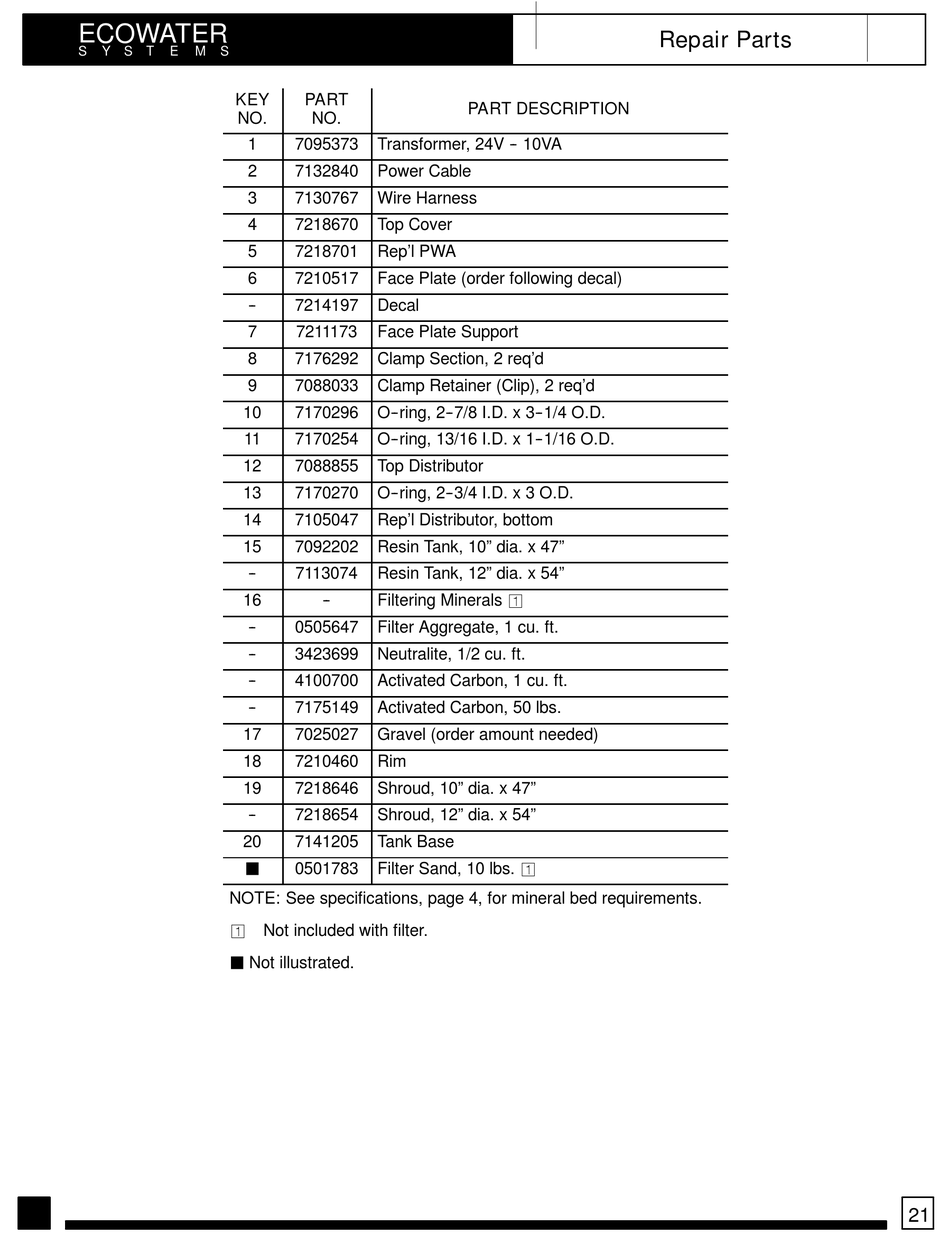

EcoWater ETF2100PF10 Owner's Manual page 21

ECOWATER
S Y S T E M S
KEY
NO.
1
2
3
4
5
6
--
7
8
9
10
11
12
13
14
15
--
16
--
--
--
--
17
18
19
--
20
J
NOTE: See specifications, page 4, for mineral bed requirements.
¡
J Not illustrated.
PART
NO.
7095373 Transformer, 24V -- 10VA
7132840 Power Cable
7130767 Wire Harness
7218670 Top Cover
7218701 Rep' l PWA
7210517 Face Plate (order following decal)
7214197 Decal
7211173 Face Plate Support
7176292 Clamp Section, 2 req' d
7088033 Clamp Retainer (Clip), 2 req' d
7170296 O--ring, 2--7/8 I.D. x 3--1/4 O.D.
7170254 O--ring, 13/16 I.D. x 1--1/16 O.D.
7088855 Top Distributor
7170270 O--ring, 2--3/4 I.D. x 3 O.D.
7105047 Rep' l Distributor, bottom
7092202 Resin Tank, 10"dia. x 47"
7113074 Resin Tank, 12"dia. x 54"
-- Filtering Minerals ¡
0505647 Filter Aggregate, 1 cu. ft.
3423699 Neutralite, 1/2 cu. ft.
4100700 Activated Carbon, 1 cu. ft.
7175149 Activated Carbon, 50 lbs.
7025027 Gravel (order amount needed)
7210460 Rim
7218646 Shroud, 10"dia. x 47"
7218654 Shroud, 12"dia. x 54"
7141205 Tank Base
0501783 Filter Sand, 10 lbs. ¡
Not included with filter.
PART DESCRIPTION
Repair Parts
21
