Summary of Contents for Kontron 0-0096-4514

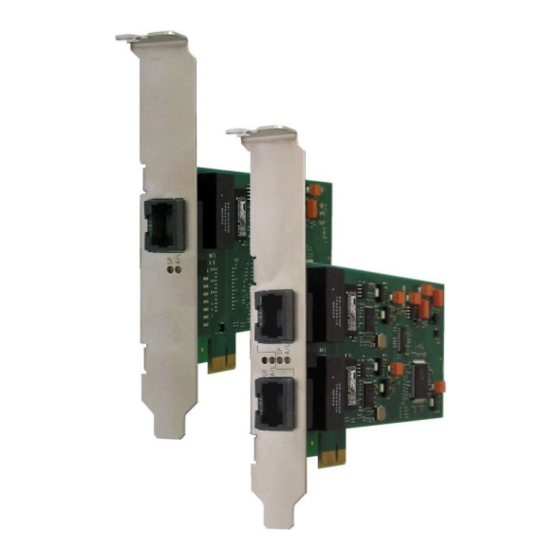

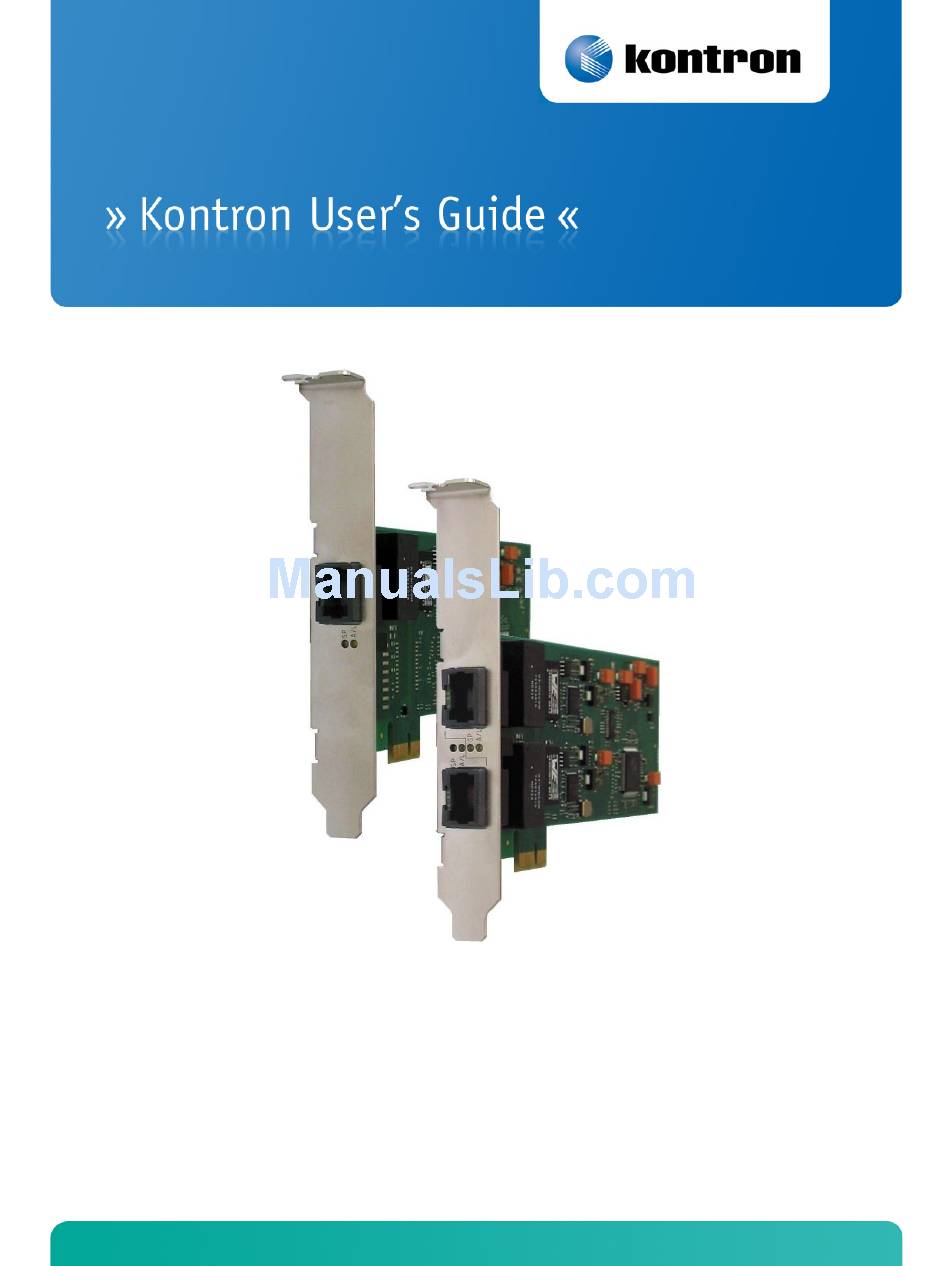

- Page 1 PCIe Medical LAN Card User’s Guide (Version 1.00) 0-0096-4514 If it’s embedded, it’s Kontron.
- Page 2 This page is intentionally left blank. If it’s embedded, it’s Kontron...
-
Page 3: Table Of Contents
7.1.1. Adapt the PCIe Medical LAN Card (Dual/Single) to a Low Profile Card ............16 7.1.2. Installation of the PCIe Medical LAN Card (Dual/Single) .................16 8. Main Specifications..........................18 8.1. Environmental Specifications ........................18 8.2. CE Directives and Standards........................19 9. Technical Support ...........................20 9.1. Returning Defective Merchandise ......................20 www.kontron.com... -
Page 4: Table Of Figures
Fig. 7: PCIe Medical Single LAN Card Dual (top side) ................... 9 Fig. 8: PCIe Medical Single LAN Card (bottom side) ..................... 9 Fig. 9: LEDs of the PCIe Medical (Dual / Single) LAN Card ..................12 Fig. 10: PCIe Medical LAN Card -PCB- Mechanical dimensions................14 www.kontron.com... -
Page 5: Introduction
Kontron Embedded Computers is aware of such errors or inaccuracies or that Kontron Embedded Computers is unaware of these as a result of gross negligence and Kontron Embedded Computers has failed to eliminate these errors or inaccuracies for this reason. Kontron Embedded Computers expressly informs the user that this manual only contains a general description of technical processes and instructions which may not be applicable in every individual case. -
Page 6: Symbols Used In This Manual
® Intel and Pentium are registered trademarks of Intel Corporation. ® AMI is a registered trademark of American Megatrends, Inc. Other product names cited in this manual may also be trademarks and are used here solely for identification purposes. www.kontron.com... -
Page 7: Important Instructions
This applies to the batteries, for example. 3.2. Exclusion of Accident Liability Obligation Kontron Embedded Computers shall be exempted from the statutory accident liability obligation if the user fails to observe the safety instructions. -
Page 8: Safety Instructions
In order to maintain this condition and ensure safe operation, the user must observe the instructions and warnings acc. IEC 60601 contained in this manual. Kontron Embedded Computers can only guarantee the safety, reliability and performance of the board if all of the following safety instructions are observed. -
Page 9: Fcc Statement
This product has been designed for industrial, commercial and office use, including small business use. The most recent version of the EMC guidelines (EMC Directive 2004/108/EC) apply. If the user modifies and/or adds to the equipment (e.g. installation of add-on cards) the prerequisites for the CE conformity declaration may no longer apply. www.kontron.com... -
Page 10: Scope Of Delivery
❏ 1x CD-ROM with the required drivers Support for driver installation: E-mail: support@kontron.com Delivering versions of the PCIe Medical LAN Card with the corresponding low profile slot bracket (included): Fig. 1: Dual LAN (PCIe Medical Dual LAN card) Fig. 2: Single LAN (PCIe Medical LAN Card) Fig. -
Page 11: Product Description
EMC disturbances as high frequent transients (Burst) have an influence of the LAN transmission performance, because connected peripherals may be sensitive to such EMC signals. These influences should be considered in the risk analysis from the medical device according ISO 14971 if connected. www.kontron.com... -
Page 12: Features
❏ IPv4 and IPv6 checksum offload support (receive, transmit, and TSO) ❏ Split header support ❏ Receive Side Scaling (RSS) with two hardware receive queues ❏ Supports 9018-byte jumbo packets ❏ Packet buffer size of 40 KB ❏ TimeSync offload compliant with 802.1as specification www.kontron.com... -
Page 13: Lan Port/S
EMC disturbances as high frequent transients (Burst) have an influence of the LAN transmission performance, because connected peripherals may be sensitive to such EMC signals. These influences should be considered in the risk analysis from the medical device according ISO 14971 if connected. www.kontron.com... -
Page 14: Status Leds
LED D LED A LED A LED B LED B Fig. 9: LEDs of the PCIe Medical (dual / single) LAN Card 6.3.1. Labeling of the Single/Dual Slot Brackets (also for Low Profile Slot Bracket) SP: Speed A/L: Activity/Link www.kontron.com... -
Page 15: Pcie-Bus Edge Card Connector
Mechanical Key RSVD (NC) reserved power Ground power Ground REFCLK+ Transmitter differential REFCLK- pair, Lane0 Power Ground power Ground PERp0 Hot-plug presence PERn0 detect Ground power Ground I: (connected to PRSNT1#) O: (connected to PRSNT2#) NC: not connected www.kontron.com... -
Page 16: Mechanical Design
The PCIe Medical (Dual/Single) LAN Card is a low profile (half length and haft height) card with standard or low profile (included) brackets, which offers flexibility in the configuration and expansion of a computer (desktop PC or server). Fig. 10: PCIe Medical LAN Card -PCB - mechanical dimensions www.kontron.com... -
Page 17: System Requirements
❏ an available PCIe slot (e.g. x1, x4, x8 and x16) compliant with PCIe bus specification 2.0, which allows the system expansion ❏ a CD-ROM drive ❏ corresponding cables ❏ Operating systems supported: refer to the download center for LAN controller Intel® 82574L on the web side: www.intel.com www.kontron.com... -
Page 18: Installation
8. Secure the card slot bracket to the chassis using a screw with proper size. 9. Replace the cover and secure it to the chassis (refer to the user’s guide of your computer). 10. Connect the Ethernet cable (not included) to the RJ45 connector of the PCIe Medical LAN Card. www.kontron.com... - Page 19 EMC disturbances as high frequent transients (Burst) have an influence of the LAN transmission performance, because connected peripherals may be sensitive to such EMC signals. These influences should be considered in the risk analysis from the medical device according ISO 14971 if connected. www.kontron.com...
-
Page 20: Main Specifications
-20 … +70 °C / 15-95 % non condensing humidity (-4 … 158 °F / 15-95 %) not condensing Operating and -500 … 3000 m (1640.5 … 9843 ft) Storage / Transit altitude Air Pressure 1100 hPa … 700 hPa www.kontron.com... -
Page 21: Ce Directives And Standards
Generic emission standard for industrial environments (Emission): EN EN 55022 and EN 55011 class B Generic standards - Immunity for industrial environments (Immunity): EN 61000-6-2:2005; EN 60601-1-2 (EMC of medical devices FCC 47 CFR Part 15, Class A U.S.A. ICES-003, Class A CANADA www.kontron.com... -
Page 22: Technical Support
Be ready to explain the nature of your problem to the service technician. If you have any questions about Kontron Embedded Computers or our products and services, you may reach us at the aforementioned numbers, or at: www.kontron.com...
