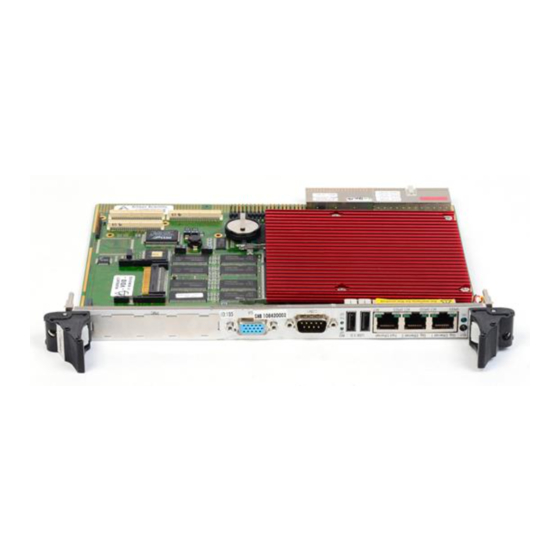

CP605
6U CompactPCI
Pentium 4 Based CPU Board
Manual ID: 25095, Rev. Index 07
October 2004
The product described in this manual is
in compliance with all applied CE stan-
dards.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CP605 and is the answer not in the manual?

Questions and answers

Related Manuals for Kontron CP605

Summary of Contents for Kontron CP605

  • Page 1 CP605 6U CompactPCI Pentium 4 Based CPU Board Manual ID: 25095, Rev. Index 07 October 2004 The product described in this manual is in compliance with all applied CE stan- dards.

  • Page 2: Revision History

    Copyright © 2004 Kontron Modular Computers GmbH. All rights reserved. This manual may not be copied, photocopied, reproduced, translated or converted to any electronic or machine- readable form in whole or in part without prior written approval of Kontron Modular Computers GmbH.

  • Page 3: Table Of Contents

    Board Layout .................. 1 - 9 1.6 Technical Specifications ................ 1 - 11 1.7 Software Support ................... 1 - 16 1.7.1 Kontron Support ................1 - 16 1.8 Applied Standards ................. 1 - 17 ID 25095, Rev. 07 © 2004 Kontron Modular Computers GmbH...
  • Page 4 CRT Interface and Connector CON11 ........2 - 12 2.5.5 Serial Port Interfaces COM1 and COM2 ........2 - 13 2.5.6 Serial Port Interfaces COM3 and COM4 ........2 - 13 Page iv © 2004 Kontron Modular Computers GmbH ID 25095, Rev. 07...
  • Page 5 2.6 Intelligent Platform Management Interface (IPMI) ......... 2 - 39 2.6.1 Technical Background of IPMI ............2 - 39 2.6.2 IPMI Implementation on the CP605 ..........2 - 40 2.6.3 Measurement of Onboard Voltages ..........2 - 40 2.6.4 Measurement of Temperatures ............. 2 - 40 2.6.5...
  • Page 6 3.4 Hot Swap Procedures ................3 - 5 3.4.1 System Master Hot Swap ..............3 - 5 3.4.2 Peripheral Hot Swap Procedure ............3 - 6 3.5 Installation of CP605 Peripheral Devices ..........3 - 7 3.5.1 CompactFlash Installation ...............3 - 7 3.5.2 USB Device Installation ..............3 - 7 3.5.3...
  • Page 7 The General Help Window .............. 5 - 6 5.1.7 Main Menu Selections ..............5 - 7 5.1.8 Master and Slave Sub-Menus ............5 - 7 5.1.9 Memory Cache ................5 - 11 ID 25095, Rev. 07 © 2004 Kontron Modular Computers GmbH Page vii...
  • Page 8 Executing Phoenix Phlash16 ............5 - 40 5.8.4.1 Command Line Mode ............5 - 40 5.8.5 JRC JUMPtec® Remote Control ...........5 - 41 Chapter System Considerations ................6 - 3 6.1 Thermal Management ................6 - 3 Page viii © 2004 Kontron Modular Computers GmbH ID 25095, Rev. 07...
  • Page 9 Regulation ................6 - 11 6.2.3.5 Rise Time Diagram .............. 6 - 11 6.3 Power Consumption ................6 - 12 6.3.1 Power Requirement for the CP605 ..........6 - 14 Annex Rear I/O Module CP-RIO6-05 ..............A - 3 A.1 Introduction .....................A - 3 A.1.1 Dimensions ..................A - 3...
  • Page 10 A.6.13.1 CompactPCI Connectors J3-J5 (CON3-CON5) Pinouts ..A - 18 A.6.13.2 COM3 Jumper Setting ............A - 23 A.6.13.3 COM4 Jumper Setting ............A - 23 A.6.14 Fan Power Supply Voltage Selection ........... A - 23 Page x © 2004 Kontron Modular Computers GmbH ID 25095, Rev. 07...
  • Page 11 CP605 4HP Version Main Specifications ..........1 - 11 Applied Standards ................. 1 - 17 Related Publications ................1 - 18 Supported Intel Processors on the CP605 ..........2 - 3 Memory Options Utilizing SODIMM Sockets ........... 2 - 4 SMBus Device Addresses ............... 2 - 6 EEPROM Address Map ................
  • Page 12 Boot Options ................... 5 - 13 Advanced Menu Options ................ 5 - 15 Advanced Chipset Control Options ............5 - 16 USB Device 29 Functions ..............5 - 17 Page xii © 2004 Kontron Modular Computers GmbH ID 25095, Rev. 07...
  • Page 13 Power Consumption: Windows® 2000, 100% CPU Usage ....6 - 13 Power Consumption: Windows® 2000 High Power Tool ....... 6 - 13 Power Consumption Table for CP605 Accessories ....... 6 - 13 Start-Up Current of the CP605 ............... 6 - 14 Keyboard Connector CON15 Pinout ............
  • Page 14 A-21 Backplane J5 Signal Functions ............. A - 22 A-22 COM3: RS232 ON/OFF ................ A - 23 A-23 COM4: RS232 ON/OFF ................ A - 23 A-24 Fan Power Supply Voltage Setting ............A - 23 Page xiv © 2004 Kontron Modular Computers GmbH ID 25095, Rev. 07...
  • Page 15 CP605 Functional Block Diagram ............1 - 7 CP605 4HP Front Panels ................. 1 - 8 CP605 Board Layout (Front View) ............1 - 9 CP605 Board Layout (Reverse View) ............ 1 - 10 Keyboard Connector CON23 ..............2 - 9 USB Connectors CON7, CON8 and CON24 .........
  • Page 16 USB Connectors CON21 and CON22 ............. A - 8 D-sub VGA-CRT Connector CON23 ............A - 9 Serial Connectors CON13 and CON14 ..........A - 10 Ethernet/Fast Ethernet Connectors ............A - 11 Page xvi © 2004 Kontron Modular Computers GmbH ID 25095, Rev. 07...

  • Page 17: Id 25095, Rev

    This document contains information proprietary to Kontron Modular Computers GmbH. It may not be copied or transmitted by any means, disclosed to others, or stored in any retrieval sys- tem or media without the prior written consent of Kontron Modular Computers GmbH or one of its authorized agents.

  • Page 18: Explanation Of Symbols

    Note ... This symbol and title emphasize aspects the reader should read through carefully for his or her own advantage. Page xviii © 2004 Kontron Modular Computers GmbH ID 25095, Rev. 07...
  • Page 19 However, the life expectancy of your product can be drastically reduced by improper treatment during unpacking and installation. Therefore, in the interest of your own safety and of the correct operation of your new Kontron product, you are requested to conform with the following guidelines.
  • Page 20 General Instructions on Usage • In order to maintain Kontron’s product warranty, this product must not be altered or modified in any way. Changes or modifications to the device, which are not explicitly approved by Kontron Modular Computers GmbH and described in this manual or received from Kontron’s Technical Support as a special handling instruction, will void...
  • Page 21 However, no other warran- YEAR LIMITED HARDWARE WARRANTY ties that may be granted or implied by anyone on behalf of Kontron are valid unless the con- sumer has the express written consent of Kontron Modular Computers GmbH.
  • Page 22 Preface CP605 This page was intentionally left blank. Page xxii © 2004 Kontron Modular Computers GmbH ID 25095, Rev. 07...
  • Page 23 CP605 Introduction Chapter Introduction ID 25095, Rev. 07 © 2004 Kontron Modular Computers GmbH Page 1 - 1...
  • Page 24 Introduction CP605 This page was intentionally left blank Page 1 - 2 © 2004 Kontron Modular Computers GmbH ID 25095, Rev. 07...

  • Page 25: Introduction

    • Information on the distinctive features of Kontron CompactPCI boards, such as functionality, hot swap capability. In addition, an overview is given for all existing Kontron CompactPCI boards with links to the relating data sheets. • Generic information on the Kontron CompactPCI backplanes, such as the slot...

  • Page 26: Board Overview

    Intelligent Platform Management Interface (IPMI) available. The board supports one configurable 64-bit, 33 MHz, hot swap CompactPCI interface. In the System Master slot the bridge is enabled, and if installed in a peripheral slot, the CP605 is iso- lated from the CompactPCI bus.

  • Page 27: Board-Specific Information

    Introduction 1.2.2 Board-Specific Information The CP605 is a CompactPCI Pentium 4 processor based single-board computer specifically designed for use in highly integrated platforms with solid mechanical interfacing for a wide range of industrial environment applications. Some of the CP605's outstanding features are: •...

  • Page 28: System Relevant Information

    1.3.1 PMC Modules The CP605 has one, 32-bit, 33 MHz, 5 V signal voltage, rear I/O capable, PMC mezzanine interface. This interface supports a wide range of available PMC modules including all of Kontron’s PMC modules and provides an easy and flexible way to configure the CP605 for various application requirements.

  • Page 29: Cp605 Functional Block Diagram

    CP605 Introduction Board Diagrams The following diagrams provide additional information concerning board functionality and component layout. 1.5.1 Functional Block Diagram Figure 1-1: CP605 Functional Block Diagram * optional PC266 DDR 200/266 MHz PC266 DDR Network * up to 1 GB...

  • Page 30: Cp605 4Hp Front Panels

    Introduction CP605 1.5.2 Front Panels Figure 1-2:CP605 4HP Front Panels Legend: Left CP605: 4HP VGA version Right CP605: 4HP COM version General Purpose (GP) LEDs WD/GP (green): Watchdog or General Purpose, when lit during bootup, it indi- cates that PCI reset is active.

  • Page 31: Cp605 Board Layout (Front View)

    CP605 Introduction 1.5.3 Board Layout Figure 1-3: CP605 Board Layout (Front View) CON23 CON24 CON15 CON18 CompactFlash CON17 CON16 signal voltage key DDR-SDRAM Battery CON10/ CON11 IC14 SODIMM SOCKET ICH4 CON14 (Optional) CON9 GMCH GP LEDs CON8 CON7 CON6A Bridge GBit Mag.

  • Page 32: Cp605 Board Layout (Reverse View)

    Introduction CP605 Figure 1-4: CP605 Board Layout (Reverse View) C107 FLASH R128 R115 R140 DDR SDRAM R167 R168 C103 R536 R137 R535 R149 R108 R126 R324 R310 R303 R134 R155 R146 R124 C114 R173 R107 R177 R172 R106 R164 R133 R123...

  • Page 33: Cp605 4Hp Version Main Specifications

    Technical Specifications Table 1-2: CP605 4HP Version Main Specifications CP605 SPECIFICATIONS The CP605 supports one or the other of the following Intel processor types: Pentium 4 Processor • Up to 2.4 GHz • 512 kB L2 on-die cache • 400 and 533 MHz PSB •...
  • Page 34 • Power management logic support • Enhanced DMA controller, interrupt controller, and timer functions • Integrated IDE controller Ultra ATA/100/66/33 • USB 2.0 host interface with up to five USB ports available on the CP605 • One integrated LAN controller (82559 style) ®...
  • Page 35 CP605 Introduction Table 1-2: CP605 4HP Version Main Specifications (cont’d) CP605 SPECIFICATIONS Gigabit Ethernet Two 10/100/1000 MB/s Gigabit Ethernet interfaces based on the Intel 82540EM (Kenai-32) Ethernet PCI bus controller. • Two RJ45 connectors on the front panel • Support for two Gigabit Ethernet channels on packet switching backplane (PICMG 2.16, R1.0 compliant)
  • Page 36 • J5: VGA-CRT, two Ethernet channels without LEDs, USB5, COM1, COM2, COM4, control signals, PMC rear I/O connectivity • J4: parallel I/O interface, GPIO, IPMI fan control signals Note: If the CP605 is to be used with a H.110 CompactPCI backplane, connector J4 must not be populated. LEDs System status: •...
  • Page 37 The CP605 supports System Master hot swap functionality and application dependent hot swap functionality when used in a peripheral slot. When used as a System Master the CP605 supports individual clocks for each slot and ENUM signal handling is in compliance with the PICMG 2.1 Hot Swap Specification.

  • Page 38: Software Support

    1.7.1 Kontron Support Kontron is one of the few CompactPCI and VME vendors providing inhouse support for most of the industry-proven real-time operating systems that are currently available. Due to its close relationship with the software manufacturers, Kontron is able to produce and support BSPs and drivers for the latest operating system revisions thereby taking advantage of the changes in technology.

  • Page 39: Applied Standards

    CP605 Introduction Applied Standards The Kontron Modular Computers’ CompactPCI systems comply with the requirements of the following standards: Table 1-3: Applied Standards TEST LEVEL COMPLIANCE TYPE STANDARD (Ruggedized Version) Emission EN50081-1, EN55022 Immission EN61000-6-2, EN55024 Electrical Safety EN60950 Mechanical Mechanical Dimensions IEEE 1101.10...

  • Page 40: Related Publications

    CompactPCI Packet Switching Backplane Specification PICMG 2.16 Rev. 2.0 CompactPCI System Management Specification PICMG 2.9 Rev. 1.0 CompactPCI Hot Swap Specification PICMG 2.1 Rev. 2.0 Kontron Modular Computers’ CompactPCI System Manual, ID 19954 PMC Add-on Modules and Draft standard for Common Mezzanine Card Family: P1386, Draft 2.4a...
  • Page 41 CP605 Functional Description Chapter Functional Description ID 25095, Rev. 07 © 2004 Kontron Modular Computers GmbH Page 2 - 1...
  • Page 42 Functional Description CP605 This page was intentionally left blank. Page 2 - 2 © 2004 Kontron Modular Computers GmbH ID 25095, Rev. 07...

  • Page 43: Supported Intel Processors On The Cp605

    Memory The CP605 has two locations for installing memory; up to 1 GB may be soldered and a further 1 GB may be added by means of the onboard DDR SODIMM socket. The board supports a maximum of 2 GB.

  • Page 44: Memory Options Utilizing Sodimm Sockets

    It is recommended to use only DDR memory. Note ... When the CP605 is ordered for the extended temperature range E1 (-25 °C to + 75°C), SODIMM DDR SDRAM modules are not supported due to their being unavailable for this temperature range.

  • Page 45: I/O Controller Hub Ich4

    100-year calendar. All battery-backed CMOS RAM data remains stored in an additional EEPROM. This prevents data loss. • Counter/Timer Three 8254-style counter/timers are included on the CP605 as defined for the PC/AT. ID 25095, Rev. 07 ©...

  • Page 46: Smbus Device Addresses

    2.4.2 Watchdog Timer The CP605 employs a watchdog timer, which forces either an IRQ5, NMI, or Reset condition (configurable in the watchdog register). The watchdog time can be programmed in 12 steps ranging from 125 msec up to 256 seconds. If the watchdog timer is enabled, it cannot be stopped.

  • Page 47: Eeprom Address Map

    Dual BIOS Dual BIOS means that there are two chips for the BIOS on the CP605 board (BIOS Flash and the User Flash). One chip is intended to act as a backup in the event that the other one gets corrupted.

  • Page 48: Network Security Processor

    PCI reset is active. In this case, please check the power supply. If the power supply appears to be functional and this LED remains on, please contact Kontron Sup- port. The LED's can be configured via two onboard registers. For more information please see Chapter 4.

  • Page 49: Keyboard Connector Con23 Pinout

    2.5.3 USB Interfaces The CP605 supports five USB 2.0 ports (two front I/O, one onboard interface and two on the rear I/O). All five ports are high-speed, full-speed, and low-speed capable. High-speed USB 2.0 allows data transfers of up to 480 Mb/s - 40 times faster than a full-speed USB (USB 1.1).

  • Page 50: Usb Connectors Con7 And Con8 Pinouts

    IN/OUT GND signal Note ... There is no current limitation circuit for the USB power on CON24. The power line is directly connected to VCC (5V). Page 2 - 10 © 2004 Kontron Modular Computers GmbH ID 25095, Rev. 07...

  • Page 51: Partial List Of Display Modes Supported

    60, 75, 85,120 60, 75, 85,100 1600x1200 60, 75, 85,100 60, 75, 85,100 60, 75, 85 1920 x 1440 60, 75 60, 75 2048 x 1536 ID 25095, Rev. 07 © 2004 Kontron Modular Computers GmbH Page 2 - 11...

  • Page 52: Crt Connector Con11 Pinout

    CRT Interface and Connector CON11 Version of board with VGA-CRT interface Figure 2-3: D-Sub CRT Connector CON11 CON11 The 15-pin female connector CON11 is used to connect a CRT monitor to the CP605 board. Table 2-9: CRT Connector CON11 Pinout SIGNAL...

  • Page 53: Serial Port Connectors Con9 (Com1) And Con10 (Com2) Pinout

    COM ports, which are fully compatible with the 16550 controller, include a complete set of handshaking and modem control signals, maskable interrupt generation and data transfer. The COM3 and COM4 ports are only available on the CompactPCI rear I/O interface. ID 25095, Rev. 07 © 2004 Kontron Modular Computers GmbH Page 2 - 13...

  • Page 54: Gigabit Ethernet Connectors Con6B And Con6C

    Functional Description CP605 2.5.7 Parallel I/O Interface The CP605 is provided with an IEEE1284, ECP/EPP-compatible parallel I/O interface. The parallel I/O interface is only available on the CompactPCI rear I/O. 2.5.8 Floppy Drive Interface The onboard floppy disk controller supports either 5.25 inch or 3.5 inch (1.44 or 2.88 MB) floppy disks.

  • Page 55: Pinouts Of Con6B And Con6C Based On The Implementation

    Green: SPEED: This LED lights up to indicate a successful 1000Base-T connection. When not lit the connection is operating at 100Base-TX or 10Base-T. ID 25095, Rev. 07 © 2004 Kontron Modular Computers GmbH Page 2 - 15...

  • Page 56: Rj45 Connector Con6A Pinout

    CP605 2.5.11 Fast Ethernet The CP605 board includes one 10Base-T/100Base-TX Ethernet port integrated within the ICH4 chipset (82559 style). The Boot from LAN feature is supported; for details please refer to section 5.5, BIOS Features Setup, in chapter 5, CMOS Setup.

  • Page 57: Compactflash Socket Connector Con16

    The board supports both CF types (type I and type II). CompactFlash is available in both CF type I and CF type II cards. The Microdrive is a CF type II card. Figure 2-7: CompactFlash Socket Connector CON16 ID 25095, Rev. 07 © 2004 Kontron Modular Computers GmbH Page 2 - 17...

  • Page 58: Compactflash Connector Con16 Pinout

    NC (VS2) pull-up) Reset Reset IORDY I/O ready Acknowledge INPACK 5 V (REG) 5 V power NC (ACTIVE) NC (PDIAG) Data 08 Data 09 Data 10 Page 2 - 18 © 2004 Kontron Modular Computers GmbH ID 25095, Rev. 07...

  • Page 59: Eide Interface Connectors Con12 And Con19

    (CHS) mode with the BIOS also supporting the logical block addressing (LBA48) mode. LBA48 supports hard disks with a capacity greater than 137 GB. ID 25095, Rev. 07 © 2004 Kontron Modular Computers GmbH Page 2 - 19...

  • Page 60: Pinout Of Con12

    UltraDMA/100 slave device and the black connector to the UltraDMA/100 master device. 2.5.13.1 CON12 — ATA 44-Pin Connector A 2.5” hard disk or Flash disk may be mounted directly onto the CP605 board using the optional 44-pin connector CON12. Table 2-14: Pinout of CON12 FUNCTION...

  • Page 61: Pinout Of The Ata 40-Pin Connector Con19

    Ground signal Interrupt request IDEIRQ Address 1 ATA66 Detect ATA66 Address 0 Address 2 HD select 0 HCS0 HCS1 HD select 1 LED driving Ground signal ID 25095, Rev. 07 © 2004 Kontron Modular Computers GmbH Page 2 - 21...

  • Page 62: Fan Power Supply Connector Con14

    The following table indicates the pinout of the fan power supply connector CON14. Table 2-16: Fan Power Supply Connector CON14 Pinout SIGNAL FUNCTION IN/OUT Signal Ground +12V Power Sense input Sense input Page 2 - 22 © 2004 Kontron Modular Computers GmbH ID 25095, Rev. 07...

  • Page 63: Extension Connector Con15

    LPC port is connected to the I/O extension connector. The I/O extension interface contains all the signals necessary to connect up to two LPC devices. Figure 2-10: Extension Connector CON15 CON15 ID 25095, Rev. 07 © 2004 Kontron Modular Computers GmbH Page 2 - 23...

  • Page 64: Pmc Interface

    I/O connector J5. This interface has been designed to comply with the IEEEP1386.1 specification which defines a PCI electrical interface for the CMC (Common Mezzanine Card) form factor. The CP605 pro- vides a 5V PMC PCI signaling environment.

  • Page 65: Pmc Connectors Con20 And Con22 Pinouts

    Signal Signal Signal Signal +3.3V Signal Signal Ground Signal Ground V (I/O) Signal Signal Signal Signal Signal Ground Signal Signal Signal +3.3V Ground Signal Ground Signal ID 25095, Rev. 07 © 2004 Kontron Modular Computers GmbH Page 2 - 25...

  • Page 66: Compactpci Interface

    2.5.17.5 Power Ramping On the CP605, a special hot swap controller is used to ramp up the onboard supply voltage. This is done to avoid transients on the +3.3V, +5V, +12V and -12V power supplies from the hot swap system. When the power supply is stable, the hot swap controller generates an onboard reset to put the board into a definite state.

  • Page 67: Precharge

    2.5.17.9 Blue LED On the CP605 without IPMI controller, a blue LED can be switched on or off by software. It may be used, for example, to indicate that the shutdown process is finished and the board is ready for extraction. The blue LED may also be used for general purposes. For information concern- ing switching on and off the blue LED, refer to table 4-28, LED Control Register.

  • Page 68: Coding Key Colors

    3.3V and 5V operation. Color coded keys prevent inadvertent installation of a 5V peripheral board into a 3.3V slot. The CP605 board is a 5V version. Backplane connectors are always keyed according to the signaling (VIO) level.

  • Page 69: Compactpci Bus Connector J1 (Con1) System Slot Pinout

    CP605 Functional Description The CP605 is provided with two 2 mm x 2 mm pitch female CompactPCI bus connectors, J1 and J2. The following table indicates the pinout of these connectors. Table 2-19: CompactPCI Bus Connector J1 (CON1) System Slot Pinout...

  • Page 70: Compactpci Bus Connector J1 (Con1) Peripheral Slot Pinout

    +12V Note ... A * indicates that the signal normally present at this pin is disconnected from the CompactPCI bus when the CP605 is inserted in a peripheral slot. Page 2 - 30 © 2004 Kontron Modular Computers GmbH ID 25095, Rev. 07...

  • Page 71: Bit Compactpci Bus Connector J2 (Con2) System Slot Pinout

    AD[57] AD[63] AD[62] AD[61] AD[60] C/BE[5]#] V(I/O) C/BE[4]#] PAR64 V(I/O) BRSVP2B4 C/BE[7]#] C/BE[6]#] CLK4 GNT3# REQ4# GNT4# CLK2 CLK3 SYSEN# GNT2# REQ3# CLK1 REQ1# GNT1# REQ2# ID 25095, Rev. 07 © 2004 Kontron Modular Computers GmbH Page 2 - 31...

  • Page 72: Bit Compactpci Bus Connector J2 (Con2) Peripheral Slot Pinout

    SYSEN# Note ... A * indicates that the signal normally present at this pin is disconnected from the CompactPCI bus when the CP605 is inserted in a peripheral slot. Page 2 - 32 © 2004 Kontron Modular Computers GmbH ID 25095, Rev. 07...

  • Page 73: Backplane J3 Pinout

    2.5.18.2 CompactPCI Rear I/O Connectors J3-J5 (CON3-CON5) The CP605 conducts all I/O signals through the rear I/O connectors J3, J4 and J5. The CP605 board provides optional rear I/O connectivity for peripherals for special compact systems. All standard PC interfaces are implemented and assigned to the front panel and to the rear I/O connectors J3, J4 and J5 (CON3, CON4 and CON5).

  • Page 74: Backplane J3 Signal Functions

    Mouse data and clock FD* 7) Floppy signals SIDE*8 IDE secondary signals LPA* Gigabit Ethernet Link A LPB* Gigabit Ethernet Link B reserved Reserved for future use Page 2 - 34 © 2004 Kontron Modular Computers GmbH ID 25095, Rev. 07...

  • Page 75: Backplane J4 Pinout

    Failure to comply with the above may result in damage to your board. Legend for Backplane J4 Table 1) Parallel I/O interface signals 2) IPMI control signals ID 25095, Rev. 07 © 2004 Kontron Modular Computers GmbH Page 2 - 35...

  • Page 76: Backplane J5 Pinout

    RIO board with power and must not be supplied with external power. Failure to comply with the above may result in damage to your board. Page 2 - 36 © 2004 Kontron Modular Computers GmbH ID 25095, Rev. 07...
  • Page 77 Horizontal Sync. VSYNC 8) Vertical Sync. PMC REAR I/O SIGNALS PMCR0 to PMCR63 (Spec.) carry the signals from PMC rear I/O connector CON21 pins 1 to 64 ID 25095, Rev. 07 © 2004 Kontron Modular Computers GmbH Page 2 - 37...

  • Page 78: Rear I/O Configuration

    Secondary EIDE Interface Only one EIDE connector may be used at any one time through the same port; connecting both EIDE devices to the CP605 baseboard and the rear I/O simultaneously will result in malfunction and data loss. Page 2 - 38 ©...

  • Page 79: Intelligent Platform Management Interface (Ipmi)

    2.6.1 Technical Background of IPMI The CP605 has been designed to support the "Intelligent Platform Management Interface" (IP- MI) subsystem which is another step in providing high availability platforms. Intelligent Platform Management means monitoring the health of the entire system beyond the confines of the board itself, so that the status of the complete system is available to be used, for example, for control and intervention purposes.

  • Page 80: Ipmi Functional Block Diagram

    ARM7TDMI core-based IPMI controller. Due to the fact that this controller can act as BMC and as PM on all versions of the CP605, the same controller can be used. All the in- formation collected by the ZIRCON-Lite is then accessible by software through a key- board-style Interface (see IPMI-Intelligent Platform Management Interface Specification V.1.0...
  • Page 81 CP605 Installation Chapter Installation ID 25095, Rev. 07 © 2004 Kontron Modular Computers GmbH Page 3 - 1...
  • Page 82 Installation CP605 This page was intentionally left blank. Page 3 - 2 © 2004 Kontron Modular Computers GmbH ID 25095, Rev. 07...

  • Page 83: Installation

    Installation Installation The CP605 has been designed for easy installation. However, the following standard precau- tions, installation procedures, and general information must be observed to ensure proper in- stallation and to preclude damage to the board, other system components, or injury to personnel.

  • Page 84: Cp605 Initial Installation Procedures

    Installation CP605 CP605 Initial Installation Procedures The following procedures are applicable only for the initial installation of the CP605 in a system. Procedures for standard removal and hot swap operations are found in their respective chap- ters. To perform an initial installation of the CP605 in a system proceed as follows: 1.

  • Page 85: Standard Removal Procedures

    7. Dispose of the board as required. Hot Swap Procedures The CP605 is designed for hot swap operation. When installed in the system slot it is capable of supporting peripheral board hot swapping. When installed in a peripheral slot, its hot swap capabilities depend on the type of backplane in use and the system controller’s capabilities.

  • Page 86: Peripheral Hot Swap Procedure

    HS LED should light up after a short time period. This indicates that the system has recognized that the CP605 is to be hot swapped and now indicates to the operator that hot swapping of the CP605 may proceed.

  • Page 87: Installation Of Cp605 Peripheral Devices

    10. Using both ejector handles, engage the board with the backplane. When the ejector han- dles are locked, the board is engaged. 11. Fasten the front panel retaining screws. 12. Connect all required interfacing cables to the board. Hot swap of the CP605 is now com- plete. Installation of CP605 Peripheral Devices The CP605 is designed to accommodate a variety of peripheral devices whose installation var- ies considerably.

  • Page 88: Battery Replacement

    3.5.5 Hard Disk Installation The following information pertains to hard disks which may be connected to the CP605 via nor- mal cabling. To install a hard disk, it is necessary to perform the following operations in the giv- en order: 1.

  • Page 89: Software Installation

    ID is in most cases required. The corresponding operating system will detect new de- vices according to the Plug and Play configuration rules. ID 25095, Rev. 07 © 2004 Kontron Modular Computers GmbH Page 3 - 9...
  • Page 90 Installation CP605 This page was intentionally left blank. Page 3 - 10 © 2004 Kontron Modular Computers GmbH ID 25095, Rev. 07...
  • Page 91 CP605 Configuration Chapter Configuration ID 25095, Rev. 07 © 2004 Kontron Modular Computers GmbH Page 4 - 1...
  • Page 92 Configuration CP605 This page was intentionally left blank. Page 4 - 2 © 2004 Kontron Modular Computers GmbH ID 25095, Rev. 07...

  • Page 93: Processor Configuration

    Dual BIOS Configuration Dual BIOS means that there are two chips for the BIOS on the CP605 board (BIOS Flash and the User Flash). One chip is intended to provide a backup in the event that the other gets cor- rupted.

  • Page 94: Clearing Bios Cmos Setup

    2KV capacitors C114 Closed zero ohm resistors Connectors are connected to logic GND and chassis GND The default setting is indicated by using italic bold. Page 4 - 4 © 2004 Kontron Modular Computers GmbH ID 25095, Rev. 07...

  • Page 95: Vga-Crt Jumper Setting

    R124, R134 R146, R155 R173, R177 Note ... The simultaneous operation of the Gigabit Ethernet Port 1 via the front and rear I/O ports is not supported. ID 25095, Rev. 07 © 2004 Kontron Modular Computers GmbH Page 4 - 5...

  • Page 96: Picmg 2.16 Rear I/O Configuration For Port 2

    The serial port may be disabled by the BIOS. RS-422 and RS-485 COM1 Termination When the CP605 is using the onboard RS-485 interface and is the last device on the RS-422 or RS-485 bus, then the RS-422 or RS-485 interface must provide termination resistance. The purpose of jumpers J1 and J2 is to enable this line termination resistor (120 R).

  • Page 97: Resistor Setting To Configure Com2

    The default setting is indicated by using italic bold. RS-422 and RS-485 COM2 Termination When the CP605 is using the onboard RS-485 interface and is the last device on the RS-422 or RS-485 bus, then the RS-422 or RS-485 interface must provide termination resistance. The purpose of jumpers J3 and J4 is to enable this line termination resistor (120 R).

  • Page 98: Interrupt Setting

    Reserved Jumpers The J7 jumper is reserved for future configurations. Interrupts The CP605 board uses the standard AT IRQ routing (8259 controller). This interrupt routing is the default, but can be modified via the BIOS. Table 4-15: Interrupt Setting PRIORITY...

  • Page 99: Pci Interrupt Routing

    USB 2.0 controller For more information please see the INTEL ICH4 data sheet. Memory Map The CP605 board uses the standard AT ISA memory map. 4.4.1 Memory Map for the 1st Megabyte The following table sets out the memory map for the first megabyte:...

  • Page 100: I/O Address Map

    Serial port COM3 3F0,3F7 Floppy Disk + Super-I/O #1 Com. 3F8,3FF Serial port COM1 Note ... The yellow (shaded on a printout) table cells indicate CP605-specific registers. Page 4 - 10 © 2004 Kontron Modular Computers GmbH ID 25095, Rev. 07...

  • Page 101: Special Registers Description

    Configuration Special Registers Description The following registers are special registers which the CP605 uses to watch the onboard hardware special features and the CompactPCI control signals. Normally, only the system BIOS uses these registers, but they are documented here for application use as required.

  • Page 102: Watchdog Timer

    Once the watchdog timer is enabled it cannot be disabled except by resetting the system. System reset has been generated by power-on reset Reset generated by Watchdog Reserved Reserved Page 4 - 12 © 2004 Kontron Modular Computers GmbH ID 25095, Rev. 07...

  • Page 103: Watchdog, Compactpci Interrupt Configuration Register

    Enable CPCI fail signal to IRQ5 routing CFNMI Disable CPCI fail signal to NMI routing Enable CPCI fail signal to NMI routing WNMI Disable Watchdog NMI routing Enable Watchdog NMI routing ID 25095, Rev. 07 © 2004 Kontron Modular Computers GmbH Page 4 - 13...

  • Page 104: I/O Status 1 Register

    Indicates that the board is installed in a peripheral slot Reserved Reserved Reserved Indicates that a Watchdog timeout has occurred Indicates that no Watchdog timeout has occurred Page 4 - 14 © 2004 Kontron Modular Computers GmbH ID 25095, Rev. 07...

  • Page 105: I/O Status 2 Register

    Jumper J7 closed Jmp1 Jumper J7 open Res. Reserved Reserved Reserved Reserved Hot swap handle in closed position Hot swap handle in open position Res. Reserved ID 25095, Rev. 07 © 2004 Kontron Modular Computers GmbH Page 4 - 15...

  • Page 106: I/O Configuration Register

    Boot from 2nd Firmware Hub Reserved 4.5.8 Board Version This register describes the hardware and the board version. The content of this register is unique for each Kontron CompactPCI board. Table 4-24: Board ID Register REGISTER NAME ACCESS BOARD VERSION...

  • Page 107: Hardware Index Register

    0 and will be incremented with each logic update. Table 4-26: Logic Version Register REGISTER NAME ACCESS Logic Version ADDRESS 0x28B BIT POSITION CONTENT DEFAULT ID 25095, Rev. 07 © 2004 Kontron Modular Computers GmbH Page 4 - 17...

  • Page 108: Led Control Register

    LED on LED off LED2 LED on Hot swap LED off HSLED Hot swap LED on Reserved Reserved Reserved Reserved No ENUM signal ENUM Generate ENUM signal Page 4 - 18 © 2004 Kontron Modular Computers GmbH ID 25095, Rev. 07...
  • Page 109 CP605 Phoenix BIOS Chapter Chapter Chapter Phoenix BIOS Phoenix BIOS ID 25095, Rev. 07 © 2004 Kontron Modular Computers GmbH Page 5 - 1...
  • Page 110 Phoenix BIOS CP605 This page was intentionally left blank. Page 5 - 2 © 2004 Kontron Modular Computers GmbH ID 25095, Rev. 07...

  • Page 111: Phoenix Bios

    Note ... The menus shown here are from a typical system. Depending on the hardware and the features installed in your computer, and due to the fact that Kontron constantly provides the latest BIOS versions, the actual menus displayed on your screen may differ from the screen displays shown in this manual.

  • Page 112: The Main Menu

    Use to set the Advanced Features available on your system's chipset Power Configuration of Power Management features Boot Boot sequence configuration OEM Features Configuration of special board features Exit Exits the current menu Page 5 - 4 © 2004 Kontron Modular Computers GmbH ID 25095, Rev. 07...

  • Page 113: The Legend Bar

    The help window on the right side of each menu displays the help text for the currently selected field. It updates as you move the cursor to each field. ID 25095, Rev. 07 © 2004 Kontron Modular Computers GmbH Page 5 - 5...

  • Page 114: General Help Window - Screen Display

    Use <PgUp> and <PgDn> to display all the pages. Pressing <Home> and <End> displays the first and last page. Pressing <Enter> displays each page and then exits the window. Press <Esc> to exit the current window. Page 5 - 6 © 2004 Kontron Modular Computers GmbH ID 25095, Rev. 07...

  • Page 115: Main Menu Selections

    Each adapter supports one master drive and one optional slave drive in these pos- sible combinations: • 1 Master • 1 Master, 1 Slave • 2 Masters • 2 Masters, 1 Slave • 2 Masters, 2 Slaves ID 25095, Rev. 07 © 2004 Kontron Modular Computers GmbH Page 5 - 7...

  • Page 116: Master/Slave Sub-Menu - Screen Display

    Use the legend keys listed on the bottom to make your selections and exit to the Main Menu. Use the following chart to configure the hard disk. Page 5 - 8 © 2004 Kontron Modular Computers GmbH ID 25095, Rev. 07...

  • Page 117: Master/Slave Sub-Menu Options

    User type selected. You can find the correct parameters for hard disk drives in the drive manual or written on the casing of the drive itself. ID 25095, Rev. 07 © 2004 Kontron Modular Computers GmbH Page 5 - 9...
  • Page 118 Incorrect settings can cause your system to malfunction. To correct mistakes, return to Setup and restore the Setup Defaults with <F9> and re-enter the cor- rect drive parameters. Page 5 - 10 © 2004 Kontron Modular Computers GmbH ID 25095, Rev. 07...

  • Page 119: Memory Cache - Screen Display

    Use the legend keys listed on the bottom to make your selections and exit to the Main Menu. Use this chart to configure the memory cache. ID 25095, Rev. 07 © 2004 Kontron Modular Computers GmbH Page 5 - 11...

  • Page 120: Memory Cache Configuration

    Write Protect Write Back Warning! Incorrect settings can cause your system to malfunction. To correct mistakes, return to Setup and restore the Setup Defaults with <F9>. Page 5 - 12 © 2004 Kontron Modular Computers GmbH ID 25095, Rev. 07...

  • Page 121: Boot Options

    Summary screen Enabled Displays system summary screen during boot up. Disabled QuickBoot Mode Enabled Enable these Function, the system test memory only up to 1MB Disabled ID 25095, Rev. 07 © 2004 Kontron Modular Computers GmbH Page 5 - 13...

  • Page 122: Advanced Menu - Screen Display

    Setup Defaults ESC Exit Select Menu Enter Select Sub-Menu F10 Save and Exit Use the legend keys to make your selections and exit to the Main Menu. Page 5 - 14 © 2004 Kontron Modular Computers GmbH ID 25095, Rev. 07...

  • Page 123: Advanced Menu Options

    Enables support for legacy USB bus. Enabled Warning! Incorrect settings can cause your system to malfunction. To correct mistakes, return to Setup and restore the Setup Defaults with <F9>. ID 25095, Rev. 07 © 2004 Kontron Modular Computers GmbH Page 5 - 15...

  • Page 124: Advanced Chipset Control Options

    UMA = 1MB UMA = 8MB Graphics Aperture 256 MB Select the size of the Graphics Aperture for the AGP video device. 128 MB 64 MB 32 MB Page 5 - 16 © 2004 Kontron Modular Computers GmbH ID 25095, Rev. 07...

  • Page 125: Usb Device 29 Functions

    Enable or Disable this USB Device by setting item to Disabled the desired value USB Device 29, Function1&2 USB Device 29, Function 0-2 USB Device 29, Function 7 ID 25095, Rev. 07 © 2004 Kontron Modular Computers GmbH Page 5 - 17...

  • Page 126: Advanced Processor Options

    APIC interrupt routing Enabled This item is only valid for WIN2000. A fresh install must occur Disabled when APIC Mode is desired. Only used for Multi-Processor Systems. Page 5 - 18 © 2004 Kontron Modular Computers GmbH ID 25095, Rev. 07...

  • Page 127: I/O Device Configuration Menu - Screen Display

    F10 Save and Exit Use the legend keys to make your selections and exit to the Main Menu. Use the following chart to configure the Input/Output settings: ID 25095, Rev. 07 © 2004 Kontron Modular Computers GmbH Page 5 - 19...

  • Page 128: I/O Device Configuration Options

    * Indicates a DMA, Interrupt, I/O, or memory resource conflict with another de- vice. Resolve the conflict by selecting another settings for the devices. Page 5 - 20 © 2004 Kontron Modular Computers GmbH ID 25095, Rev. 07...

  • Page 129: Power Menu - Screen Display

    Use the legend keys to make your selections and exit to the Main Menu. Use the following chart in making your selections: ID 25095, Rev. 07 © 2004 Kontron Modular Computers GmbH Page 5 - 21...

  • Page 130: Power Menu Options

    Suspend means the system will save its state but remain in a low power mode. After Power Failure Stay Off Sets the mode of operation if an AC/Power Loss Last State occurs. Power On Page 5 - 22 © 2004 Kontron Modular Computers GmbH ID 25095, Rev. 07...

  • Page 131: Boot Menu - Screen Display

    CD-ROM drive. Failing that, it will attempt to boot from the removable device and then from the Primary Master hard disk, and so on down the list. ID 25095, Rev. 07 © 2004 Kontron Modular Computers GmbH Page 5 - 23...
  • Page 132 Lan-Boot is based on Etherboot-5.0.7, a LAN-Boot implementation, which is covered by the GNU public license. It has been adopted for use with Kontron CompactPCI Hardware. As re- quired by the GNU public license, the complete source code and further information are avail- able via the internet (www.sourceforge.net).

  • Page 133: Oem Features Menu - Screen Display

    F10 Save and Exit Use the legend keys to make your selections and exit to the Main Menu. Use the following chart in making your selections: ID 25095, Rev. 07 © 2004 Kontron Modular Computers GmbH Page 5 - 25...

  • Page 134: Oem Features Options

    For saving space in the ROM area. Select No: JRC extension will not be loaded. Refer to section 5.8.5 for further information regarding the JRC BIOS extension. Page 5 - 26 © 2004 Kontron Modular Computers GmbH ID 25095, Rev. 07...

  • Page 135: Pc Health - Screen Display

    0 RPM Fan2 speed 0 RPM Help Select Item -/+ Change Values Setup Defaults ESC Exit Select Menu Enter Select Sub-Menu F10 Save and Exit ID 25095, Rev. 07 © 2004 Kontron Modular Computers GmbH Page 5 - 27...

  • Page 136: Watchdog Settings - Screen Display

    Active for boot [Disabled] Fail signal [Disabled] Resource 280h Help Select Item -/+ Change Values Setup Defaults ESC Exit Select Menu Enter Select Sub-Menu F10 Save and Exit Page 5 - 28 © 2004 Kontron Modular Computers GmbH ID 25095, Rev. 07...

  • Page 137: Watchdog Settings Options

    CPU Performance: [50%] P4 Term Trip [135°C/275 F] Help Select Item -/+ Change Values Setup Defaults ESC Exit Select Menu Enter Select Sub-Menu F10 Save and Exit ID 25095, Rev. 07 © 2004 Kontron Modular Computers GmbH Page 5 - 29...

  • Page 138: Temperature Management Options

    Ethernet Port 3 [Front] RIO BOARD installed [Yes] Help Select Item -/+ Change Values Setup Defaults ESC Exit Select Menu Enter Select Sub-Menu F10 Save and Exit Page 5 - 30 © 2004 Kontron Modular Computers GmbH ID 25095, Rev. 07...

  • Page 139: Front-Rear I/O Options

    ---- EKS Index ---- Serial Number ---- Help Select Item -/+ Change Values Setup Defaults ESC Exit Select Menu Enter Select Sub-Menu F10 Save and Exit ID 25095, Rev. 07 © 2004 Kontron Modular Computers GmbH Page 5 - 31...

  • Page 140: System Info Options

    It shows the index of the onboard logic. When the Board Index is 00 this item is not displayed. EKS Number This is a display only field, which shows Kontron internal infor- mation about the board. EKS number and EKS index refer to EKS Index the production number and version respectively.

  • Page 141: Saving Values

    CMOS, you can restore the values you previously saved to CMOS Selecting “Discard Changes” on the Exit menu updates all the selections and displays this mes- sage: CMOS values have been loaded! Press <space> to continue ID 25095, Rev. 07 © 2004 Kontron Modular Computers GmbH Page 5 - 33...

  • Page 142: Save Changes

    <nnnn> of in the 64k block at which the error was detected. *0232 Extended RAM Failed at offset: nnnn Extended memory not working or not configured properly at offset: <nnnn> Page 5 - 34 © 2004 Kontron Modular Computers GmbH ID 25095, Rev. 07...
  • Page 143 Type of floppy drive A: not correctly identified in Setup. 02B3 Incorrect Drive B type - run SETUP Type of floppy drive B: not correctly identified in Setup. ID 25095, Rev. 07 © 2004 Kontron Modular Computers GmbH Page 5 - 35...
  • Page 144 Each 1 (one) in the map indicates a failed bit. See errors 230, 231, or 232 above for offset ad- dress of the failure in System, Extended, or Shadow memory. Fixed Disk n Fixed disk n (0-3) identified. Page 5 - 36 © 2004 Kontron Modular Computers GmbH ID 25095, Rev. 07...
  • Page 145 Parity error found in the I/O bus. BIOS attempts to locate the address and display it on the screen. If it cannot locate the address, it displays ????. ID 25095, Rev. 07 © 2004 Kontron Modular Computers GmbH Page 5 - 37...
  • Page 146 <nnnn> of the upper limit of Upper Memory Blocks, indicating released segments of the BIOS which can be reclaimed by a virtual memory manager. Video BIOS shadowed Video BIOS successfully copied to shadow RAM. Page 5 - 38 © 2004 Kontron Modular Computers GmbH ID 25095, Rev. 07...

  • Page 147: Phoenix Phlash16

    You can only supply a volume label after the Crisis Recovery Diskette has been formatted and the necessary files copied because MINIDOS.SYS must occupy the first directory entry for the diskette to boot properly. ID 25095, Rev. 07 © 2004 Kontron Modular Computers GmbH Page 5 - 39...

  • Page 148: Updating The Crisis Recovery Diskette

    2. When DOS displays the “Starting MS-DOS” message, press <F5>. After you press <F5>, DOS bypasses the CONFIG.SYS and AUTOEXEC.BAT files, and there- fore does not load any memory managers. You can now execute Phlash16. Page 5 - 40 © 2004 Kontron Modular Computers GmbH ID 25095, Rev. 07...

  • Page 149: Jrc Jumptec® Remote Control

    • Issue a connect command with the appropriate COM port and the desired baud rate. jrc server.<com port><max baud rate> • You can exit the server mode by pressing both control keys on the keyboard simulta- neously. ID 25095, Rev. 07 © 2004 Kontron Modular Computers GmbH Page 5 - 41...
  • Page 150 Phoenix BIOS CP605 This page was intentionally left blank. Page 5 - 42 © 2004 Kontron Modular Computers GmbH ID 25095, Rev. 07...
  • Page 151 CP605 System Considerations Chapter System Considerations ID 25095, Rev. 07 © 2004 Kontron Modular Computers GmbH Page 6 - 1...
  • Page 152 System Considerations CP605 This page was intentionally left blank. Page 6 - 2 © 2004 Kontron Modular Computers GmbH ID 25095, Rev. 07...

  • Page 153: Thermal Management

    6.1.1 Passive Thermal Regulation The thermal management architecture implemented on the CP605 can be described as being three separate but related functions. The goal of all three functions is to protect the processor and reduce processor power consumption. Enabling the thermal control circuit allows the pro- cessor to maintain a safe operating temperature without the need for special software drivers or interrupt handling routines.

  • Page 154: Cpu External Thermal Supervision

    135°C. Upon assertion of Thermtrip, the processor will shut off its internal clocks (thus halting program execution) in an attempt to reduce the processor junction temperature. Once activated, Thermtrip remains latched until the CP605 undergoes a cold restart is per- formed (all power off and then on again).

  • Page 155: Thermal Management Recommendations

    CompactPCI system chassis. Even though the CP605 is fitted with an optimally designed heat sink, the thermal energy dis- sipated by high performance Pentium 4 and Mobile Pentium 4-M processors exceeds the ther- mal capabilities of the heat sinks except for very low performance applications which still require the outstanding features offered by these processors.

  • Page 156: Mobile Pentium 4-M Temperature Vs. Airspeed Graph

    1) By fixed airspeed of n.n, the maximum al- lowable ambient air temperature is: 2) By a maximum ambient air temperature of nn°C, the minimum airspeed is: Page 6 - 6 © 2004 Kontron Modular Computers GmbH ID 25095, Rev. 07...

  • Page 157: Desktop Pentium 4 Temperature Vs. Airspeed Graph

    An airflow of 1.0 m/s is a typical value for a standard Kontron ASM rack (6U CompactPCI rack with a 1U cooling fan tray). Newer ASMs from Kontron will have an airspeed of 2.0 m/s or more. For other racks or housings the available airflow will differ. The maximum ambient operating temperature must be recalculated and/or measured for such environments.

  • Page 158: Maximum Input Power Voltage Limits

    When determining the thermal requirements for a given application, peripherals to be used with the CP605 must also be considered. Devices such as hard disks, PMC modules, etc. which are directly attached to the CP605 must also be capable of being operated at the temperatures foreseen for the application.

  • Page 159: Dc Operational Input Voltage Ranges

    System Considerations The following table specifies the ranges for the different input power voltages within which the board is functional. The CP605 is not guaranteed to function if the board is not operated within the prescribed limits. Table 6-2: DC Operational Input Voltage Ranges...

  • Page 160: Input Voltage Characteristics

    6.2.3.1 Start-Up Requirement Power supplies must comply with the following in order to be used with the CP605. • Beginning at 10% of the nominal output voltage, the voltage must rise within > 0.1 ms to < 20 ms to the specified regulation range of the voltage. Typically: >...

  • Page 161: Start-Up Ramp Of The Cp3-Sve180 Ac Power Supply

    When a PSU of this type is used, it will not power up correctly and the CP605 may hang up. The solution is to use an industrial PSU or to add more load to the system.

  • Page 162: Power Consumption: Dos

    CP605 baseboard and for additional configurations. The Pentium 4 processor dissipates the majority of the thermal power. The power consumption tables below list the voltage and power specifications for the CP605 board and the CP605 accessories. The values were measured using an 8-slot passive Com- pactPCI backplane with two power supplies: one for the CPU, and the other for the hard disk.

  • Page 163: Power Consumption: Windows® 2000, 100% Cpu Usage

    The values in the above table are measured using the Intel High Power Tool. This tool serves only for checking the onboard power supplies and does not represent the power consumption of the CP605 during normal operation. In normal software applications this maximum power consumption level will never be reached.

  • Page 164: Start-Up Current Of The Cp605

    6.3.1 Power Requirement for the CP605 The following table indicates the start-up current of the CP605 during the first 2-3 seconds after the power supply has been switched on. The power consumption of the CP605 during opera- tion is indicated in tables 6-4 to 6-7.
  • Page 165 CP605 Rear I/O Module CP-RIO6-05 Appendix Rear I/O Module CP-RIO6-05 ID 25095, Rev. 07 © 2004 Kontron Modular Computers GmbH Page A - 1...
  • Page 166 Rear I/O Module CP-RIO6-05 CP605 This page was intentionally left blank Page A - 2 © 2004 Kontron Modular Computers GmbH ID 25095, Rev. 07...

  • Page 167: A. Rear I/O Module Cp-Rio6-05

    Rear I/O Module CP-RIO6-05 Introduction The CP-RIO6-05 rear I/O module has been designed for use with the CP605 6U CompactPCI board from Kontron Modular Computers. Designed for use in a PICMG 2.16 environment this rear I/O module provides comprehensive rear I/O functionality.

  • Page 168: Cp-Rio6-05 Front Panels

    There is one board LED on the front panel, situated beneath the USB connectors. Board LED: • GP (red) = general purpose LED Variant 1 Variant 2 Page A - 4 © 2004 Kontron Modular Computers GmbH ID 25095, Rev. 07...

  • Page 169: Cp-Rio6-05 Module Board Layout With 1 Ethernet Port

    CON13 COM3 (RS232) CON21 CON22 Reset S2 CON6 CON15 Kbd + Mse CON11 FAN CONNECTORS Serial Interface Connectors CON9 CON10 CON24 (Optional) CON18 COM2 CON17 COM4 ID 25095, Rev. 07 © 2004 Kontron Modular Computers GmbH Page A - 5...

  • Page 170: Cp-Rio6-05 Module Board Layout With 3 Ethernet Ports

    CON26 Ethernet 3 CON21 CON22 Reset S2 CON6 CON15 Kbd + Mse CON11 FAN CONNECTORS Serial Interface Connectors CON9 CON10 CON24 (Optional) CON18 COM2 CON17 COM4 Page A - 6 © 2004 Kontron Modular Computers GmbH ID 25095, Rev. 07...

  • Page 171: Keyboard/Mouse Connector

    • Optional battery for RTC on the rear I/O Detailed Description of Module Interfaces A.6.1 Keyboard/Mouse Interface Figure A-4: Keyboard/Mouse Connector The PC/AT standard keyboard/mouse connector is a PS/2-type 6-pin shielded mini-DIN connector. ID 25095, Rev. 07 © 2004 Kontron Modular Computers GmbH Page A - 7...

  • Page 172: Keyboard Connector Con15 Pinout

    The rear I/O interface supports the USB 1.1 and USB 2.0 standards. For USB 2.0 it is strongly recommended to use a cable length not exceeding 3 metres. Page A - 8 © 2004 Kontron Modular Computers GmbH ID 25095, Rev. 07...

  • Page 173: Vga Connector Con23

    TTL Out Vsync Vertical sync. TTL Out Sdata I²C data In/Out Sclk I²C clock Power +5V 200 mA no fuse protection 5,6,7,8,10 Signal ground 4,11 Free ID 25095, Rev. 07 © 2004 Kontron Modular Computers GmbH Page A - 9...

  • Page 174: Functions Of The Serial Port Interfaces

    The following table gives the pinout of the optional onboard flatcable pinrow connectors CON18 (COM2) and CON17 (COM4). Table A-5: Serial Port Connectors CON18 (COM2) and CON17 (COM4) Pinout RS232 Page A - 10 © 2004 Kontron Modular Computers GmbH ID 25095, Rev. 07...

  • Page 175: Serial Port Connectors Con14 (Com1) And Con13 (Com3) Pinout

    RS232 Note ... To ensure the proper functioning of the rear I/O serial interfaces, the line driv- ers for COM1 and COM2 port on the CP605 must be disabled. See chapter 5.5.4 Front-Rear I/O for details). A.6.5 Fast Ethernet Interfaces The selection of rear I/O or baseboard front panel Fast Ethernet ports is made via the BIOS setup.

  • Page 176: Fast Ethernet Connectors Con25 Pinout

    I/O SIGNAL I/O SIGNAL I/O SIGNAL I/O SIGNAL I/O SIGNAL I/O SIGNAL BI_DA+ BI_DB+ BI_DA- BI_DB- BI_DB+ BI_DA+ BI_DC+ BI_DD+ BI_DC- BI_DD- BI_DB- BI_DA- BI_DD+ BI_DC+ BI_DD- BI_DC- Page A - 12 © 2004 Kontron Modular Computers GmbH ID 25095, Rev. 07...

  • Page 177: Ipmi Connector Con20 Pinout

    SIGNAL SIGNAL UART0_DIN UART0_DOUT UART0_CTS UART0_DCD UART0_RTS UART0_RI XMIT_EN ID_XMIT_EN CONN_ID0 CONN_ID1 CONN_ID_DRV 3.3V IPMI_VCC TACH_IN0 TACH_IN1 TACH_IN2 TACH_IN3 PWM0 PWM1 IPMIGPIO2 IPMI_VCC J2ALERT J2SDA J2SCL ID 25095, Rev. 07 © 2004 Kontron Modular Computers GmbH Page A - 13...

  • Page 178: Fan Control Connector Con 6 Pinout

    Table A-12: Fan Control Connector CON 10 (Optional) Pinout FUNCTION Ground Fan Supply Voltage Fansense(3) Table A-13: External Cooling Fan CON24 Pinout FUNCTION Ground External Fan Power Input (+12V or +5V) Ground Page A - 14 © 2004 Kontron Modular Computers GmbH ID 25095, Rev. 07...

  • Page 179: A.6.9 Eide Port

    DMA Ack IDEDACKA Ground signal Interrupt request IDEIRQ ATA100 Detect ATA100 Address 1 Address 0 Address 2 HD select 0 HCS0 HCS1 HD select 1 Ground signal ID 25095, Rev. 07 © 2004 Kontron Modular Computers GmbH Page A - 15...

  • Page 180: Floppy Drive Connector Con11 Pinout

    Make sure you plug the cable into the connector assigned to floppy drive “A:”. If it is plugged into the drive “B:” connector, no boot from the floppy drive is possible. Page A - 16 © 2004 Kontron Modular Computers GmbH ID 25095, Rev. 07...

  • Page 181: Parallel I/O Interface Connector Con19 Pinout

    Table A-16: Parallel I/O Interface Connector CON19 Pinout SIGNAL SIGNAL STROBE AUTOFD ERROR INIT SLCTIN BUSY SLCT A.6.12 Speaker Interface A speaker may be connected using the onboard connector CON12. ID 25095, Rev. 07 © 2004 Kontron Modular Computers GmbH Page A - 17...

  • Page 182: Backplane J3 Pin Definitions

    The CP-RIO6-05 is provided with three female rear I/O connectors J3, J4 and J5. The same pinouts apply to the matching rear I/O connectors P3, P4 and P5 of the CP605 baseboard. For convenience these tables are presented both here and in Chapter 2, “Functional Description and Configuration”...

  • Page 183: Backplane J3 Signal Functions

    Mouse data and clock FD* 7) Floppy signals SIDE*8 IDE secondary signals LPA* Gigabit Ethernet Link A LPB* Gigabit Ethernet Link B reserved Reserved for future use ID 25095, Rev. 07 © 2004 Kontron Modular Computers GmbH Page A - 19...

  • Page 184: Backplane J4 Pinout

    Failure to comply with the above may result in damage to your board. Legend for Backplane J4 Table 1) Parallel I/O interface signals 2) IPMI control signals Page A - 20 © 2004 Kontron Modular Computers GmbH ID 25095, Rev. 07...

  • Page 185: Backplane J5 Pinout

    RIO board with power and must not be supplied with external power. Failure to comply with the above may result in damage to your board. ID 25095, Rev. 07 © 2004 Kontron Modular Computers GmbH Page A - 21...

  • Page 186: A-21 Backplane J5 Signal Functions

    VGA CRT signals ROUT 8) Red signal GOUT 8) Green signal BOUT 8) Blue signal Horizontal Sync. HSYNC 8) VSYNC 8) Vertical Sync. PMC Rear I/O signals Page A - 22 © 2004 Kontron Modular Computers GmbH ID 25095, Rev. 07...

  • Page 187: Fan Power Supply Voltage Setting

    J1 closed Enable external cooling fan power J2 closed Supply voltage Vcc (5V) J3 closed Supply voltage 12V The default setting is indicated by using italic bold. ID 25095, Rev. 07 © 2004 Kontron Modular Computers GmbH Page A - 23...
  • Page 188 Rear I/O Module CP-RIO6-05 CP605 This page was intentionally left blank Page A - 24 © 2004 Kontron Modular Computers GmbH ID 25095, Rev. 07...

Table of Contents
